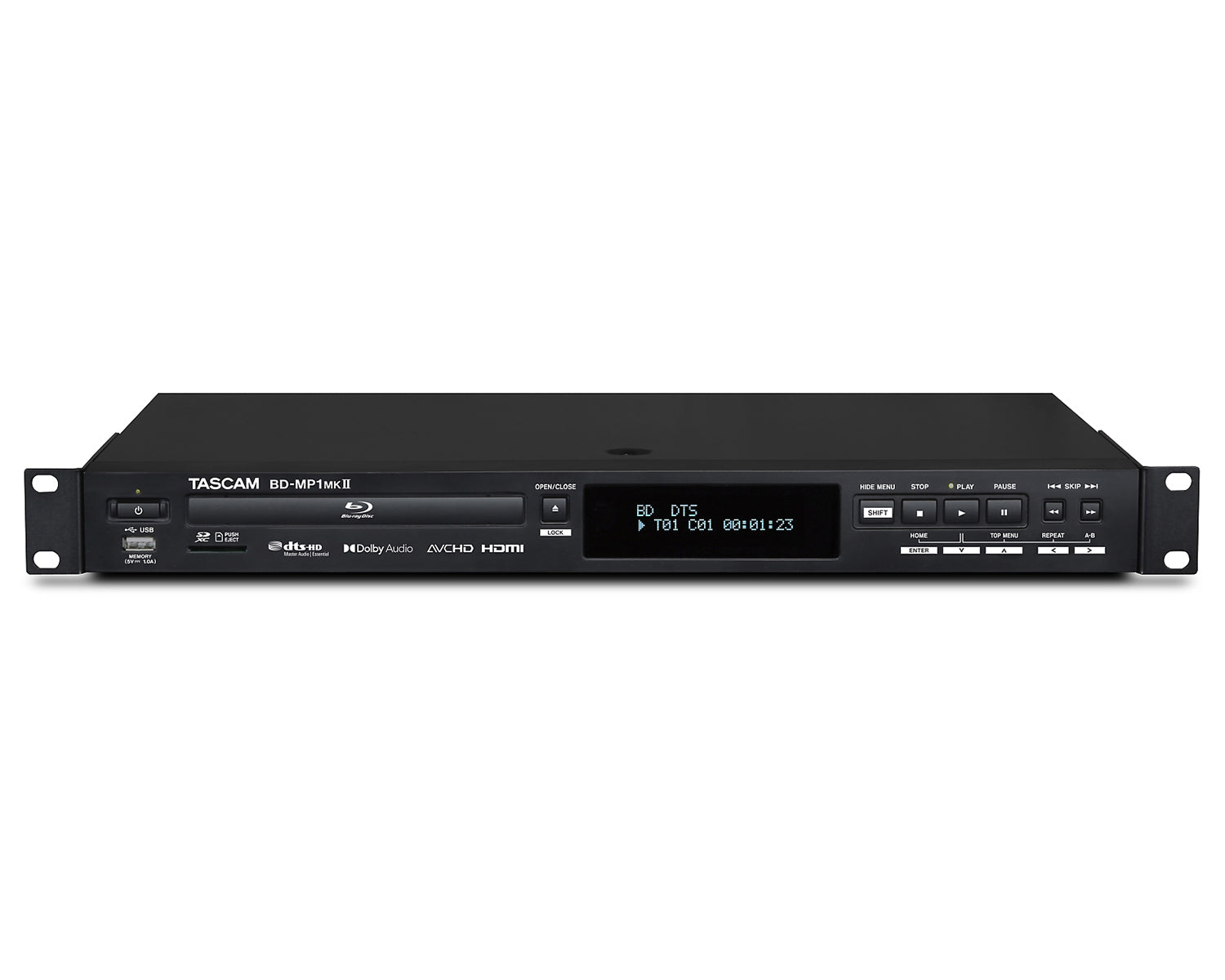

The BD-MP1MKII is a robust, single-rackspace multi-media video player for professional applications like permanent installation in the contractor market and touring. Building on the success of the Tascam BD-01U and BD-MP1, this high-definition playback device can be controlled via LAN, RS-232C and a wireless remote control, making it an ideal component of integrated media systems and a reliable video player for commercial AV, education, house of worship, boardroom and other high-stress installs or live touring.

Product features

Product Specifications

• Blu-ray: BD25, BD50, BD-ROM, BD-R (SL, DL), BD-RE (SL, DL) (Blu-ray 3D supported)
• Disc formats: BDMV, BDAV
• DVD: DVD, DVD+R (SL, DL), DVD-R (SL, DL), DVD+RW, DVD-RW
• Disc formats: DVD-Video, DVD-VR, AVCHD
• CD: CD-DA, CD-R, CD-RW
• SD: SD card with up to 512 GB total capacity
• Supported file systems: FAT16, FAT32, exFAT, NTFS
• USB: USB flash drive (mass storage class) with up to 2 TB total capacity
• Supported file systems: FAT16, FAT32, exFAT, NTFS

Supported file formats

• Video: 3GP, ASF, AVI, DAT, M2TS, MKV, MOV, MP4, MPG, OGM, RMVB, TP, TS, WMV
• Audio: AAC, APE, FLAC, MP3, WAV, WMA
• Still image: JPEG, GIF, PNG
• Subtitles: SUB, ASS, IDX+SUB

Audio resolution

• BD/DVD/USB/SD: Sampling frequency: 44.1/48/64/88.2/96/176.4/192 kHz | Bit width: 16/24 bit
• CD: Sampling frequency: 44.1/48 kHz | Bit width: 16/24 bit
• MP3/WMA: Sampling frequency: 32/44.1/48 kHz | Bit width: 16/24 bit | MP3 bit rate: 112–320 kbit/s | WMA bit rate: 48–192 kbit/s

Video

• Resolutions: Auto, 480i/576i, 480p/576p, 720p, 1080p
• Aspect ratios: 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
• Colour systems: NTSC, PAL, Multi (if supported by TV)
• HDMI colour space: RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr (4:2:2)

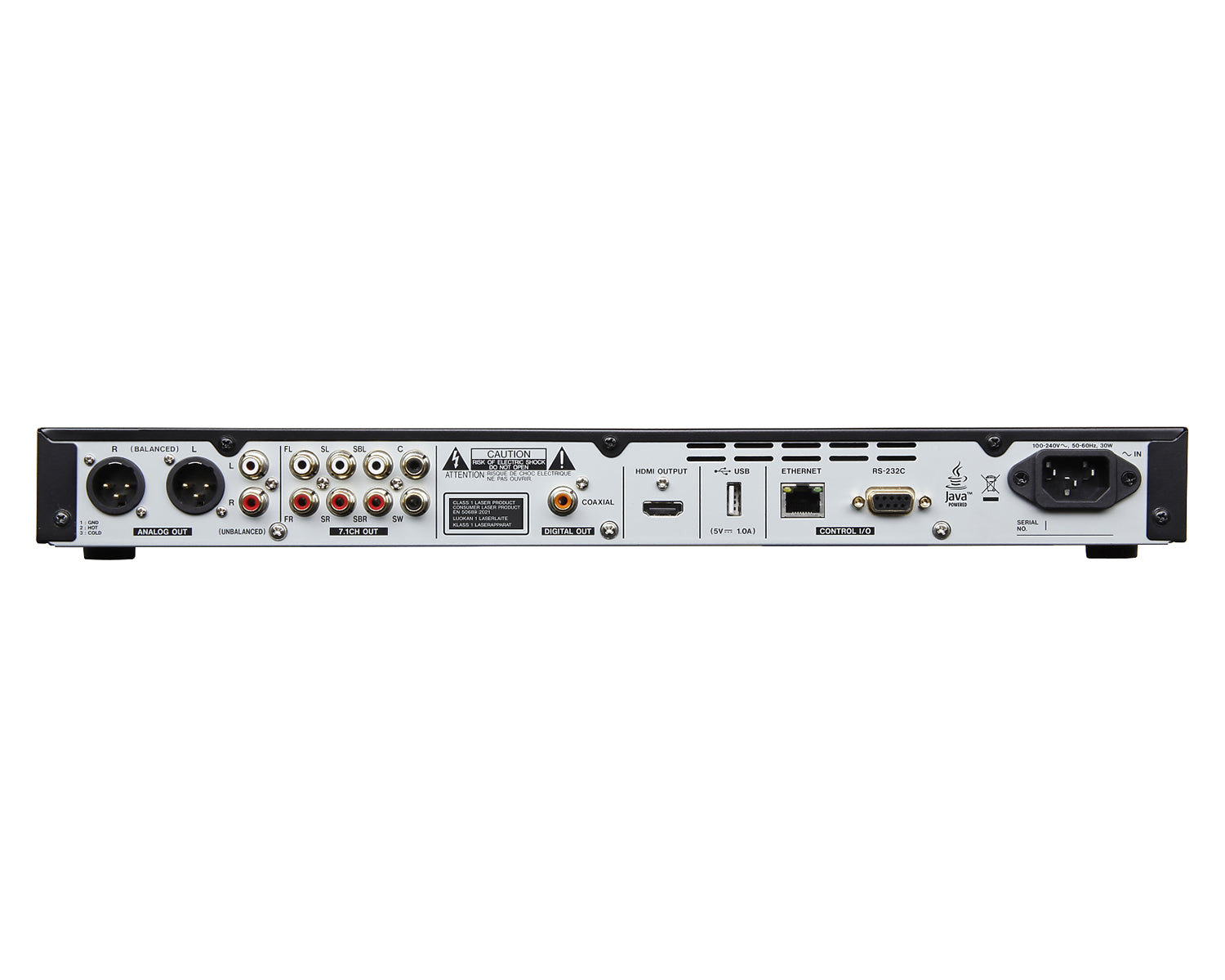

Analogue audio outputs

• Balanced: XLR-3-32 (1: GND, 2: HOT, 3: COLD)
• Nominal output level: +4 dBu (1.23 Vrms)
• Maximum output level: +20 dBu (7.75 Vrms)
• Output impedance: ≤200 Ω
• Unbalanced: RCA pin jacks
• Nominal output level: –10 dBV (0.316 Vrms)
• Maximum output level: +6 dBV (2.0 Vrms)
• Output impedance: ≤210 Ω
• 7.1: 8 × RCA pin jacks
• Nominal output level: –10 dBV (0.316 Vrms)
• Maximum output level: +6 dBV (2.0 Vrms)
• Output impedance: ≤210 Ω
• 0 dBu ≙ 0.775 Vrms, 0 dBV ≙ 1 Vrms

Audio performance

• Frequency response: 20 Hz – 20 kHz, ±0.5 dB
• Signal-to-noise ratio: ≥ 96 dB (JEITA)
• Total harmonic distortion: ≤ 0.03 % (1 kHZ, JEITA)
• Dynamic range: ≥ 96 dB (JEITA)
• Channel separation: ≥ 89 dB
• JEITA: Compliant with JEITA CP-2150

Digital outputs

• HDMI output: 19-pin HDMI, Type A
• Coaxial audio output: RCA pin jack
• Format: IEC 60958-3 (SPDIF)
• Output impedance: 75 Ω

Other inputs and outputs

• RS-232C: D-sub 9-pin
• Mode: Full duplex
• Baud rate: 9600, 38400 bits/s (selectable)
• Ethernet: RJ45
• Supported standards: 10BASE-T, 100BASE-TX
• Cable requirements: Category 5e or better
• USB: USB A-type (1 × front, 1 × rear)
• Protocol: USB 2.0 compliant
• Rated supply voltage: DC 5 V, 1 A

Power supply and other specifications

• Power connector: IEC receptacle
• Power requirements: AC 100–240 V, 50/60 Hz
• Power consumption: 30 W (typical) < 0.5 W (standby)
• Dimensions (W × H × D): 483 mm × 44 mm × 281 mm
• Weight: 3 kg
• Permissible operating temperature: 5–35 °C
• Permissible operating humidity: 25–85 %, no condensation

Included accessories

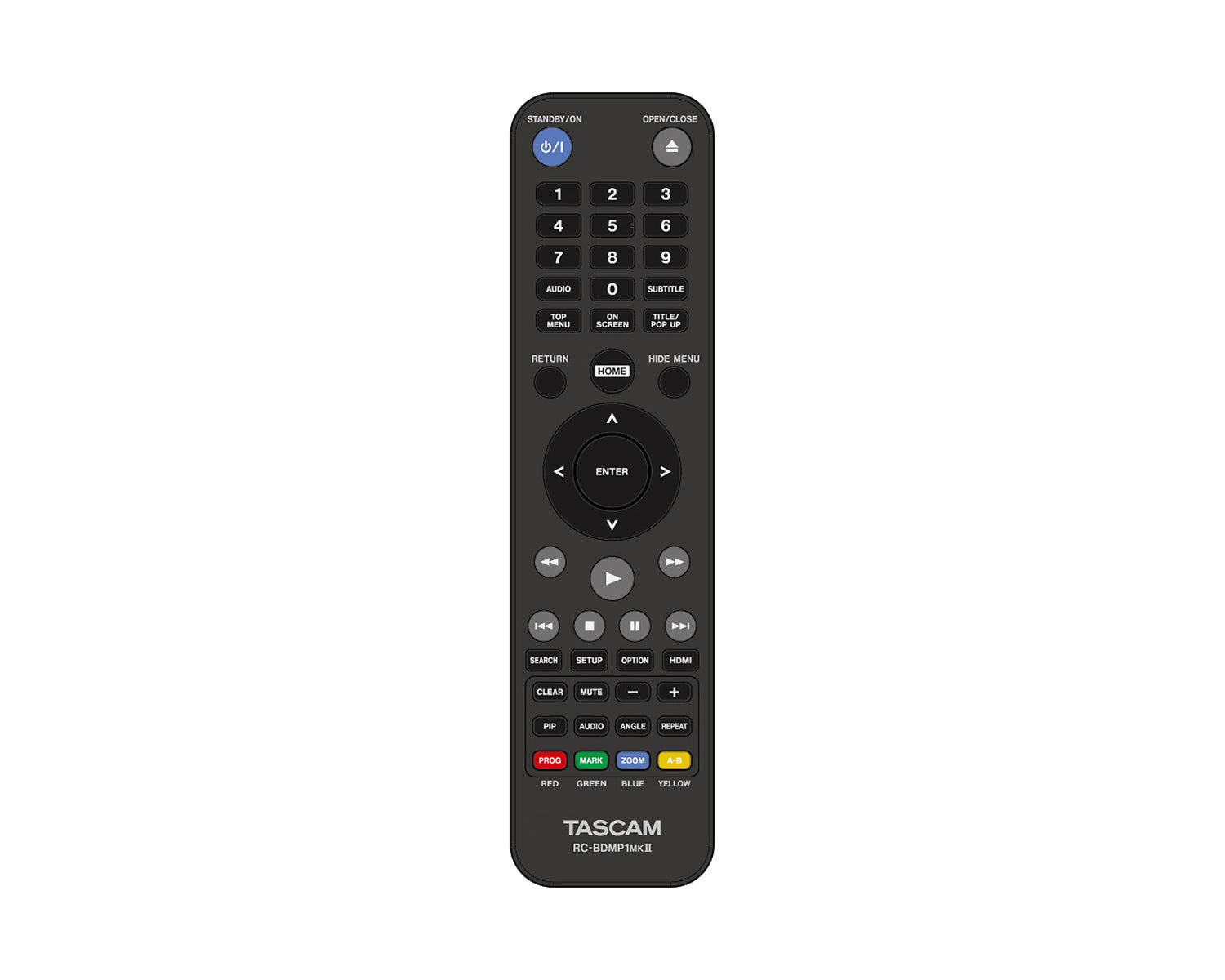

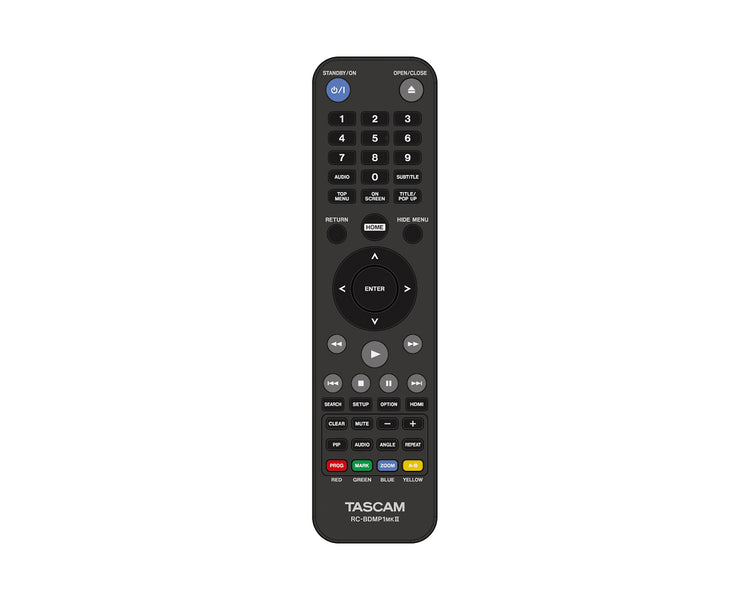

• IR remote control (RC-BDMP1)
• AC power cable
• rack-mounting kit (4 screws, 4 washers)
• Owner’s manual
