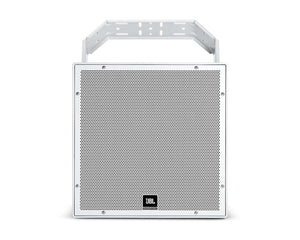

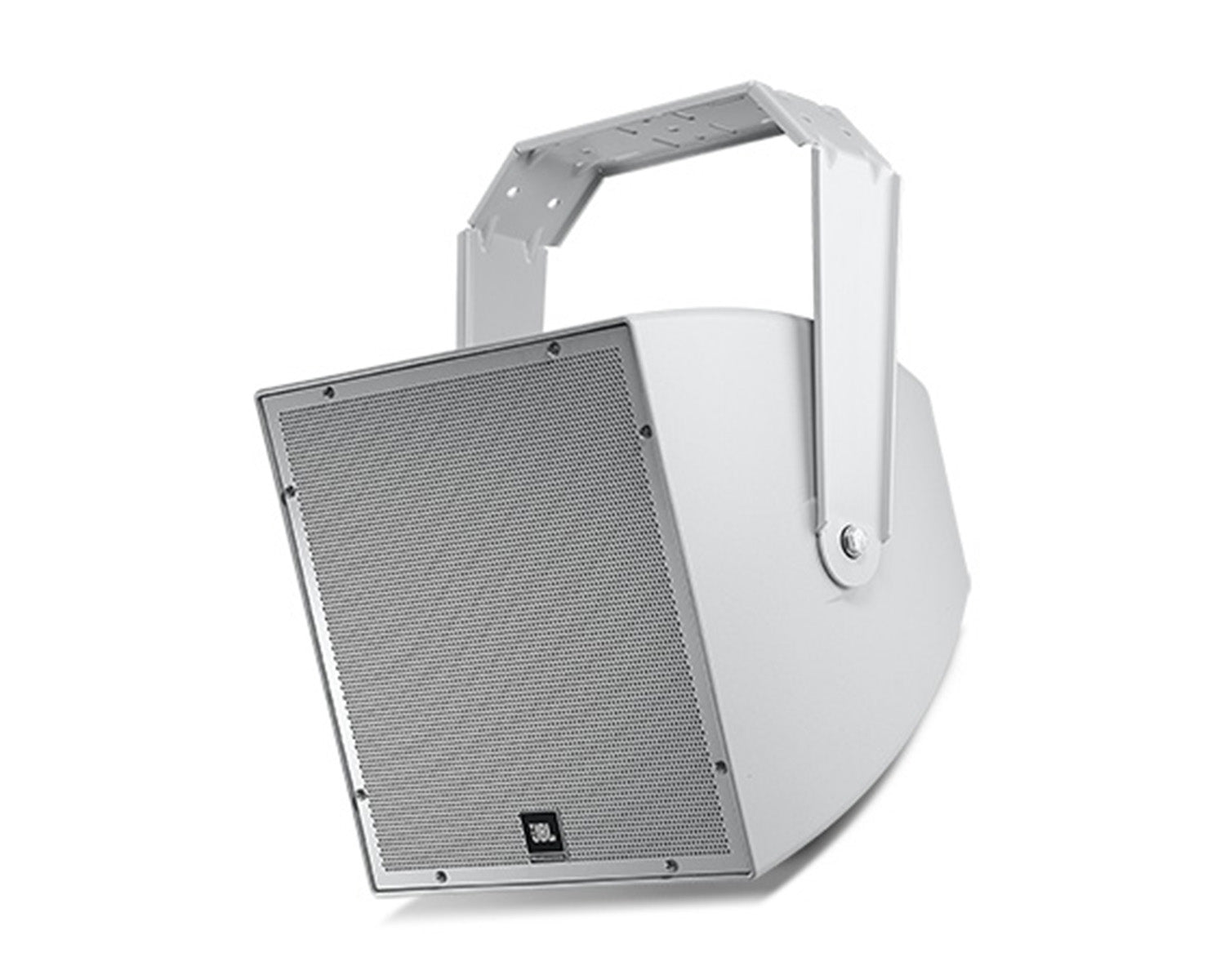

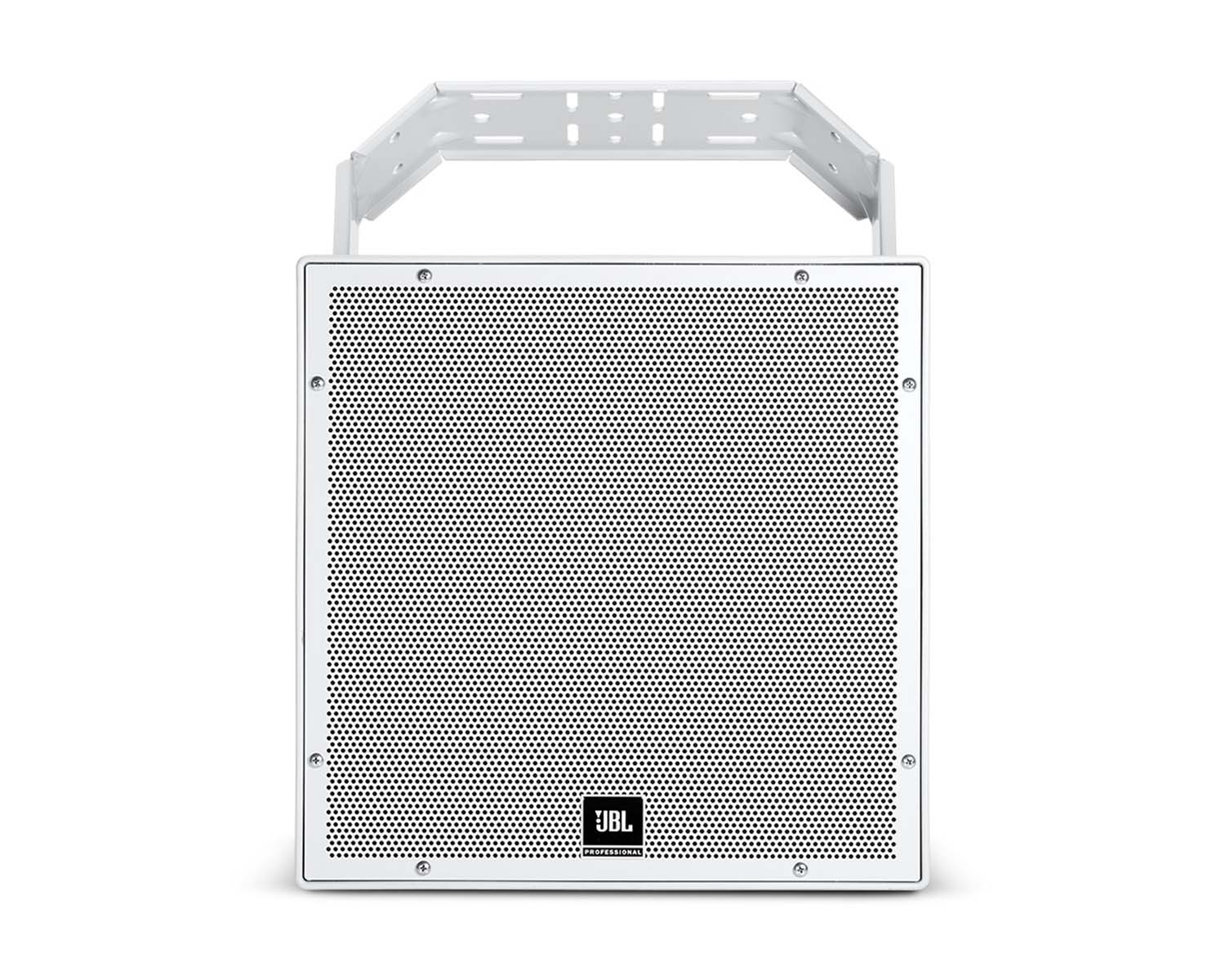

JBLAWC15LF - JBL AWC15LF All Weather Coaxial Loudspeaker 500W IP56 Grey Image 1

JBLAWC15LF - JBL AWC15LF All Weather Coaxial Loudspeaker 500W IP56 Grey Image 2

The AWC15LF is a compact highly weather-resistant loudspeaker for augmenting the low-frequency capability of a sound system. AWC15LF is ideal for many applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music systems, swimming pools, and a wide variety of other outdoor and indoor venue types.

Product Features

Low-frequency reinforcement for outdoor applications
Highly weather-resistant IP56 rating
Component: 380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
500 Watt power handling (average continuous pink noise)
Frequency range down to 45 Hz
300 Watt 70V/100V multi-tap transformer or direct 8Ω low-impedance.
Finish: Grey

Product Specifications

System

Frequency Range (-10 dB)1: 45 Hz – 2.2 kHz
Frequency Response (±3 dB)1: 70 Hz – 1.2 kHz
Long-Term System Power Rating (IEC)2:
500 W (2000 W peak), 2 hrs.
350 W (1400 W peak), 100 hrs
Sensitivity (2.83V @ 1m): 94 dB (Ave. 80 Hz – 300 kHz)
Maximum SPL3:
Direct 8Ω: 121 dB (peaks of 127 dB)
300 W Tap: 119 dB (peaks of 125 dB)
Nominal Impedance: 8 ohms
Transformer Taps:
70V: 300W, 150W, 75W, 38W
100V: 300W, 150W, 75W

Transducers

Low Frequency Driver: 380 mm (15 in), Kevlar-reinforced cone, with weather treatment, 75 mm (3 in) voice coil, long throw.

Physical

Enclosure: ABS with Glass enclosure, heavily braced
Attachment: Two M10 (fine-thread) points for included U-bracket. Reference torque 15 ft.lb (20 N.m). M6 secondary safety attachment point on back panel.
Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16”) and 9.0 mm (0.36”)
Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle.
Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs)
Dimensions:
486 x 486 x 479 mm (19.1 x 19.1 x 18.8 in), cabinet
507 mm (19.9 in) depth including gland nut
546 mm (21.5 in) including bracket extending to back
Net Weight: 20.2 kg (44.5 lb), 23 kg (50.5 lb) with U-bracket
Shipping Weight: 27 kg (59.5 lb)
