The AvoKey is a USB dongle that plugs into your console or laptop and allows you to upgrade to Titan v12 or Ai v12.

If you do not wish to upgrade your software, it is not compulsory. Titan v11 and Ai v10 will run without an AvoKey and point versions have been released to ensure the software performs at optimum level.

A Red AvoKey that plugs directly into the motherboard of your console or media server.

Needed for (Consoles): Quartz, Arena, Sapphire, Titan Net Processor, Touch Tiger Touch Pro, Tiger Touch II, Tiger Touch & Pearl Expert

Needed for (Media Servers): R Series, RX Series, S Series, T Series, EX Series. The Q3 is already factory fitted with an AvoKey.

Product Features

External AvoKey (31-30-0020)

• Silver AvoKey that plugs into your laptop to access v12 on your Titan Mobile or Ai License (please note the Ai license will be loaded onto the AvoKey, you will not need your old Ai license to access Ai v11 and above).
• Needed for: Titan Mobile, Anjuna, Miami & Bondi Ai licenses

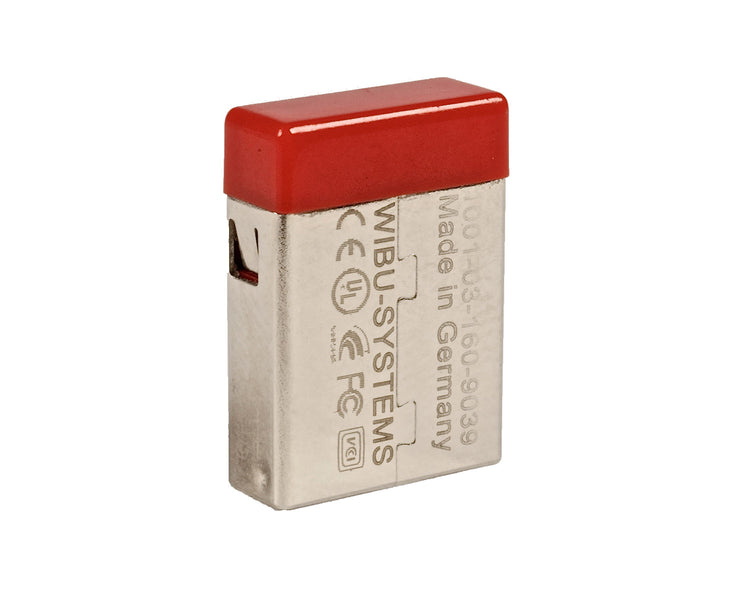

Internal AvoKey (31-30-0021)

• Red AvoKey that plugs directly into the motherboard of your console or media server.
• Needed for (Consoles): Quartz, Arena, Sapphire, Titan Net Processor, Touch Tiger Touch Pro, Tiger Touch II, Tiger Touch & Pearl Expert
• Needed for (Media Servers): R Series, RX Series, S Series, T Series, EX Series. The Q3 is already factory fitted with an AvoKey.

Editor AvoKey (31-30-0022)

• Silver AvoKey that plugs into any laptop to unlock v12 simulator and v12 on your old Titan One
• Needed for: Titan One, Titan PC Suite V12 Simulator

Eligible Products

Quartz

• AvoKey: Internal (Red) 31-30-0021
• Once you\'ve received your AvoKey, you will be required to connect this directly to the available USB port inside the console (on the motherboard).
• Quartz consoles (Serial 3001 and above) include a factory fitted AvoKey. Therefore, you do not need to purchase an AvoKey.

Tiger Touch Pro

• AvoKey: Internal (Red) 31-30-0021
• Once you\'ve received your AvoKey, you will be required to connect this directly to the available USB port inside the console (on the motherboard).

Tiger Touch II (Serial 02006 - 03065)

• AvoKey: Internal (Red) 31-30-0021
• Using 1x5 way to USB-A Cable: 1808-0028
• Once you\'ve received your AvoKey and 1x5 way to USB-A Cable, you will be required to connect the USB-A Cable to the motherboard. This cable will provide an additional USB port for the AvoKey.

Tiger Touch II (Serial 03066 - 4020)

• AvoKey: Internal (Red) 31-30-0021
• Once you\'ve received your AvoKey, you will be required to connect this directly to the available (Blue) USB port inside the console (on the motherboard).

Tiger Touch II (Serial 04021 - Onwards)

• AvoKey: Internal (Red) 31-30-0021
• Once you\'ve received your AvoKey, you will be required to connect this directly to the available (Red) USB port inside the console (on the motherboard).
• Tiger Touch II consoles (Serial 5001 and above) include a factory fitted AvoKey. Therefore, you do not need to purchase an AvoKey.

Tiger Touch & Pearl Expert

• AvoKey: Internal (Red) 31-30-0021
• Once you\'ve received your AvoKey, you will be required to connect this directly to the available (Blue or Red) USB port inside the console (on the motherboard). If this port is not available, please follow the steps provided in the installation guide.
• Tiger Touch and Pearl Expert (Upgraded): Kit required: 8000 – 6103

Arena

• AvoKey: Internal (Red) 31-30-0021
• Once you\'ve received your AvoKey, you will be required to connect this directly to the available USB port inside the console (on the motherboard).
• Arena consoles (Serial 1001 and above) include a factory fitted AvoKey. Therefore, you do not need to purchase an AvoKey.

Sapphire Touch

• AvoKey: Internal (Red) 31-30-0021
• Kit required: 8000-6102
• Once you\'ve received your AvoKey and 1x5 way to USB-A Cable included in your kit, you will be required to connect the USB-A Cable to the motherboard. This cable will provide an additional USB port for the AvoKey.
• Sapphire Touch consoles (Serial 1001 and above) include a factory fitted AvoKey. Therefore, you do not need to purchase an AvoKey.

Titan Net Processor

• AvoKey: Internal (Red) 31-30-0021
• Once you\'ve received your AvoKey, you will be required to connect this directly to the available USB port inside the console (on the motherboard).
• Titan Net Processors (Serial 1001 and above) include a factory fitted AvoKey. Therefore, you do not need to purchase an AvoKey.

R Series

• Once you have received your key, you will then need to follow the instructions on the authenticator. (Find the Authenticator Guide in the ‘Downloads’ tab)

RX Series

• Once you have received your key, you will then need to follow the instructions on the authenticator. (Find the Authenticator Guide in the ‘Downloads’ tab)

S Series

• Once you have received your key, you will then need to follow the instructions on the authenticator. (Find the Authenticator Guide in the ‘Downloads’ tab)

T Series

• Once you have received your key, you will then need to follow the instructions on the authenticator. (Find the Authenticator Guide in the ‘Downloads’ tab)

EX Series

• Once you have received your key, you will then need to follow the instructions on the authenticator. (Find the Authenticator Guide in the ‘Downloads’ tab)

Q3

• The Q3 is already factory fitted with an AvoKey.
• To unlock v12, please follow the steps on the Authenticator. (Find the Authenticator Guide in the ‘Downloads’ tab)
