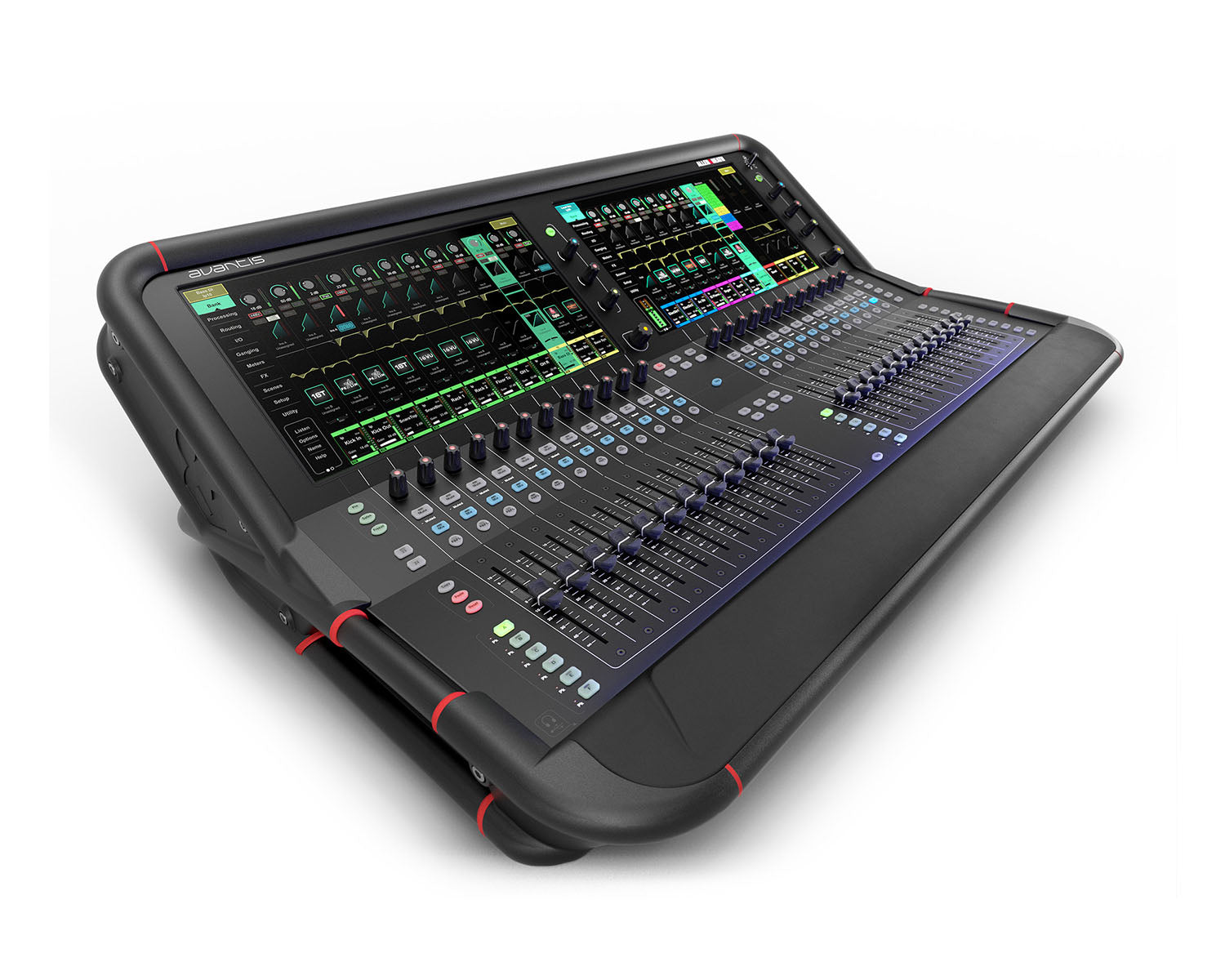

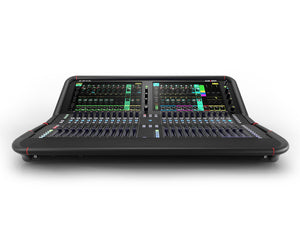

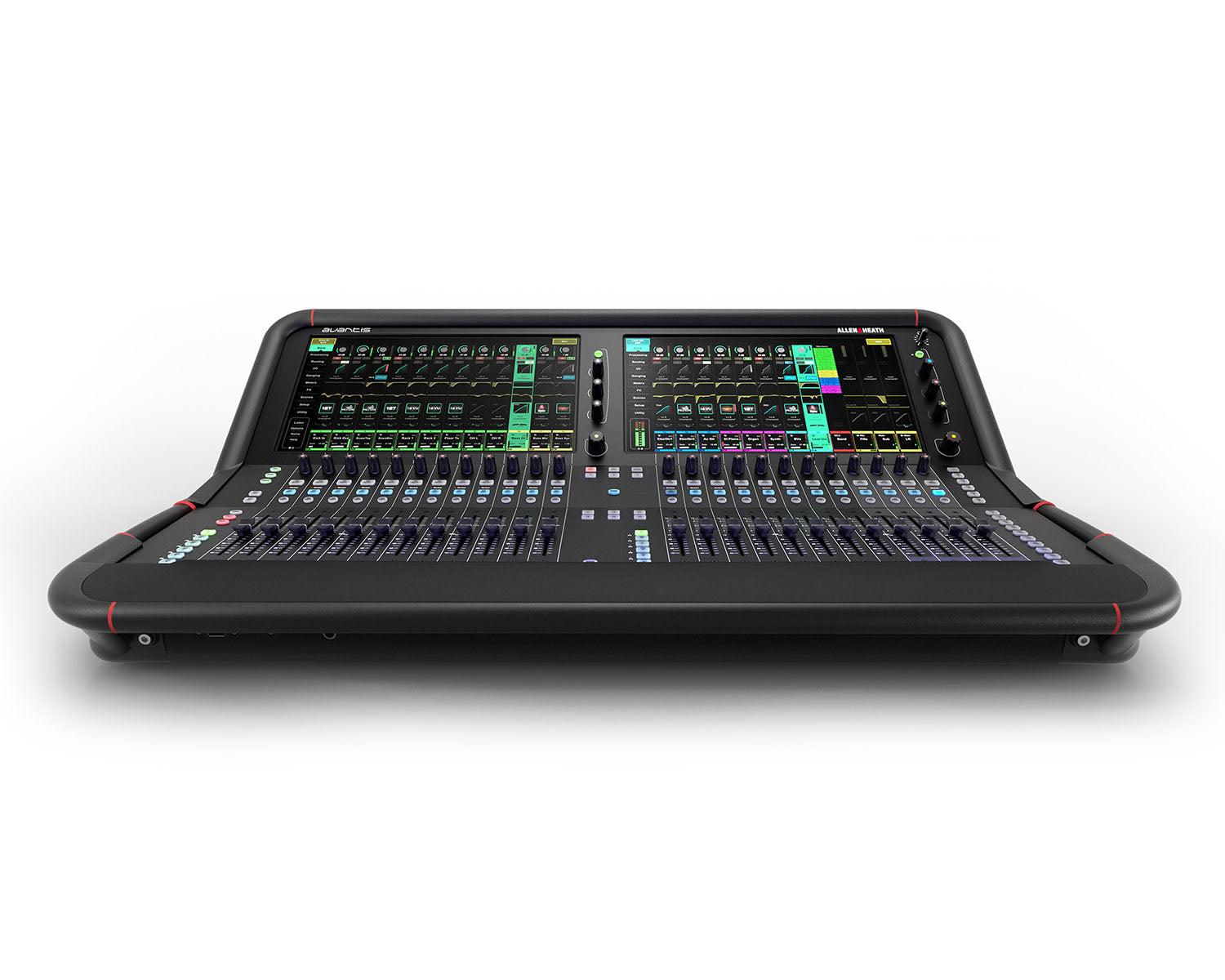

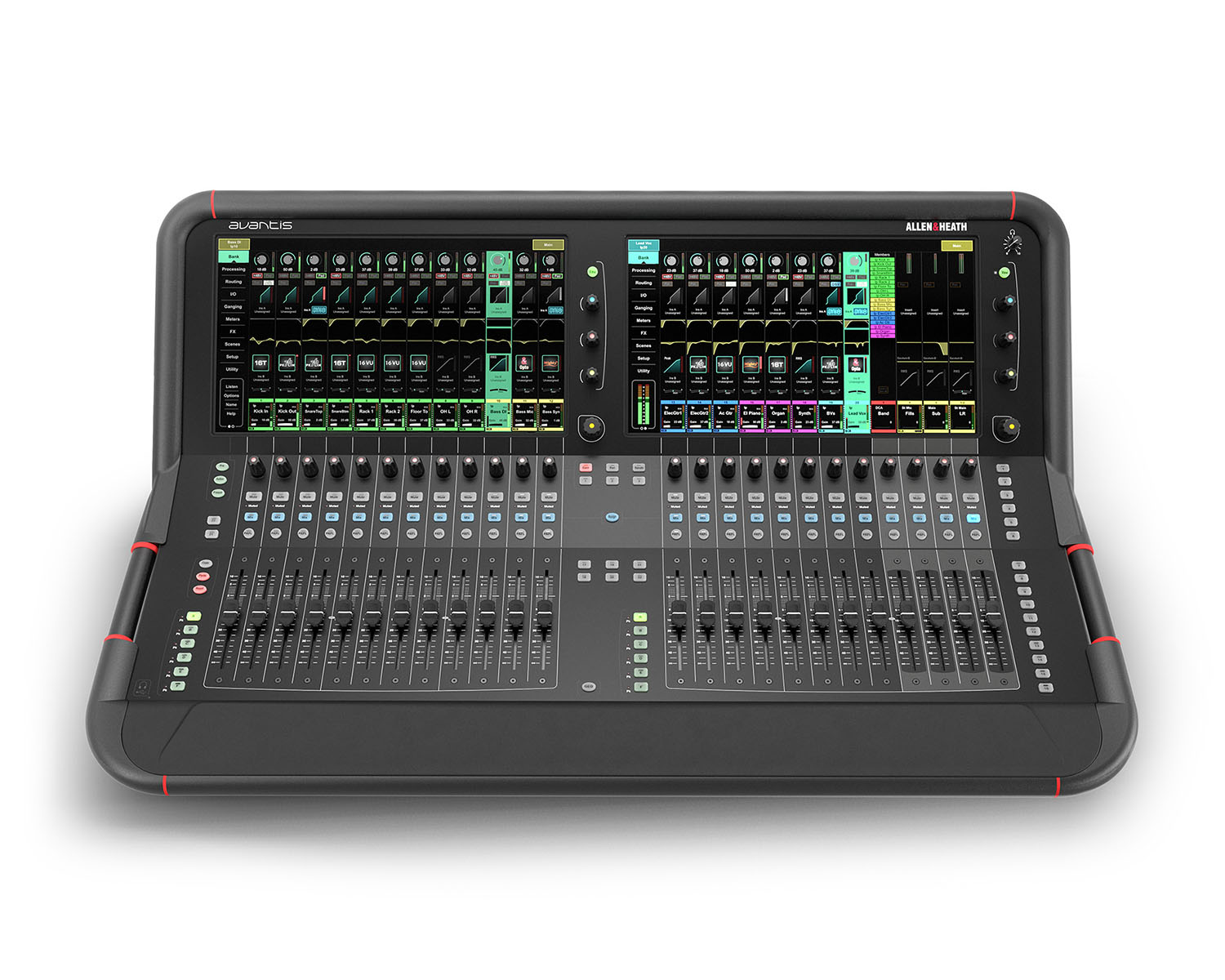

The Avantis digital mixer provides 64 mono input channels, 12 stereo FX returns and 42 flexible mix buses. The third mixer based on their 96kHz XCVI FPGA engine, Avantis puts all their next‐generation technology in a standalone 64 channel / 42 configurable bus console, with dual Full HD touchscreens, a super‐flexible workflow with Continuity UI, extensive I/O options, add‐on processing from their flagship dLive mixing system, and a rugged full metal chassis. Fully compatible with all the dLive I/O cards, the full ‘Everything I/O’ range and IP controllers.

Product Features

• XCVI FPGA core

  • 96kHz sample rate
  • Variable bit depth
  • 96bit accumulator
  • Class leading, ultra-low latency (0.7ms)
• Twin 15.6” Full HD capacitive touchscreens with gesture control
• Innovative compact design with super-tough, lightweight full-metal chassis
• 64 Input Channels with full processing (LPF/HPF, Gate, PEQ, Comp, Delay)
• Configurable 42 bus architecture with full processing (PEQ, GEQ, Comp, Delay) on Mix Outputs.
• DEEP Processing Ready
• 144 fader strips (24 faders, 6 layers) with optional dedicated master section
• SLink EtherCON connection for remote audio using gigaACE, GX, DX, ME and dSnake protocols.
• 12 Local Mic/Line Inputs (XLR)
• 12 Local Line Outputs (XLR)
• 1 Stereo AES Input (XLR)
• 2 Stereo AES Outputs (XLR)
• 2 I/O Ports, both capable of 128x128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
• 8 Mute Groups
• 16 DCA Groups with DCA Spill
• 12 Stereo FX with dedicated FX Returns
• 24 Assignable SoftKeys
• 6 Assignable Custom Rotaries
• Comprehensive metering with multipoint peak detection
• Integrated Fader Illumination
• Built-in signal generator, RTA and spectrogram
• AMM (Automatic Mic Mixer) up to 64 channels across 1,2 or 4 zones
• Quick copy/paste/reset for parameters
• User Permissions to restrict operator access
• 500 Scene memories per show
• Channel Safes, Global and per Scene Recall Filters
• USB stereo recording and playback
• USB transfer of Scenes, Libraries, Shows
• MIDI Control Driver for MIDI control via TCP/IP
• Wireless remote mixing apps for iPad
• BNC Word Clock connector (input or output)
• ¼” TRS and 3.5mm Headphone outs with dedicated analogue volume control

Product Specifications

System

• Measured balanced XLR In to XLR Out, 22-40kHz, minimum Gain, Pad out
• Dynamic Range: 109dB
• System Signal to Noise: -92dB
• Frequency Response: 20Hz - 30kHz (+0/-0.8dB)
• THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
• Headroom: +18dB
• Internal operating Level: 0dBu
• dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
• Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
• Meter Peak indication: -3dBFS (+19dBu at XLR out)
• Sampling Rate: 96kHz
• Operating Temperature Range: 0 deg C to 40 deg C
• Mains Power: 100-240V AC, 50-60Hz, 150W max
• USB Audio recording: Stereo .WAV files, 24bit 96kHz
• USB Audio playback:
  • 16/24bit, 44.1/48/96kHz
  • MP3 files
  • FLAC files

Inputs

• Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
• Mic/Line Preamp: Fully recallable
• Input Sensitivity: -60 to +15dBu
• Analogue Gain: +5 to +60dB, 1dB steps
• Pad: -20dB Active PAD
• Maximum Input Level: +30dBu (PAD in)
• Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
• Mic EIN: -127dB with 150Ω source
• Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at +24V
• Digital Inputs:
  • AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
  • SRC range 24 bit, 32k - 192kHz, with bypass option

Outputs

• Analogue XLR Outputs: Balanced, Relay protected
• Output Impedance: <75Ω
• Nominal Output: +4dBu = 0dB meter reading
• Maximum Output Level: +22dBu
• Residual Output Noise:
• -95dBu (muted, 22-22kHz)
• -90dBu (muted, 0-80kHz)
• Digital Outputs:
  • AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
  • 96kHz sampling rate, globally switchable to 48kHz, 44.1kHz

Physical & Dimensions

• Width x Depth x Height: 917 x 627 x 269 mm
• Weight: 26kg

What's in the Box?

• Avantis Digital Mixing Console
• Getting Started Guide AP11558
• Safety Sheet
• IEC Mains Lead
