Designed for use on professional tours, in stadiums, concert halls, festivals, houses of worship and other demanding audio environments, the Audio-Technica 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

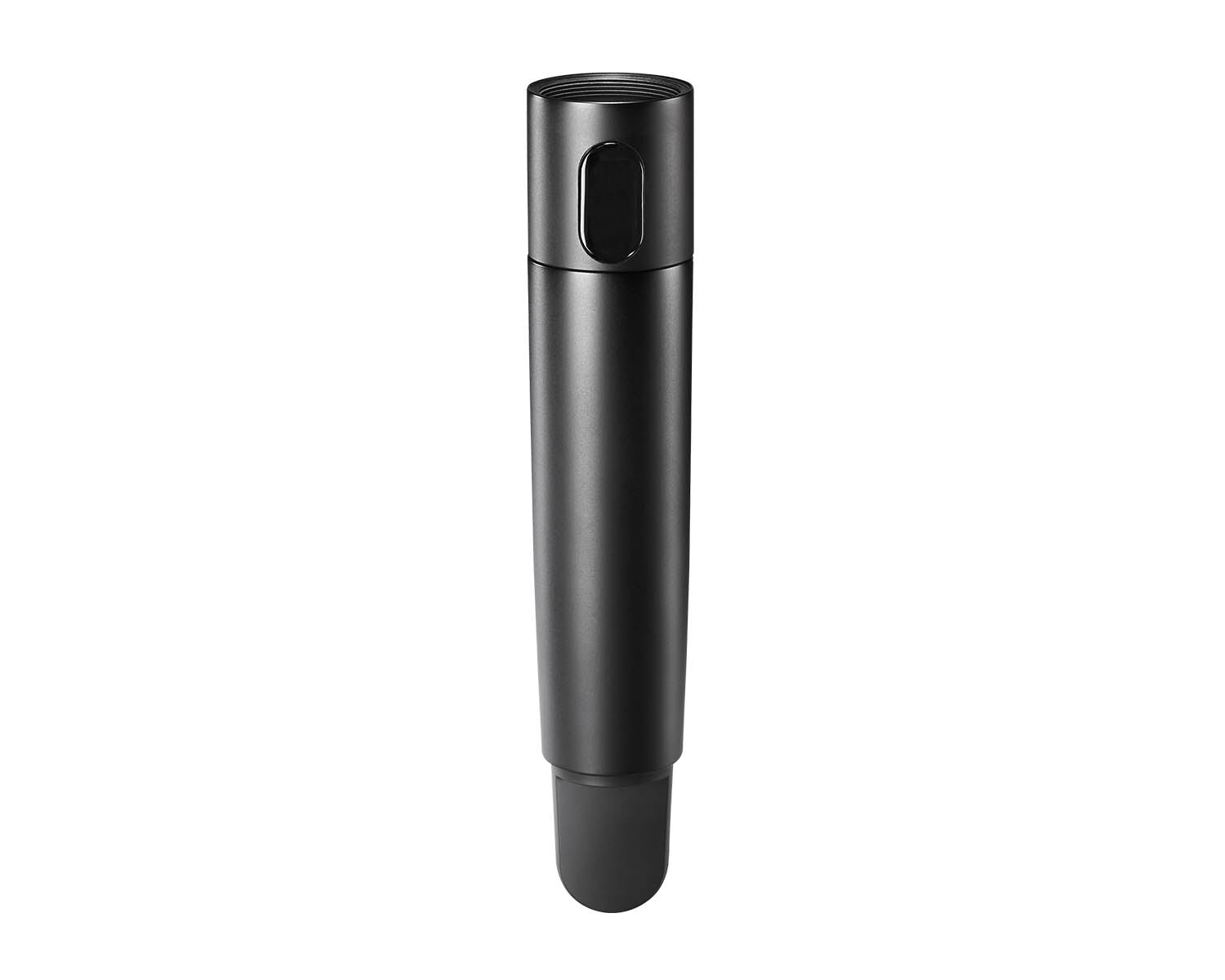

ATW-T5202 handheld transmitter for use with the 5000 Series offers the highest-quality wireless live sound, with dual-compander circuitry that processes high and low frequencies separately. The transmitter features rugged, ergonomic metal body, highly visible OLED screen (switchable between standard and performance views to highlight key metering), programmable features, soft-touch controls, and switchable RF power (2 mW/10 mW/50 mW). Available in three different frequency ranges – DE1 (470–590 MHz), EG1 (580–700 MHz) and GH1 (700–820) – to provide complete coverage of the receiver’s bandwidth. The ATW-T5202 includes a high-pass filter and an industry-standard thread mount that allows for the use of six interchangeable A-T microphone capsules, as well as other compatible capsules. More features are the auto squelch function which automatically adjusts the squelch setting to maximize operating range while minimizing potential interference and a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference. Software enables remote monitoring and control of the wireless system.

Two receivers are available for use with the 5000 Series: ATW-R5220 with two balanced XLR outputs and ATW-R5220DAN that also includes a Dante output.

5000 Series components and compatible accessories are offered as individual, à la carte products to give you the greatest possible flexibility in constructing a system that fits your needs.

Please note that some frequency bands might not be available in your territory or could come with limited tuning bandwidth / transmitting power due to local regulations. For assistance with frequency coordination, please contact your regional Audio-Technica customer service representative.

Product Features

• Handheld transmitter provides 120 MHz UHF tuning bandwidth (DE1: 470–590 MHz, EG1: 580–700 MHz, GH1: 700–820) for maximum versatility in an ever-congested RF environment
• Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• Auto squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Dual compander circuitry processes high and low frequencies separately for unmatched audio quality
• Highly visible OLED transmitter screen (switchable between standard and performance views to highlight key metering)
• Six interchangeable microphone capsules (based on best-selling Audio-Technica models) that use industry-standard thread mount
• Robust, ergonomic full metal body with concealed soft-touch controls and IR sync functionality
• Programmable features and switchable 2/10/50 mW RF power
• Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
• Wireless network monitoring and control software
• 5000 Series components are offered individually – not as preconfigured systems – for greater flexibility

Product Specifications

• RF output power*1: High: 50 mW, Mid: 10 mW, Low: 2 mW (switchable), at 50 ohms
• Spurious emissions: Following federal and national regulations
• Microphone capsule: Interchangeable industry standard thread
• High-pass (low-freq. roll-off): 80 Hz, 6dB/octave
• Batteries: Two 1.5V AA, not included
• Operating temperature range: -5 ºC to +40 ºC (23 º F to 104 ºF)
• Battery life: High: 6.5 hours*2, Mid: 8 hours*2, Low: 9.5 hours*2 (alkaline)
• Dimensions
  • ATW-T5202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter
  • ATW-T5202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter
  • ATW-T5202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter
• Weight (without batteries)
  • ATW-T3202 (without capsule): 200 g (7.1 oz)
  • ATW-T5202/C510: 330 g (11.6 oz)
  • ATW-T5202/C710: 314 g (11.1 oz)
• Included accessories: AT8456a Quiet-Flex™ stand clamp (5/8"-27 male to 3/8"-16 female threaded screw adapter), Protective carrying case (AT-BG3)

*1 May differ depending on the country or region in which you live.

*2 Depending on battery type, usage and environmental conditions

What's in the Box?

• ATW-T5202 Handheld Wireless Transmitter
• AT8456a Quiet-Flex™ stand clamp (5/8"-27 male to 3/8"-16 female threaded screw adapter)
• Protective carrying case (AT-BG3)
