Designed for use on professional tours, in stadiums, concert halls, festivals, houses of worship and other demanding audio environments, the Audio-Technica 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

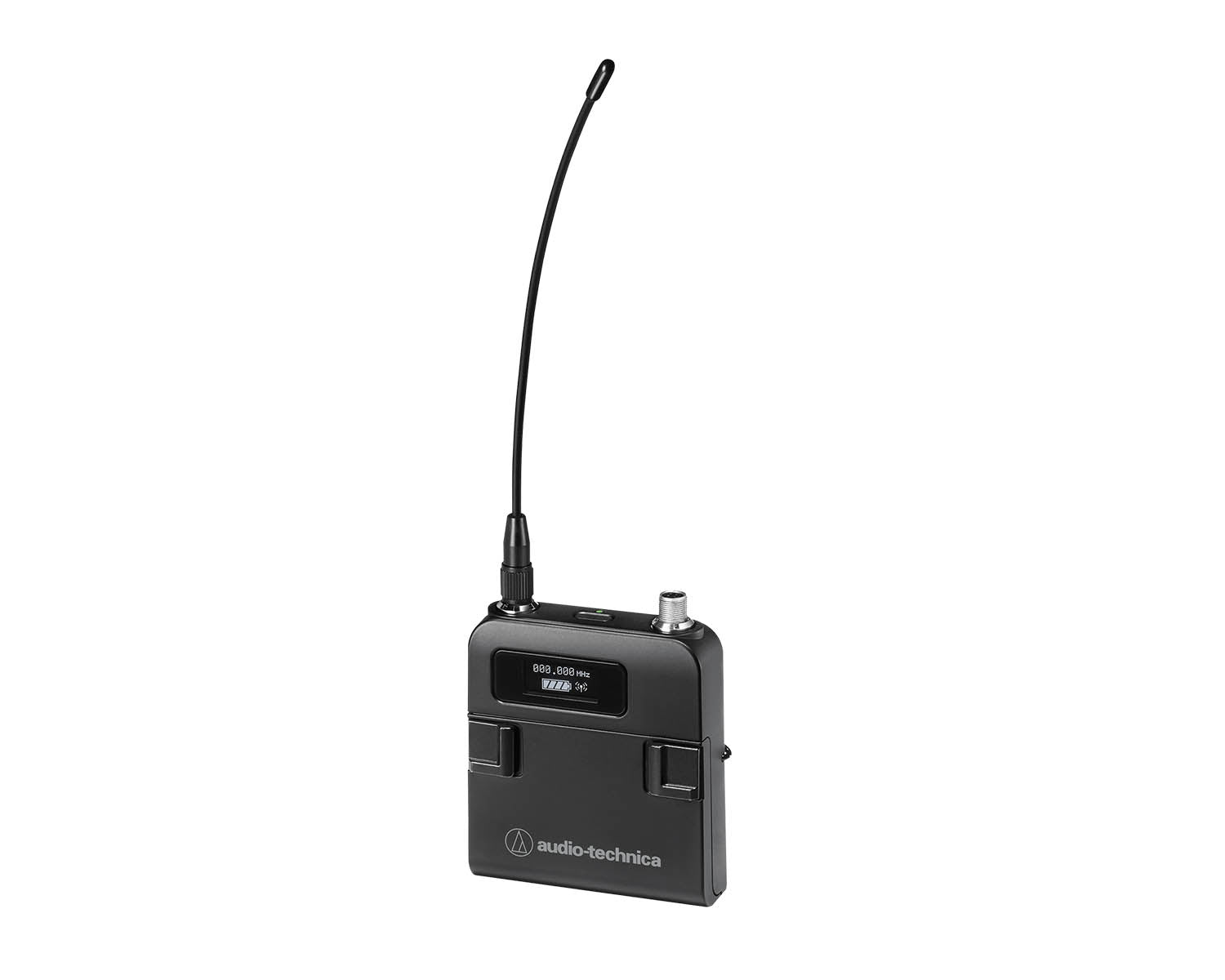

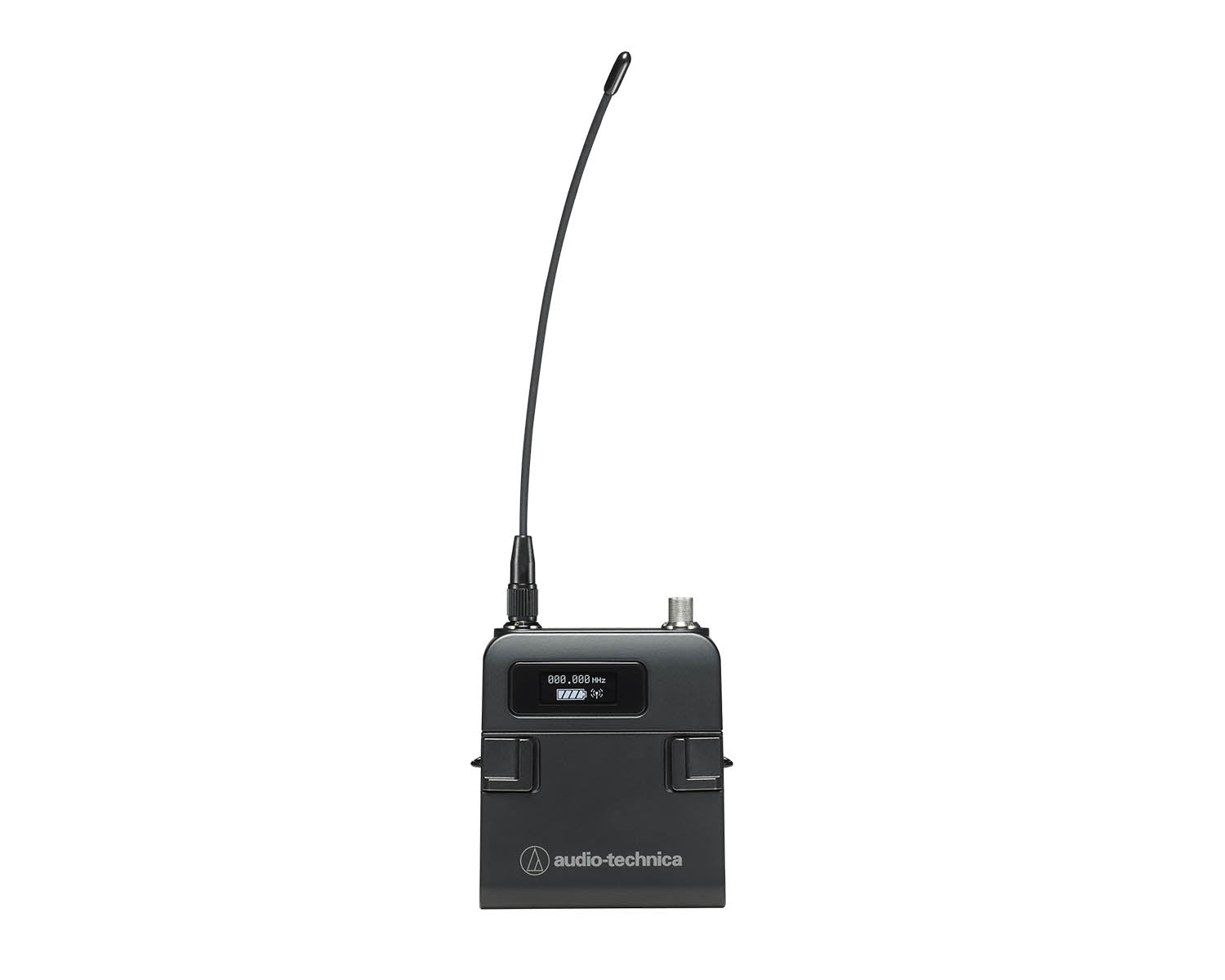

ATW-T5201 body-pack transmitter for use with the 5000 Series offers the highest-quality wireless live sound, with dual-compander circuitry that processes high and low frequencies separately. The transmitter features rugged, ergonomic metal body, highly visible OLED screen (switchable between standard and performance views to highlight key metering), programmable features, soft-touch controls, and switchable RF power (2 mW/10 mW/50 mW). Available in three different frequency ranges – DE1 (470–590 MHz), EG1 (580–700 MHz) and GH1 (700–820) – to provide complete coverage of the receiver’s bandwidth. The compact ATW-T5201 is equipped with Audio-Technica’s new rugged cH-style screw-down 4-pin connector for secure connection to A-T’s cH-style lavalier and headworn microphones, or cables. More features are the auto squelch function which automatically adjusts the squelch setting to maximize operating range while minimizing potential interference and a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference. Software enables remote monitoring and control of the wireless system.

Two receivers are available for use with the 5000 Series: ATW-R5220 with two balanced XLR outputs and ATW-R5220DAN that also includes a Dante output.

5000 Series components and compatible accessories are offered as individual, à la carte products to give you the greatest possible flexibility in constructing a system that fits your needs.

Please note that some frequency bands might not be available in your territory or could come with limited tuning bandwidth / transmitting power due to local regulations. For assistance with frequency coordination, please contact your regional Audio-Technica customer service representative.

Product Features

• Body-pack transmitter provides 120 MHz UHF tuning bandwidth (DE1: 470–590 MHz, EG1: 580–700 MHz, GH1: 700–820) for maximum versatility in an ever-congested RF environment
• Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• Auto squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Dual compander circuitry processes high and low frequencies separately for unmatched audio quality
• Highly visible OLED transmitter screen
• Highest possible wearing comfort due to small size - 64 mm × 70 mm × 17 mm (W × D × H)
• Robust, ergonomic full metal body with concealed soft-touch controls and IR sync functionality
• Programmable features and switchable 2/10/50 mW RF power Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
• Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
• Wireless network monitoring and control software
• 5000 Series components are offered individually – not as preconfigured systems – for greater flexibility

Product Specifications

• RF output power*1: High: 50 mW, Mid: 10 mW, Low: 2 mW (switchable), at 50 ohms
• Spurious emissions: Following federal and national regulations
• Input connection: Four pin locking connector
  • Pin 1: GND
  • Pin 3: MIC INPUT
  • Pin 2: INST INPUT
  • Pin 4: DC BIAS +10 V
• High-pass (low-freq. roll-off): 80 Hz, 12 dB/octave
• Batteries: Two 1.5V AA, not included
• Operating temperature range: -5 ºC to +45 ºC (23 º F to 113 ºF)
• Battery life: High: 7 hours*2, Mid: 9 hours*2, Low: 10.5 hours*2 (alkaline)
• Dimensions: 64 mm (2.52") × 70 mm (2.76") × 17 mm (0.67") (W × D × H)
• Weight (without batteries): Approx. 92 g (3.2 oz)
• Included accessories: Protective carrying case (AT-BG3)

*1 May differ depending on the country or region in which you live.

*2 Depending on battery type, usage and environmental conditions.

What's in the Box?

• ATW-T5201 Body Pack Wireless Transmitter
• Protective carrying case (AT-BG3)
