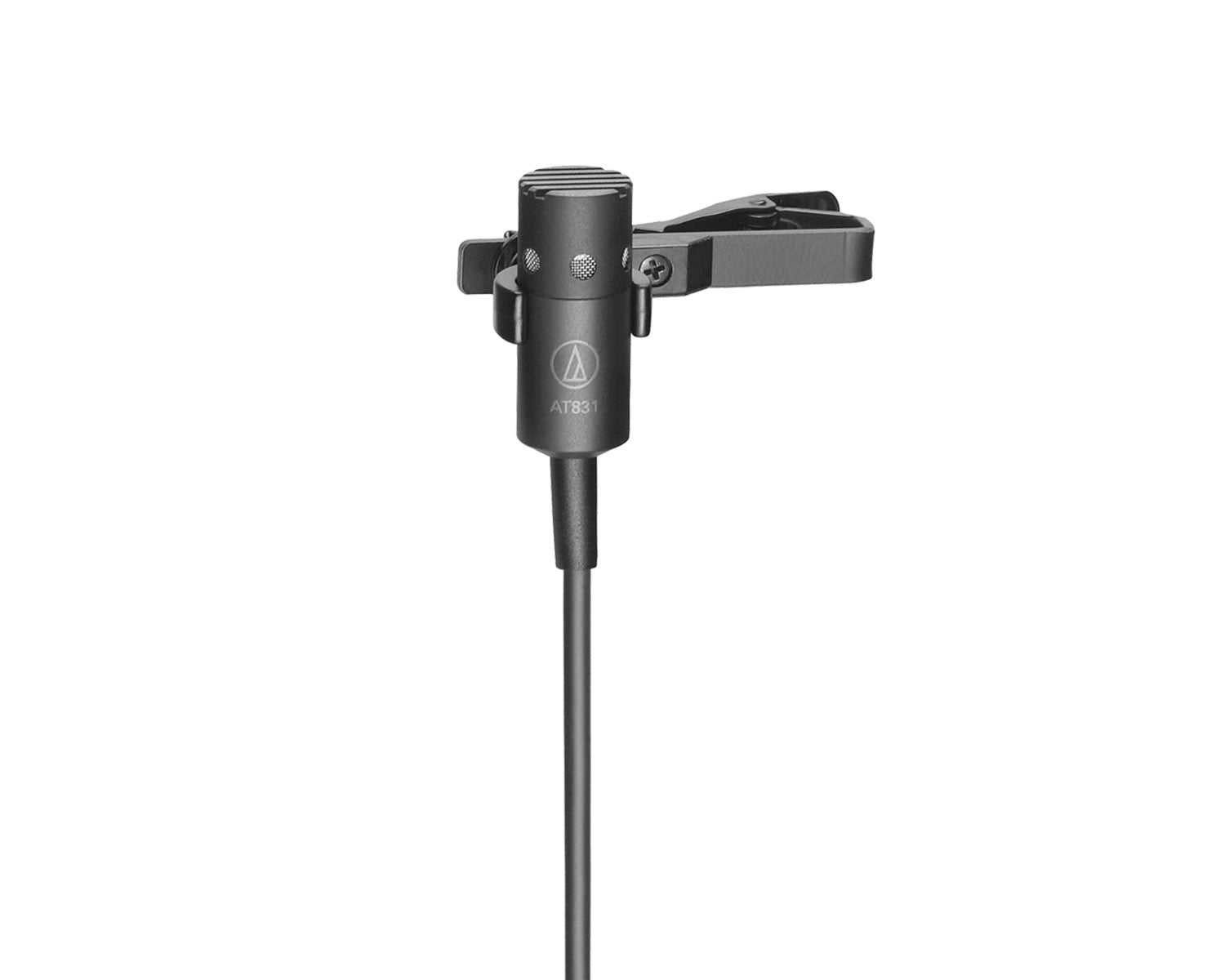

AUDAT831B - Audio Technica AT831B Miniature Cardioid Condenser Lavalier Mic TA3F or AT8531 Image 1

AUDAT831B - Audio Technica AT831B Miniature Cardioid Condenser Lavalier Mic TA3F or AT8531 Image 2

The AT831b requires 11-52V DC phantom power, or a 1.5V AA battery for operation. A battery need not be in place for phantom power operation.

This clip-on lavalier mic AT831b provides crisp, full-sounding voice pickup and excels as an instrument mic, especially for pickup of acoustic guitar with included AT8444 Instrument Microphone Adapter. It offers excellent gain before feedback and suppression of background noise. An integral 80 Hz high-pass filter provides easy switching from a flat frequency response to a low-end roll-off.

AT831b: 6\' (1.8 m) permanently attached cable terminated with TA3F connector; AT8531 power module (with 80 Hz high-pass filter) for battery or phantom power.

Product Features

Clip-on lavalier mic provides crisp, full-sounding voice pickup
Also excels as an instrument mic, especially for pickup of acoustic guitar with included AT8444 instrument adapter
Excellent gain before feedback and suppression of background noise
UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
Operates on battery or phantom power
Finish: Black

Product Specifications

ELEMENT: Fixed-charge back plate permanently polarized condenser
POLAR PATTERN: Cardioid
FREQUENCY RESPONSE: 40-18,000 Hz
LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY: –44 dB (6.3 mV) / (Phantom / Battery) –46 dB (5.0 mV) re 1V at 1 Pa*
IMPEDANCE (Phantom / Battery): 200 ohms / 270 ohms
MAXIMUM INPUT SOUND LEVEL: 135 dB / 121 dB SPL, (Phantom / Battery) 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical): 106 dB / 92 dB, (Phantom / Battery) 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
BATTERY TYPE: 1.5V AA/UM3
BATTERY CURRENT / LIFE: 0.4 mA / 1200 hours typical (alkaline)
SWITCH: Off, on-flat, on-roll-off
WEIGHT (less cable and accessories)
- MICROPHONE 2.8 g (0.1 oz)
- POWER MODULE 139 g (4.9 oz)
DIMENSIONS
- MICROPHONE 25.0 mm (0.98") long, 10.2 mm (0.40") diameter
- POWER MODULE 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D
OUTPUT CONNECTOR (power module): Integral 3-pin XLRM-type
CABLE: 1.8 m (6\') long (permanently attached to microphone), 2.6 mm ( 0.10") diameter, 2-conductor, shielded cable with TA3F-type connector
