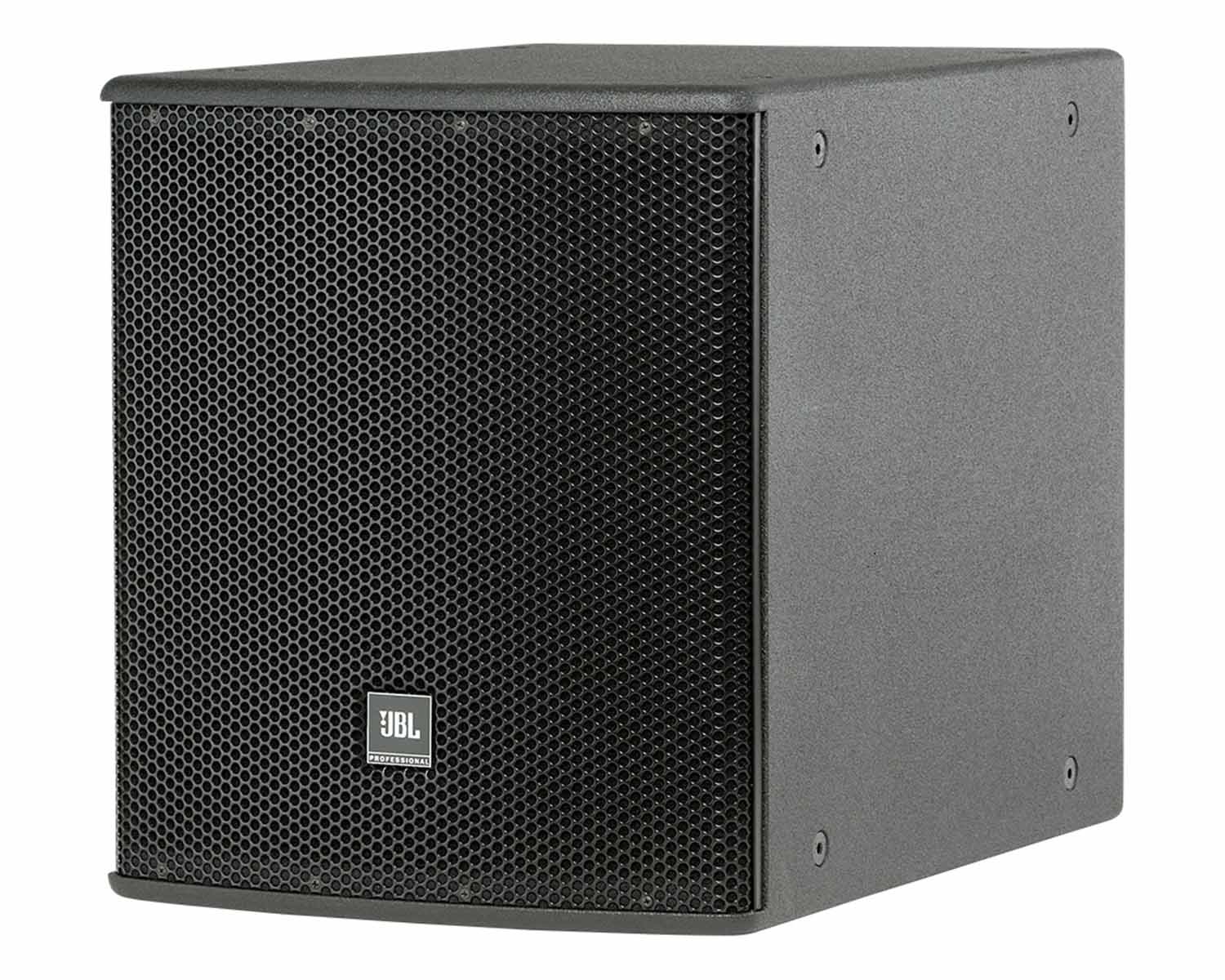

JBLASB6115 - JBL ASB6115 15inch Compact High Power Subwoofer 800W Image 1

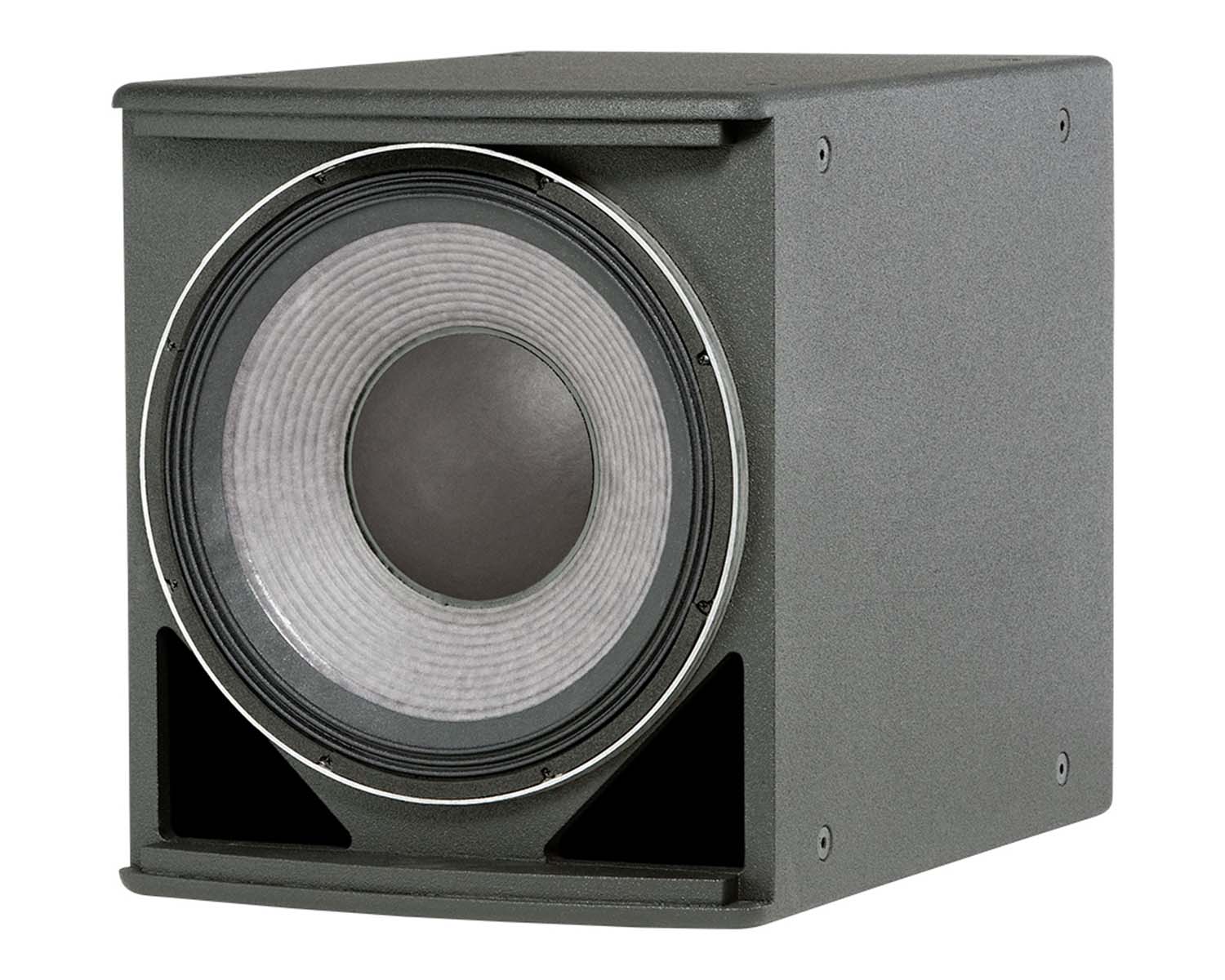

JBLASB6115 - JBL ASB6115 15inch Compact High Power Subwoofer 800W Image 2

The ASB6115 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2265H-1 Differential Drive® dual voice coil dual gap 15” woofer. This woofer features neodymium magnet and ultra-robust cone for extra-long life.

The enclosure is constructed of multiply hardwood coated in JBL’s rugged DuraFlex™ finish and is heavily braced to maximise low-frequency performance. The rectangular enclosure is fitted with sixteen M10 threaded attachment points and utilises a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.

The ASB6115 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Product Features

2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
800 watts continuous pink noise, 3200 watts peak power handling capacity
Large vent area for high output with low distortion
For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products

Applications

Performing Arts Facilities
Theatrical Sound Design
Auditoriums
Worship Facilities
Live Clubs
Dance Clubs
Sports Facilities
Themed Entertainment Venues

Product Specifications

General

Frequency Range (-10 dB): 32 Hz - 1 kHz
Frequency Response (± 3 dB): 42 Hz - 1 kHz
Transducer Power Rating: 800 W (3200 W peak), 2 hrs.
Long-Term System Power Rating: 675 W (2700 W peak), 100 hrs.
Maximum SPL (1m): 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity: 35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance: 8 ohms
Low Frequency Driver: 1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment: 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish: Black DuraFlex™ finish. White available upon request.
Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector: NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifications: Mil-Std 810; IP-x3 per IEC529
