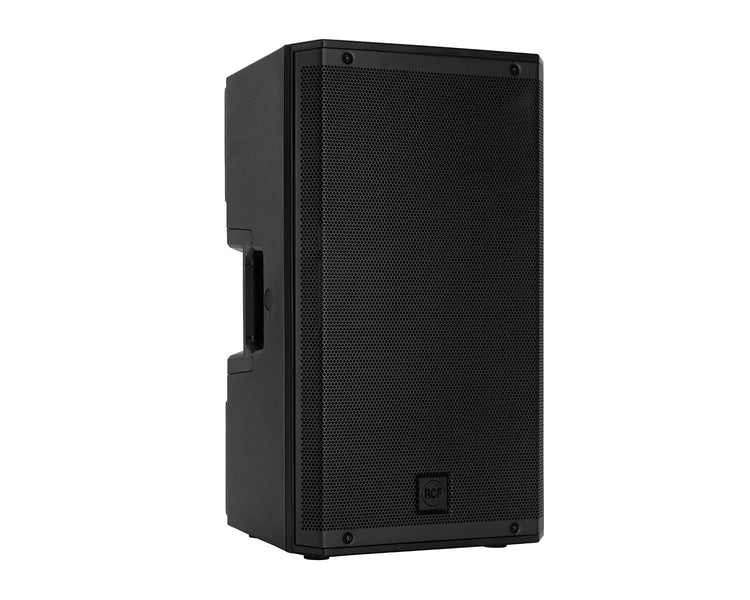

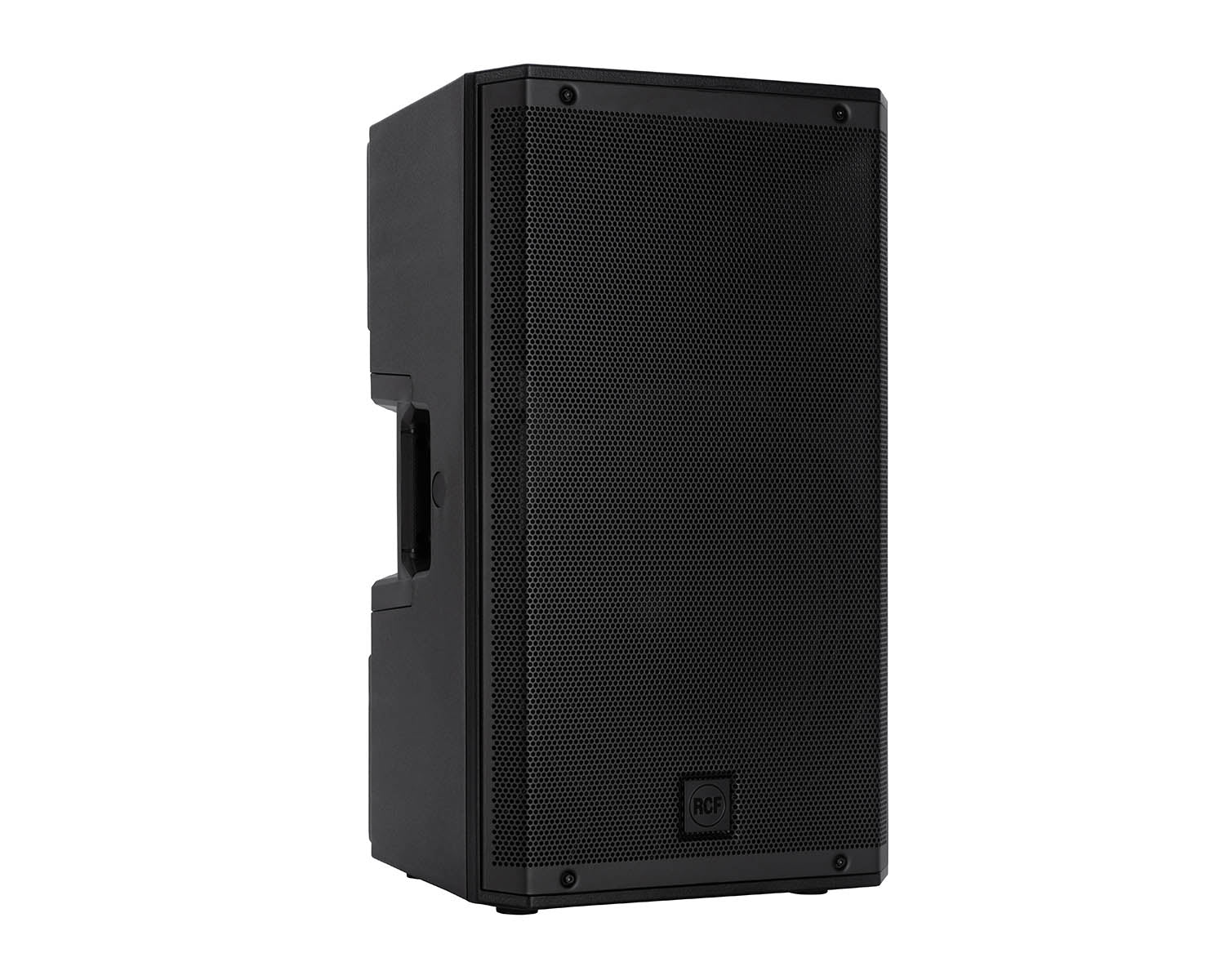

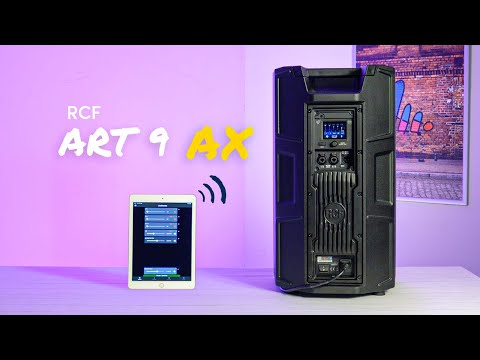

The ART 9 AX is an incredibly flexible tool for live events and presentations or venues like leisure centres or schools looking for a flexible solution without compromising on power. The ART 9 AX range comes fitted with the same cabinet, construction and advanced DSP, FiRPHASE and Bass Motion Control as the ART 9 series. The AX series features 6-in, 2-out stereo digital mixer & output processing as well as Bluetooth® and a Colour display with capacitive touch for Audio Streaming and Control.

The advanced woofer excursion management increases linearity and improves bass punch with a radical new approach. BMC extends the lowest audible frequency without affecting the transducer’s stability, limiting over-excursions for greater reliability and superior performance at high volume levels.

With 2100 Watts of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss.

Product Features

• 2100W Class-D Bi-Amplification
• Up to 50 ÷ 20000 Hz linear frequency response
• Wide 100° x 60° Constant Directivity
• Up to 1800 Hz Crossover Frequency
• True Resistive Waveguide for superb, distortion-free coverage
• Road-proof Cabinet with M-Brace Reinforcement
• Bass Motion Control and FiRPHASE processing
• Bluetooth® for Audio Streaming and Control
• Smartphone app for remote control
• 6-in, 2-out stereo digital mixer and output processing
• Internal digital mixer and crossover for RCF subwoofers

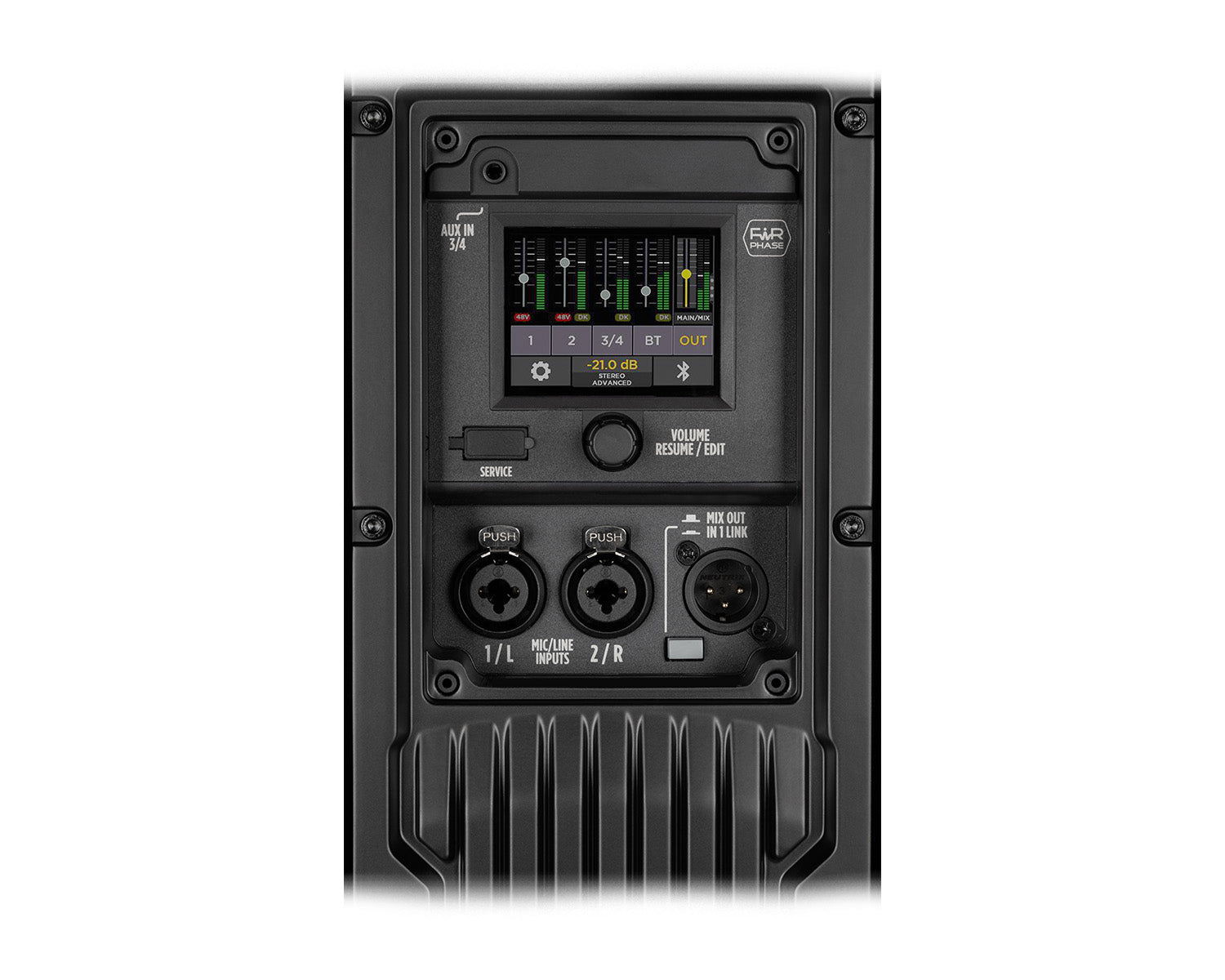

• Colour display with capacitive touch
• 130 dB SPL
• 12" Woofer

Product Specifications

ART 9-AX Series

Processor section

• Controls: Colour touch panel, data entry/volume encoder, dedicated App for iOS and Android.

Electronic specifications

• Frequency Response: 20 Hz ÷ 20 kHz
• THD+N, 20dB gain, 0dBu out 0.005% A-Weighted

Processing

• Processing Channels: 6
• Signal Processing: 24 Bit
• A/D-D/A conversion: 32 Bit @ 48.0 kHz
• Dynamic Range: 110

Inputs

• Mic: 2
• Remote controlled storable gain: Yes
• Gain Range: 0 dB ÷ 42 dB
• Input Noise Level: -114 dBu A-Weighted
• Mic Inputs Impedance: 6 kohm
• Low Cut: 20 Hz ÷ 400 Hz
• Phantom Power +48V: Yes
• Mono Line: 2
• Gain Selection: 0 dB ÷ 22 dB
• Line Input Impedance: 21 kohm
• A/D Dynamic range: 114 dB
• Stereo Line: 1
• Gain Selection: 0 dB ÷ 10 dB
• Stereo Line Input Impedence: 13 kohm

Outputs

• Main MIX: 1
• Outputs specifications
• Main Out Impedance: 150 ohm
• Main Out Level: 22 dBu
• D/A Dynamic Range: 114 dB

Compressors

• RCF Compressors: Compressors on MIC/LINE CH1 & CH2 inputs

EQ

• Input Channels EQ: 2 Shelving 1
• Description: 3 Band EQ: High and Low band shelving, MID band peak on IN
• 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output

Internal Effects

• Send Effects: 1

Mastering processors

• Main OUT type: Mix out, Crossover out with RCF Subwoofers presets, Stereo output, CH1 Link out

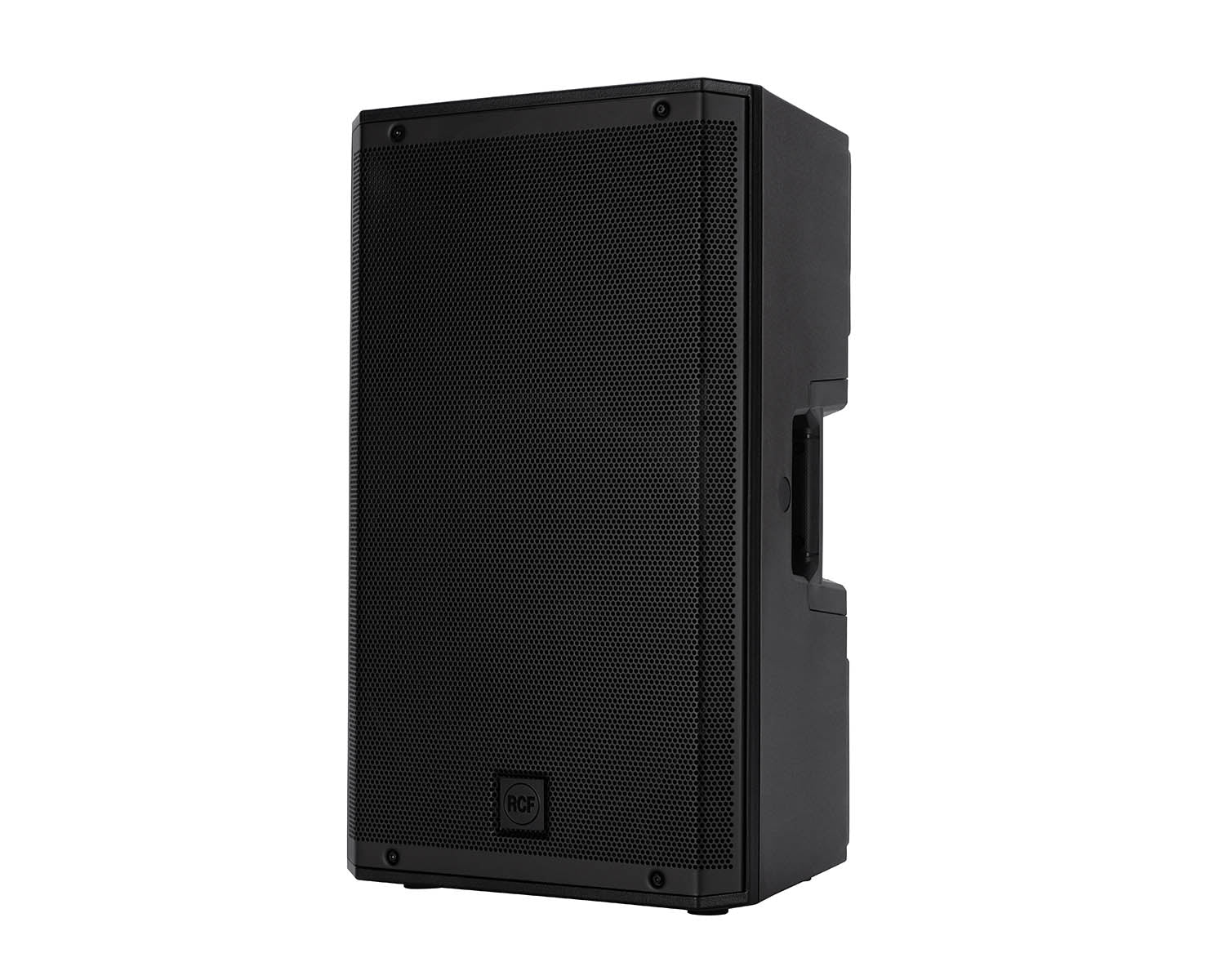

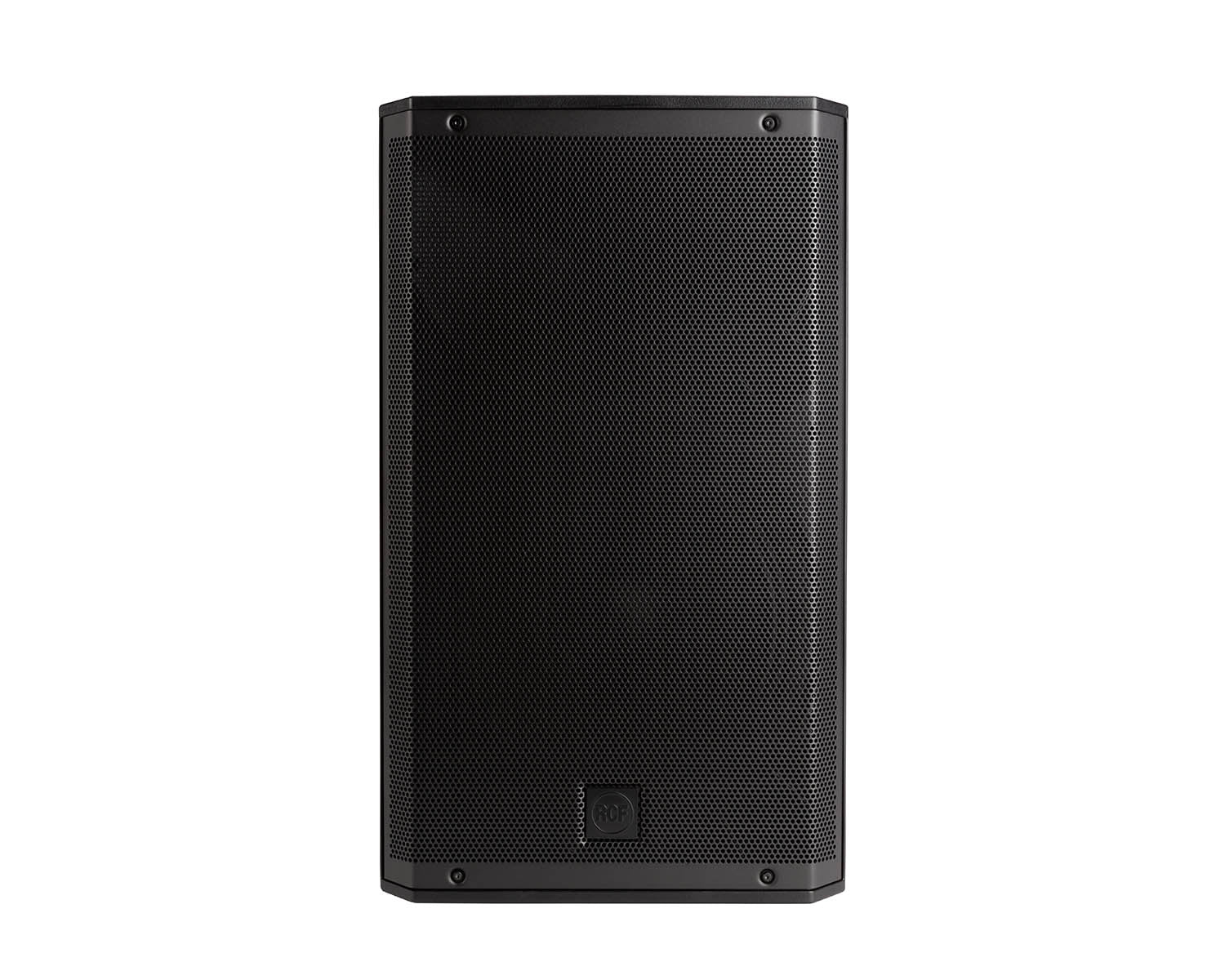

ART 912-AX

Acoustical specifications

• Frequency Response: 50 Hz ÷ 20 kHz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 60°

Transducers

• Compression Driver: 1\'\', 1.75\'\' v.c
• Woofer: 12\', 2.5\'\' v.c

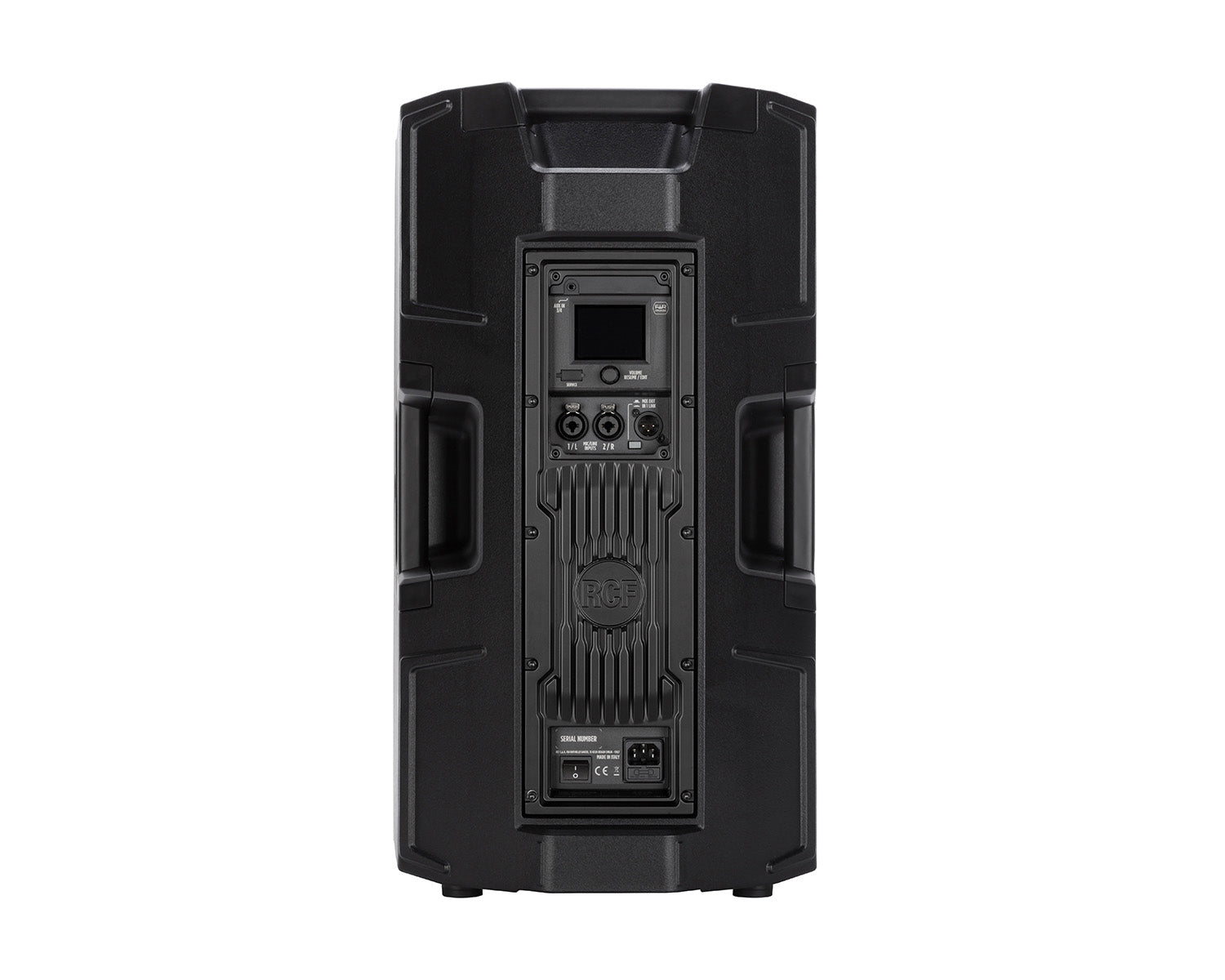

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor section

• Crossover Frequencies: 1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Linear, Boost, Stage, Volume

Power section

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: VDE

Standard compliance

• CE marking: Yes

Physical & Dimensions

• Cabinet/Case Material: PP Composite

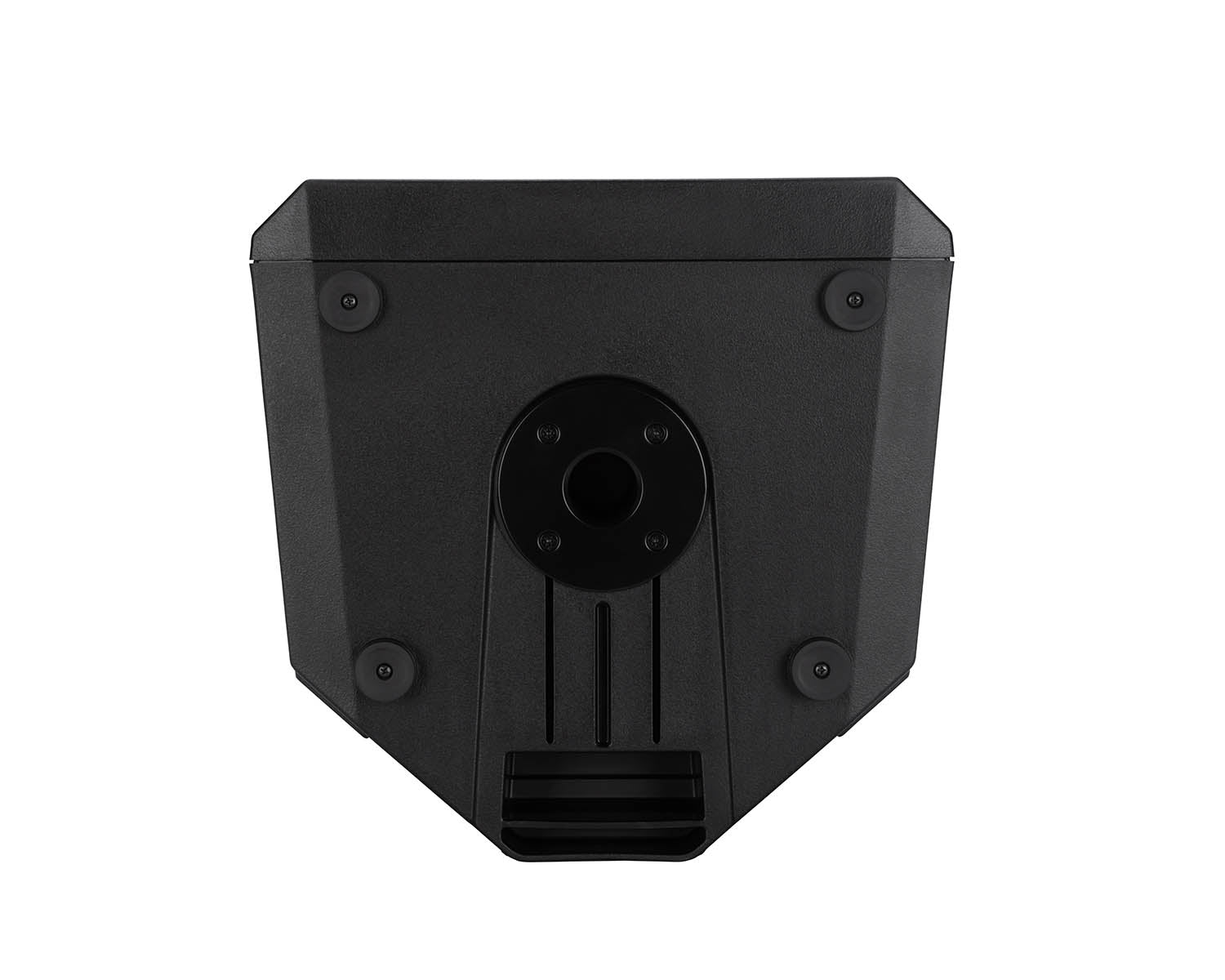

• Hardware: 1 x M10 Top, 1 x M10 each side

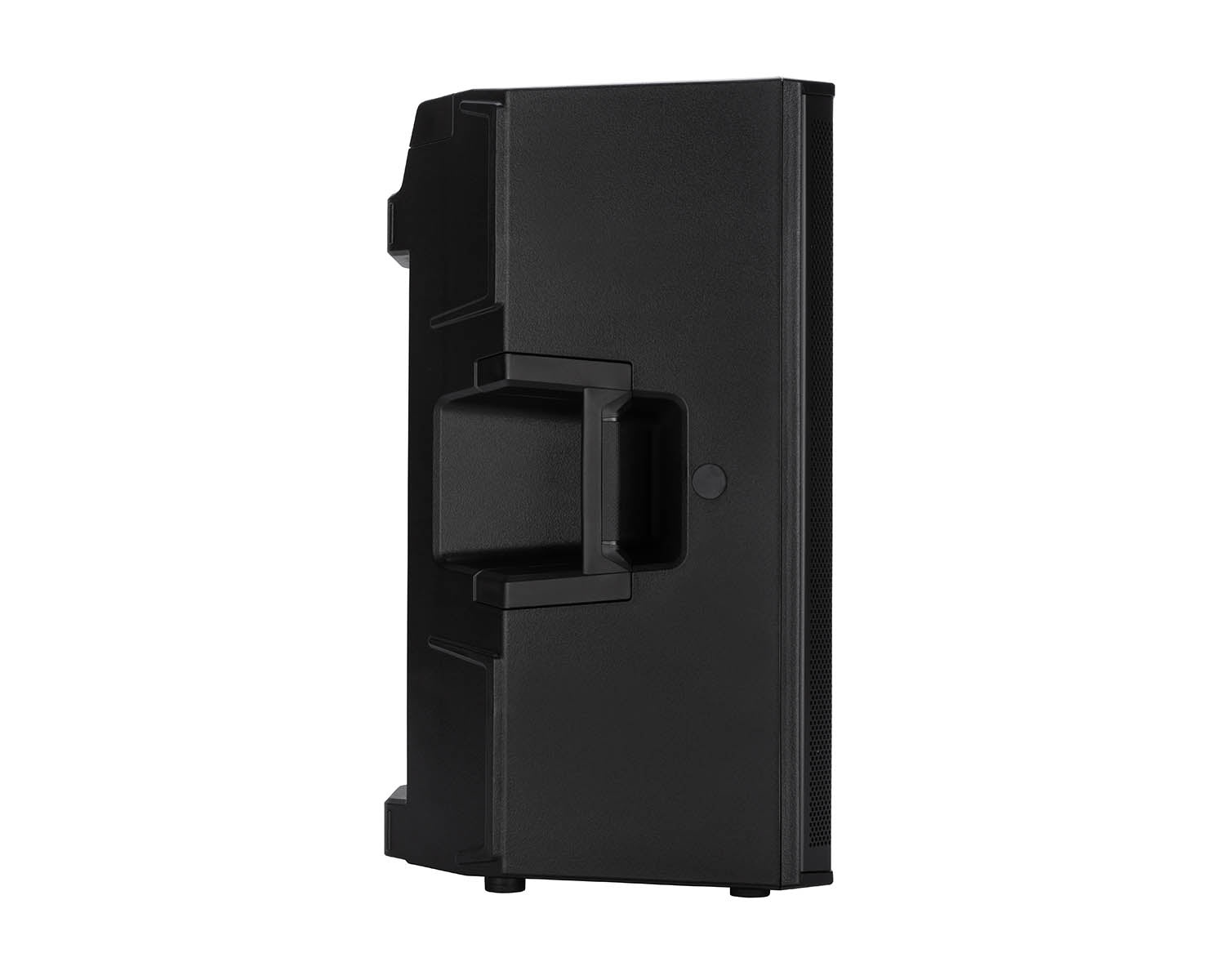

• Handles: 1 Top , 1 each side
• Pole mount/Cap: Yes
• Grille: Steel
• Colour: Black
• Height: 642 mm / 25.28”
• Width: 370 mm / 14.57”
• Depth: 363 mm / 14.29”
• Weight: 19 kg / 41.89 lbs
