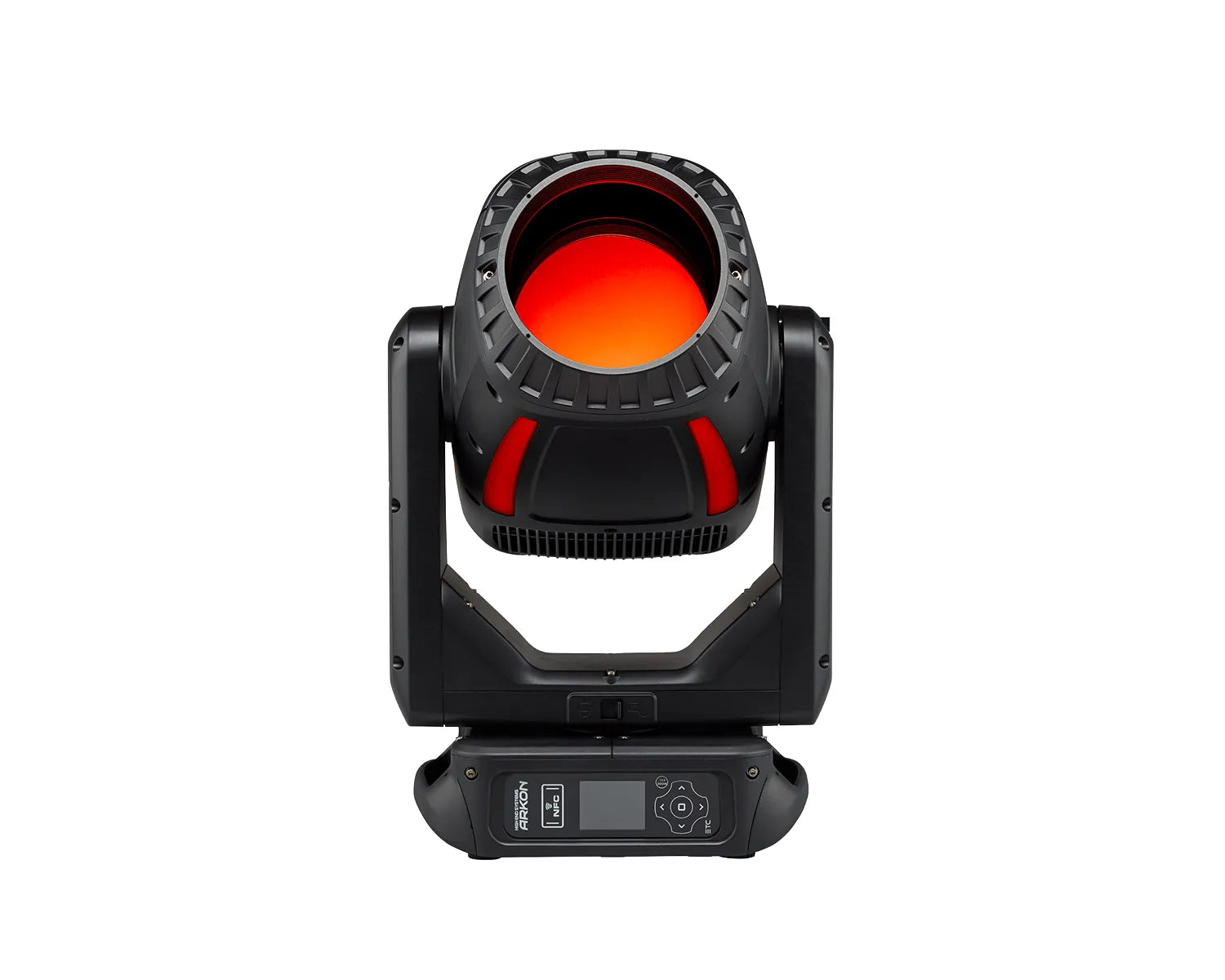

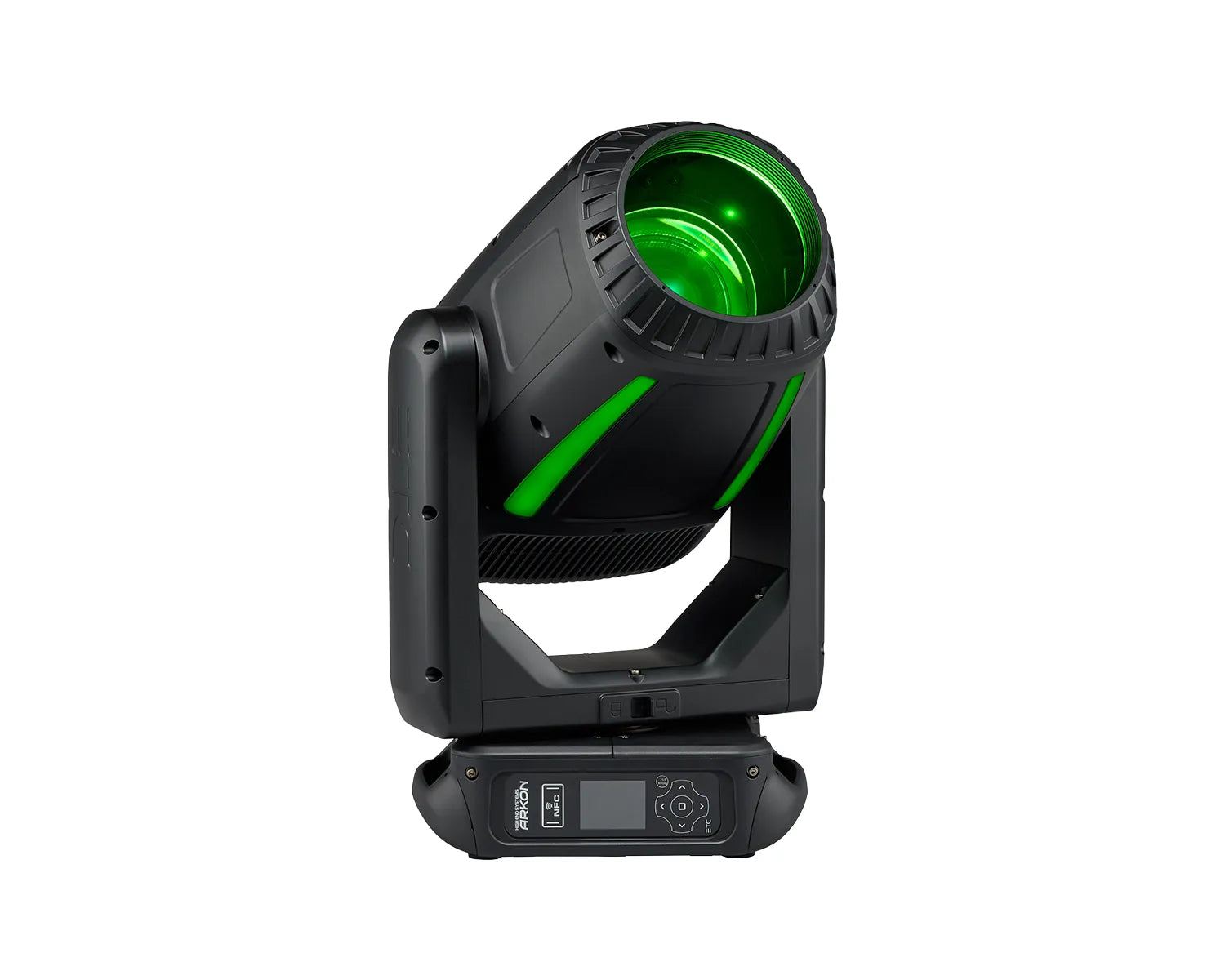

Arkon combines intense output with visual flair to supercharge the energy on any stage. The LED engine prioritises vibrant colours while maintaining an even field of light, so beams punch right through the atmosphere. Shape that light to match your vision with the built-in colour wheel, fixed and rotating gobos, frosts, and prisms that can be layered on top of each other for ultimate design versatility. Bring more eye candy to your rig with the macros and pixel control of the Arkon Vibes.

Arkon commands the stage, pairing intense beams with an unrivalled set of effects tools. Powered by an RBL LED engine, Arkon exceeds 10,500 lumens with beams that are bright throughout, not just in the centre. Paint the air with bold reds, vibrant blues, and everything in between. A built-in colour wheel brings even more colour capabilities, including split-colour projection. Further shape your design with rotating and fixed gobos, two frosts, and four prisms that can be combined in multiple ways. Arkon doesn’t stop there. Take full control of the Vibe accents, featuring 132 pixels of RGB control. Weather-rated and LED-powered, Arkon is ready to rock where you are, without laser variance or keep-out zones.

Product Features

• Revolutionary MicroLES LED engine
• Additive colour mixing with powerful RBL system
• Fixture output exceeding 10,500 lumens at 2.5°
• Motorized focus
• Dual-prism system with eight combined prism effects
• Twelve-position plus open colour wheel to maximise split colour aerial effects
• Two diffusion levels, medium and heavy, with ultra-fast movement for exceptional effects
• Eight-position plus open rotating gobo wheel
• Eleven-position plus open fixed gobo wheel with five aperture reducing positions

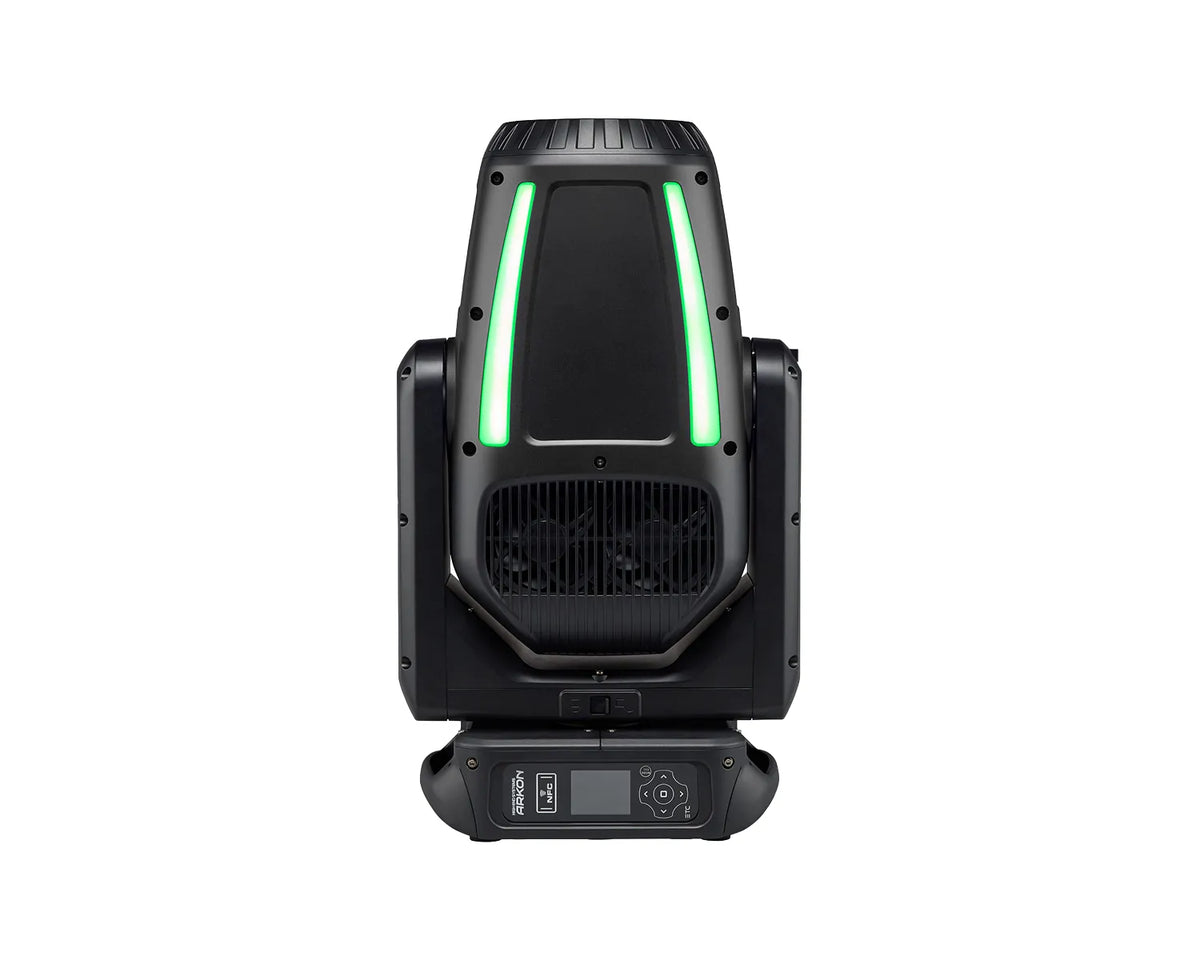

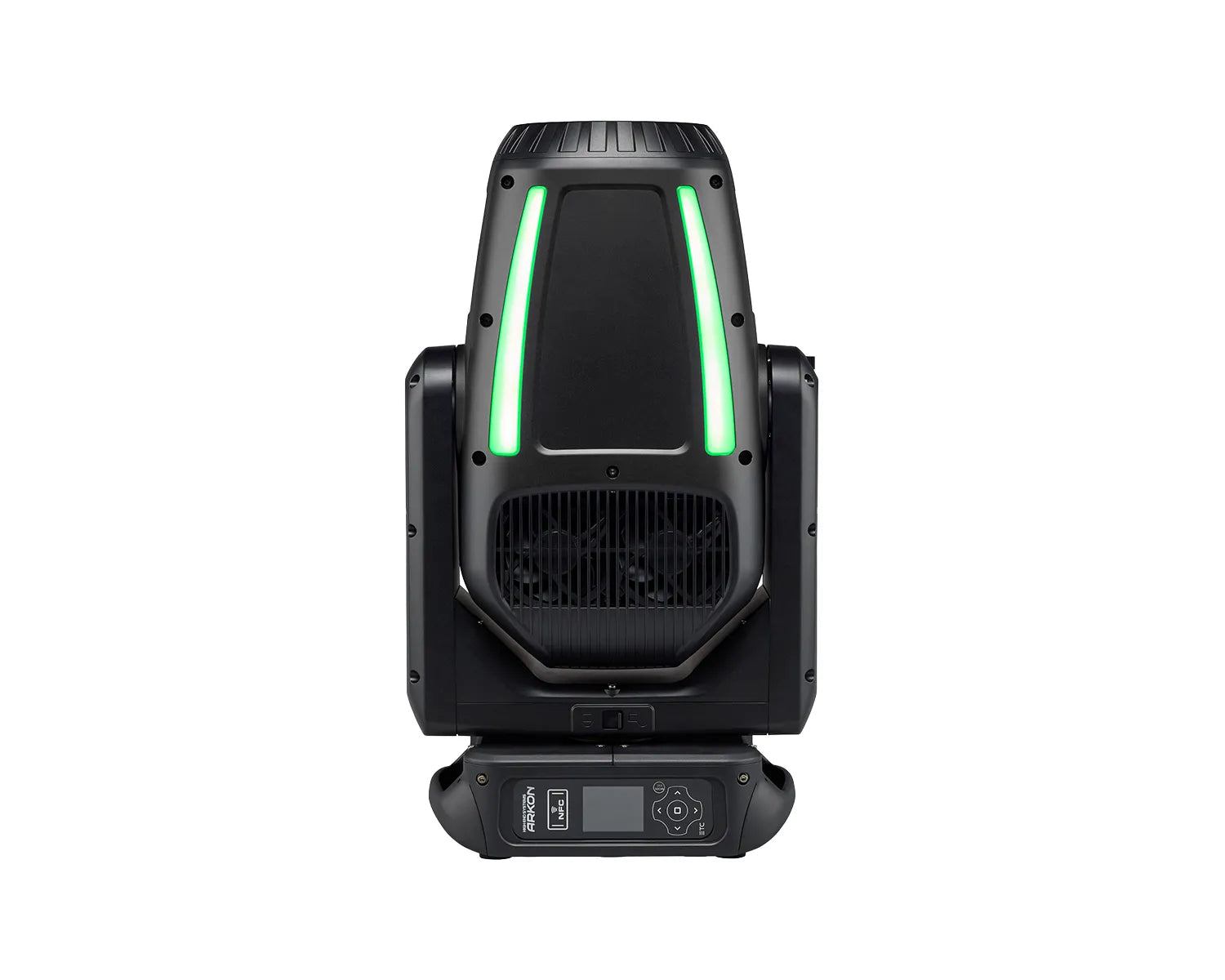

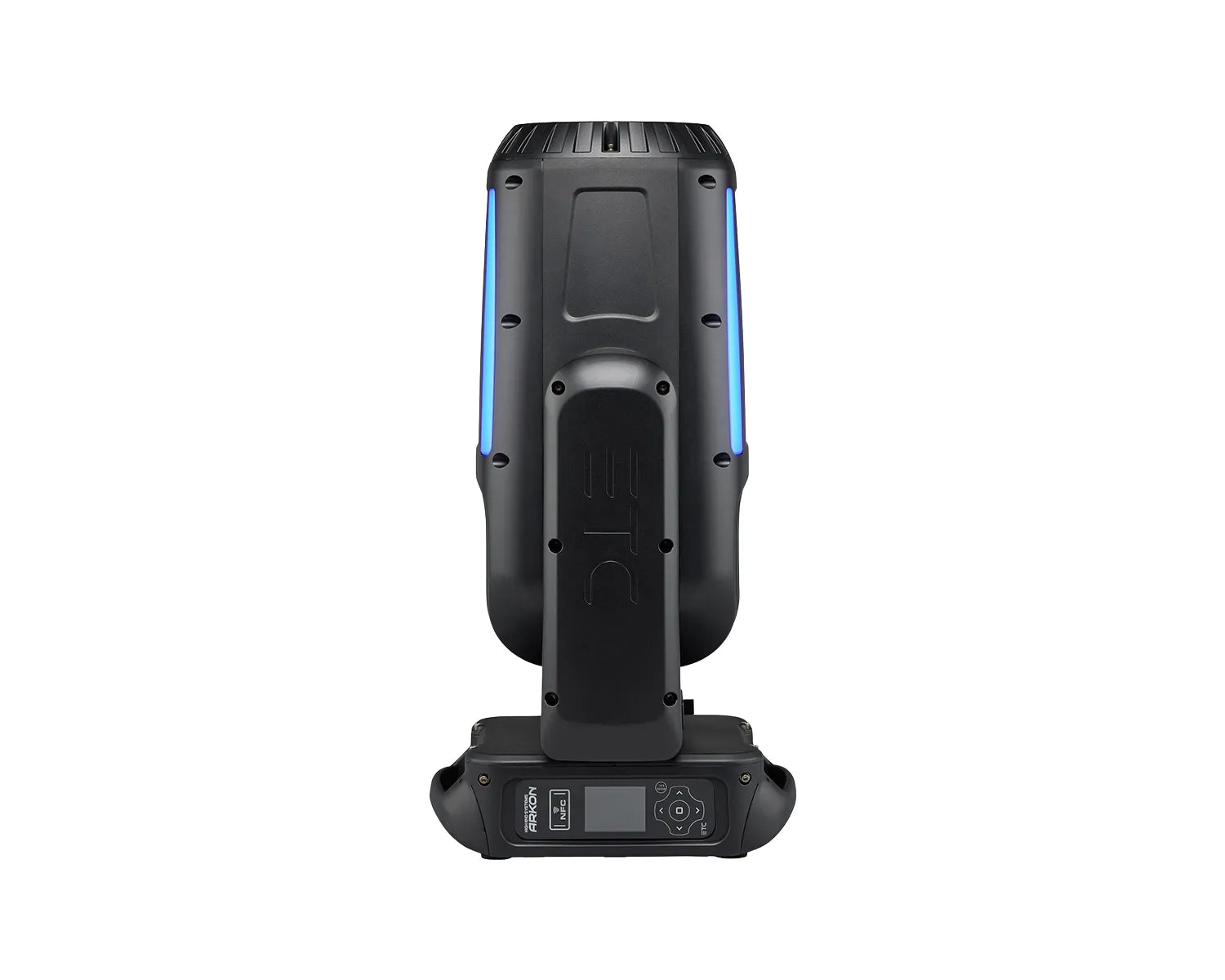

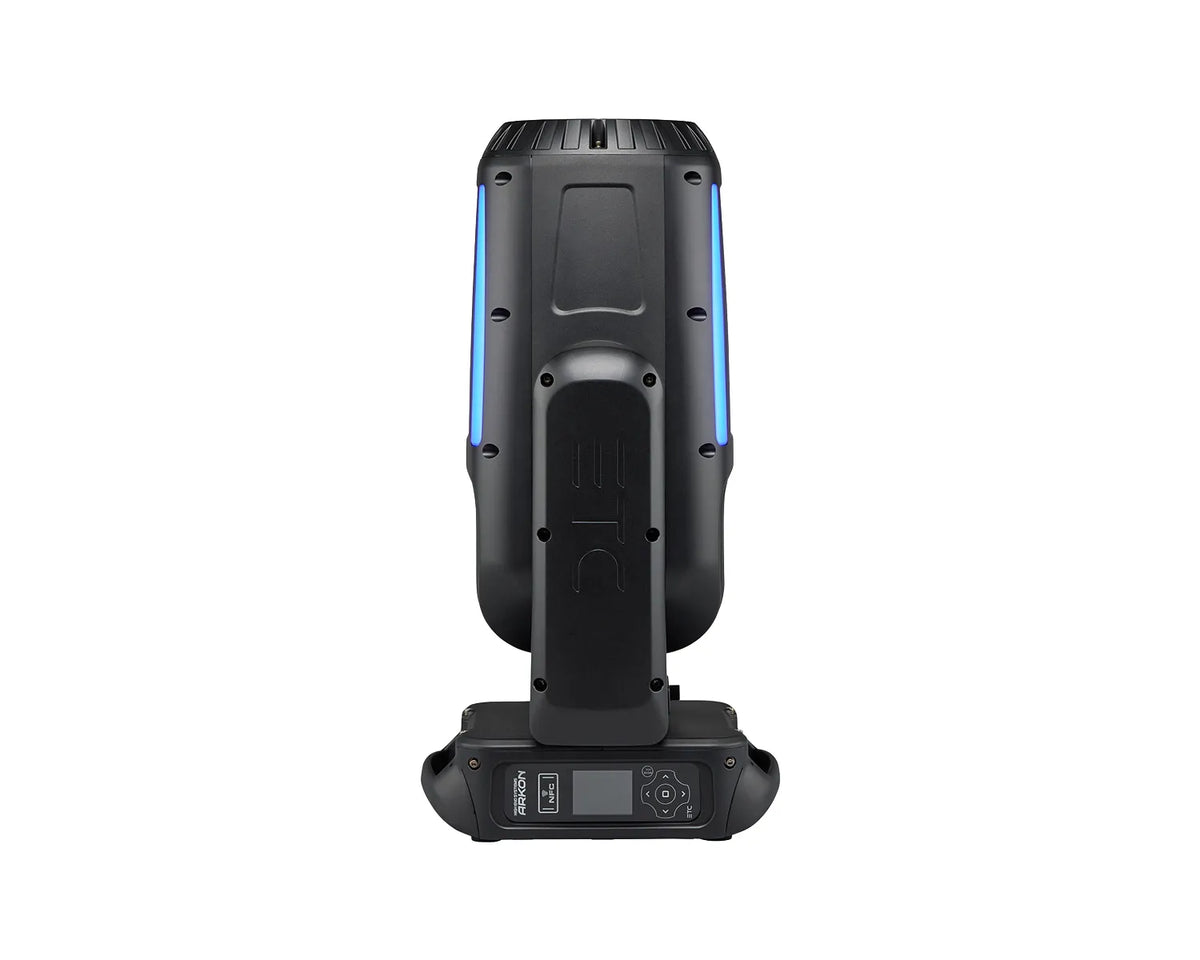

• Full-colour Vibe accents with pixel and macro capabilities viewable from all angles
• Weather-tested and rated to IP54
• No lasers, no need for a variance, no keep-out zones


Product Specifications

• Source
  • Engine:  MicroLES LED super engine
  • LED Details:  460W
  • Field Lumens:  See photometrics in datasheet (page 4)
  • Max Integrating Sphere Lumens:  10,500
  • LPW:  22.8
  • LED Life:  50,000 hours
• Colour
  • Colour Mixing:  Red, Blue, Lime
  • Colour Temperature:  2000 K to 10000 K
  • Calibration:  Calibrated whites on CCT Channel
  • Colour Wheel:  Twelve (12) dichroic colours plus split colours and open
  • Vibe Accents:  Four LED strips with 33 RGB pixels on each
  • Vibe Control:  Single colour mode, 87 animated macros, 61 static macros, 66-pixel control mode
• Optical
  • Beam Angle:  2.5°
  • Aperture Size:  140 mm
  • Pattern Projection:
  • Rotating and indexable wheel with six (6) interchangeable patterns plus open
  • Fixed wheel with eleven (11) fixed and stamped patterns plus open
  • Prism:  Dual prism systems with eight (8) combined prism effects
  • Diffusion:  Individual medium and heavy diffusion with ultra-fast insertion
  • Flicker Control/Hz Range:  2.4 kHz, 16 kHz, and 25 kHz
• Control

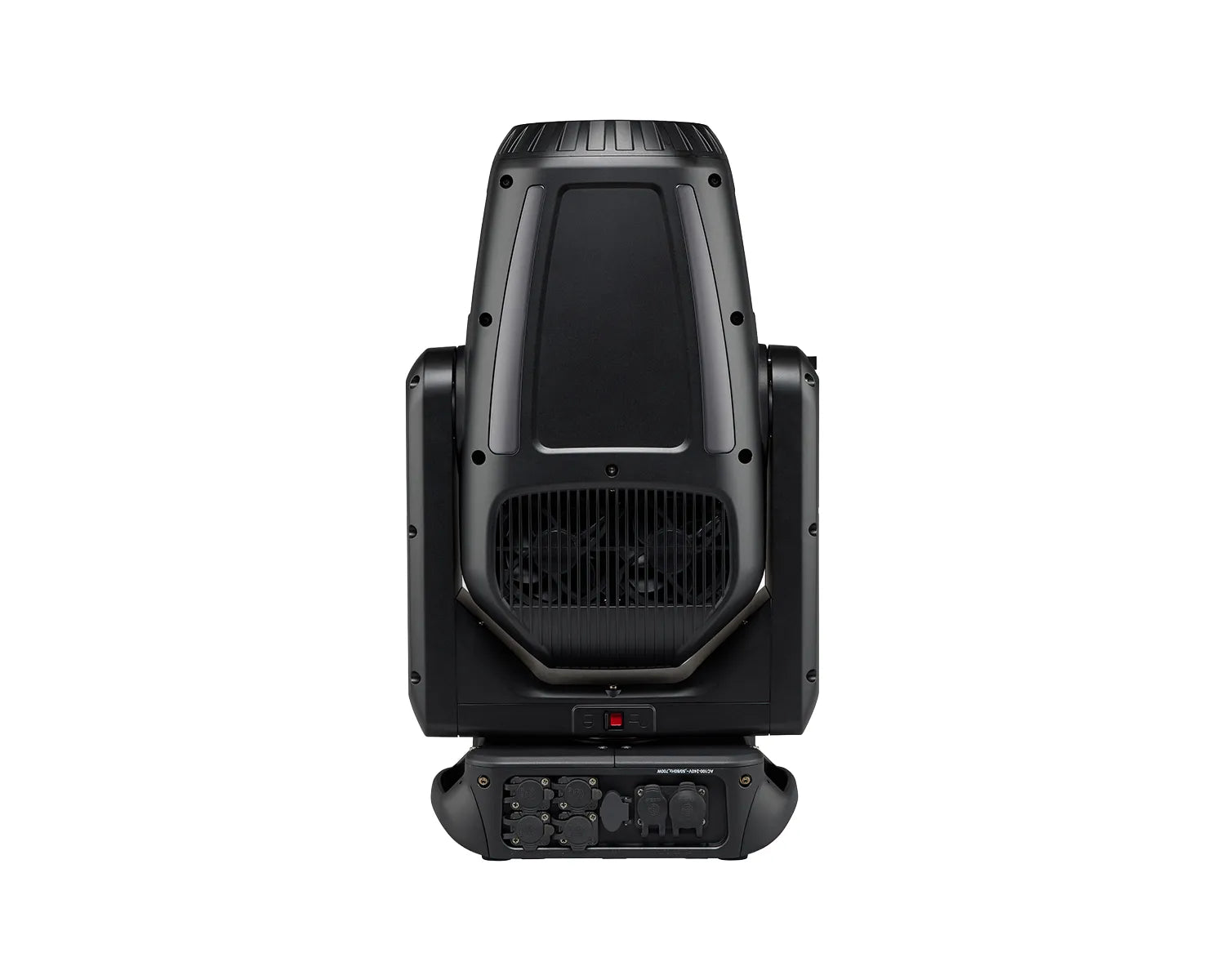

  • Input Method:  DMX (5-pin) or Ethernet
  • Protocols:
    • DMX via RS-485
    • Art-Net or sACN via Ethernet
  • Ethernet Pass-Thru:  Passive Ethernet in and thru with and without power
  • Data Conversion:  Patented data conversion system for Ethernet to DMX
  • Modes (Footprint):
    • Standard (47 channels),
    • Standard with Pixel (245 channels)
  • RDM Functions:  Yes
  • UI Type:
    • Full-colour graphical UI with back lit 6-button navigational control
    • NFC configuration
  • Local Control:  Yes
  • Dimming Performance:  16-bit, DMX controlled
  • Wireless:  Multiverse via optional adaptor (MV-Mount) and Multiverse Connect Module (CT-5914)
• Electrical
  • Voltage Range:  100–240 V 50–60 Hz
  • Input Method:  REAN® power X Series Connectors
  • Wattage:  650 W
  • Current (Max):
    • 6.5 A @ 100 V
    • 3 A @ 240 V
  • Inrush (First Half Cycle):
    • 120 V: 37 A
    • 230 V: 51 A
  • Fixtures per Circuit
    • 3 fixture (R20 module or similar)
    • Note: REAN power X Series connector rated for 20 A (120 V/60 Hz) and 16 A (240 V/50 Hz)
• Thermal
  • Ambient Operating Temp:  -20°C to 40°C (-4°F to 104°F)
  • Fan Mode:  Standard, Studio, and Linear Continuous control channel
  • Stationary Noise:
  • Standard - 43.8 dBA
  • Studio - 39.5 dBA
  • Lowest settable fan setting - 35.0 dBA
  • All tests at 18.4 dBA background noise
• Regulatory & Compliance
  • Approved regulatory standards:
    • cETLus Listed
    • Listed to UL 1573
    • Certified to CSA STD. C22.2 No: 166
    • CE Compliant
    • UKCA Compliant
    • CB Certified
  • Complies to the ROHS directive:  Yes
• Safety
  • Safety:
    • Minimum distance to illuminated
    • surface = 6.0 m (19.7 ft)
    • Minimum distance from fixture head to
    • combustible materials = 0.1 m (4.0 in)
• Physical
  • Pan and Tilt Range:  630/540° pan, 260° tilt
  • Max Pan/Tilt Speed:  360° in 1.62 s/180° in 0.88 s
  • Materials:  Steel and aluminium frame with aluminium and moulded plastic covers
  • Colour Options:  Black, white by request
  • Mounting Options:  Any orientation
  • IP Rating:  IP54, for use both indoors and in temporary outdoor installations
  • Weight:  20.7 kg (45.7 lb)

What's in the Box?

• X Series IP65 to bare end fixture tail
• Two (2) 107 mm single-hole Omega brackets
• Safety cable
