The unit includes phantom power and battery supply as standard. Should the phantom power from the console fail or be accidentally switched off, the AR-133 automatically switches over to the internal 9V battery providing uninterrupted use.

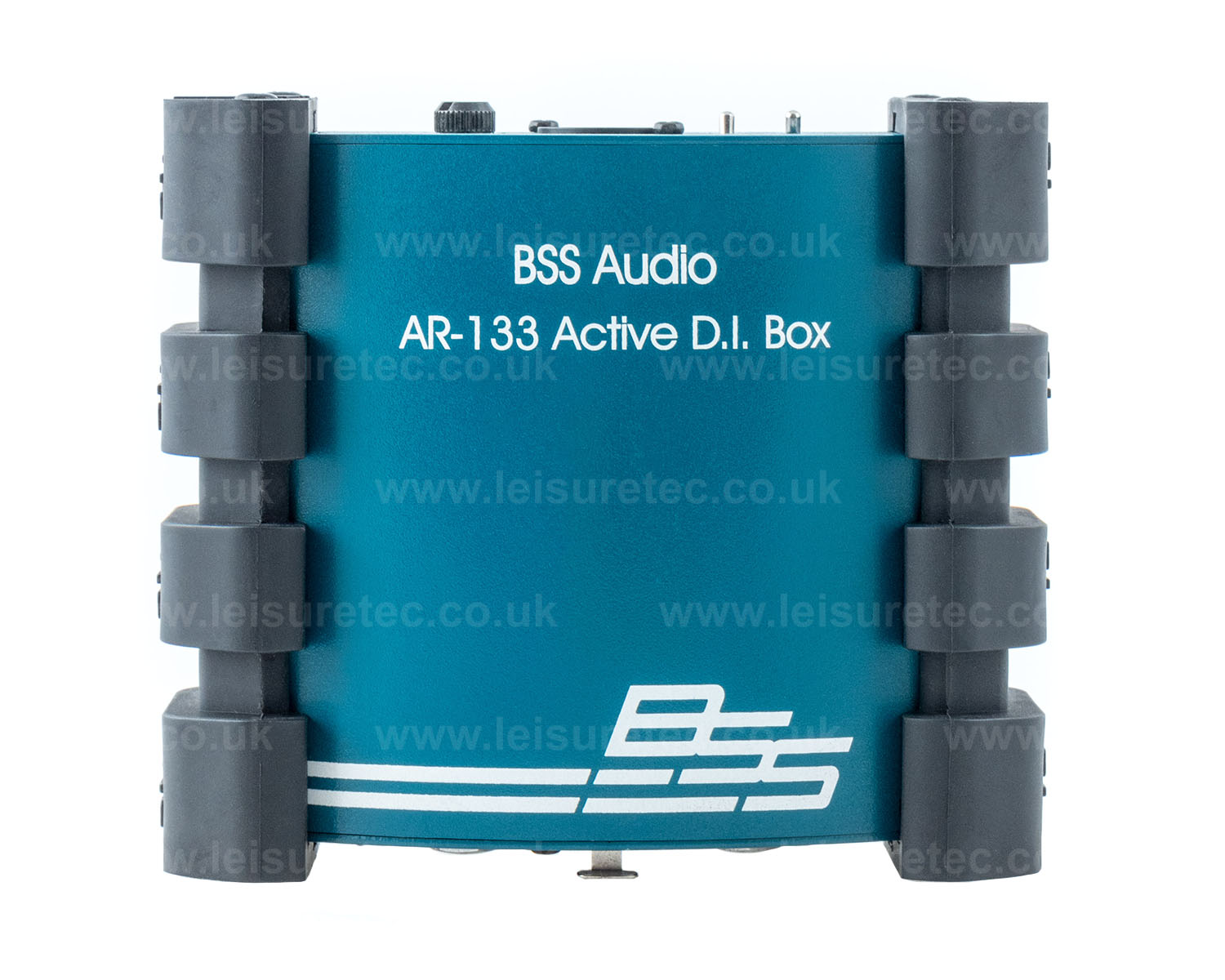

The unit is housed in a rugged aluminium extrusion case, with robust polyurethane end-cheeks which give the AR-133 a very distinctive look.

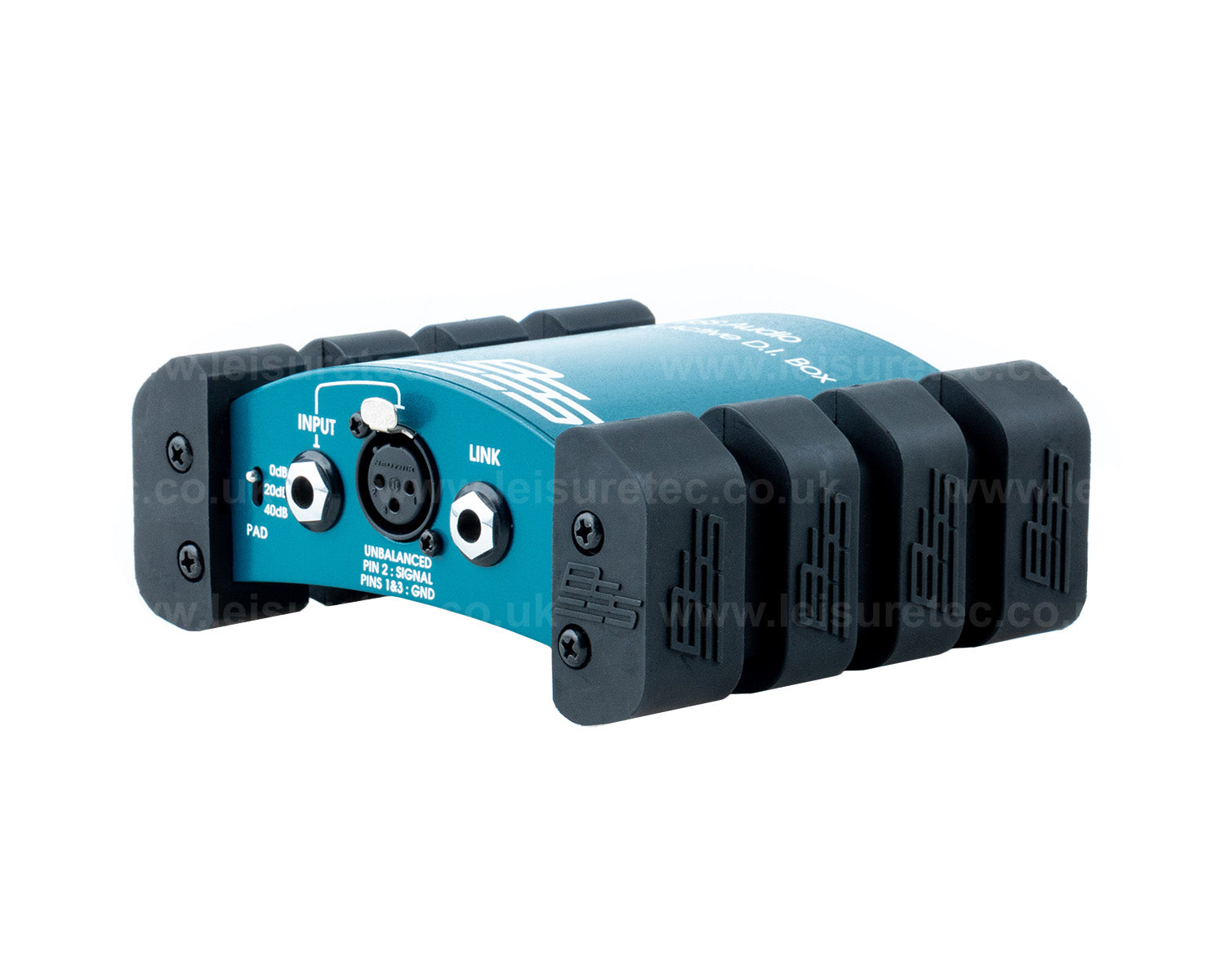

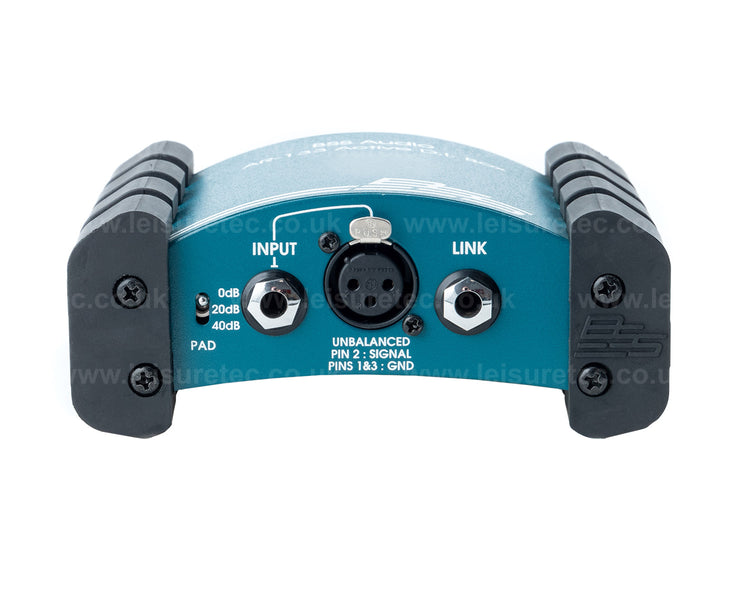

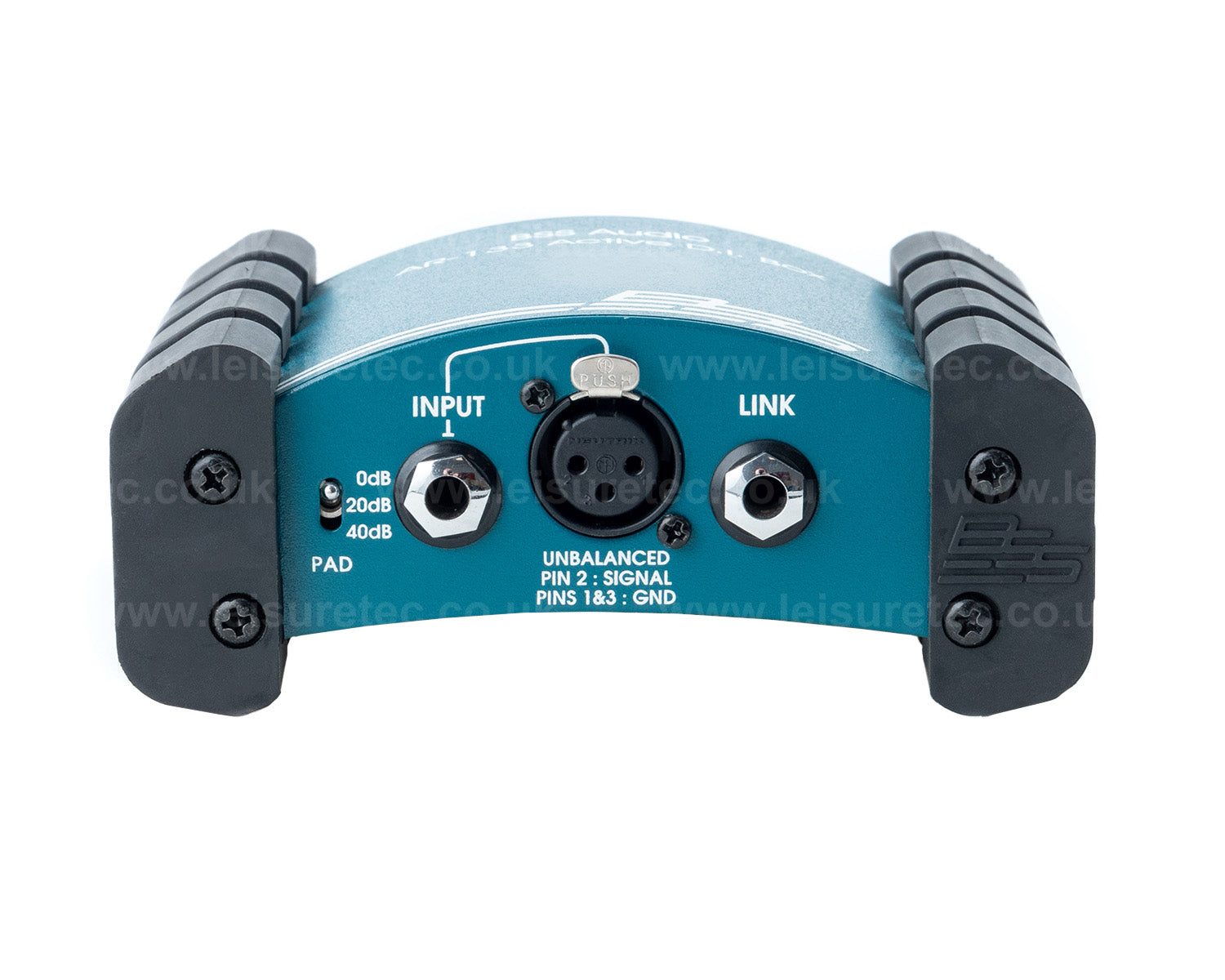

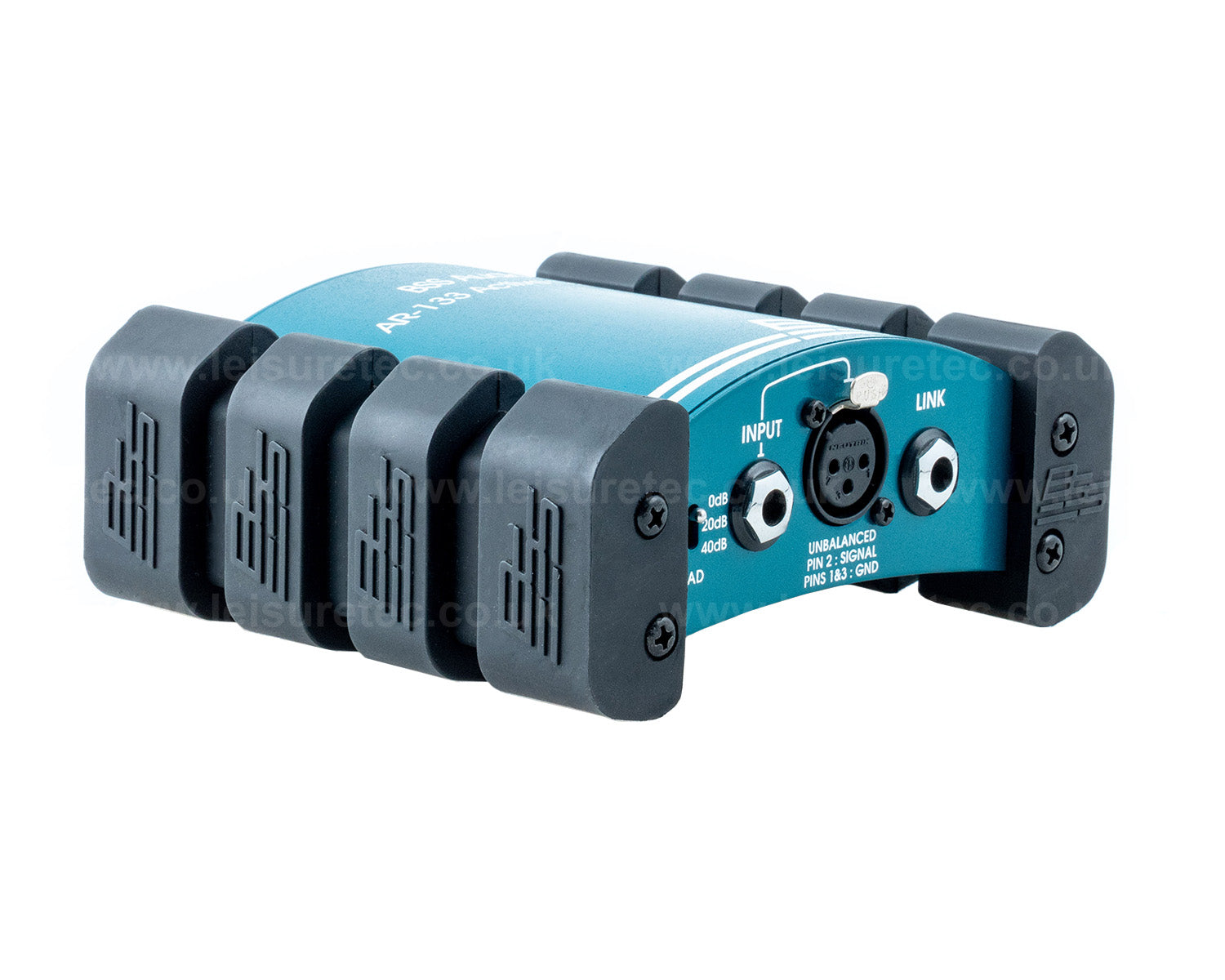

Input connectors are both 1/4" jack sockets and an XLR socket, the latter meaning that the AR-133 can be used to convert unbalanced signals to a balanced output on XLRs throughout.

The arched case allows cables to run back underneath the unit from the end for neat cable management.

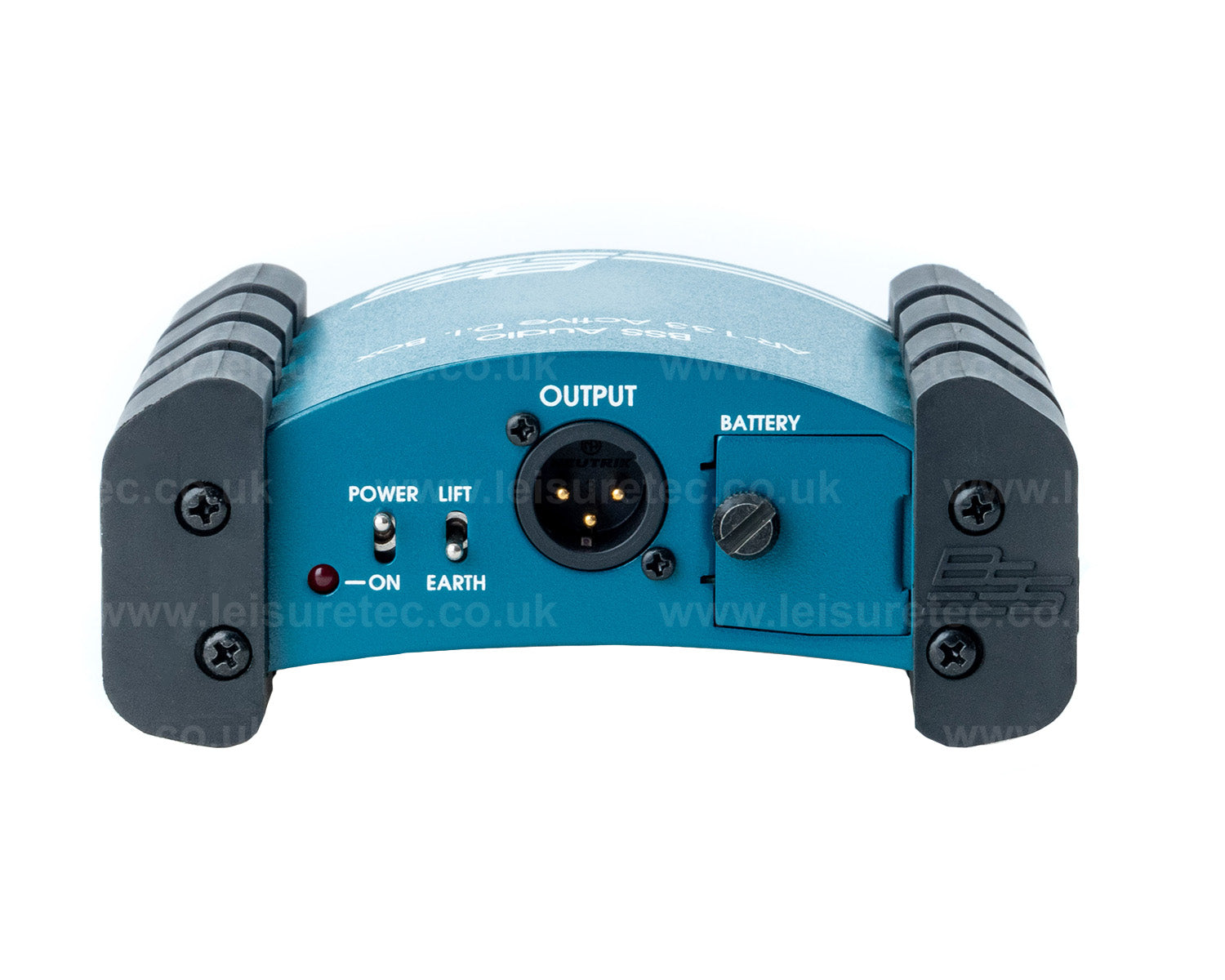

Input attenuation is 0, -20 or -40dB, making the box suitable for instrument, line or amplifier levels on inputs. On the output side, a ground-lift switch is provided for quick solutions to ground-loop problems.

The AR-133 uses an enhanced version of the same audio path as the AR-116, now regarded by many people as a reference standard. The sound quality is legendary, particularly on acoustic and bass guitars.

Numerous applications can be satisfied by the AR-133. For example, as well as the traditional guitar use, the AR-133 can be used with keyboards, DJ consoles, amplifier outputs, and other electronic sources.

An additional bonus is the ability to use the AR-133 as an active balancing device.

Product Features

• Switchable input attenuation:
  • 0dB for guitar-type pickups
  • -20dB for line level signals
  • -40dB for speaker feeds
• Matches the level and impedance with unity gain without loading the source
• Can drive signals up long cable lengths
• Powered from console phantom power or internal battery
• Automatic switchover to battery if phantom power fails
• Parallel Link Jack output to feed amplifiers directly
• Parallel XLR input for converting unbalanced outputs to balanced lines

Product Specifications

Inputs

• Input Impedance: 1 MOhm (pad at 0dB), 47 kOhm (pad at -20dB or -40dB)
• Max Input: +9dBu (pad at 0dB), +29dBu (pad at -20dB), +49dBu (pad at -40dB)
• Input Connectors: Two Parallel 1/4" jack connectors (Tip Hot +ve, Sleeve ground), and a parallel XLR connector (unbalanced) (Pin 2 Hot +ve, Pin 1 & 3 ground)

Outputs

• Output: Transformer Balanced
• Max Output: +8dBu into 600 Ohms or greater
• Output Connectors: XLR3-32 or equivalent
• THD: < 0.005% at 1khz, 0dbu output
• Noise: < -105db unweighted, 22hz-22khz, rms*
• Frequency Response: 30Hz to 20kHz, +0dB/-1dB
• Main/Standby battery: 9 volt PP3 type, preferably alkaline
• Power Consumption: on phantom: less than 7.5mA, on battery: less than 2mA.
• Phantom Power: +20 volts DC to +48 volts DC

Phyiscal & Dimensions

• Unit Weight: 650 gms, excluding batteries
• Dimensions: 59 mm x 124 mm x 143 mm (2.3" x 4.9" x 5.6")
