The ultimate flexible high-tier, high channel count wireless receiver, ANX4 provides up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless, enabled by digital licenses available for purchase in single- and four-channel increments (sold separately). All exceptional features found in award-winning Axient Digital and ULX-D receivers that have made them industry standards are available in the ANX4. Whether you activate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximises your budget and rack space in delivering large channel counts in a 1RU format while also streamlining your antenna configuration. Shure ANX4 is scalable high-tier wireless that adapts to your needs.

Product Features

• *ANX4 does not ship preconfigured with active wireless channels. Digital licenses, sold separately, required for operation*
• AC Power Option
• Scalable Wireless Receiver for use with Axient Digital and ULX-D wireless systems
• Receives up to 16 channels of Axient Digital or 24 channels of ULX-D in a single rack space
• Single- and four-channel digital licenses sold separately
• Wide tuning range covers 174 MHz to 2 GHz, covering all Axient Digital and ULX-D options (except for the ULX-D 902 MHz band)
• All Axient Digital or ULX-D features included
• Large, 6.6-inch front panel colour display
• Five-segment Channel Quality meter displays RF signal-to-noise
• 1 x ¼-inch front-panel headphone connector for monitoring with Dante Browse (for both Axient Digital and ULX-D)
• Streamlined and cost-saving antenna setup for large-scale wireless deployment

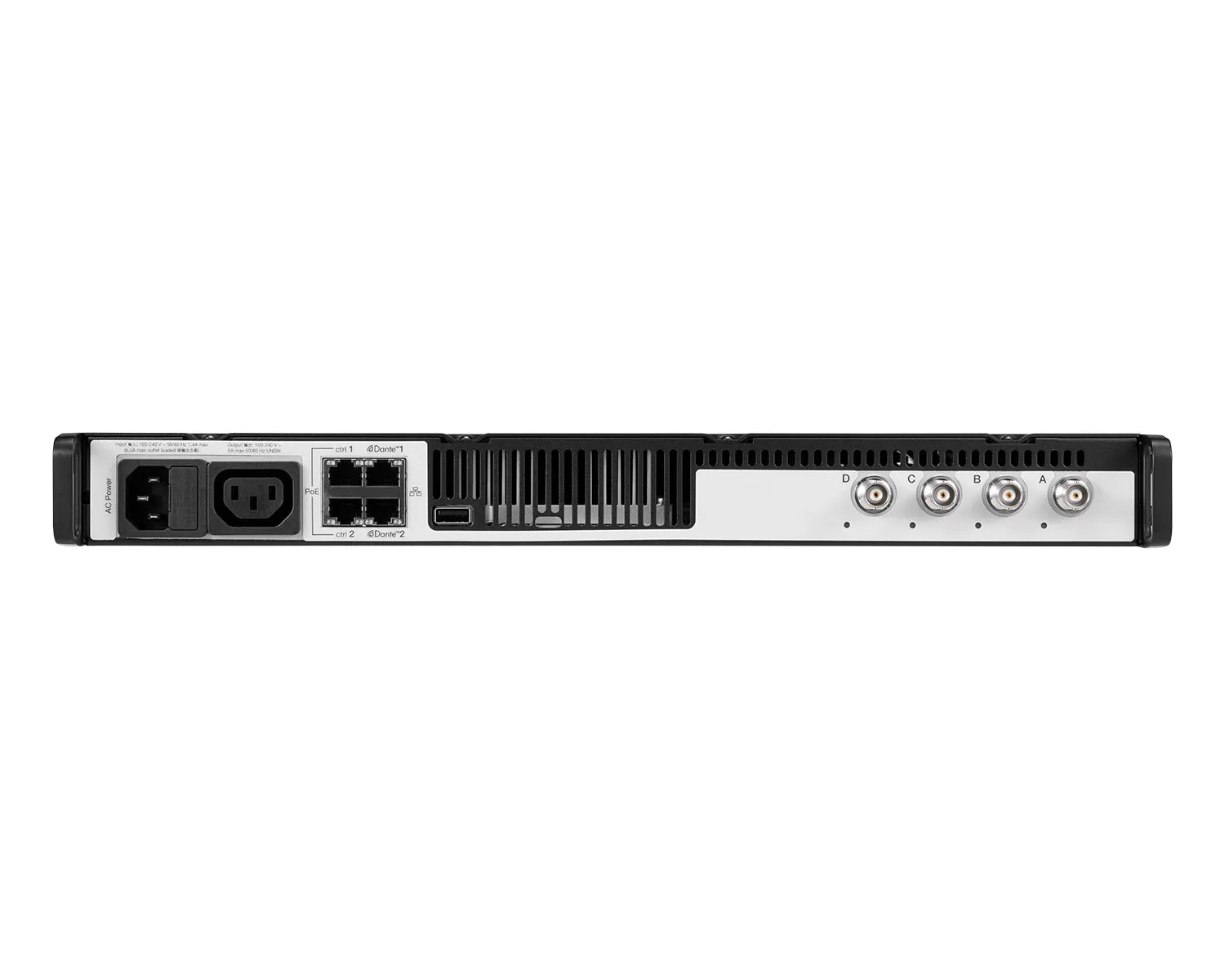

• 4 x Ethernet ports for network control and Dante/AES67 digital output options
• 4 x coaxial RF antenna input connectors support multiple frequency bands and provides greater coverage for complex setups
• Networked control with Shure Wireless Workbench® for extended and enhanced RF monitoring and management

Product Specifications

• RF Input
  • Spurious Rejection:  >80 dB, typical
  • Connector Type:  BNC
  • Impedance:  50 Ω
  • Configuration:  Unbalanced, passive
  • Bias Voltage:  12 to 13.5 V DC, 150 mA maximum, per antenna. Switchable on-off.
  • Insertion Loss:  0 dB, typical
• RF
  • RF Carrier Frequency Range:  174 – 2000 MHz
  • Working Range 100 m (330 ft)
  • (Note: Actual range depends on RF signal absorption, reflection, and interference.)
  • Gain Adjustment Range-18 to +42 dB in 1 dB steps (plus Mute setting)
  • RF Tuning Step Size 25 kHz, varies by region
  • Image Rejection > 90 dB, typical
  • RF Sensitivity ULX-D: -95 dBm at 10-5 BER
  • Axient Digital: -93.5 dBm at 10-5 BER
• Audio
  • Latency:
    • ULX-D Standard:  < 2.9 ms
    • ULX-D High Density:  < 3.2 ms
    • Axient Digital Standard:  < 2.1 ms
    • Axient Digital High Density:  < 3.0 ms
  • Audio Frequency Response:  20 – 20 kHz (±1 dB)
  • Audio Dynamic Range Typical, 20 Hz to 20 kHz, System Gain @ +12 dB:  124 dB A-weighted
  • Total Harmonic Distortion-6 dBFS, 1 kHz, System Gain @ +12 dB:  < 0.1%
  • System Audio Polarity:  Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
• Headphone Monitor Output
  • Audio Frequency Response:  20 – 20 kHz (±3 dB)
  • Configuration:  ¼-inch / 6.3 mm connector, unbalanced stereo
  • Impedance:  63 Ω
  • Maximum Signal Level:  350 mW
  • Pin Assignments:
    • Tip: Audio +, Left
    • Ring: Audio + Right
    • Sleeve: Ground
• Networking
  • Network Interface:  10/100 Mbps, 1 Gbps, Dante Digital Audio
  • Network Addressing Capability:  DHCP or Manual IP address
  • Maximum Cable Length:  100 m (330 ft)
• General
  • Dimensions:  1.7” x 19.0” x 11.3” (44 mm x 482 mm x 286 mm)
  • Weight:  8.6 lb (3.9 kg)
  • Housing:  Steel; extruded aluminium (Case Top: Aluminium)
  • Thermal Power Dissipation:  Maximum: 61.3 W (209.3 BTU/hr) Idle: 49.2 W (167.9 BTU/hr)
  • Power Requirements:  AC: 100 to 240 V AC, 50-60 Hz, 1.4 A max

  • Fuse:  T5A
  • Operating Temperature Range:  -18°C (0°F) to 50°C (122°F)
  • Storage Temperature Range:  -29°C (-20°F) to 74°C (165°F)

What's in the Box?

• 1 x ANX4
• 1 x Rackmount Kit
• 1 x Ethernet Cable (Short)
• 1 x Ethernet Cable (Long)
• 2 x BNC Cable
• 2 x BNC Bulkhead Adapters
