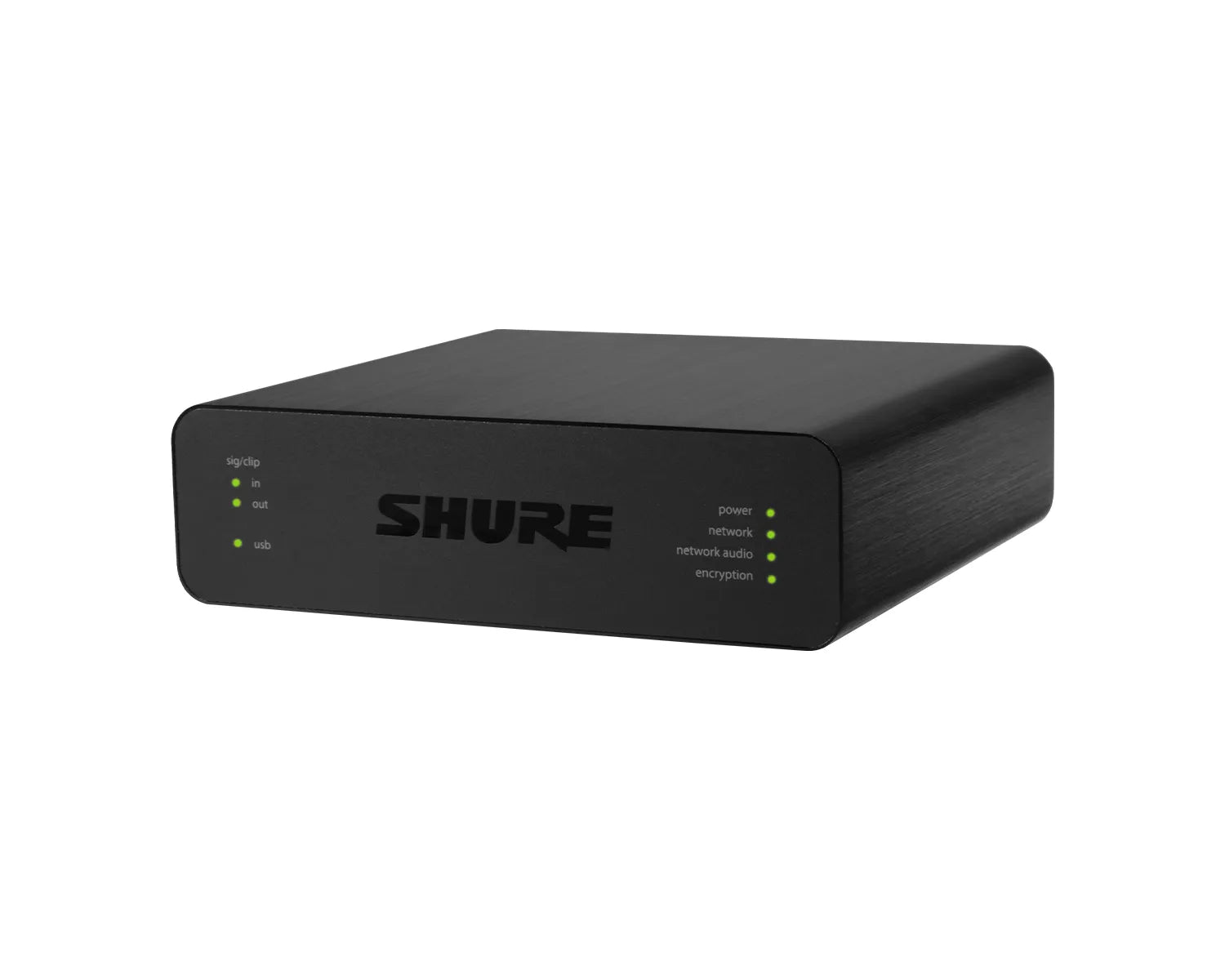

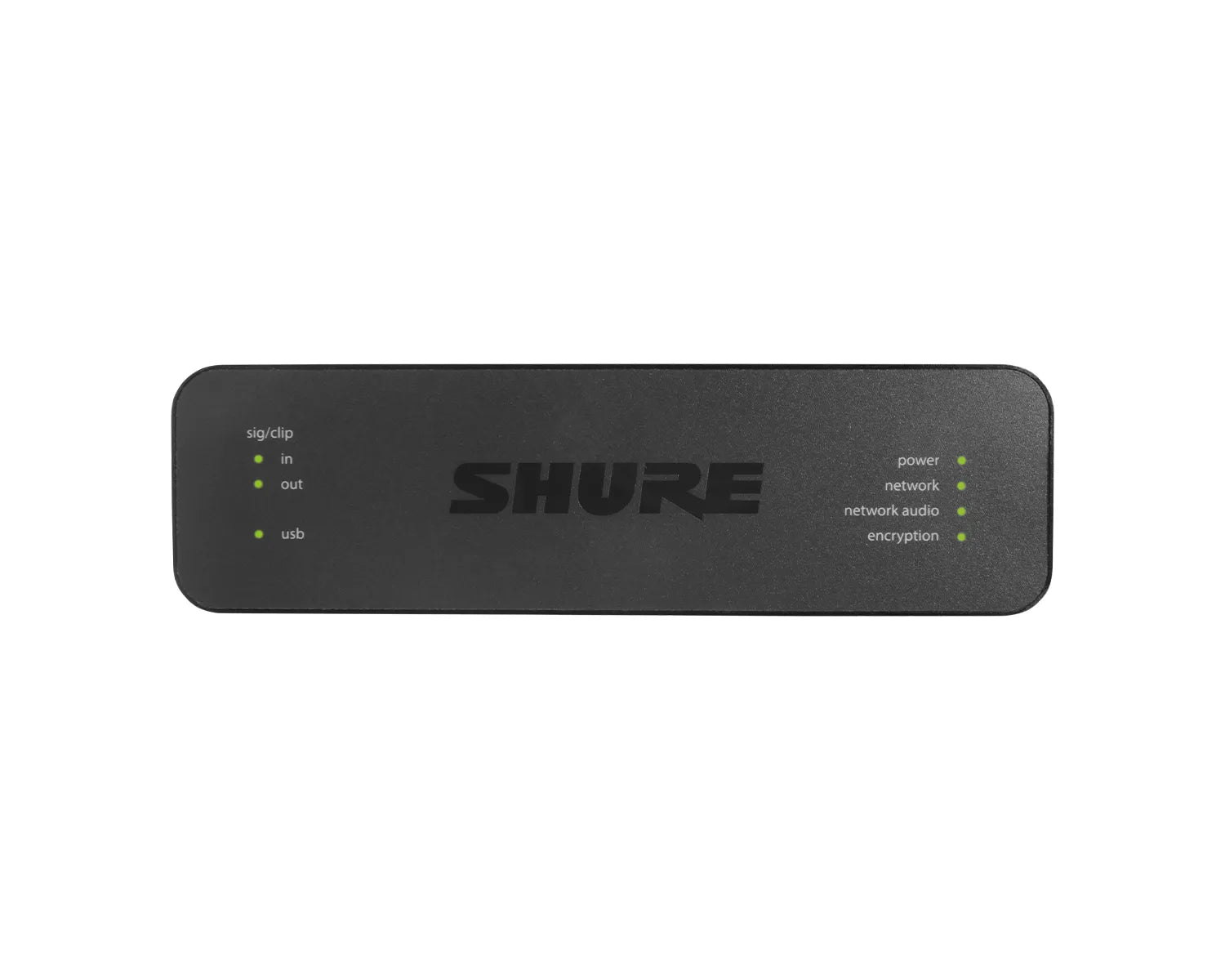

The ANIUSB-MATRIX USB Audio Network Interface complements the existing ANI4IN, ANI4OUT, and ANI22 products. It offers the ideal performance, connectivity, and affordability for audio/video conferencing installations in small and medium-sized meeting rooms when a premium microphone solution is desired, and acoustic echo cancellation of an A/V conferencing codec will be used.

The ANIUSB-MATRIX connects 4 Microflex Advance or Microflex Wireless microphone channels via Dante (4 in / 2 out), provides analogue connectivity (1 block in / 1 block out) to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out).

Internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analogue and USB outputs.

Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.

Product Features

• Connects 10 Dante audio inputs, 2 analogue inputs, USB and a mobile device to an AV conferencing system or a PC-based videoconferencing application
• Flexible signal routing and connectivity: analogue audio (2 block in / 2 block out) to connect to room AV conferencing system; USB (1 in/out) to connect to a laptop or room PC; one 3.5 mm TRRS jack to connect to a mobile device to enable an additional participant to join
• Dante Domain Manager / Device Lock compatible (Add “DDM Ready” icon)
• Easily setup and deploy settings with Designer System Configuration Software
• Power-over-Ethernet (PoE+) eliminates the need for an outboard power supply
• Compact form factor is easy to mount without an equipment rack

Product Specifications

Audio

• Frequency Response +1, -1.5  dB:  20 to 20,000 Hz
• Dante Digital Audio:
• Sampling Rate:  48 kHz

• Bit Depth:  24

• USB Audio:

• Sampling Rate:  48 kHz

• Bit Depth:  16, 24

• Latency, Does not include Dante latency:

  • Analogue to Analogue:  0.98 ms

  • Analogue to Dante:  0.39 ms

  • Dante to Analogue:  0.72 ms

  • Dante to Dante:  0.14 ms

• Dynamic Range 20 Hz to 20 kHz, A-weighted, typical:
  • Analogue-to-Dante:  113 dB

  • Dante-to-Analogue:  117 dB

• Equivalent Input Noise 20 Hz to 20 kHz, A-weighted, input terminated with 150Ω:
  • Line:  -86 dBV

  • Aux:  -98 dBV

• Total Harmonic Distortion @ 1 kHz, 0 dBV Input, 0 dB analogue gain:  <0.05%
• Common Mode Rejection Ratio 150Ω balanced source @ 1 kHz:  >70 dB
• Impedance:  10.6 kΩ
• Input Clipping Level:

  • Line:  +27 dBV

  • Aux:  +15 dBV

• Output Clipping Level:

  • Line:  +20 dBV

  • Aux:  +0 dBV

  • Mic:  -26 dBV

• Built-in Digital Signal Processing:
• Per Channel:  Equaliser (4band Parametric, Analog and USB output channels only) , Mute, Limiter, Gain ( 140 dB range)

• System:  Matrix mixer


General

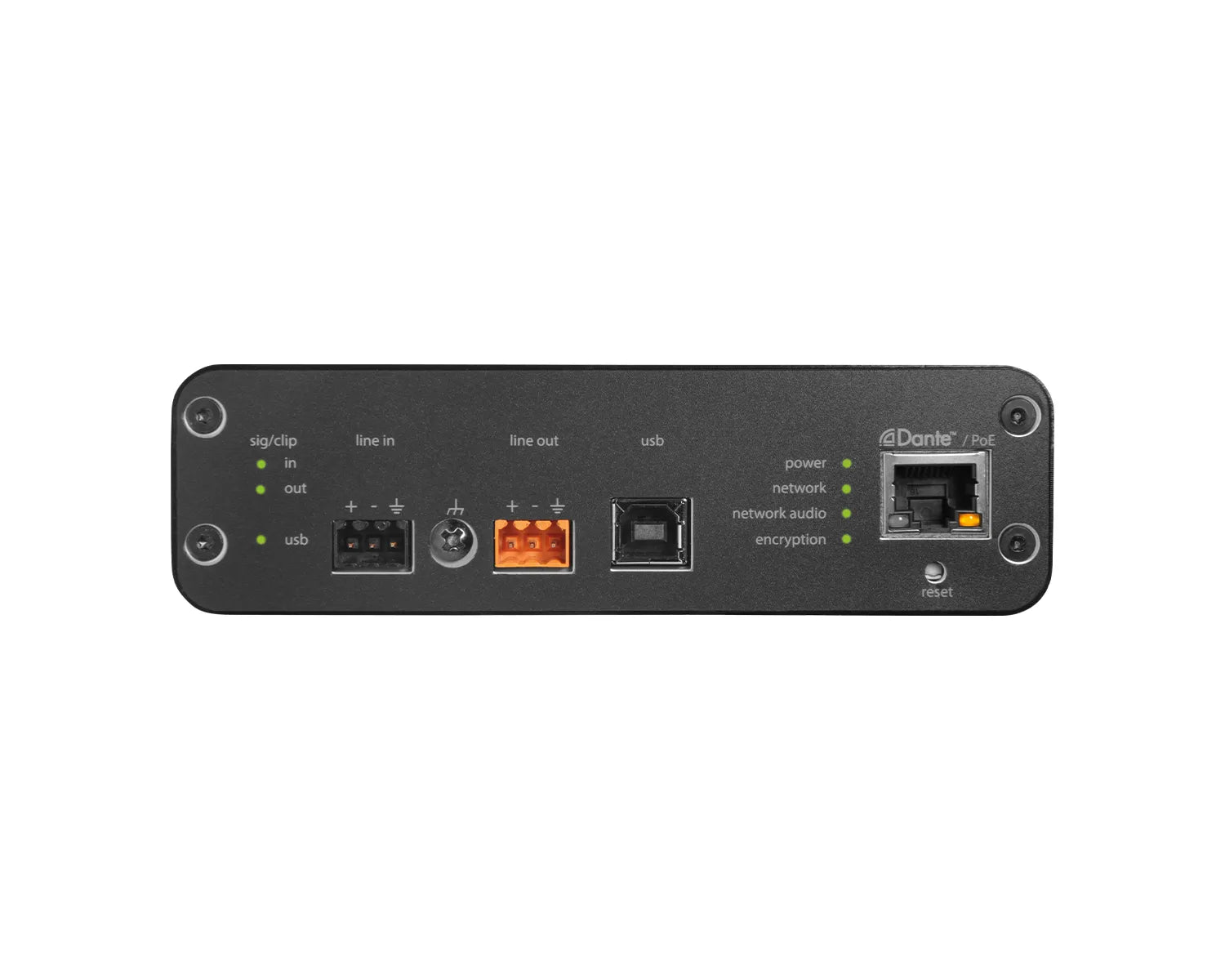

• Analogue Connections:
  • Input:  (1) 3-pin block connector (Active Balanced)
  • Output:  (1) 3-pin block connector (Impedance Balanced)
• USB Connections (1) USB 2.0, Type B:  Single port carries 1 input and 1 output channel (Summed mono)

• Network Connections (Dante Digital Audio) (1) RJ45:  4 input channels, 2 output channels
• Polarity:  Non-inverting, any input to any output
• Power Requirements:  Power over Ethernet (PoE), Class 0. (PoE Plus compatible).
• Power Consumption:  6.5W, maximum
• Weight:  668  g (1.5 lbs)
• Dimensions H x W x D:  4 x 14 x 12.8 cm ( 1.6 x 5.5 x 5.0 in.)
• Control Software:  Shure Designer
• Operating Temperature Range:  −6.7°C (20°F) to 40°C (104°F)
• Storage Temperature Range:  −29°C (20°F) to 74°C (165°F)
• Thermal Power Dissipation:

  • Maximum:  6.8W ( 23.0BTU/hr)

  • typical:  6.0W ( 20.8BTU/hr)
