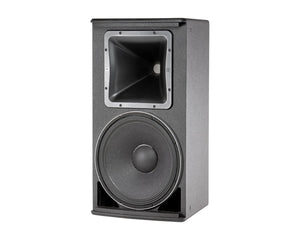

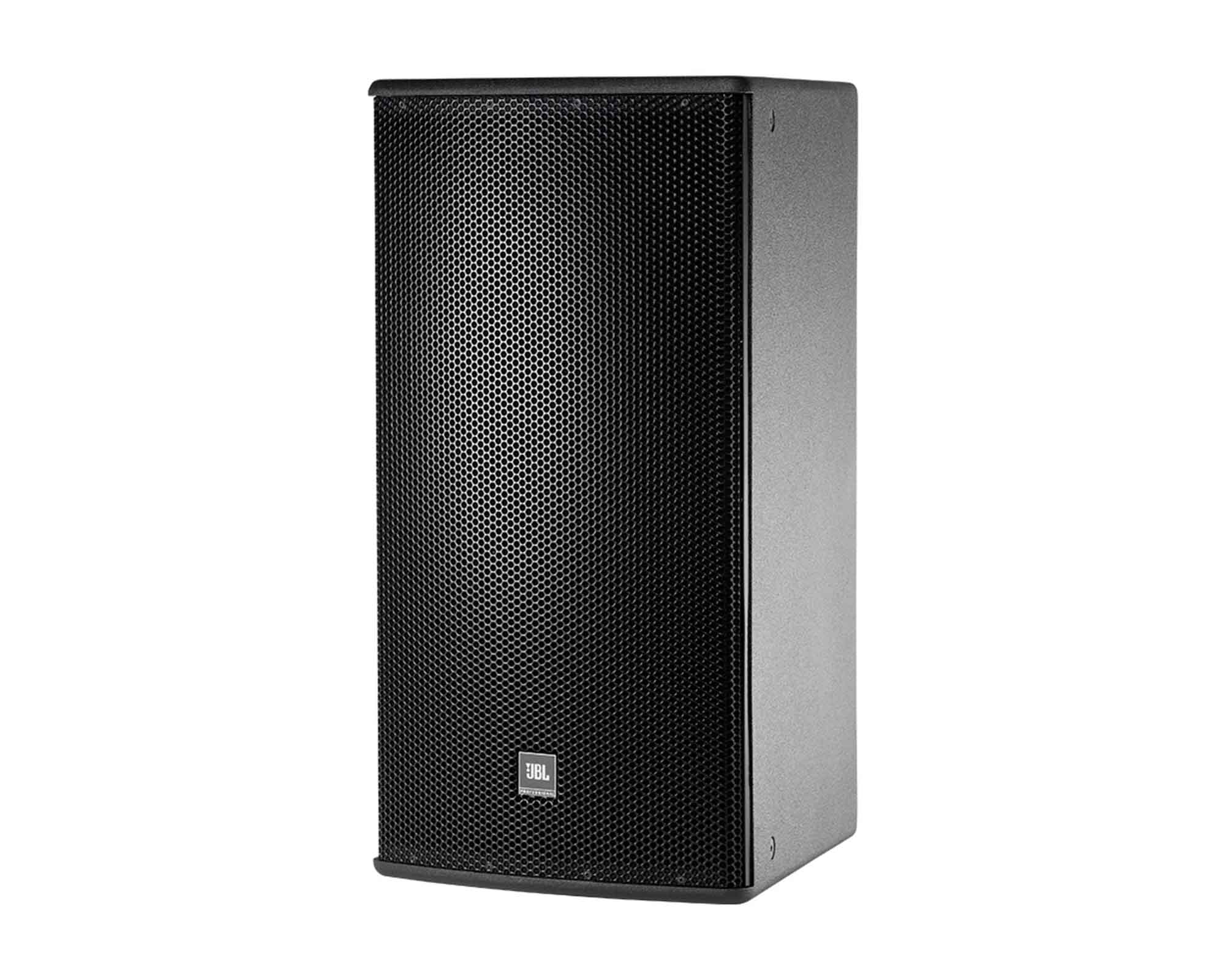

The AM5215/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Product Features

60° x 40° Coverage
265H-1 Differential Drive® Low-Frequency Driver
2408H-1 High-Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Finish: Black

Product Specifications

General

Frequency Range (-10 dB): 35 Hz - 20 kHz
Frequency Response (±3 dB): 41 Hz – 18 kHz
Coverage Pattern: 60° x 40°
Directivity Factor (Q): 14.5
Directivity Index (DI):11.6 dB
Crossover Modes: Bi-amp/Passive switchable
Passive Crossover Frequency: 2 kHz
Transducer Power Rating (AES): LF: 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs
Long-Term System Power Rating (IEC)Passive mode: 350 W (1400 W peak), 100 hrs
Maximum SPL: Bi-amp mode: LF: 125 dB-SPL cont avg HF: 131 dB-SPL cont avg.
System Sensitivity (1W @ 1m): Passive mode: 98 dB SPL
Low Frequency Driver:1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
Nominal Impedance: ohms
Sensitivity (1W @ 1m, within operational band): 99 dB SPL
High Frequency Driver: JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Nominal Impedance: 8 ohms
Sensitivity (1W @ 1m): 115 dB SPL
Waveguide: PT-H66HF-1
Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish: Black DuraFlex™ finish. White available upon request.
Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector: NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
