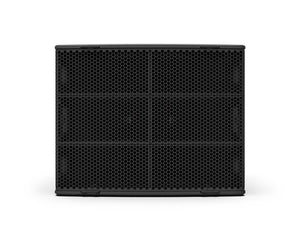

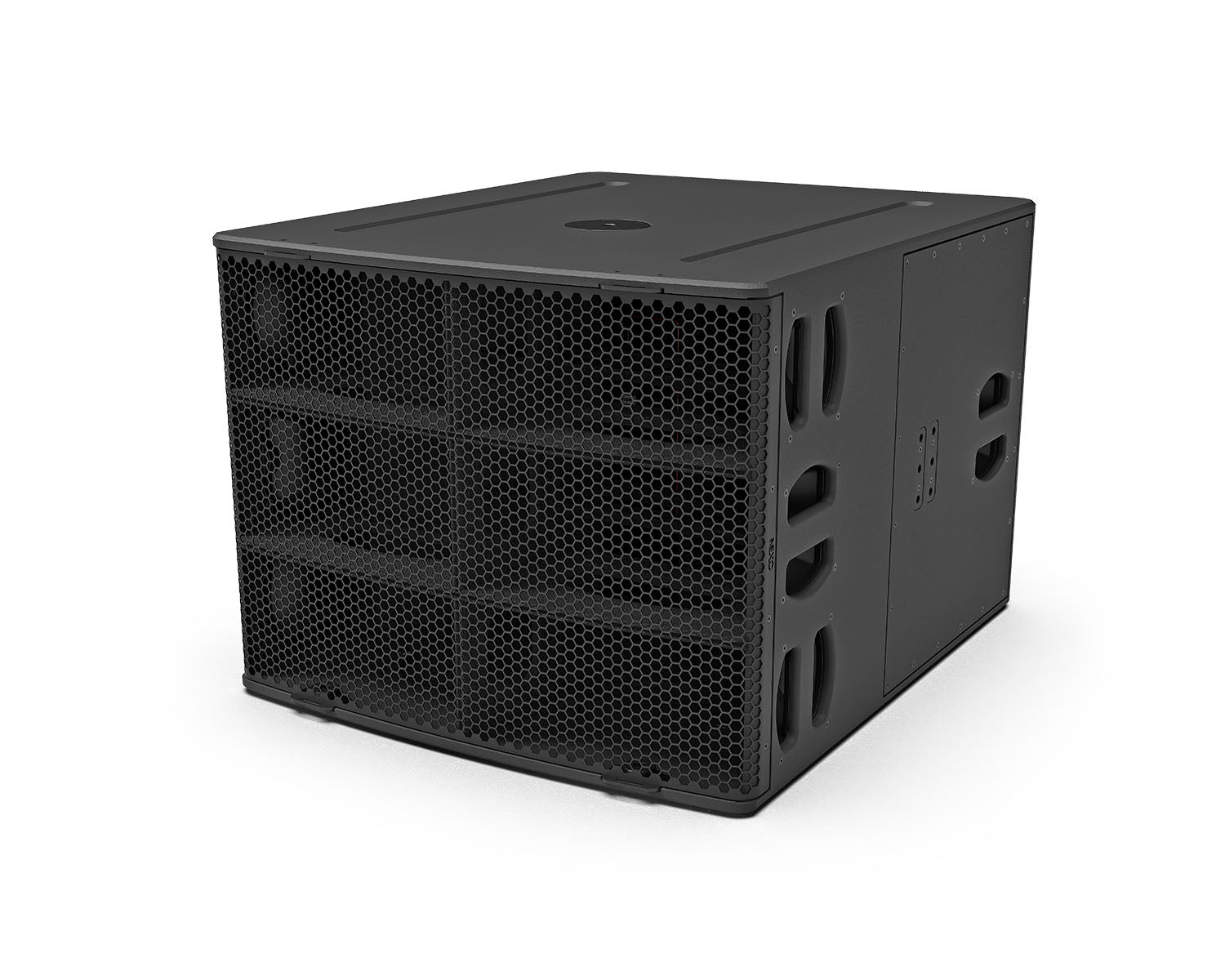

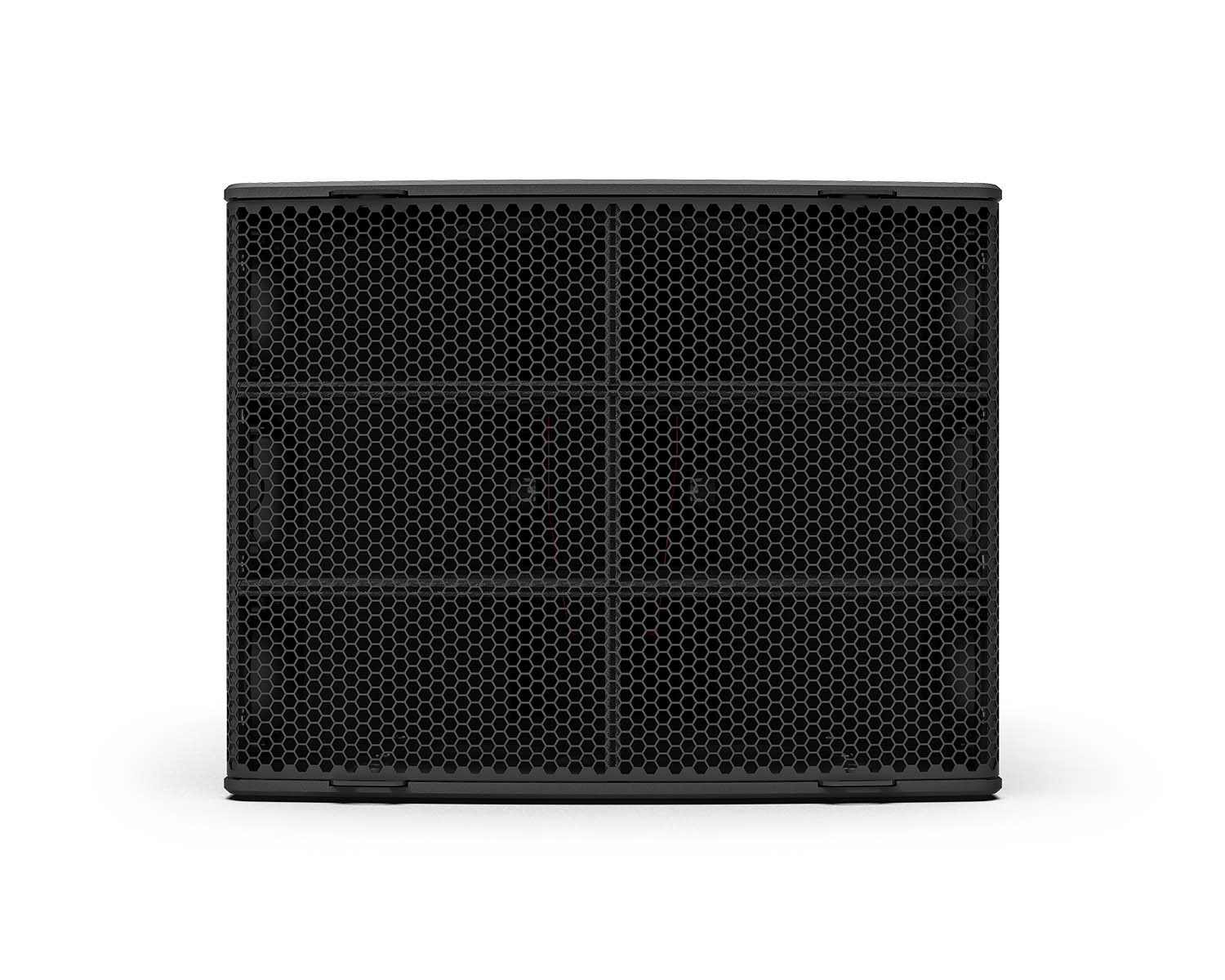

The B218 Bass module uses two high-force 18″ drivers coupled in a common cavity loaded with a symmetric bass horn, computer optimised to guarantee ultra-low distortion, even at very high levels.

Using a 15 mm custom made bent plywood shell, with Poplar veneer for the inside layers and Birch for the outside, the B218 weighs in at 77kg/170lbs and achieves a peak SPL of 146dB. The low-frequency horn ensures maximum radiating surface and high efficiency.

Four large comfortable handles on each side plus one at the back of the unit ensure easy manipulation of the B218 in any situation, particularly when used with its dedicated wheel-board and cover.

Product Features

• Extremely Powerful (146 dB peak) bass module of the Alpha+ system
• Compact footprint using custom made 15 mm bent plywood of Birch and Poplar
• Rounded shape to prevent damage in the corners and match Alpha+ system design
• Low-frequency horn ensure maximum radiating surface and high efficiency

Product Specifications

• With NEXO Processing
  • Frequency Response @-6 dB: 75 Hz to 160 Hz
  • Peak SPL@1m: 146 dB Peak
  • Operating Voltage: 65 Vrms (180 Vpeak)
  • Crossover Frequency: 75 Hz
  • Nominal Impedance: 4 Ohms
• Components: 2 x Neodymium 18” 8 Ohms
• Connectors: 2 x NL4, 4 poles connectors
• Rigging points: 2 x universal accessory fit (on each side) + 1 x M20 thread for Pole Stand on top
• Material: Custom made bent plywood of baltic birch and poplar
• Finish: Black structural paint
• Front Finish: Magnelis® Steel front grille
• Height x Width x Depth: 594mm x 755mm x 905 mm (23.4” x 29.7” x 35.6”)
• Weight: Net: 77 kg (170 lbs)
• Operating temperature range: 0°C - 40 °C (32° F - 104° F)
• Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
• Powering solution: NXAMP4x4mk2 Powered TDcontroller: Up to 2 x B218 per channel
