The AKR1 is a powerful and very cost-effective induction loop kit, designed specifically for waiting rooms. The AKR1 includes the PDA200E amplifier, which can cover up to 200 square metres of open space.

The kit is Fully compliant with BS 7594, clause 10 A3 and BS EN 60118-4 when correctly installed and feature two balanced/unbalanced line level inputs. In addition, the system also features one microphone input with phantom power for electret microphones.

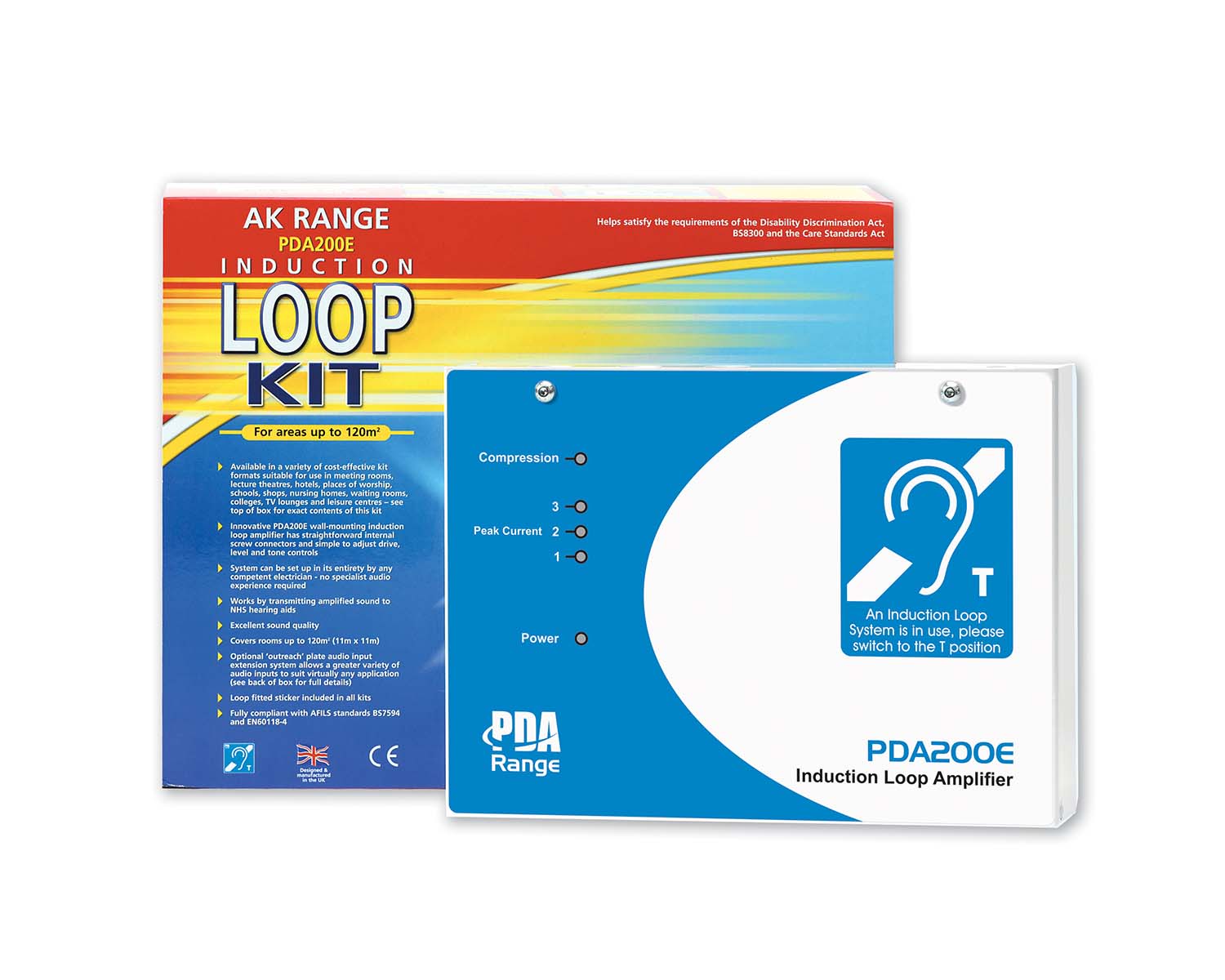

The AKR1 kit includes the PDA200E amplifier, APL outreach plate (paging system input) and an ‘AFILS fitted’ sticker

Product Features

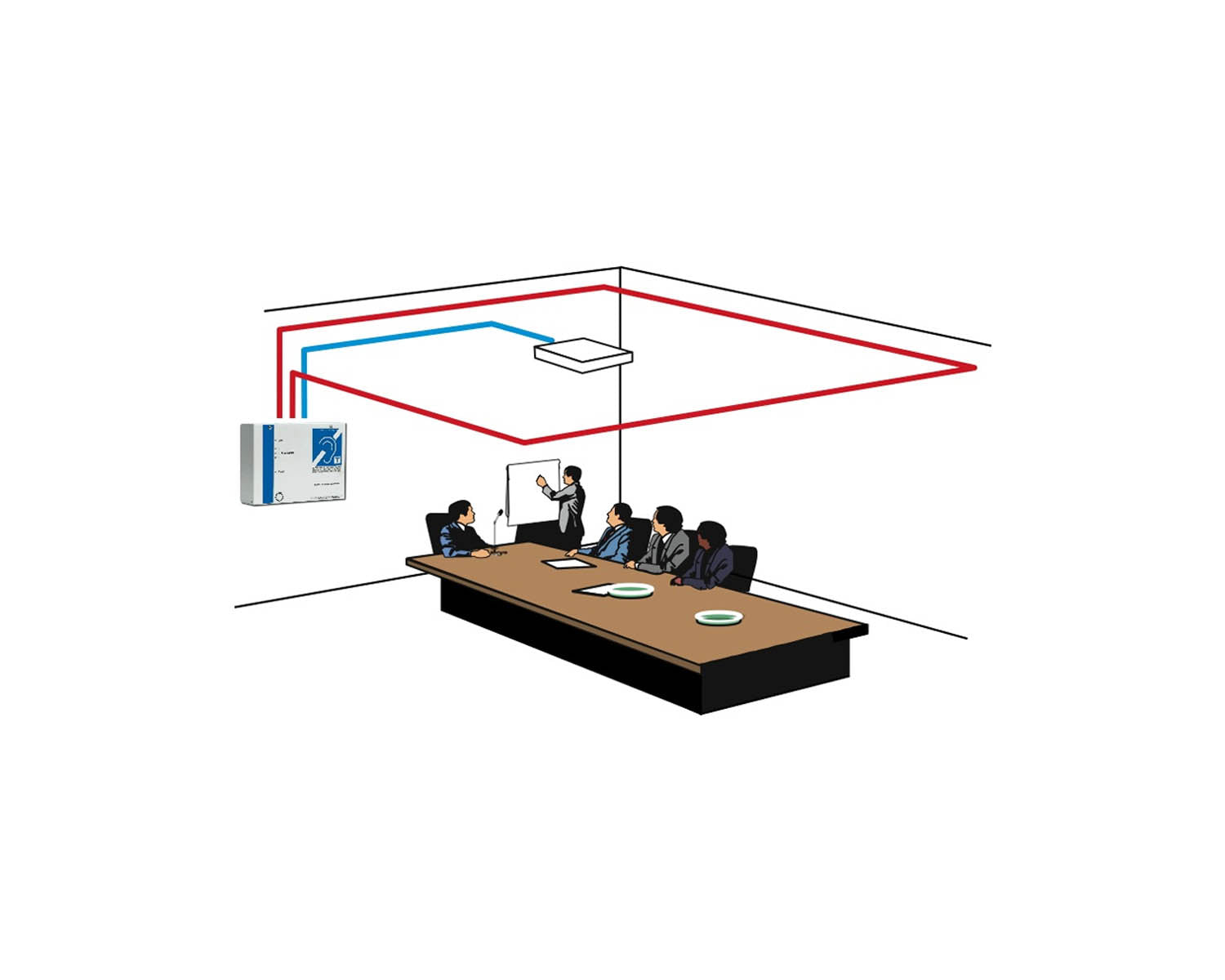

• A powerful and very cost-effective induction loop amplifier designed to drive a perimeter loop of up to 200 square metres
• Fully compliant with BS 7594, clause 10 A3 and BS EN 60118-4 when correctly installed
• Also available in a wide range of kit formats – suitable for use in meeting rooms, waiting rooms, TV lounges, health and fitness suites, churches, etc
• Up to 200 metres (metal free) coverage – ideal for most ‘free space’ applications
• Features TWO balanced/unbalanced line level inputs and one microphone input with phantom power for electret microphones
• Ideal for electrical contractors – no audio connectors or experience required
• Metal compensation control to improve intelligibility in rooms with high metal content

Product Specification

General

• Induction Loop Type: Wall mounting, requires fixed mains wiring
• Coverage: 200m2 approx.
• Inputs: 1 x Microphone, 2 x Line/Outreach
• Indicators: Input level; Power; Compression; Peak Current (3,2,1)
• Controls: Metal Compensation, Input level, loop drive
• Includes: PDA200E amplifier; APL outreach plate (paging system input); ‘AFILS fitted’ sticker

Physical & Dimensions

• Dimensions: W 273 x H 200 x D 77mm (amplifier only)
• Weight: 2.82kg

Alternative Systems

• AKT1 TV / music lounge kit: PDA200E amplifier; AMH handheld mic.; APS scart lead; APJ outreach plate; APL outreach plate; ‘AFILS fitted’ sticker.
• AKM1 Meeting room kit: PDA200E amplifier; APM plated mic.; ‘AFILS fitted’ sticker
• AKL1 Lecture room kit: PDA200E amplifier; AMT tie/desk mic.; AML lectern mic.; 2 x APJ outreach plates; ‘AFILS fitted’ sticker.
• AKW1 Place of worship kit 1: PDA200E amplifier; AML lectern mic.; APJ outreach plate; APL outreach plate (audio input for CD/tape deck); ‘AFILS fitted’ sticker.
