The ACS-40TS brings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments — from hotels and concourses to retail outlets, bars and restaurants.

Comprising a 4” (100mm) LF driver and a 0.75” (19mm) silk- dome tweeter, the ACS-40TS produces 108dB peak output at 1 metre and has a high-fidelity sonic character ideal for both music and speech reproduction. Its ported design delivers strong bass that extends down to 73 Hz.

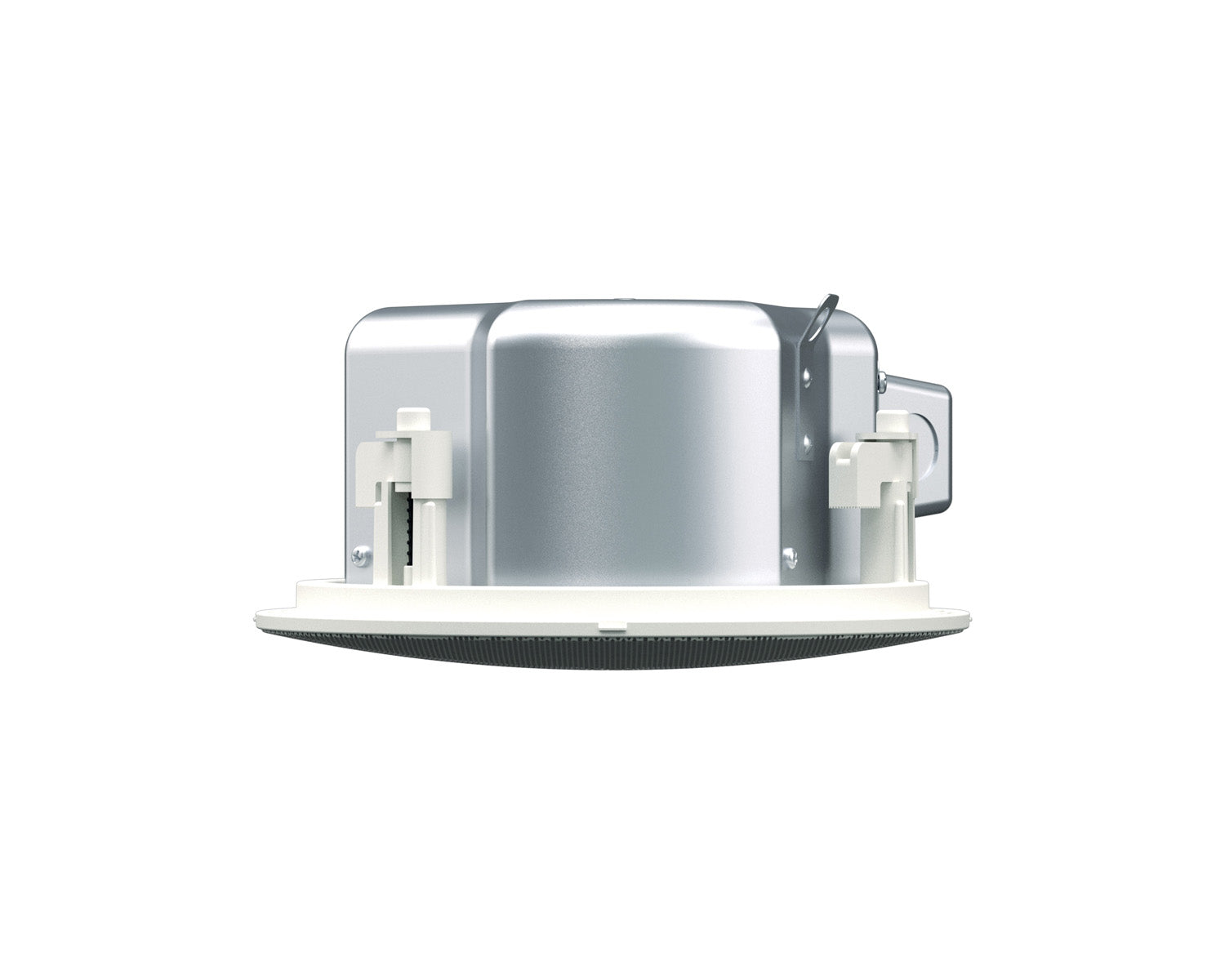

The very wide 180° conical coverage of the ACS-40TS makes it particularly suitable for low ceilings and reduces the number of speakers required for even coverage — leading to a reduction in installation cost. It features a shallow backcan for installation in ceilings with a minimum cavity depth.

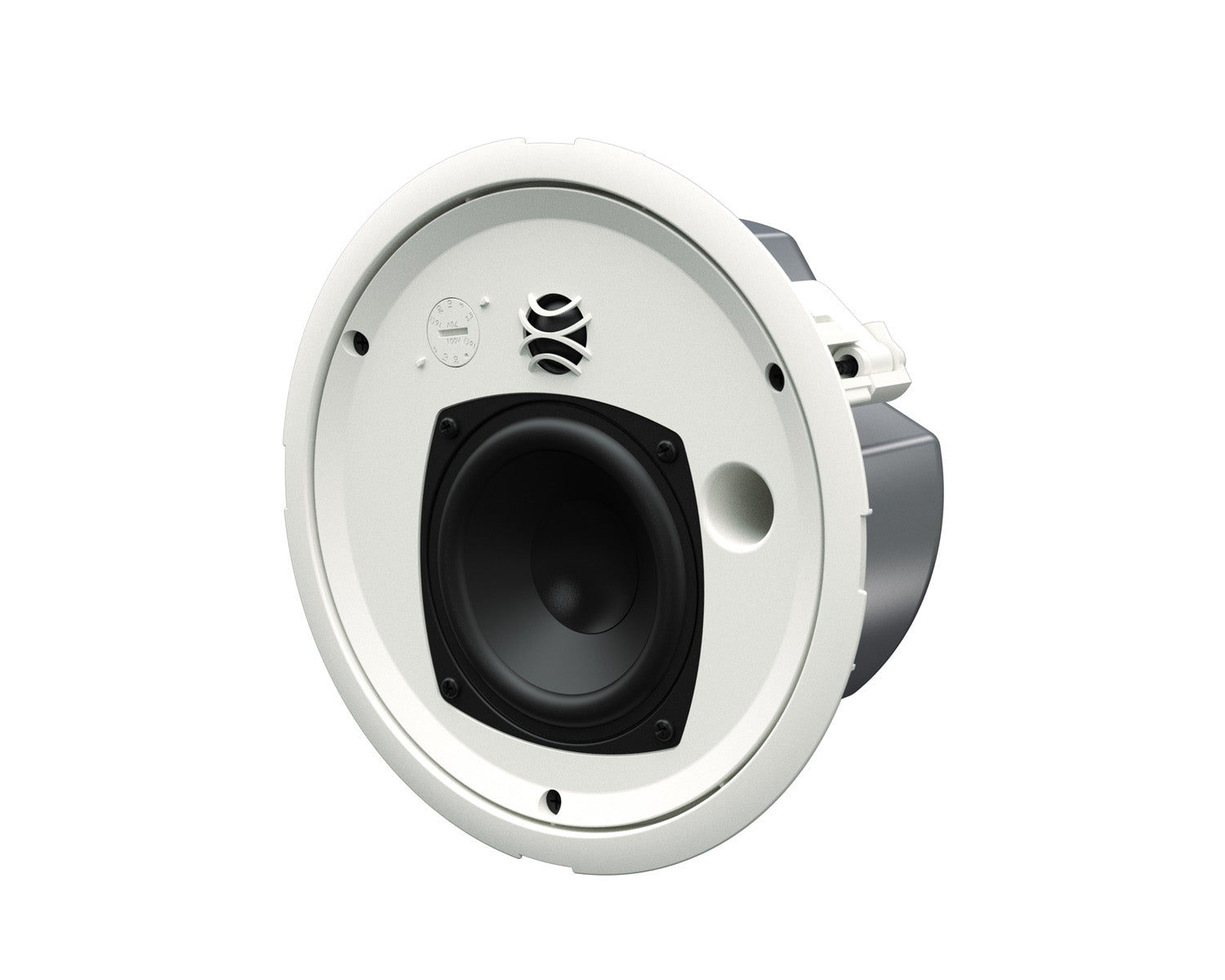

It incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch accessible behind the powder-coated, perforated steel grille. The switch also provides for 16-ohm low impedance operation — enabling four or more speakers to be driven in parallel from a single amplifier channel. For full-bandwidth protection, the low and high-frequency sections are individually against overload by auto-resetting thermal fuses.

Product Features

• High performance two-way ceiling speaker
• 4” (100mm) LF driver and 0.75” (19mm) HF dome tweeter
• Very wide 180° conical coverage pattern reduces speaker count required for even coverage
• 70V/100V multitap line transformer or 16-ohm low-impedance operation
• Low and high-frequency overload protection
• UL94V-0 rated baffle with zinc-plated steel backcan
• Quick release, bezel-less grille
• Tile rails and C-ring included
• 5-year warranty

Applications

• Retail outlets
• Cafes, bars and restaurants
• Museums and Houses of Worship
• Hotels, casinos and concourses
• Transportation facilities
• Boardrooms and reception areas

Product Specifications

• TYPE: Ultra-compact, passive two-way ceiling speaker, ported bass reflex
• FREQUENCY RESPONSE (1): 106Hz-20kHz ± 3dB
• -10dB @ 73Hz
• DRIVERS:
  • LF: 4” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
  • HF: 0.75” silk dome, neodymium motor
• RATED POWER (2): 40W AES, 160W peak
• RECOMMENDED AMPLIFIER: VIA2004 (for low-impedance operation)
• SENSITIVITY(4): 86dB / 1W(4V) / 1m
• MAXIMUM SPL (9): 108dB peak
• NOMINAL IMPEDANCE: 16Ω
• DISPERSION (-6DB): 180° conical up to 10kHz
• CROSSOVER: 3.5 kHz passive (LF and HF auto-resetting fuses)
• TRANSFORMER TAPS:
  • 70V: 20w / 10w / 5w / 2.5w
  • 100V: 20w / 10w / 5w
• RECOMMENDED HIGH-PASS FILTER: 75Hz 24dB/oct
• ENCLOSURE: UL 94V-0 rated ABS baffle with steel backcan
• FINISH: Baffle and grille: RAL9016 white Backcan: zinc plated

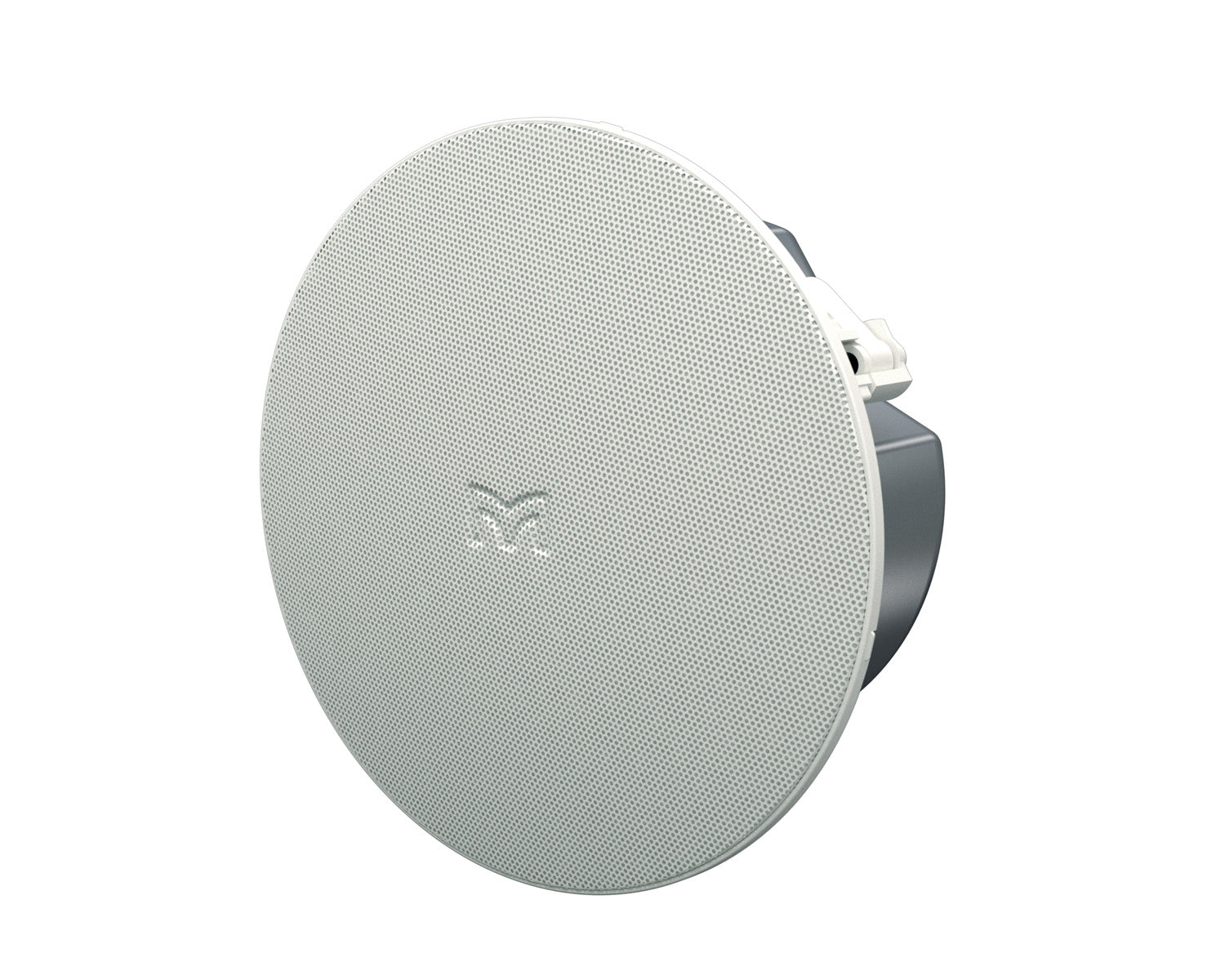

• GRILLE: Perforated steel, powder-coated, bayonet fitting
• CONNECTORS: Ceramic connector (in and link) located behind fire-retardant steel cover
• ACCESSORIES (INCLUDED):
  • 2 tile rails
  • C-ring backing plate
  • Cut-out template
• DIMENSIONS:
  • (OD) 221mm x (D) Back Can 97mm, (D) Inc. Grille 115mm
  • (OD) 8.7in x (D) Back Can 3.81in, (D) Inc. Grille 4.51in
• WEIGHT: 2.2kg (4.8lbs)
