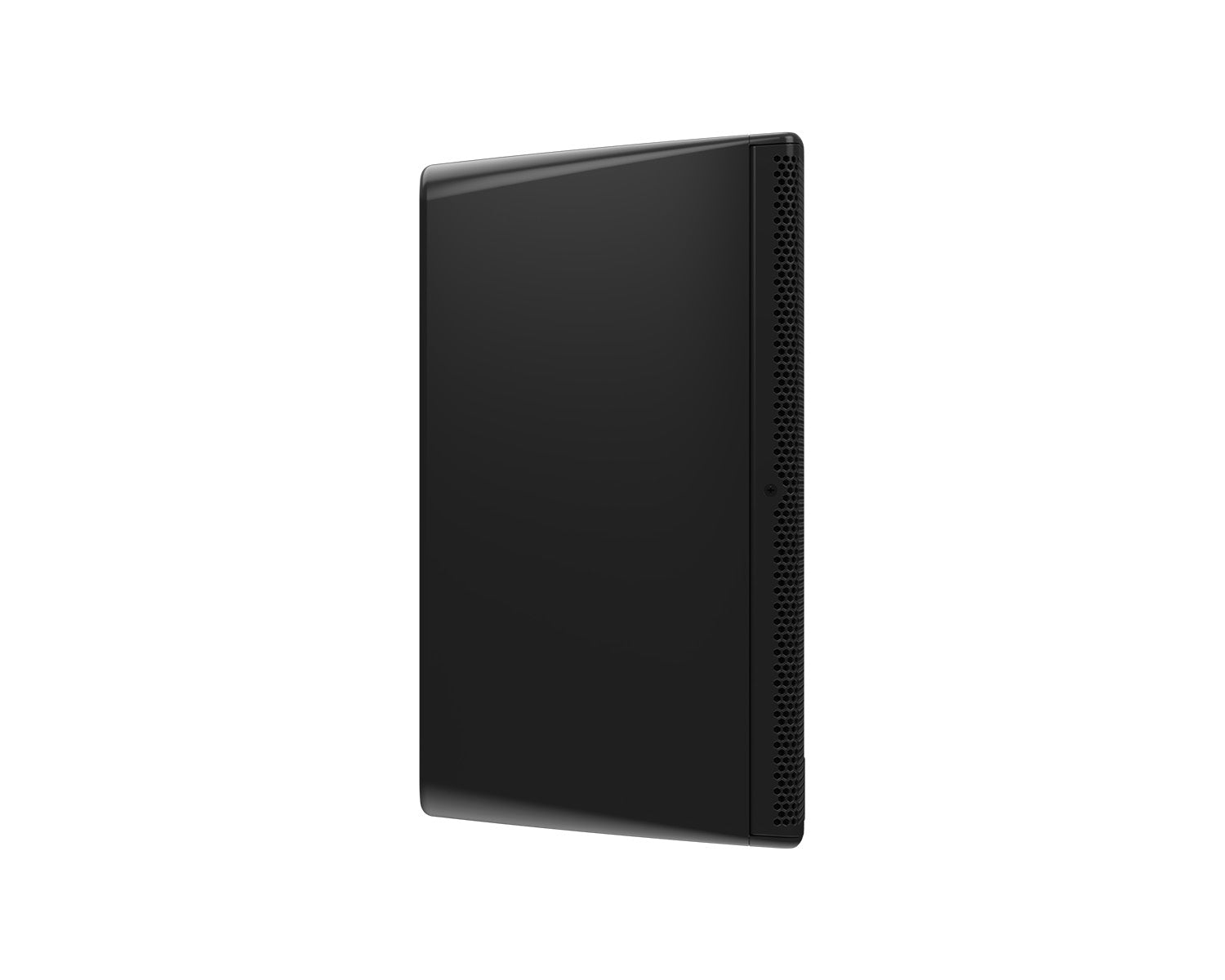

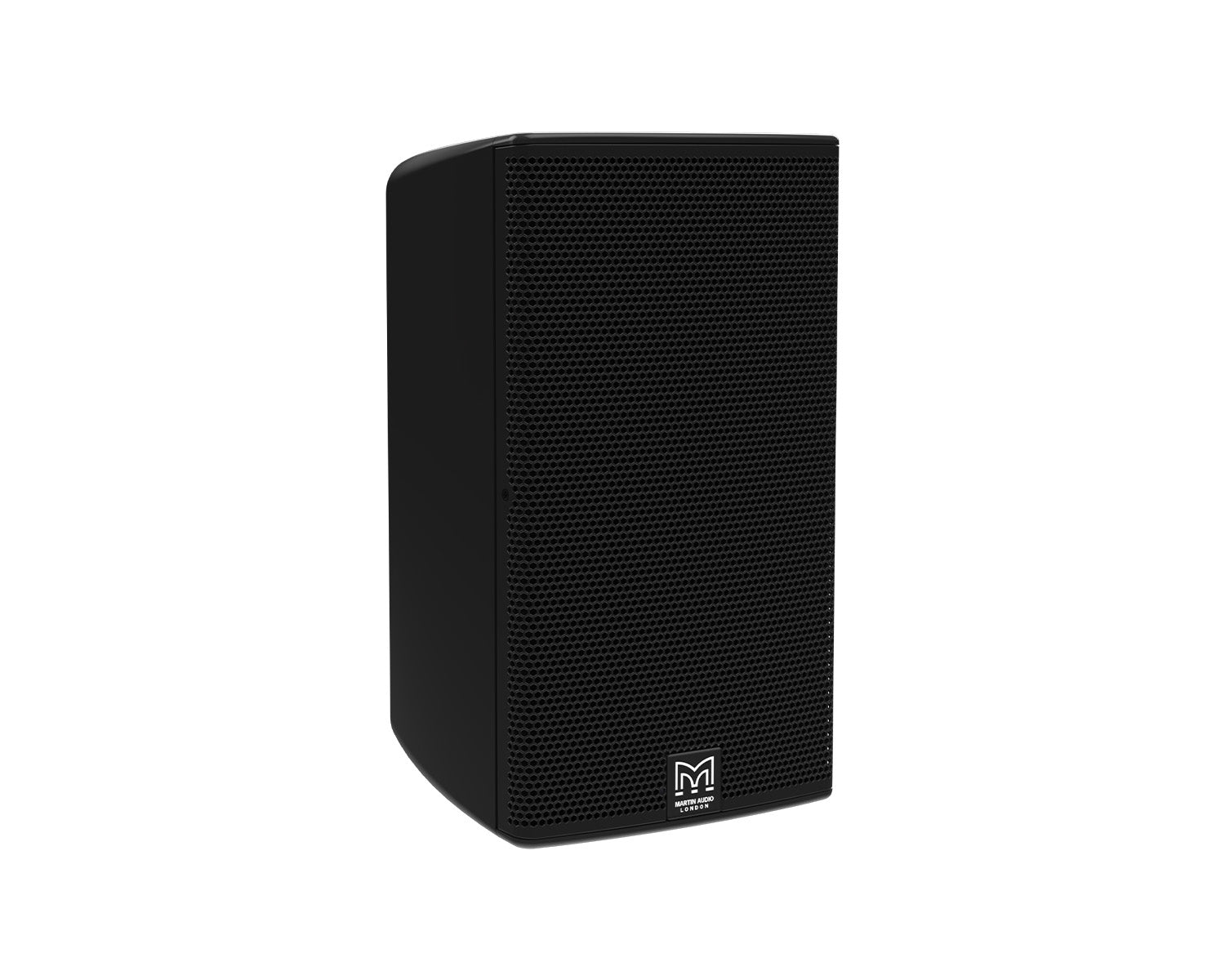

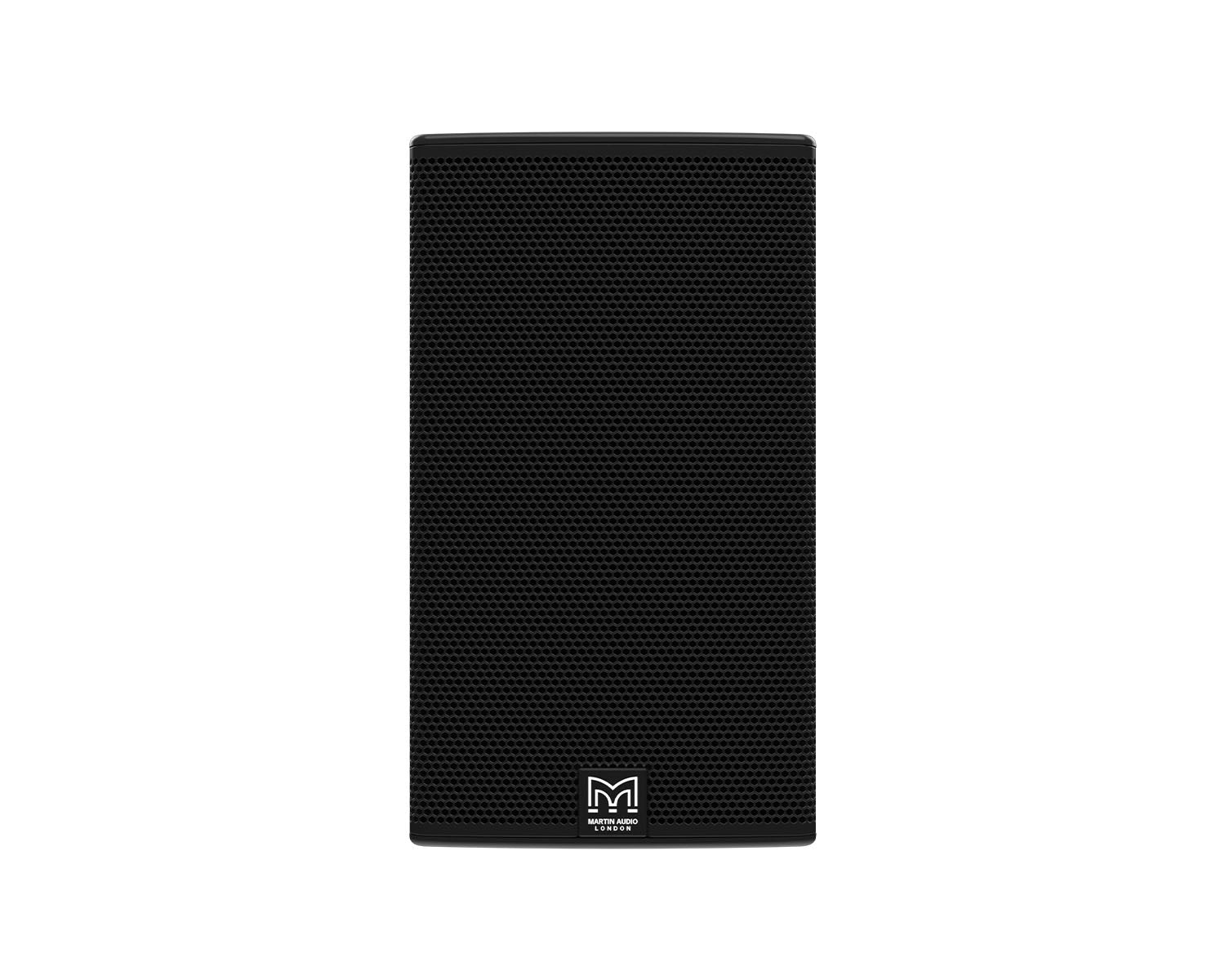

The ADORN A80T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high fidelity sound from an unobtrusive, compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.

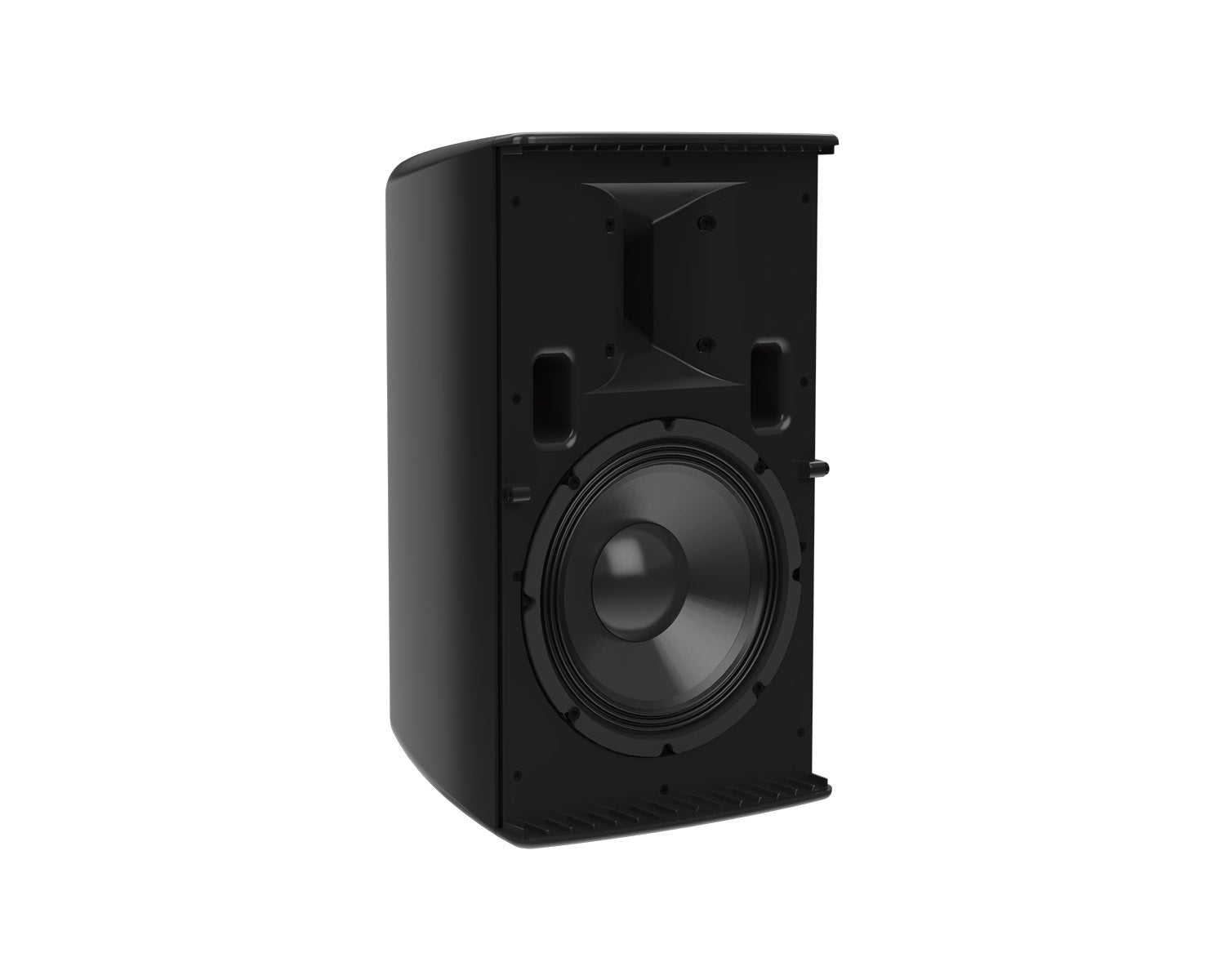

Comprising an 8” (203mm) LF driver and a 1” (25mm) polymer dome HF compression driver on a 90° x 50° horn, it handles 200W AES, 800W peak and can produce 120dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 63Hz.

With a nominal impedance of 8 ohms, multiple speakers can be driven in parallel from a single channel of a low impedance amplifier, such as the Martin Audio VIA2502 or VIA5002, thereby maximising efficiency and minimising cost. A80T also incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch.

Product Features

• Contemporary, unobtrusive design
• High output capability
• High fidelity sound
• 70V/100V line transformer
• Low and high-frequency overload protection
• Vertical or horizontal orientation
• 90° x 50° coverage
• IP54 with optional waterproof connector cover
• 5-year warranty

Product Specifications

• Type: Compact passive two-way system, front ported bass reflex
• Frequency Response: 63Hz-17kHz ± 3dB, -10dB @ 50Hz
• Drivers
  • LF: 8” with 2” high-temp voice coil, ferrite motor system
  • HF: 1” with 1” exit polymer dome compression driver
• Rated Power: 200W AES, 800W peak
• Recommended Amplifier: VIA2502 or VIA5004 (or VIA5002 for70V/100V line)
• Sensitivity: 91dB
• Maximum SPL: 120dB peak
• Nominal Impedance: 8 ohms
• Dispersion (-6dB): 90° H x 50° V
• Crossover: 2.3kHz passive (LF and HF auto-resetting fuses)
• Transformer Taps:
  • 70V: 60/30/15/7.5W
  • 100V: 60/30/15W
• Recommended High-Pass Filter: 40Hz 24dB/oct (8 ohm), 60Hz 24dB/oct (Transformer)
• Enclosure: ABS, UL 94V-0 rated
• Finish: Black

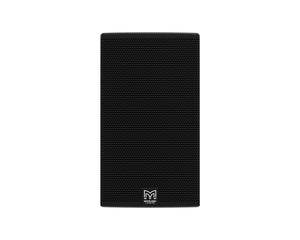

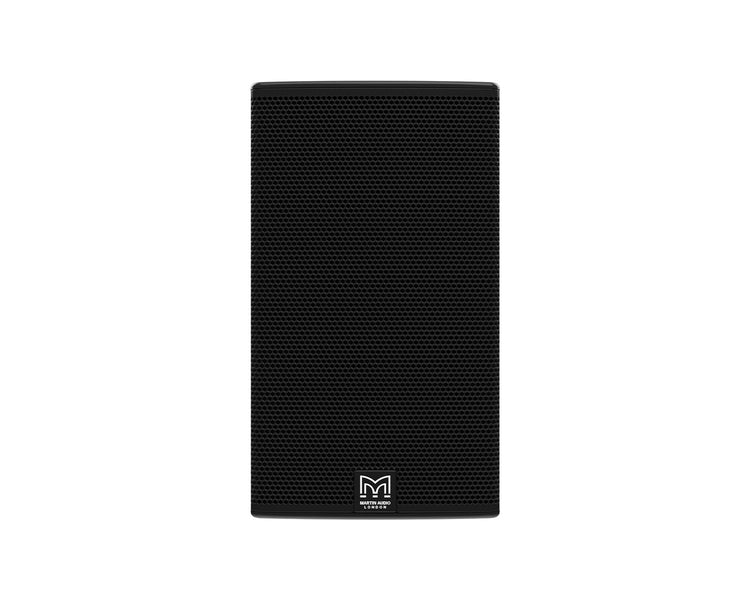

• Grille: Perforated steel

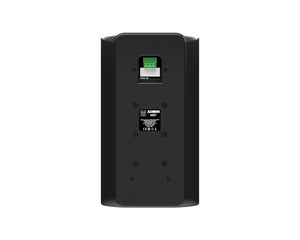

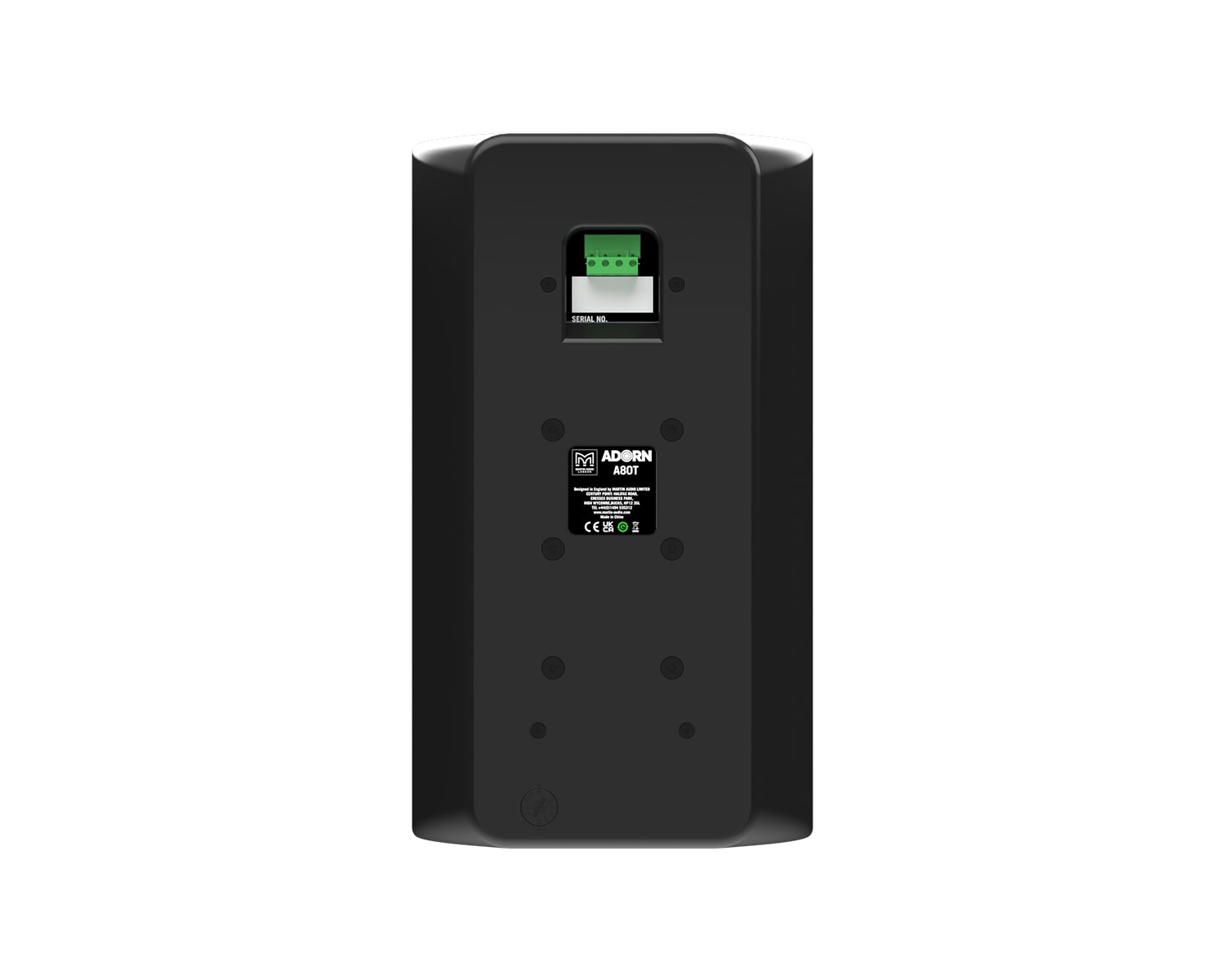

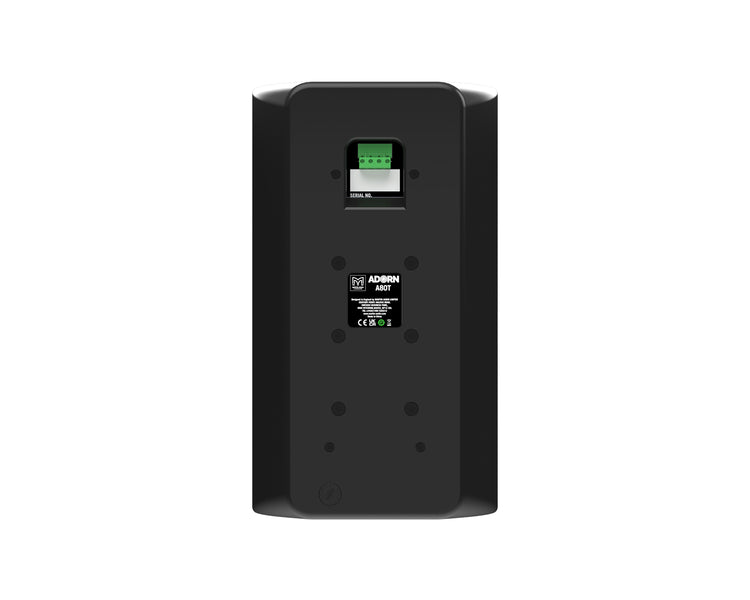

• Connectors: Low profile 13A push-lock
• Fittings: 6 x M6 inserts for wall or ceiling brackets
• Dimensions Excl. Bracket (WxHxD): 246mm x 421mm x 233mm (9.69in x 16.56in x 9.18in)
• Weight: 9.08kg (20.02lbs)
• Accessories:
  • IP54 rating with optional waterproof connector cover (not included)
  • Wall bracket WB6/8 (included)

What's in the Box?

• ADORN A80T
• WB6/8 Wall bracket
