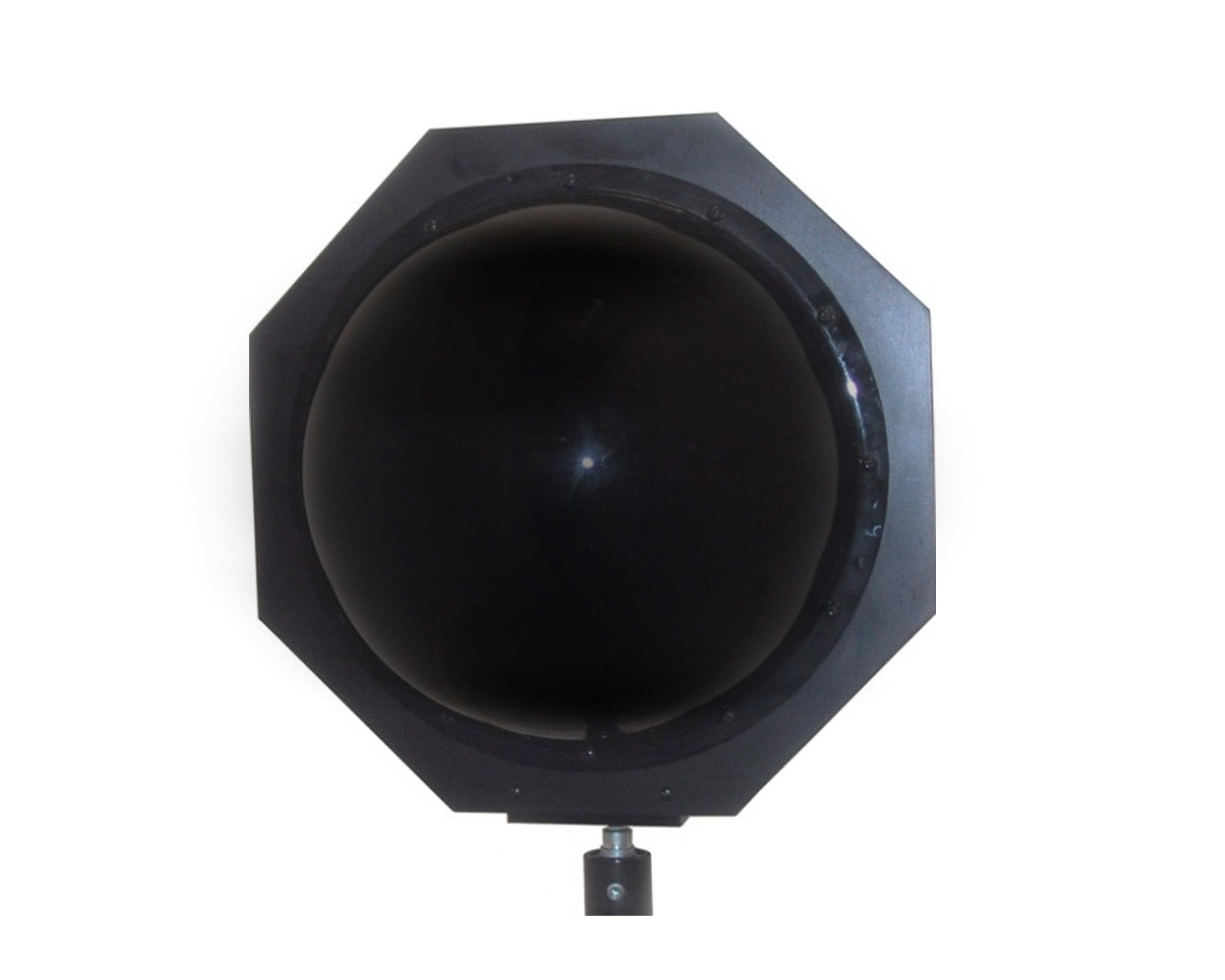

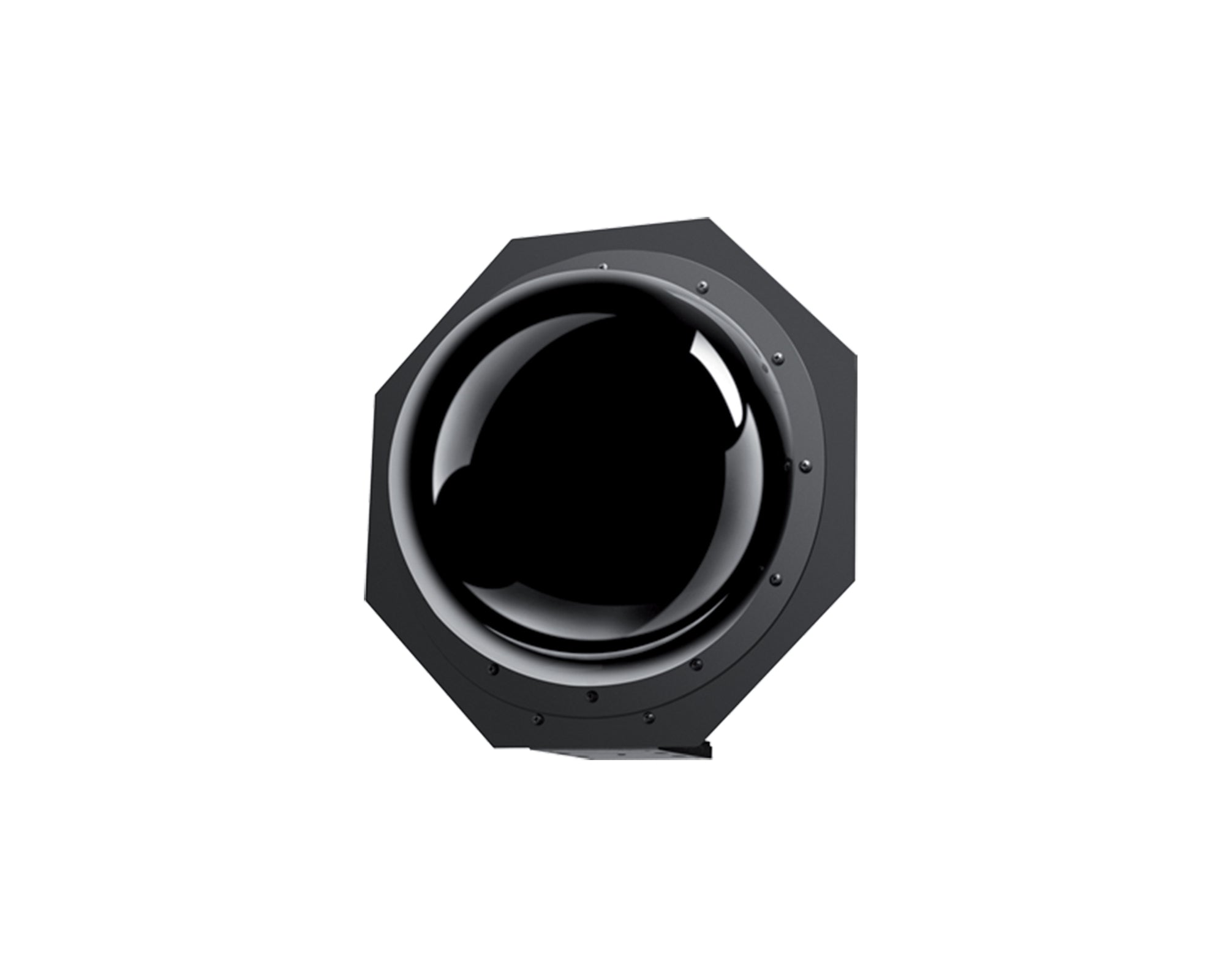

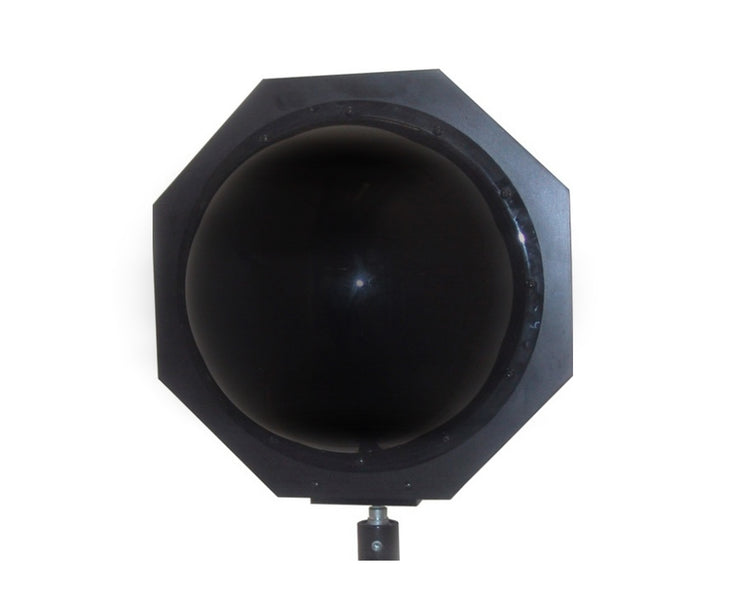

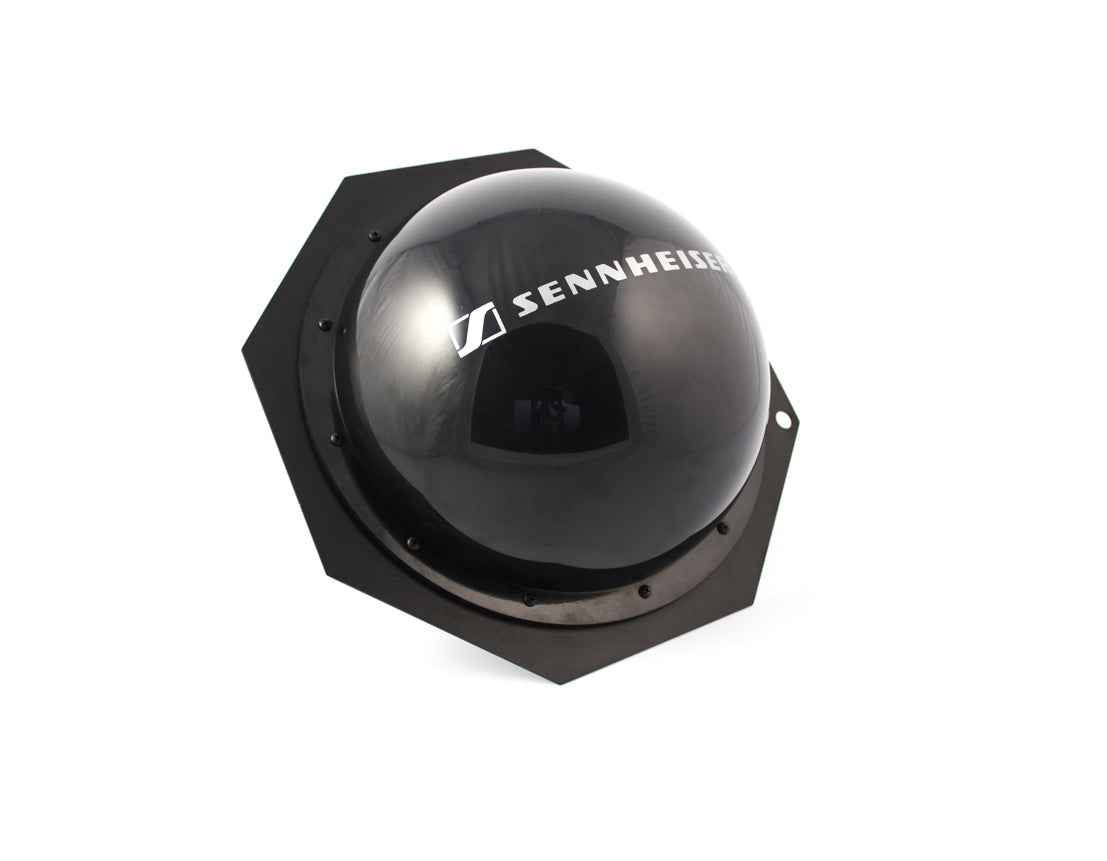

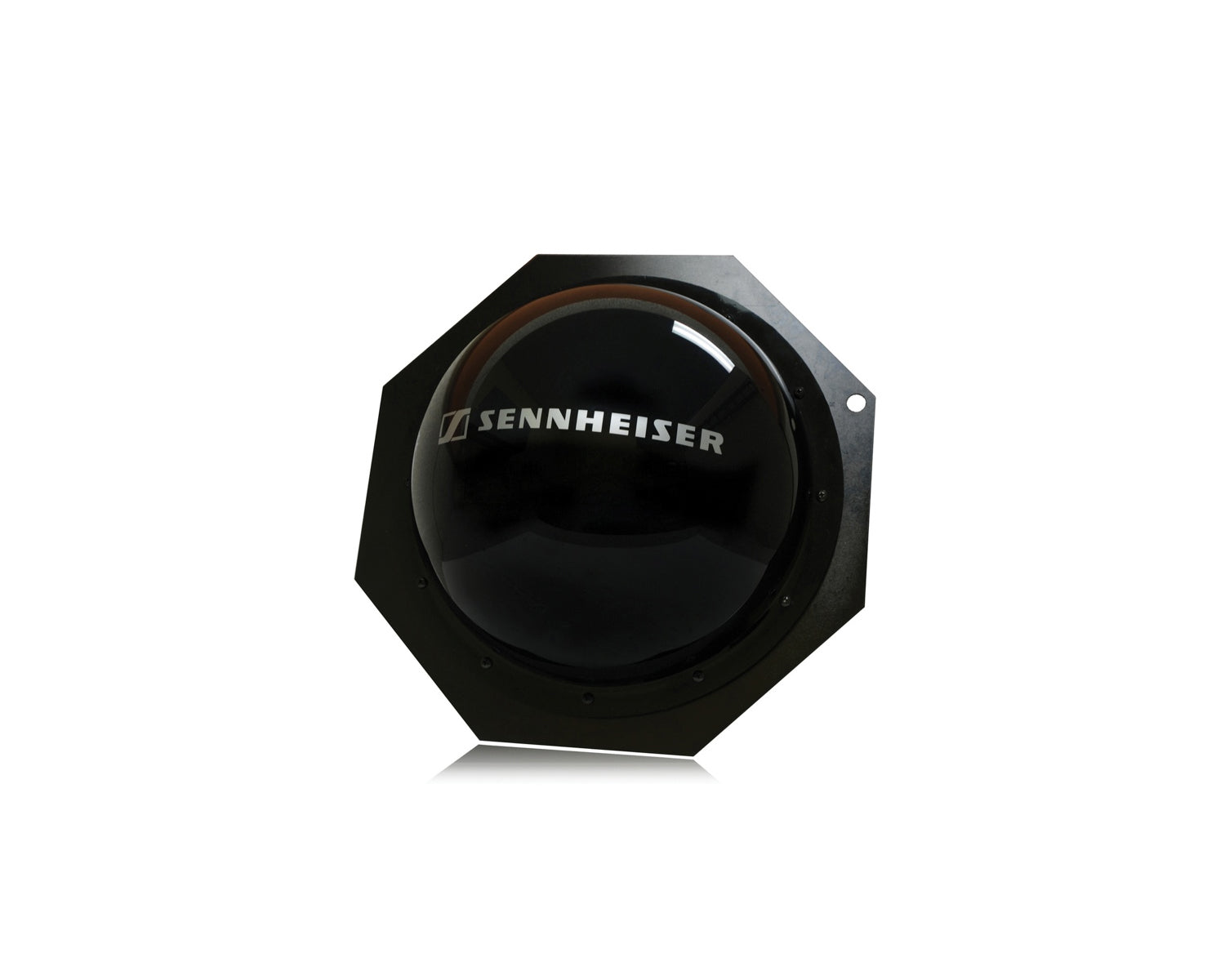

The A 5000-CP antenna has RF performance characteristics that are extremely desirable for usage in the UHF broadcast band, both as transmit and receive device. Actual installations have demonstrated that the circular polarization of this antenna minimizes variations in signal strength and almost completely eliminates multipath problems, a primary cause of ‘hits’ or nulls. The gain of this antenna over the entire UHF band is superior to the common ‘off the shelf’ antennas. The A 5000-CP’s extreme broadband capability provides the freedom to utilize just one antenna model anywhere in the UHF spectrum. Because of its unique 3 dimensional radiation pattern, the antenna can be mounted above the talent or venue, oriented with the antenna element facing down. With the main lobe (maximum gain) of the antenna pointing downward to the desired source, this arrangement has the advantage of greatly reduced sensitivity for potentially interfering signals arriving horizontally

The wideband design (450-960MHz) of the A 5000-CP allows it to accommodate antenna distribution systems for either wireless monitors or wireless microphones across multiple frequency ranges, offering maximum flexibility when designing complex RF systems.

Product Features

• Frequency range: 450 – 970 MHz
• Minimized Multipath
• Radiation pattern: Circular polarized helical
• Optimum solution for both transmitting and receiving RF signals throughout the UHF spectrum
• Circular polarization of this antenna minimizes variations in signal strength and almost eliminates multipath problems
• Maximum flexibility when designing complex RF systems

Product Specifications

• Frequency range: 450 – 970 MHz
• Radiation pattern: Circular polarized helical
• Forward gain: min 8 dBi (@650 MHz)
• Polarization: Circular
• Connector type: N (female), type N-male to BNC-female adapter (included)
• Half power beam width: ± 40°
• SWR: <1.5:1
• Power handling capability: 50 W
• Radome depth: 5.5“ (140 mm)
• Ground plate diameter: 14“ (356 mm) 6061 Anodized Aluminum
• Mounting bracket:
  • 4 x 3.625 x 3/8“
  • (101 x 93 x 9.5 mm)
  • Lexan plate, 3/8 Helicoil
  • Matthews pin avail. for lightning grid mount
• Radome material: black acrylic
• Element: Copper
• Element support: Lexan
• Hardware: Stainless steel
• Approx. weight: 3.1 lbs. (1.41 kg)

What’s in the Box?

• A 5000-CP
• Adapter BNC to N
• User Manual

Optional Accessories

• GZP10 Mounting Plate
• GZG1029 Swivel Joint
