4BAR LTBT ILS is a convenient pack-n-go system that’s easy to set up, easy to tear down, and easy to control. The addition of ILS technology means the system is now easier than ever to create synchronized light shows with. The in-system Bluetooth® wireless technology means you can create and control dynamic looks straight from your phone or tablet without additional hardware using the BTAir app. While D-Fi USB compatibility means lead/follow setup and DMX control are a breeze. Achieve total room or stage coverage with the four individually adjustable pars. However you choose to setup and control this system, automated programs and built-in sound-activated programs make 4BAR LTBT ILS an ideal solution for set it and forget it lighting setups.

Product Features

• Complete wash lighting solution with built-in Bluetooth® wireless technology
• Control directly from a smart phone or tablet without any additional hardware
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless master/slave or DMX control
• Easily set up and tear down in seconds with the included tripod, carry bags and footswitch
• Create large, coordinated light shows with other 4BAR fixtures in master/slave mode.
• Out of the box wireless control with included footswitch or optional IRC-6 controller
• Achieve total room or stage coverage with 4 individually adjustable heads.
• Easily control static colours and automated programs with the optional IRC-6 remote
• Sound-activated programs dance to the beat of the music.

Product Specifications

• DMX Channels: 3, 5 or 15
• DMX Connectors: 3-pin XLR
• Max Unobstructed Distance: 150 ft (45.7 m)
• Light Source: 12 LEDs (tri-colour RGB) 3 W, 1 A, 50,000 hours life expectancy
• Strobe Rate: 0 to 22 Hz
• Beam Angle: 12°
• Field Angle: 21°
• Fits Tripod Size: 1 in (25.4 mm)
• Illuminance: 2,382 lux @ 2 m (per pod)
• Power and Current:
• 47 W, 0.7 A @ 120 V, 60 Hz
• 45 W, 0.4 A @ 230 V, 50 Hz
• Weight: 7.8 lb (3.5 kg)
• Size: 36.1 x 3.7 x 10.8 in (918 x 95 x 274 mm)
• Approvals: CE , ROHS , UKCA , FCC
• Stand Height: 50-83 in (127-211 cm)
• Optional Controllers: IRC-6, BTAir, ILS
• Bluetooth Version: 4.2
• Operating Frequency: 2.4 GHz

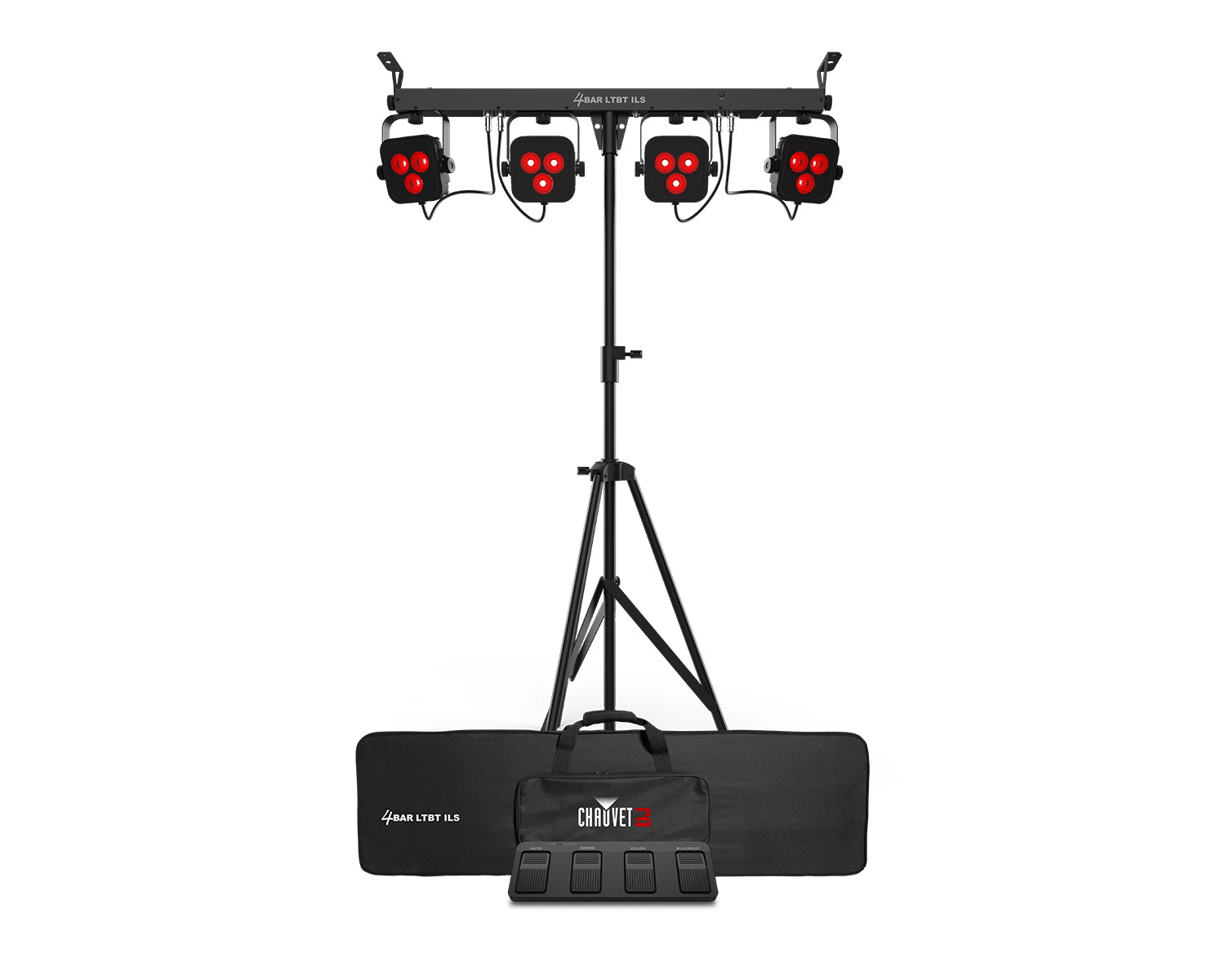

What's in the Box?

• 4Bar LTBT ILS
• Power cord
• Carrying bag
• Hanging Bracket
• Tripod
• Footswitch
• Quick Reference Guide
