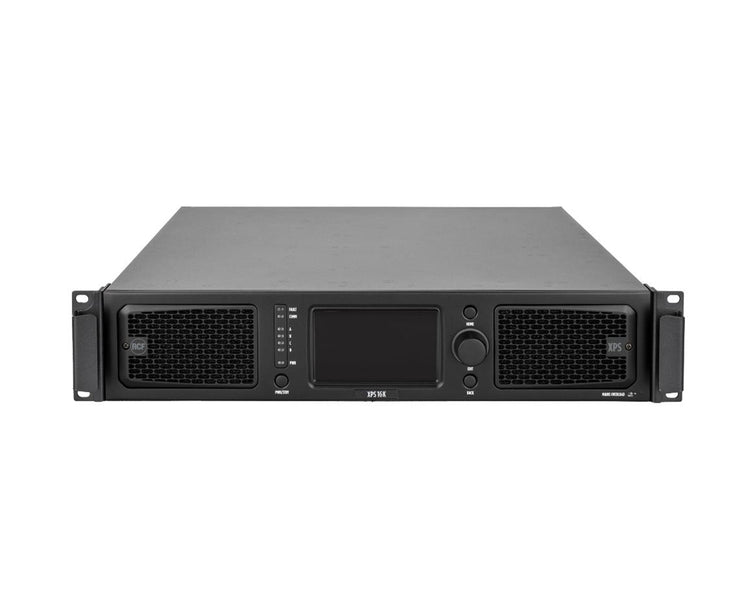

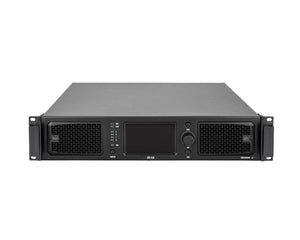

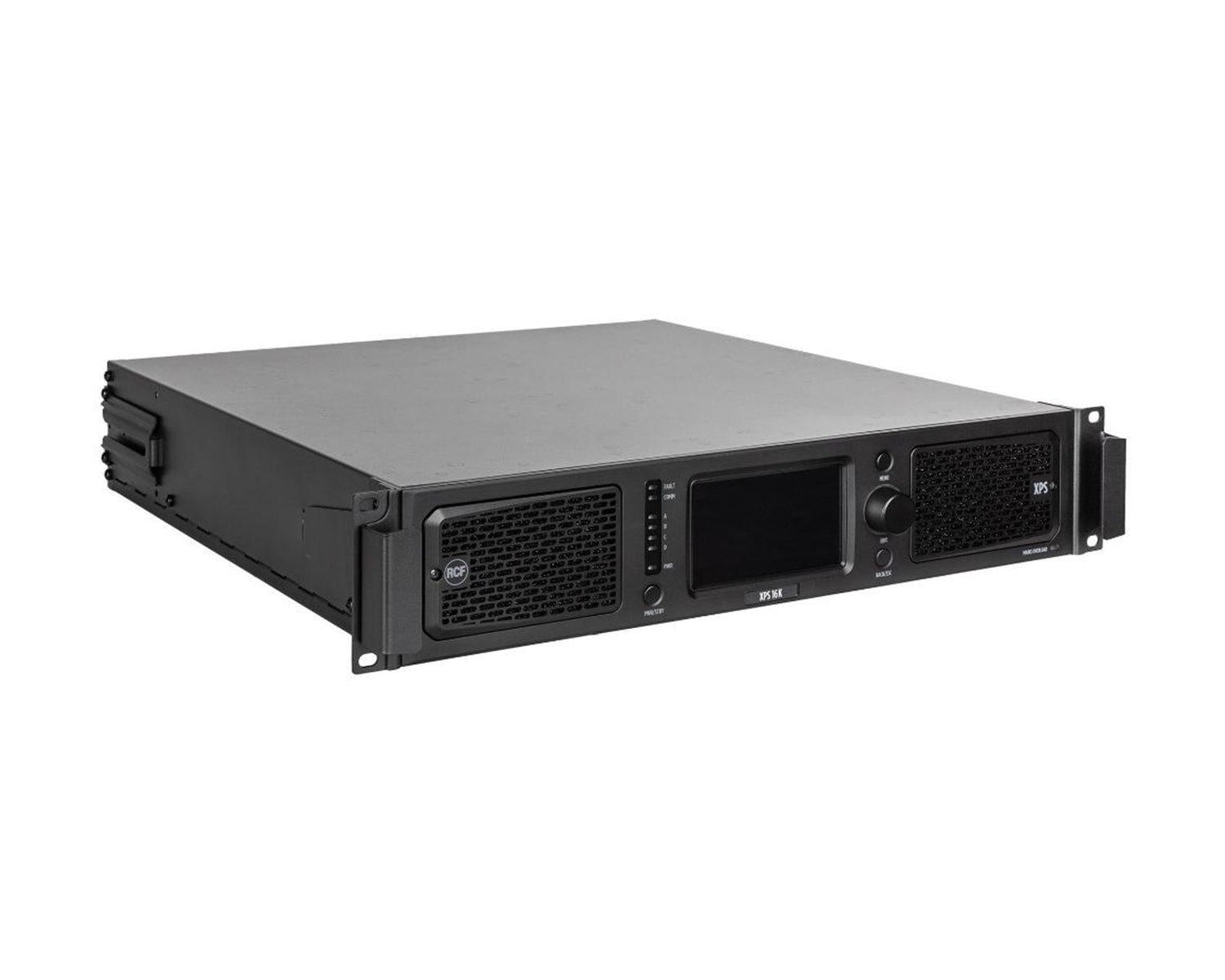

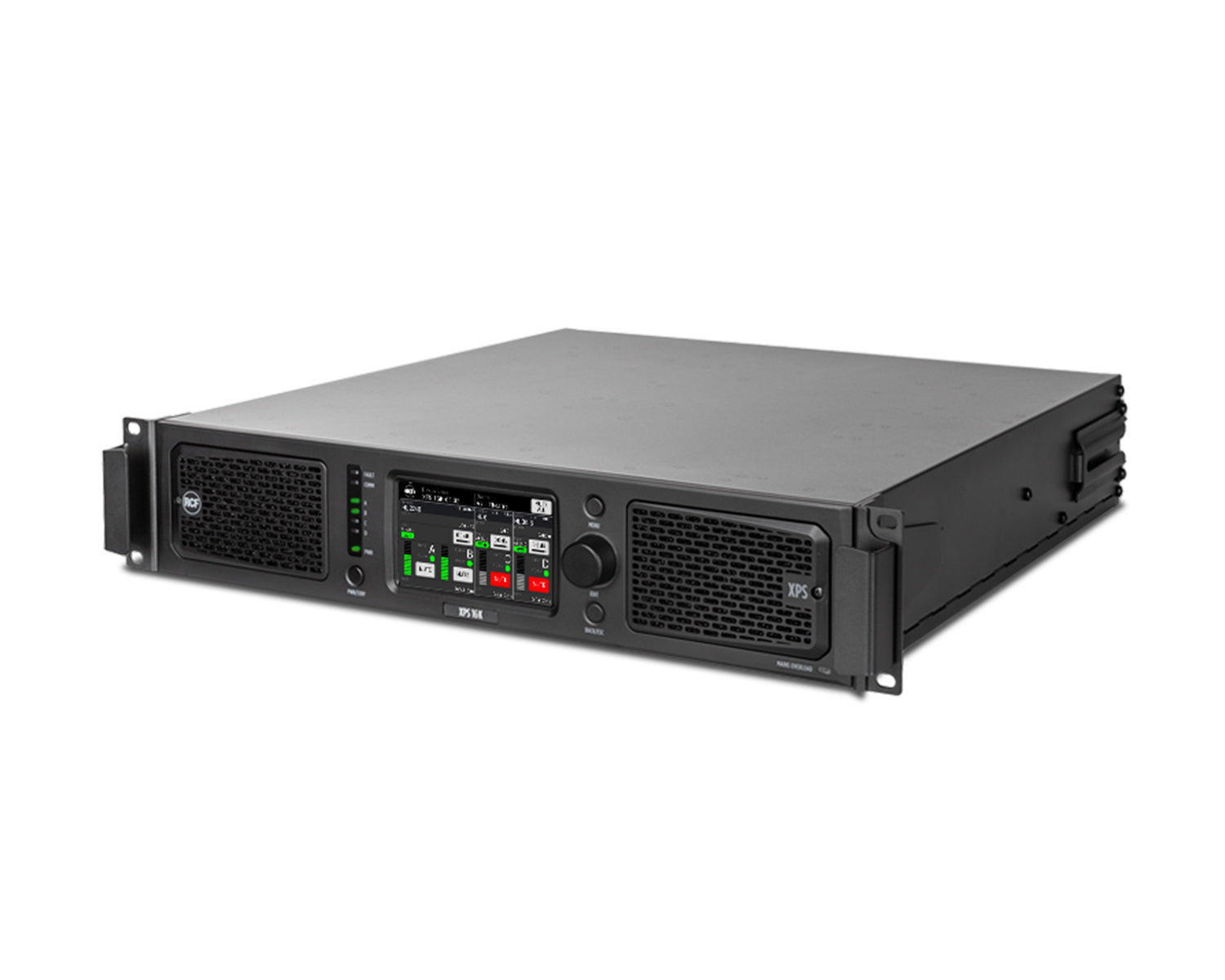

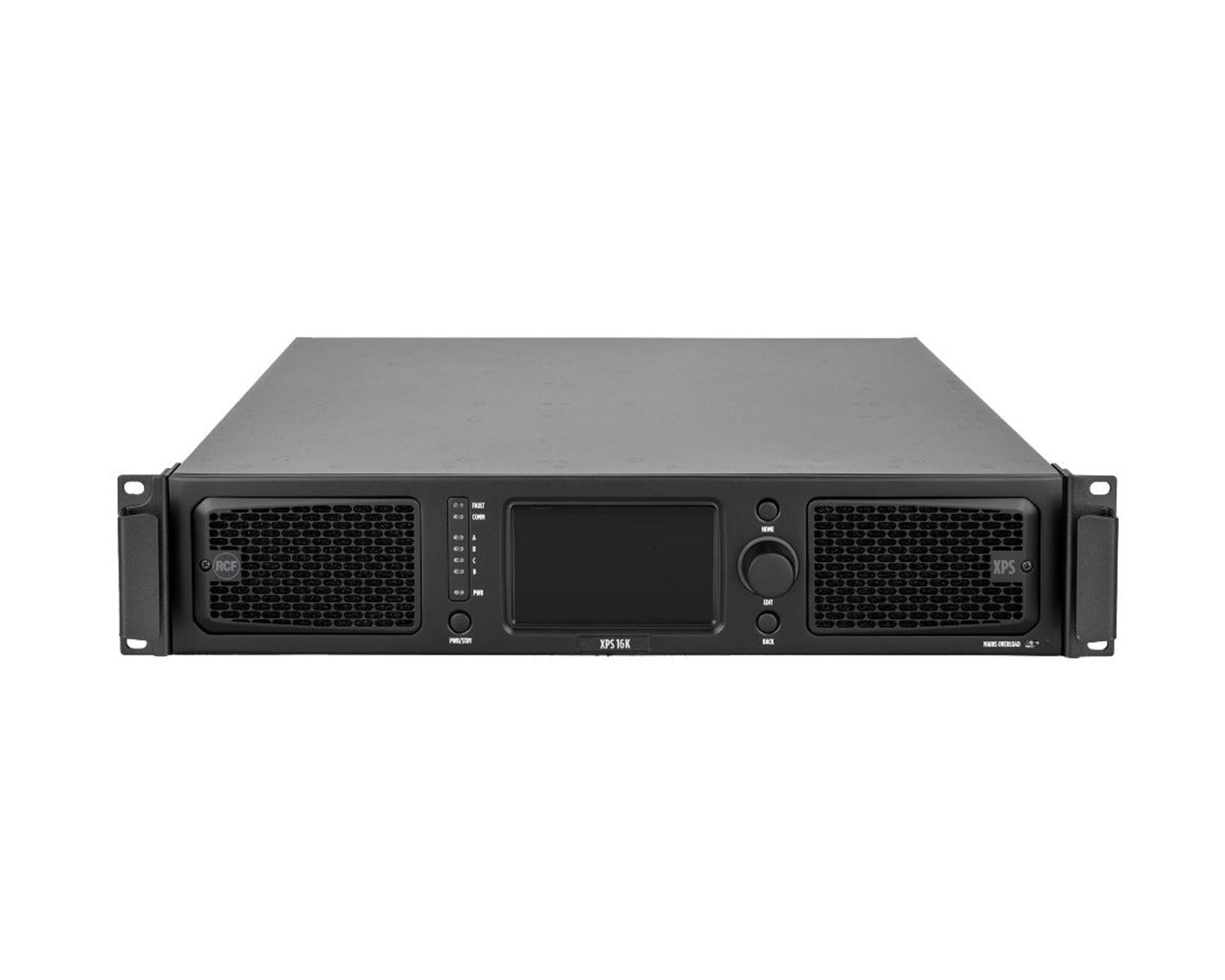

XPS 16K offers a full package of high power amplification, innovative processing, analog and digital audio management in a single solution. It is a high power amplifier dedicated to RCF speaker systems with an onboard dedicated preset library. XPS 16K offers four independent, processed channels of audio amplification and is capable of driving all professional RCF speaker systems. The main user interface is RDNet, RCF proprietary control and monitoring software. It is possible to discover, monitor and control a virtually unlimited number of amplifier. Users will find ready to use definable parametric equalizations, multiband compressors, RCF bass shaper, air absorption compensation, delays and levels. The time delay it is up to four second per channel. Most of settings and monitored parameters (channel information, presets, levels, status, grouping and naming as well as user presets) are also accessible through the front panel user interface, made of a capacitive 4.3’’ touch screen and an ergonomic rotary encoder.

Product Features

• 4 x 4000 W continuous output power
• 20 ÷ 23000 Hz frequency range
• Full on-board processing
• RCF speakers’ presets library
• Proprietary advanced algorithms
• Networked management via RDNet
• Native ethernet interface
• 4.3" TFT capacitive touch screen

Product Specifications

Amplifier specifications

• Amplifier Class: D
• Output power (EIAJ 8:32 all channels driven):
  • 4 x 4000 W @ 2.7 ohm
  • 4 x 2600 W @ 4 ohm
  • 4 x 1400 W @ 8 ohm
• Frequency Response (-3dB): 20 Hz ÷ 23000 Hz
• SNR (unweighted)
  • Analog inputs: 111 dB
  • Digital inputs: 115 dB
• Crosstalk: <70 dB
• THD+N (20 Hz ÷ 20000 Hz, 1000 W @ 4ohm): <0.2 %
• Gain (linear mode @ 0 dB): 32 dB
• Damping factor (@ 4 ohm, 20 Hz ÷ 1500 Hz): > 95
• Max burst length (@ 50 Hz, CF = 7 dB, 4 ohm, 1% THD+N): 200 ms

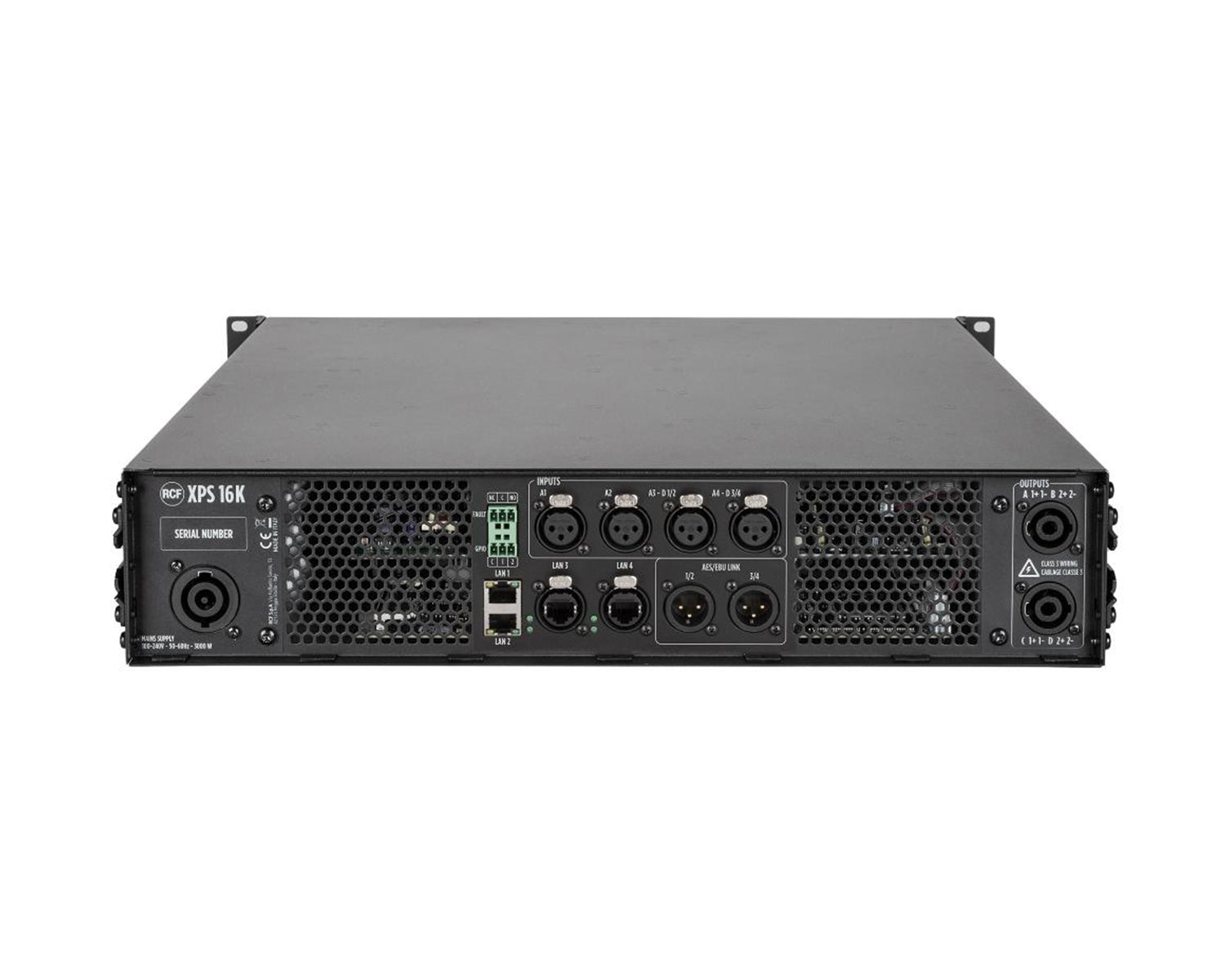

Input section

• Total number of inputs: 8
• Line inputs: 4
• Line connectors: XLR
• Input impedance: 19 kohm (unbalanced)
• Maximum input level: +24 dBU
• Digital inputs: 4
• Digital connectors: XLR
• Digital type: 4 AES/EBU
• General Purpose Inputs (GPI): 2
• Programmable GPI: Yes
• Photo-coupled GPI: Yes

Outputs section

• Signal output number: 4
• Signal output connectors: XLR
• Power output lines: 4
• Power output connectors: Speakon
• General Purpose Outputs (GPO): 3
• Programmable GPO: Yes

Processing

• Digital Signal Processing (DSP):
  • 2 SHARC, 40-bit floating point, 96 kHz
  • 2 ADAU 1442, 32-bit fixed point, 96 kHz
• EQ Filters: Peaking | HI/LO-shelving | HI/LO-pass (Butterworth, Linkwitz-Riley, Bessel)
• Advanced algoritms:
  • FiRPHASE technology | BASS shaper | air compensation | mid-low correction | driver excursion control | dynamic PEQ | multi-band compressor | pilot tone detection | backup recovery strategy | impedance load measurement
• Compressors: RMS limiter | dynamic compressor | power limiter | thermal compressor
• Delay: 0 ÷ 4000 ms (each channel)

Configuration and control

• Configuration: Front panel touch screen | PC Software
• Speakers presets: RCF presets library
• Control and monitoring protocols: Proprietary OSC based protocol | RDNet
• Network: Gigabit ethernet

Protections

• Protections: Forced cooling | short circuit | thermal | DC | Fuses | VHF (Very High Frequencies)

Thermal

• Temperature range
  • Continuous operation: –5°C ÷ +40°C / +23°F ÷ +104° F
  • Reduced output power: –5°C to +50°C / +23°F to +122°F
• Fan noise idle: <35 dBA
• Fan noise max: <64 dBA

Power supply

• Operating voltage: 90-240 V~ 50/60Hz
• Nominal current requirements (@ 100-120 V): 30 A
• Nominal current requirements (@ 200-240 V): 16 A
• Power consumption standby: 20 W
• Power consumption idle: 90 W
• Power consumption max: 5800 W
• Mains fuse: Internal

Standard compliance

• Marking: CE | UL

Physical & Dimensions

• Cabinet/Case Material: Metal
• Handles: 2 metal handles for rack mount
• Colour: Black
• Rack mounting: 19", 2U
• Height: 88.7 mm / 3.49 inches
• Width: 482 mm / 18.98 inches
• Depth: 482.4 mm / 18.99 inches
• Weight: 15 kg / 33.07 lbs
