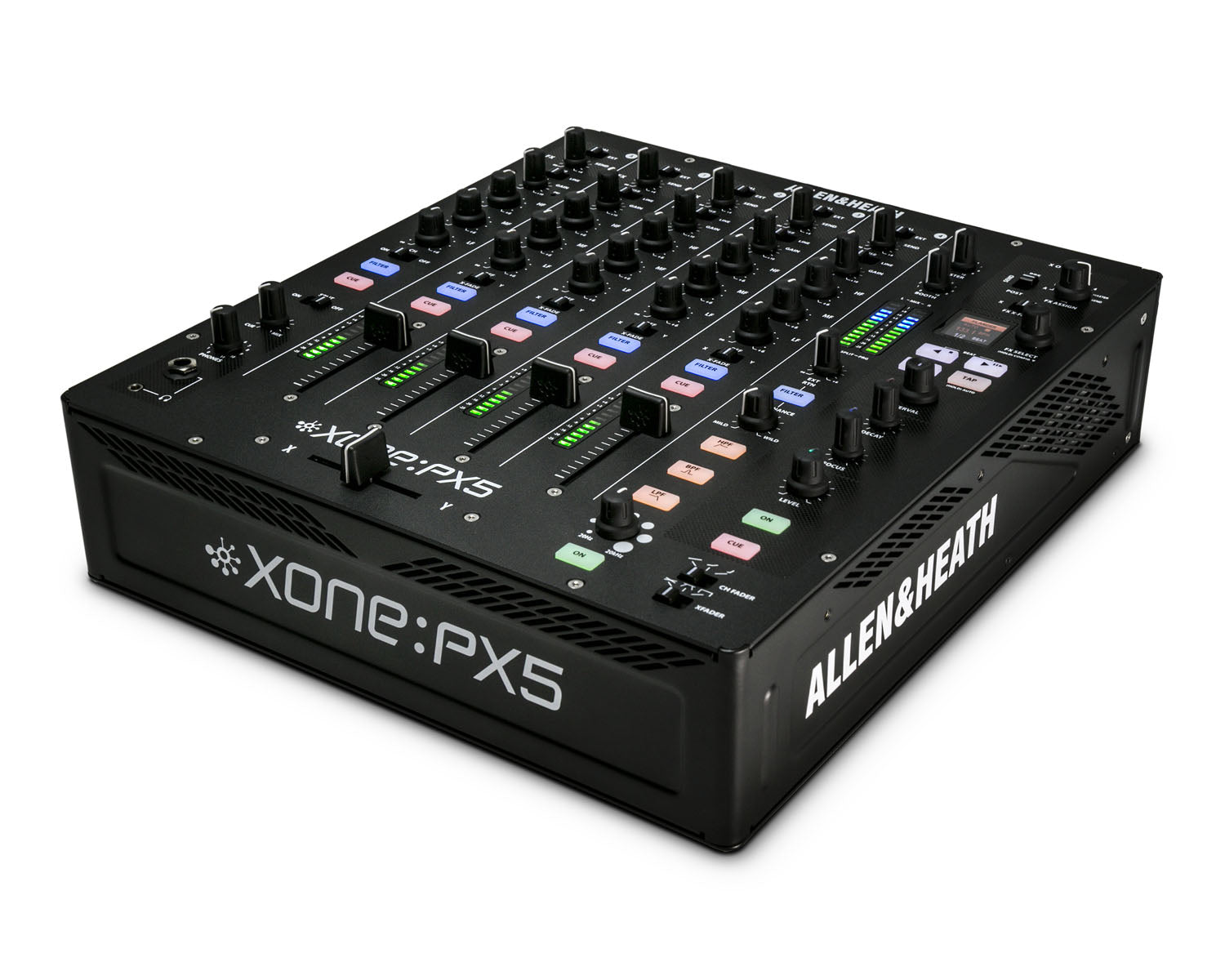

Combining the signature warm analogue Xone sound with class leading digital connectivity, Xone:PX5 breathes life and soul into electronic music performance. The built-in FX technology offers new levels of manipulation with our new Xone:Xcite FX suite of performance-focused delays, reverbs, modulators, flangers and distorters which are all assignable through simple hands-on control for fine-tuning the FX and expressing the DJ’s inner creativity.

Xone:PX5 is a 4+1 channel mixer, equipped with the legendary Xone filter, 3 band EQ on all channels and an intuitive layout.

The versatile Send/Return feature allowing for the connection of external FX hardware with both Send/Return and Master Insert mode connections (Line or Hi-Z) equips Xone:PX5 for numerous enhanced setup scenarios. Each channel has its own dedicated send control for external FX processing and can also be routed to the internal Xone:FX engine.

Connect your laptop or computer to the premium internal 20 channel 24bit 96kHz USB2 soundcard for easy integration into digital DJ workflows, plus plug n’ play connection via X:LINK to Xone:K series controllers for expanded MIDI control.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to an Innofader Pro 2 for ultimate crossfader performance.

No matter what your mixing style, Xone:PX5 combines a modern approach to DJing with all the tools required for creating your own individual sound.

Product Features

• High Quality Internal Soundcard: Xone:PX5 incorporates a high specification 20 Channel 96kHz, 24bit USB Soundcard, allowing it to be seamlessly integrated into digital DJ workflows.
• Xone:FX: Xone:PX5 features the Xone:Xcite FX suite, a new breed of FX specifically tailored for DJ performance. The array of spectral delays, resonators, gritty reverbs and more is accessed through familiar, hands-on controls for instant, instinctive operation, making it easy to add energy and excitement to a track or create entire FX soundscapes. A hybrid FX mode combines the internal and external send & return FX for more advanced FX processing.
• Xone Filter System: The original and best. The Xone filter is a legend in the DJ booth – none of its imitators come close. Xone:PX5’s filter includes HPF, BPF, LPF, resonance control and frequency sweep, plus the option to route the Aux channel and External Return to the filter.
• Xone:Sync MIDI Clock Engine: Xone:PX5 features an integrated MIDI clock engine which can send start/stop messages to external equipment. The 5-pin MIDI Sync/Out connection integrates external software/hardware instruments such as drum machines and synthesizers which can be connected via ¼” jack input connections (mono/stereo). Xone:PX5 can also send/receive MIDI clock information through the USB connection.
• X:Link: For the ultimate DJ setup, connect Xone:K series controllers to the Xone:PX5 over X:Link for hands-on control over your software, saving USB ports on your computer.
• 4+1 Channels: On top of its four fully featured phono/USB/line channels, Xone:PX5 has a flexible mic / aux channel with XLR and ¼” jack connectors and full 3 band EQ. If you don’t perform with mics, the additional inputs allow this channel to be used as an extra stereo music source or USB Return channel.
• Innofader Compatible: Upgrade to an Innofader Pro 2 crossfader (available separately) for ultimate performance. Always a popular choice for scratch DJs.

Product Specifications

General

• Type: Analog
• Channels: 4 + 1
• EQ: 3-band / Total Kill (CH 1-4 + CH A)
• USB Soundcard:
  • 20 Channel (10 in / 10 out)
  • USB2 / Class Compliant
  • 24bit / 96kHz
  • 1 x MIDI IN
  • 1 x MIDI Out
• Line Inputs:
  • 4 x RCA (CH 1-4)
  • 1 x 1/4″ TRS (CH A) Mono/Stereo
• Phono Inputs:
  • 4 x RCA (CH 1-4)
  • LN/PH Switch for DVS
• USB Inputs: 5 x USB (CH 1-4 + CH A)
• Mic Input: 1 x XLR
• Master Output: 1 x XLR (Balanced)
• Master 2 Output: 1 x RCA (Un-balanced)
• Booth Output: 1 x 1/4″ TRS
• Record Output: 1 x RCA (Un-balanced)
• Master Insert: 1 x 1/4″ TRS
• MIDI Sync/Out:
  • 1 x 5-Pin DIN
  • DIN Offset Control
• Send/Return I/O:
  • 1 x 1/4″ TRS Send
  • 1 x 1/4″ TRS Return
  • 1 x LN/Hi-Z Switch
• Internal Xone:FX: Yes
• Hybrid FX Mode: Yes (Internal < Dual > External)
• FX Send: 1 x Pre/Post Selectable (CH 1-4 + CH A)
• Filter:
  • 1 x VCF Filter
  • HPF / BPF / LPF
  • Adjustable Frequency & Resonance
  • Assignable CH 1-4 + CH A + External Return
• X-Link: 1 x RJ45
• Headphones:
  • 1 x 1/4″
  • 1 x 3.5mm
  • Split Cue Monitoring
• Channel Faders: 60mm VCA / Replaceable
• Chanel Meters: 12 Segment LED
• Channel Fader Curve: 3 Types
• X-Fader: 45mm VCA / Replaceable / Innofader Compatible
• X-Fader Curve Settings: 3 Types
• MIDI Clock:
  • Send + Receive
  • Start / Stop / Pause / Tempo Bend (-/+)
• MIDI Assignable: Yes (MIDI CC / MIDI Notes)
• BPM Detection: Auto / Manual / Tap Tempo
• Earth Ground Terminals: x 2
• Headroom: 20dB
• AC Mains:
  • 100 to 240V
  • AC 50/60Hz
  • Consumption 35W max
• Mains Adaptor: 3 pin IEC socket with cable clamp
• Fuse Rating: 250V AC T1AL 20mm

Physical & Dimensions

• Height: 109mm
• Width: 320mm
• Depth: 376
• Weight: 5.2
