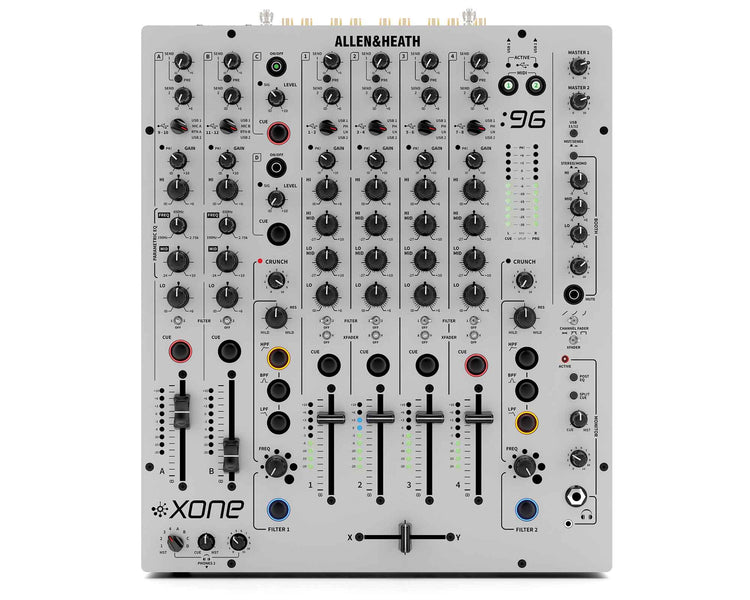

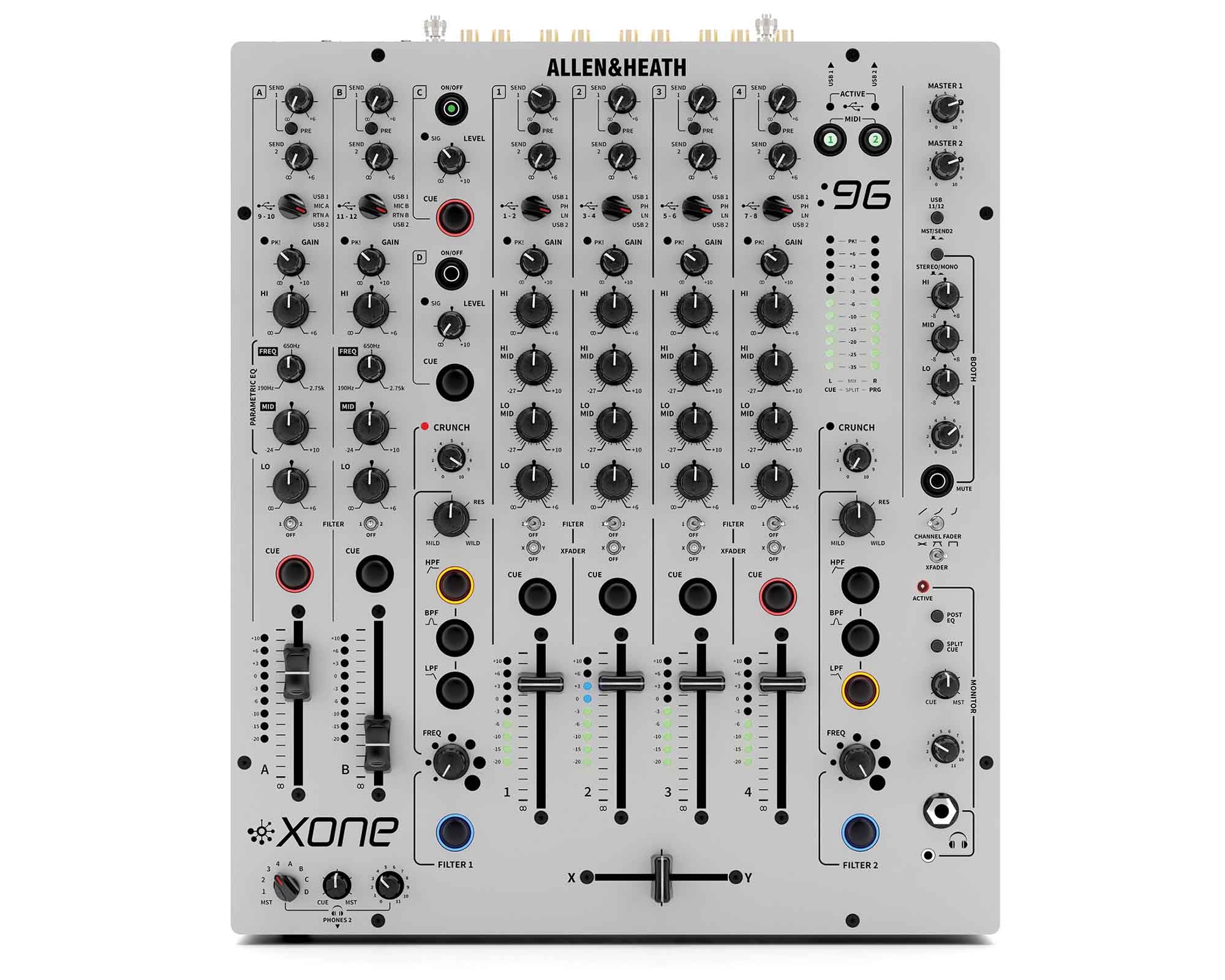

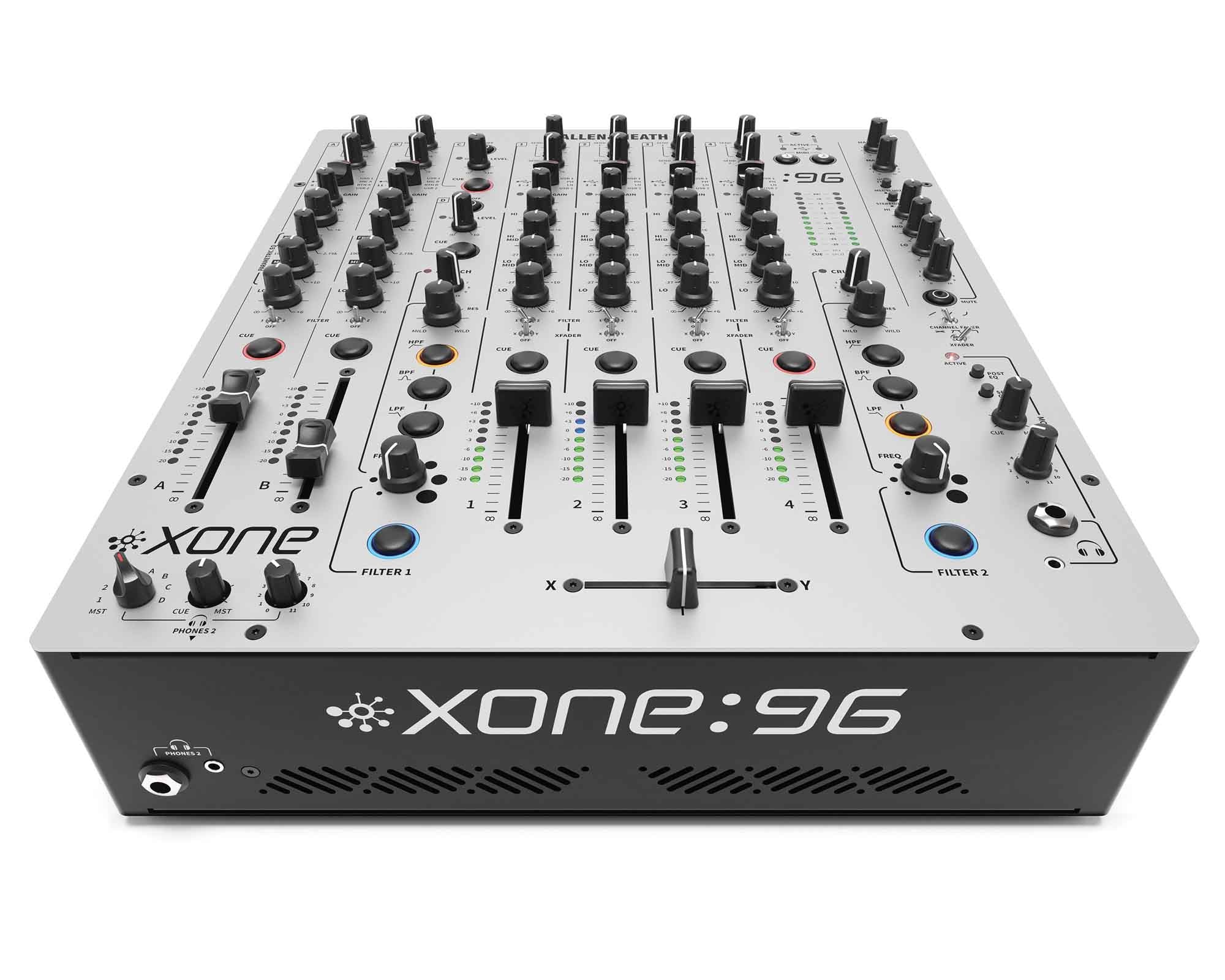

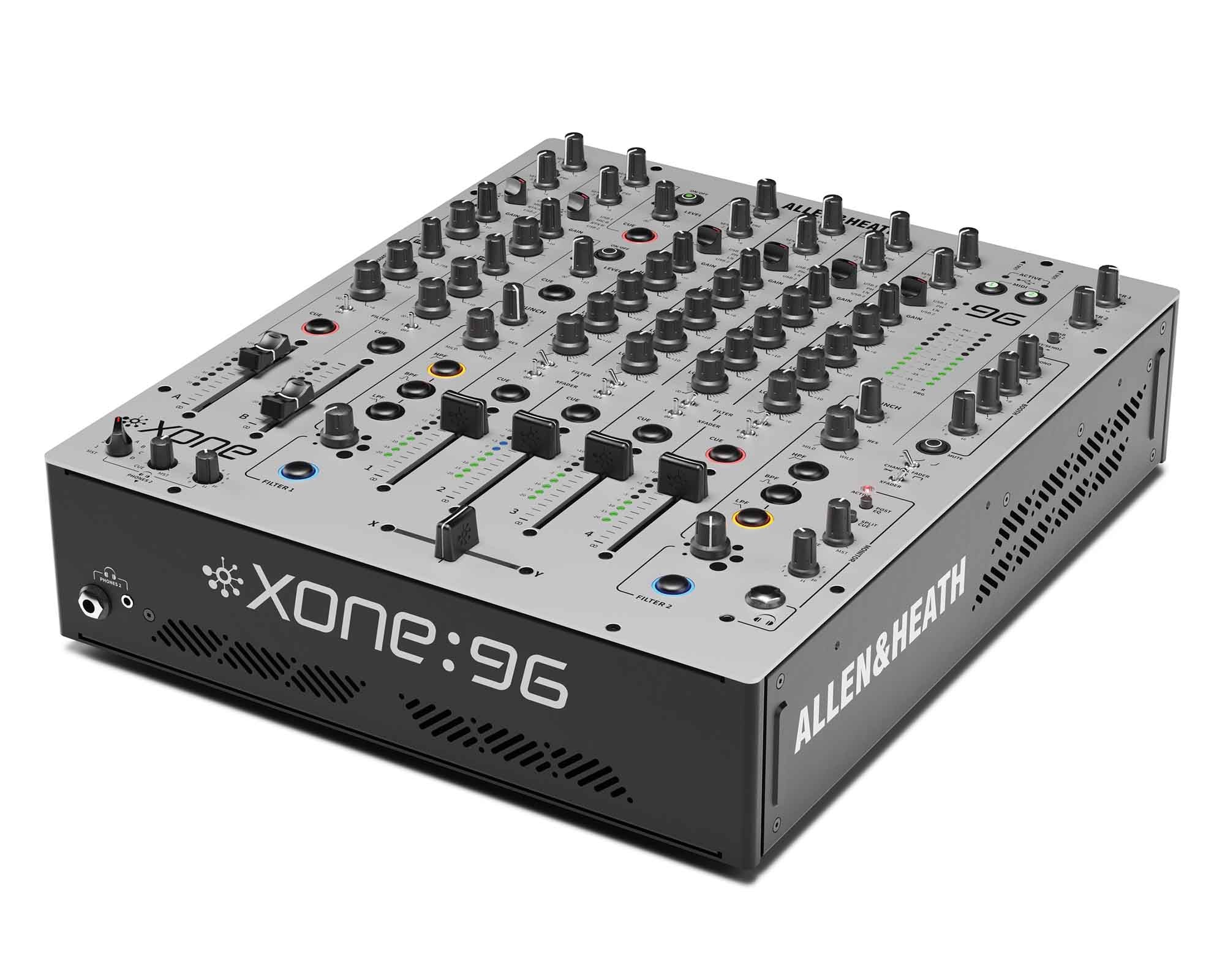

Xone:96. The long-awaited follow-up to a genuine club classic.

A new, uncompromising analogue DJ mixer, destined to be the heart of your creativity, Xone:96 takes the legendary soul of the acclaimed Xone:92 and redelivers it, enhanced, and with state-of-the-art digital connectivity.

It’s all here. The huge, detailed, space-shaking analogue sound that only Xone delivers. A refined, precision 4-band EQ. Unrivalled dual Xone:VCF filters with CRUNCH harmonic distortion. And a dual 32-bit USB soundcard (24 Channels @ 96kHz) with Traktor Scratch certification right out of the box.

Xone:96 lets you connect your whole rig, from laptops and turntables, to pedals, synths and drum machines.

Two dedicated FX sends, four stereo input channels (with 4-Band EQ), two stereo input channels with all new 3-Band Parametric EQ + two auxiliary stereo return channels. And a separate master insert for your outboard hardware.

Explore new possibilities with a familiar layout of beautifully tactile controls. And rely on the industrial build quality that exceeds the demands of relentless back-to-back performances, night after night.

Xone96: You mixed. We listened.

Product Features

• Precision 4-band EQ
• Unrivalled dual Xone:VCF filters with CRUNCH harmonic distortion
• Dual 32-bit USB soundcard (24 Channels @ 96kHz)
• Traktor Scratch certification
• Two dedicated FX sends
• Four stereo input channels
• Two stereo input channels with all new 3-Band Parametric EQ
• Two auxiliary stereo return channels

Product Specifications

General

• Type: Analogue
• Channels: 6 + 2
• EQ:
  • Channel 1-4, 4-Band EQ
  • Channel A-B, 3-Band Parametric EQ
• USB Soundcards:
  • Dual 24 Channel (12 in / 12 out)
  • Hi-Speed USB2.0 / Mac Class Compliant
  • 32bit / 96kHz
  • MIDI over USB

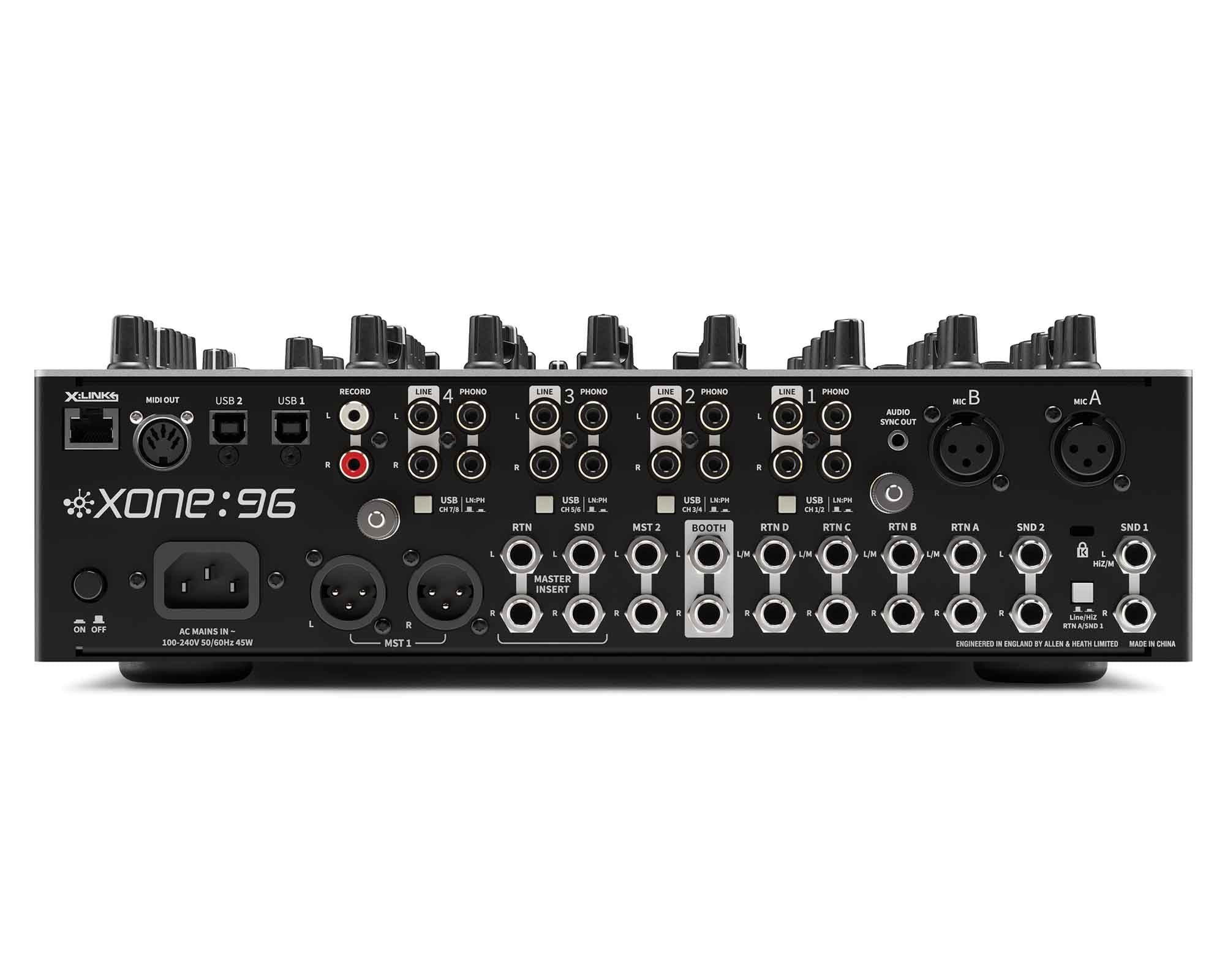

• Line Inputs
  • 4 x RCA (CH 1-4)
  • 4 x 1/4″ TRS (CH A-D) Mono/Stereo
• Phono Inputs
  • 4 x RCA (CH 1-4)
  • LN/PH Switch for DVS
• USB Inputs 6 x USB (CH 1-4 + CH A – CH B)
• Mic Input 2 x XLR
• Master Output 1 x XLR (Balanced)
• Master 2 Output 1 x 1/4″ TRS (Balanced)
• Booth Output 1 x 1/4″ TRS (Balanced)
• Record Output 1 x RCA (Un-balanced)
• Master Insert 1 x 1/4″ TRS
• MIDI Out 1 x 5-Pin DIN
• Send/Return I/O:
  • 2 x 1/4″ TRS Send
  • 4 x 1/4″ TRS Return
  • 1 x LN/Hi-Z Switch (SND1/RTNA)
• Filter:
  • 2 x VCF Filter
  • HPF / BPF / LPF
  • Adjustable Frequency & Resonance
  • Assignable CH 1-4 + CH A-B
  • CRUNCH (Controlled Harmonic Signal Distortion)
• X-Link: 1 x RJ45
• Headphones
  • 2 x 1/4″
  • 2 x 3.5mm
  • Split Cue Monitoring
• Channel Faders 60mm VCA / Replaceable
• Chanel Meters 9 Segment LED
• Channel Fader Curve 3 Types
• X-Fader InnoFADER / 45mm VCA / Replaceable
• X-Fader Curve 3 Types
• Earth Ground Terminals x 2
• Headroom 20dB
• AC Mains:
  • 100 to 240V
  • AC 50/60Hz
  • Consumption 45W max
• Mains Adaptor: 3 pin IEC socket

Physical & Dimensions

• Height: 109mm
• Width: 336mm
• Depth: 410mm
• Weight: 7kg
