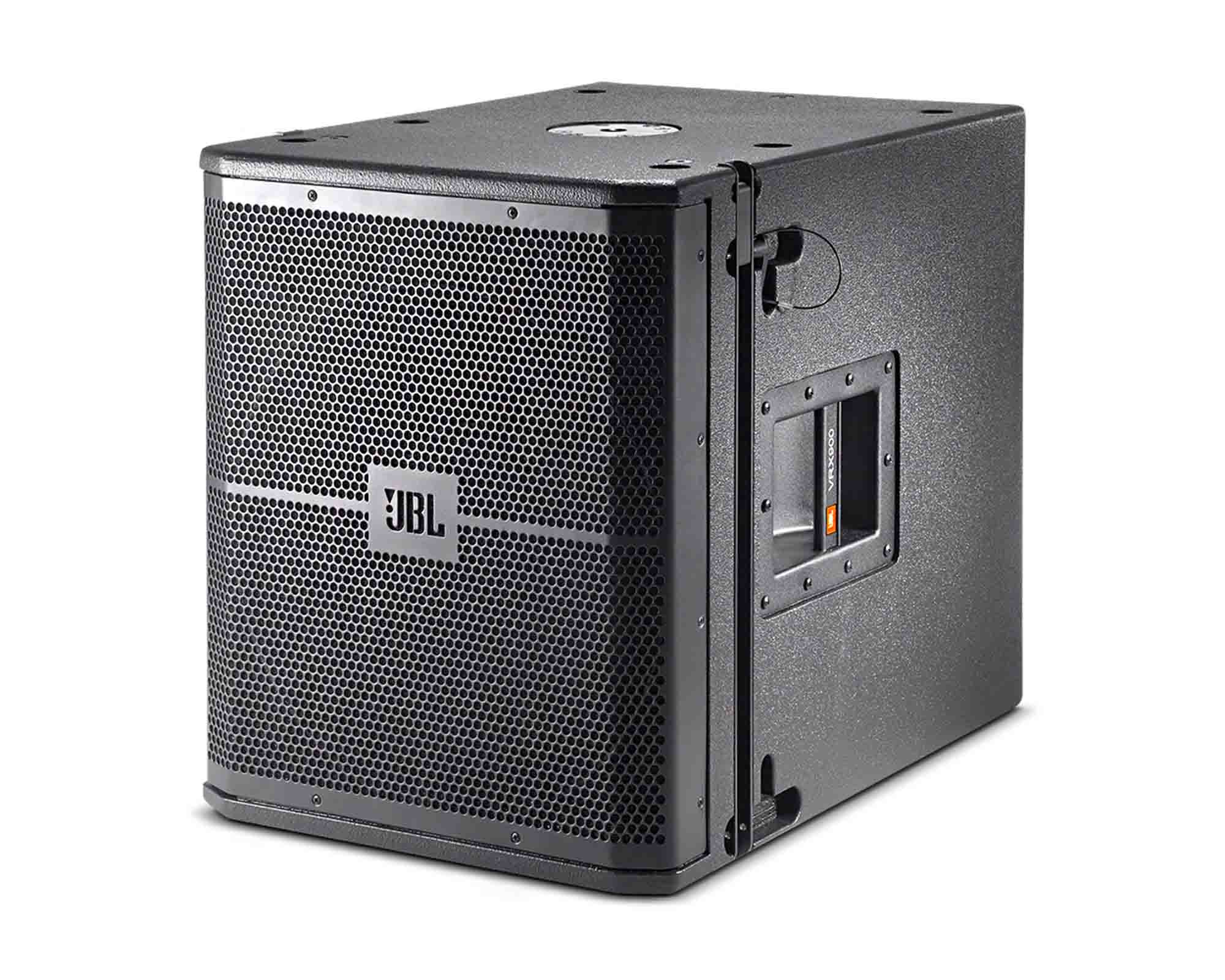

JBLVRX915S - JBL VRX915S 15inch Passive High Power Flying Subwoofer 800W Black Image 1

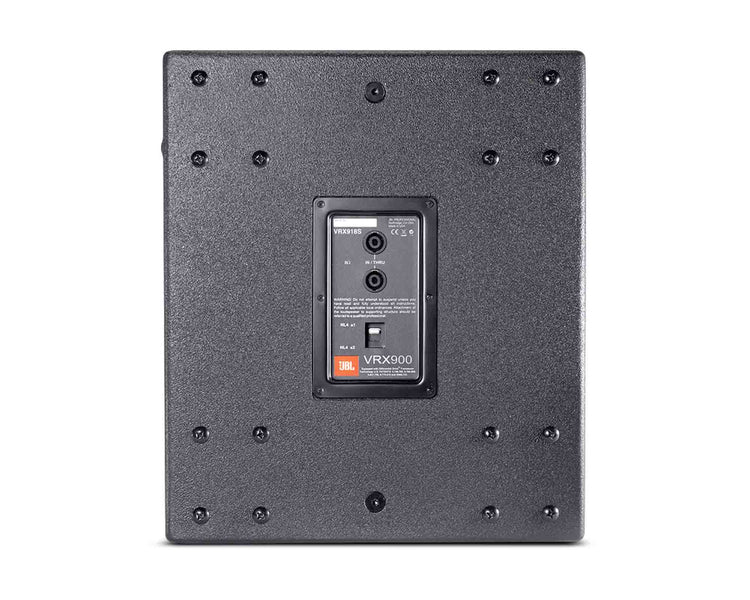

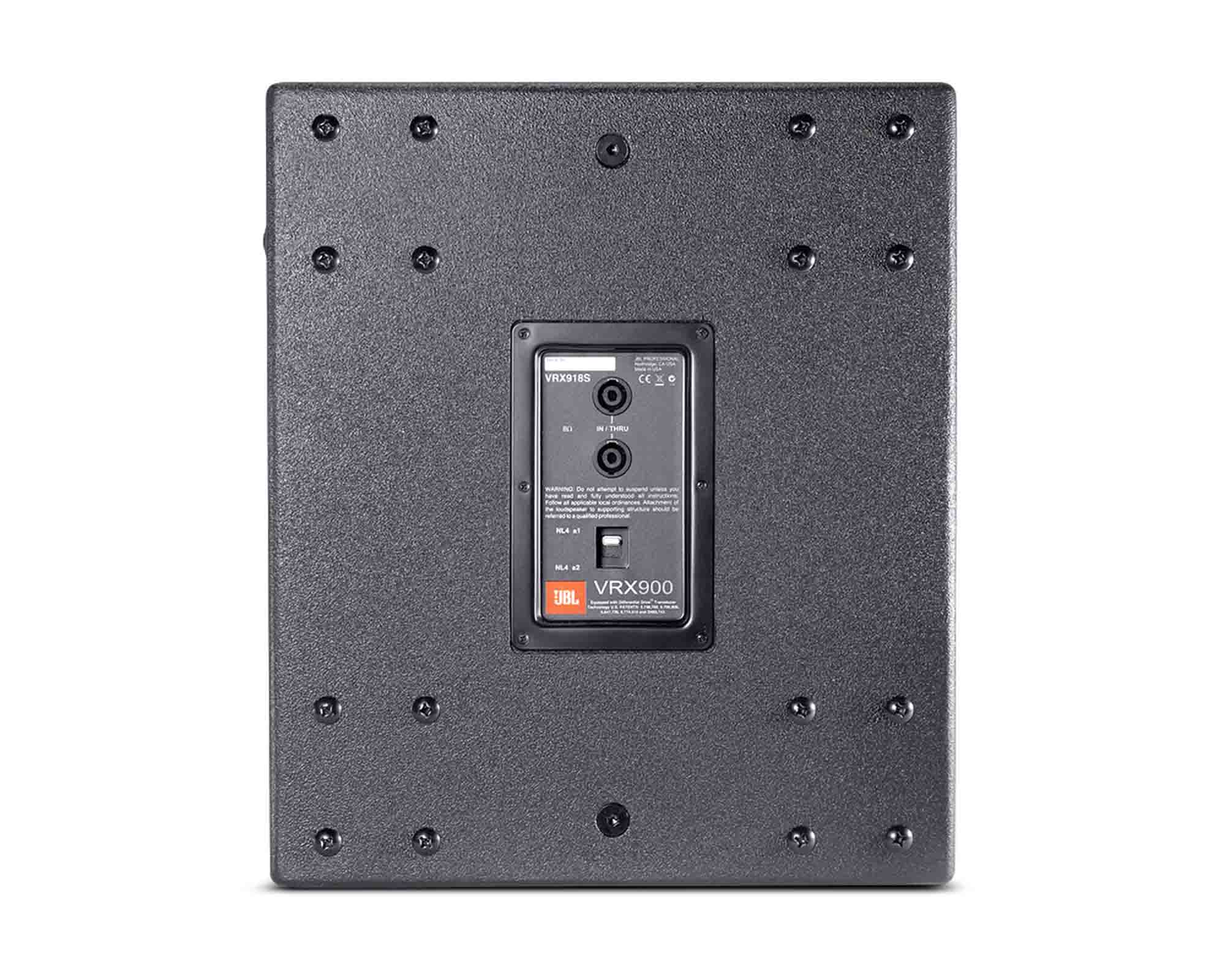

JBLVRX915S - JBL VRX915S 15inch Passive High Power Flying Subwoofer 800W Black Image 2

The VRX915S is a compact, high power suspendable subwoofer system containing a 2265G-1 neodymium magnet, patented Differential Drive®, 15" woofer in a front-loaded, vented enclosure. The VRX915S was designed specifically for use in arrays with the VRX928LA Line Array speaker and VRX-SMAF Array Frame. In addition, it may also be used in arrays consisting entirely of VRX915S subwoofers.

The system offers complete input connection flexibility for compatibility with a variety of cabling schemes. A recessed, external switch allows selection of either contacts +1/-1 or +2/-2 to be routed to the woofer.

Equally at home in ground stacked applications, the VRX915S is equipped with a top-mounted, threaded, 20 mm socket that can receive the optional SS4-BK pole. This adjustable height pole can be used to mount speakers equipped with standard 36 mm pole sockets. The threaded socket minimizes buzzing and rattling and assures that the pole will be secure and straight.

The enclosure is constructed of top-quality birch plywood, coated in JBL’s rugged DuraFlex™ finish and is heavily braced to maximize low frequency performance. The attractive CNC-machined, 16-gauge steel grille is internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance. The rear of the enclosure is fitted with T-nuts which may be used to attach the optional WK-4 caster kit.

Product Features

Integral rigging hardware for simple connection of VRX915S line-arrays and optional array frame.
15 inch, 2265G-1 Differential Drive® woofer for extended low-frequency output
Light and compact for versatility and easy handleability.
20 mm threaded pole socket for solid, secure satellite speaker mounting

Applications

Live performance systems
Mobile and fixed DJ systems
Sound system rental and tour
Permanent installations.

Product Specifications

General

Power Rating: 800 W / 1600 W / 3200 W
Frequency Range: 35 Hz - 250 Hz (-10 dB)
Frequency Response: 40 Hz - 250 Hz (+/-3db)
System Maximum SPL: 126 dB SPL
System Sensitivity (1w @ 1m ): 91 dB SPL
LF Driver: 1 x JBL 2265G-1, 250 mm (15 in) Differential Drive® woofer
Nominal Impedance: 4 Ohms
Enclosure: 15 mm - 18 mm, multi ply birch plywood
Suspension / Mounting: Top mounted M20 threaded socket for optional pole SS4-BK. Integrated flying hardware for use with array frame VRX-SMAF. 8 M10 fittings. Optional M10 eyebolt kit.
Finish: Black DuraFlex™ finish
Grille: Power coated, black, 16-gauge perforated steel with with acoustically transparent black foam backing.
Input Connectors: Switchable, +1/-1 or +2/-2
