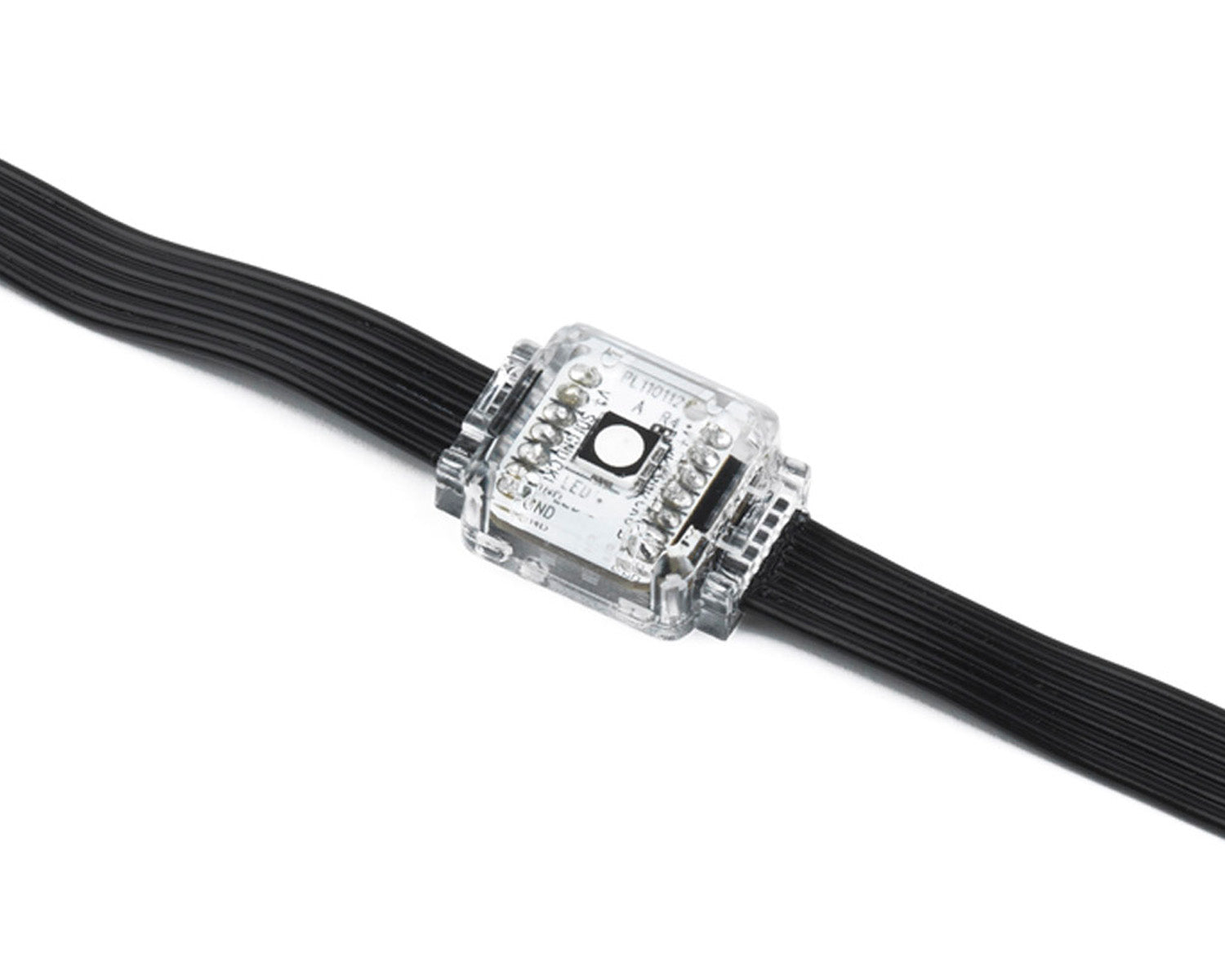

VC-Dot 1 is a lightweight string of individually controllable, bright Dots useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort. Fully customizable and controllable via the award-winning P3 System Controller™ family and/or DMX512, it is a perfect solution for integrating LED video technology into façades, stage designs, ceilings or any other structure, indoors or out.

Mapping video onto VC-Dots goes quickly and intuitively via the P3 System Controller. No need for complex setups and time-consuming addressing. VC-Dot 1 contains one LED and is available in an RGB color mixing version or cool, medium, or warm white single-color versions.

Product Features

• Can assume any form for creative freedom
• Individually controllable Dots
• Bright at 2.5 cd per Dot (raw mode)
• Maximum 100 Dots per string
• Each Dot features calibrated brightness and colors
• Various Dot spacings available
• Customizable string length
• P3 or DMX controllable
• Intuitive mapping and addressing via P3 System Controller family
• Efficient and long-lasting
• IP67 rated for permanent outdoor or indoor use
• Perfect for façade or stage integration
• Supported by integrated power and data processor (P3 PowerPort 1500™) and simple cabling system

Product Specifications

General

• Control and Programming
  • Control options: Martin™ P3 System controller and/or DMX
  • DMX channels: 3 per RGB Dot, string or group, 1 per WW, MW or CW Dot, string or group
  • Control modes: Calibrated and raw
  • Setting and addressing: P3 System Controller or RDM-compliant controller
  • Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
  • Color and intensity calibration: Dot-level
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
• Optics
  • Minimum LED lifetime: 50 000 hours (to >70% luminous output)*

*Figure obtained under manufacturer´s test conditions

• Photometric Data
  • Light source: One RGB, WW, MW or CW LED
  • Color temperature, WW: 3500 K
  • Color temperature, MW: 6000 K
  • Color temperature, CW: 11 000 K
  • Luminous intensity, RGB, calibrated mode: 2 cd
  • Luminous intensity, RGB, raw mode: 2.5 cd
  • Total output, RGB, calibrated mode: 5.4 lm
  • Red output, RGB, calibrated mode: 1.5 lm
  • Green output, RGB, calibrated mode: 3.6 lm
  • Blue output, RGB, calibrated mode: 0.4 lm
  • Luminous intensity, WW, calibrated mode: 4 cd
  • Luminous intensity, WW, raw mode: 5 cd
  • Total output, WW, calibrated mode: 10.8 lm
  • Luminous intensity, MW, calibrated mode: 4 cd
  • Luminous intensity, MW, raw mode: 5 cd
  • Total output, MW, calibrated mode: 10.8 lm
  • Luminous intensity, CW, calibrated mode: 4 cd
  • Luminous intensity, CW, raw mode: 5 cd
  • Total output, CW, calibrated mode: 10.8 lm
  • Viewing angle: 120° x 120°
  • Viewing angle with dome: 180° x 180°

Preliminary data, figures are approximate

• Construction
  • Dot: Clear polycarbonate, clear silicone filled
  • Diffuser dome: White translucent polycarbonate
  • Mounting clip: White polycarbonate
  • Interconnecting cable: 6 x 20 AWG, black
  • Minimum cable bend radius: 26 mm (1.1 in.)
  • Protection rating: IP67 RoHS compliant
• Installation
  • Orientation: Any
• Connections
  • Power & data input to VC-Dot string from VC-Feeder™: Custom 8-pin connector, IP67-rated
• Electrical
  • Operating voltage: 15 VDC
  • Power and data converter: Martin VC-Feeder™
  • Peak power consumption (at full intensity, full white): 0.95 W per Dot
  • Typical power consumption (with typical video content): 0.32 W per Dot

Figures for typical video content are indicative only and will vary

• Thermal
  • Cooling: Convection
  • Maximum ambient temperature (Ta max.): 55° C
  • Minimum ambient temperature (Ta min.): -20° C
  • Peak heat dissipation (calculated, at full intensity, full white): 4.1 BTU/hr.
  • Typical heat dissipation (calculated, with typical video content): 1.4 BTU/hr.

Physical & Dimensions

• Pixel:
  • Height: 28mm
  • Width: 23mm
  • Depth: 11mm
• Pixel with Dome:
  • Height: 28mm
  • Width: 23mm
  • Depth: 20mm
• Weight: 1.3kg
