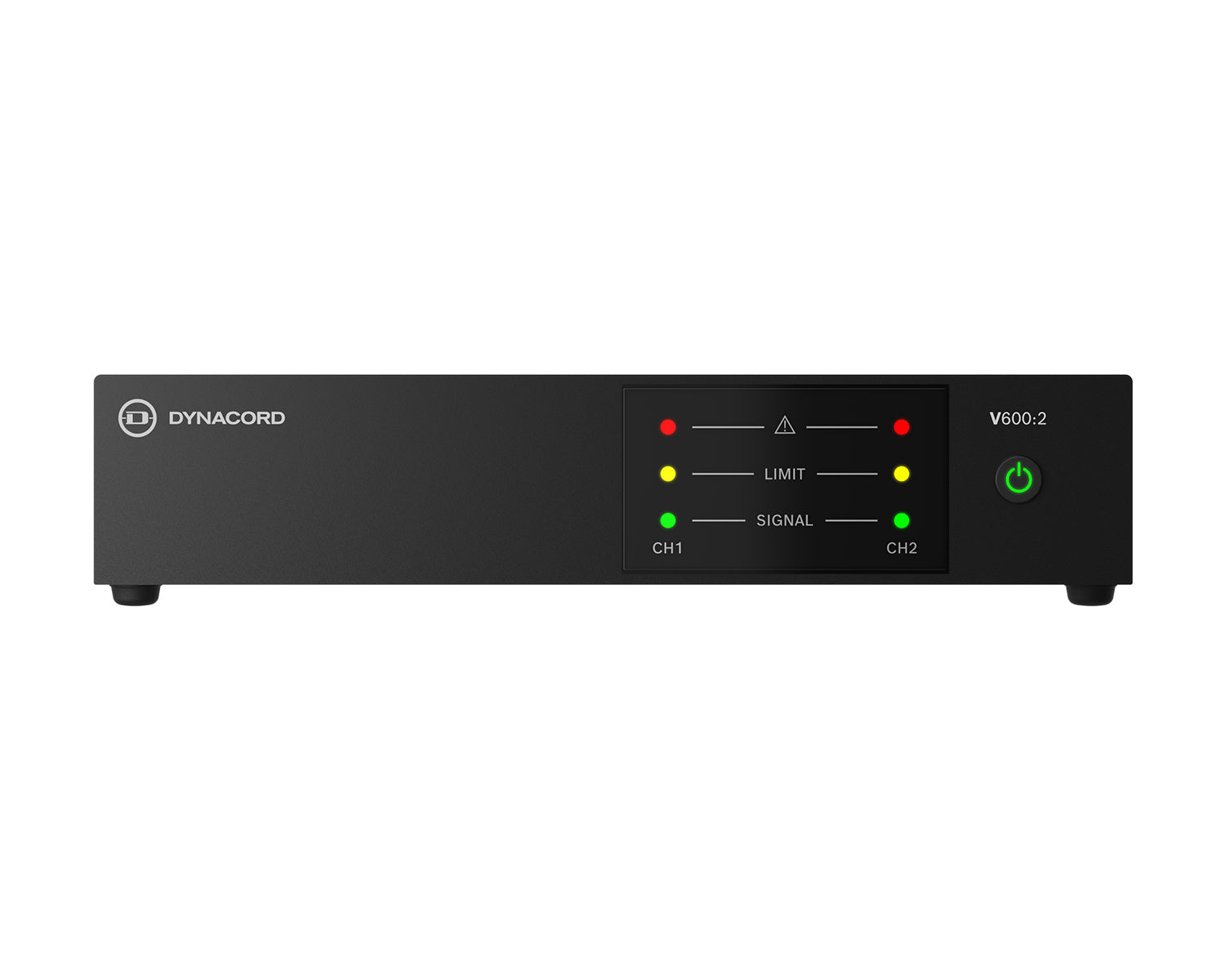

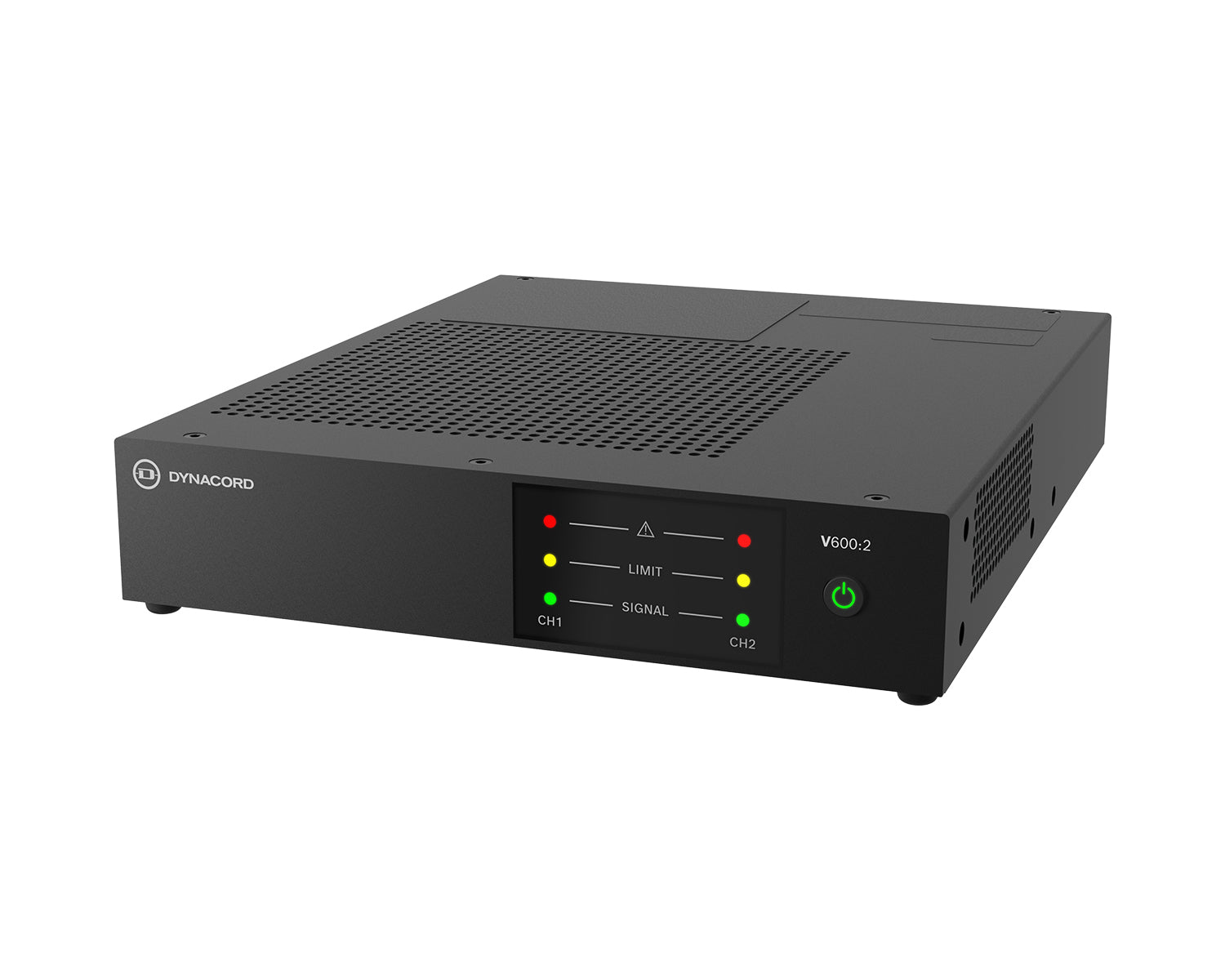

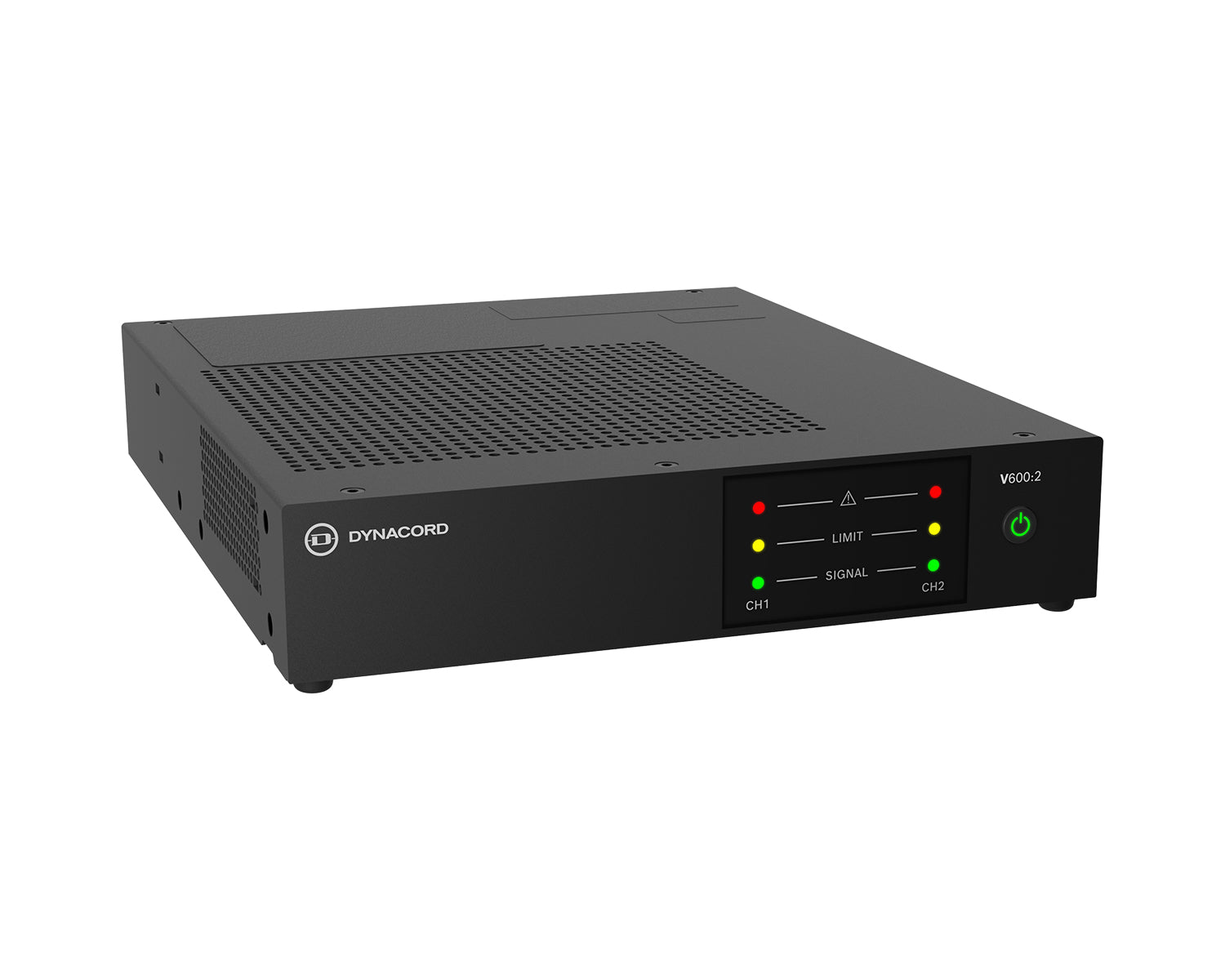

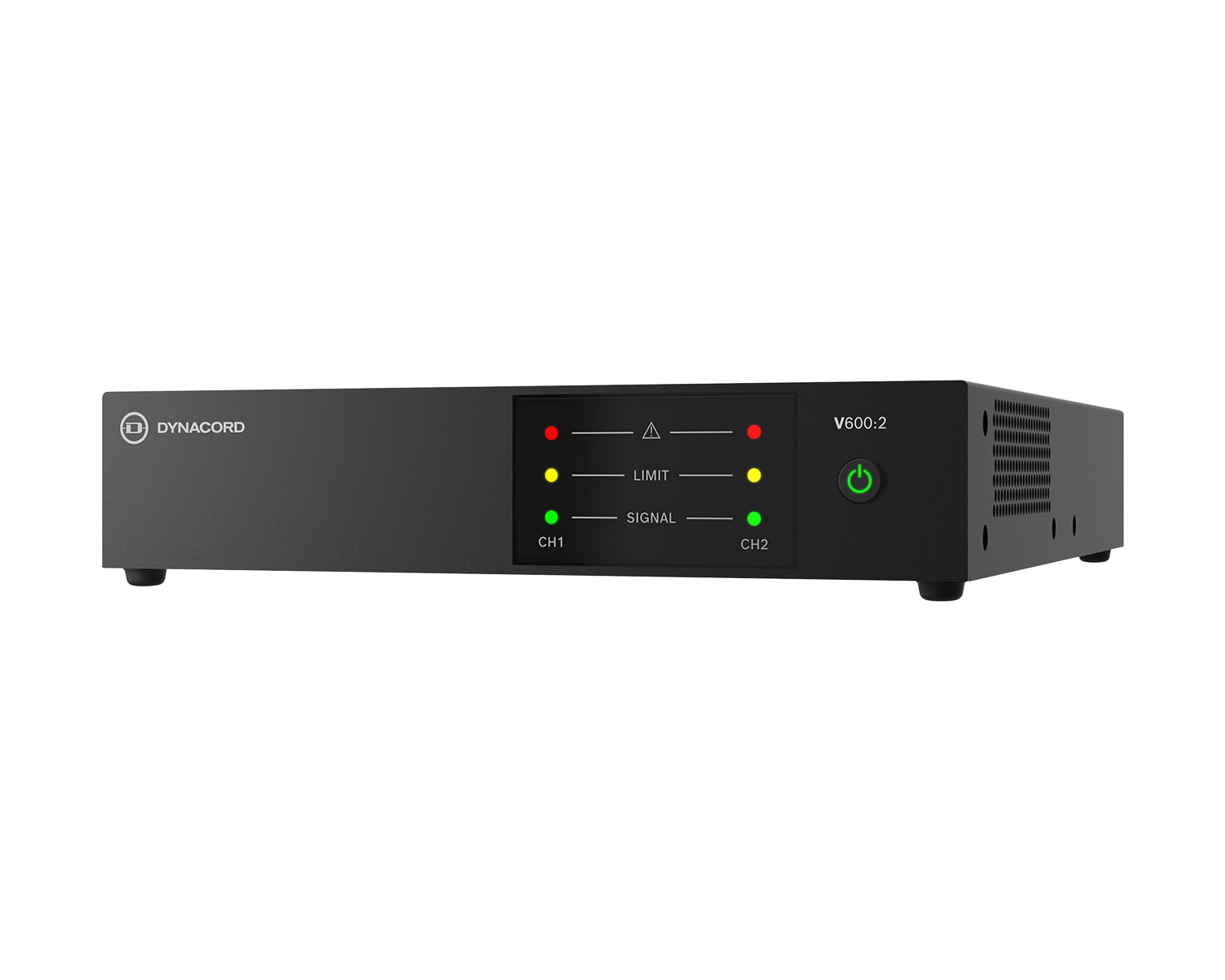

With a total output capacity of 600 watts, this compact two-channel amplifier is not only tailored for background music and announcements but also excels whenever higher SPL levels in small to mid-sized fixed installations are required, including educational facilities, hospitality venues, retail areas and houses of worship. Enhancing the installation versatility, integrators can now mix and match different V Series models to precisely meet their specific project requirements. The V600:2 combines the same best-in-class features as the four-channel model V600:4, ensuring optimal installation flexibility, superior power efficiency and advanced reliability.

Boasting advanced Dynacord technologies including powerTANK, Variable Load Drive (VLD), ecoRAIL and dualCOOL, V600:2 offers flexible power usage, reduced power consumption and silent, uninterrupted operation.

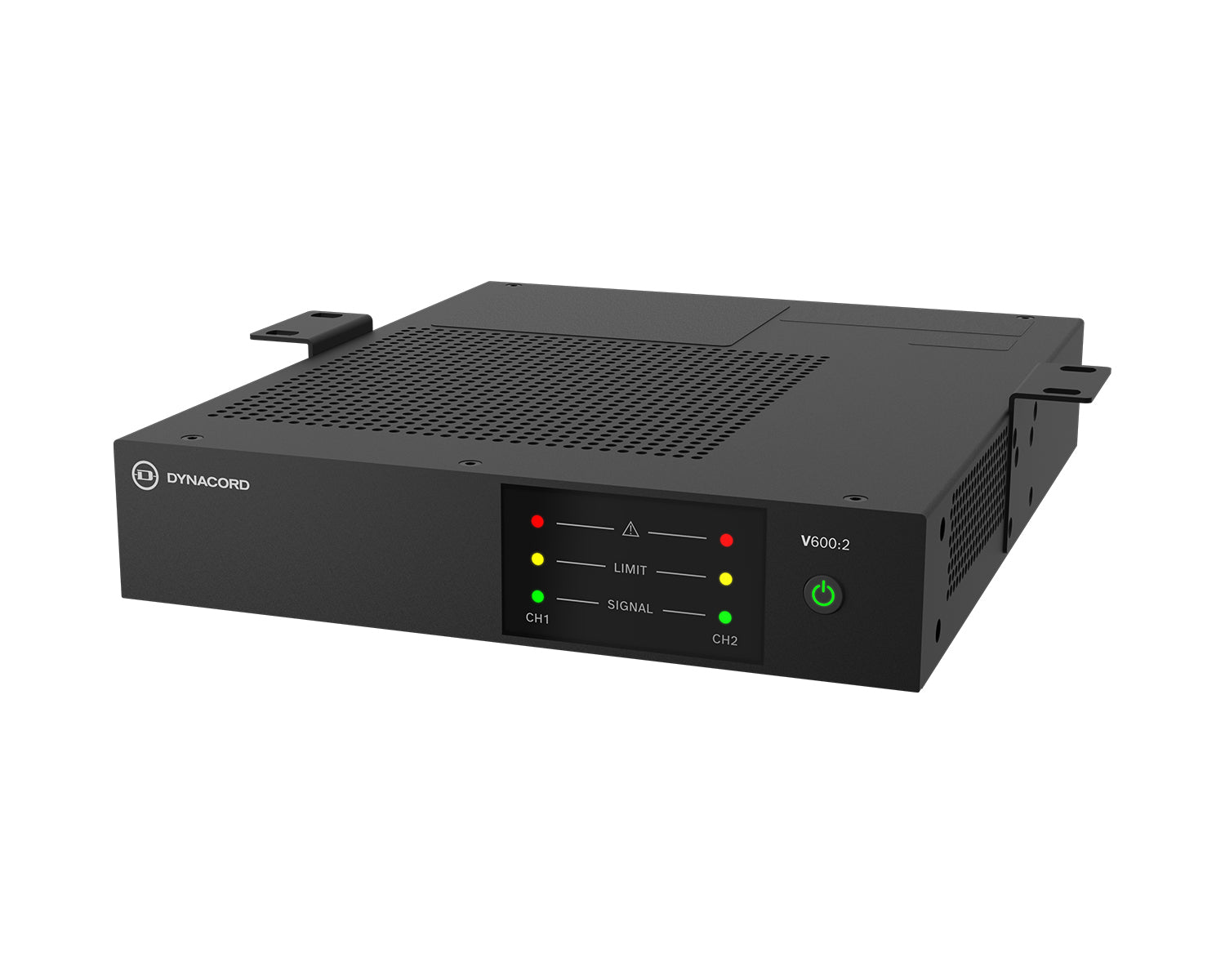

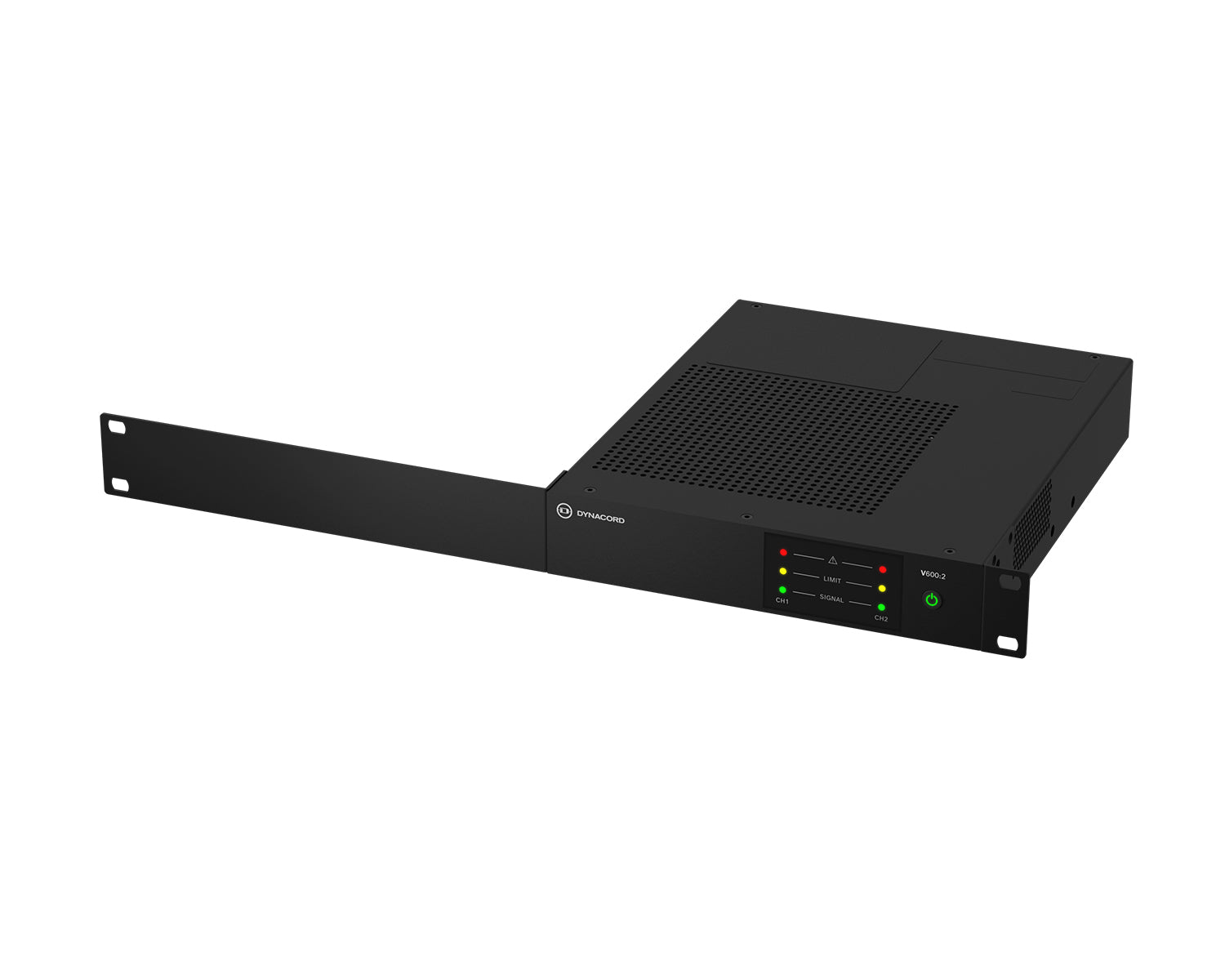

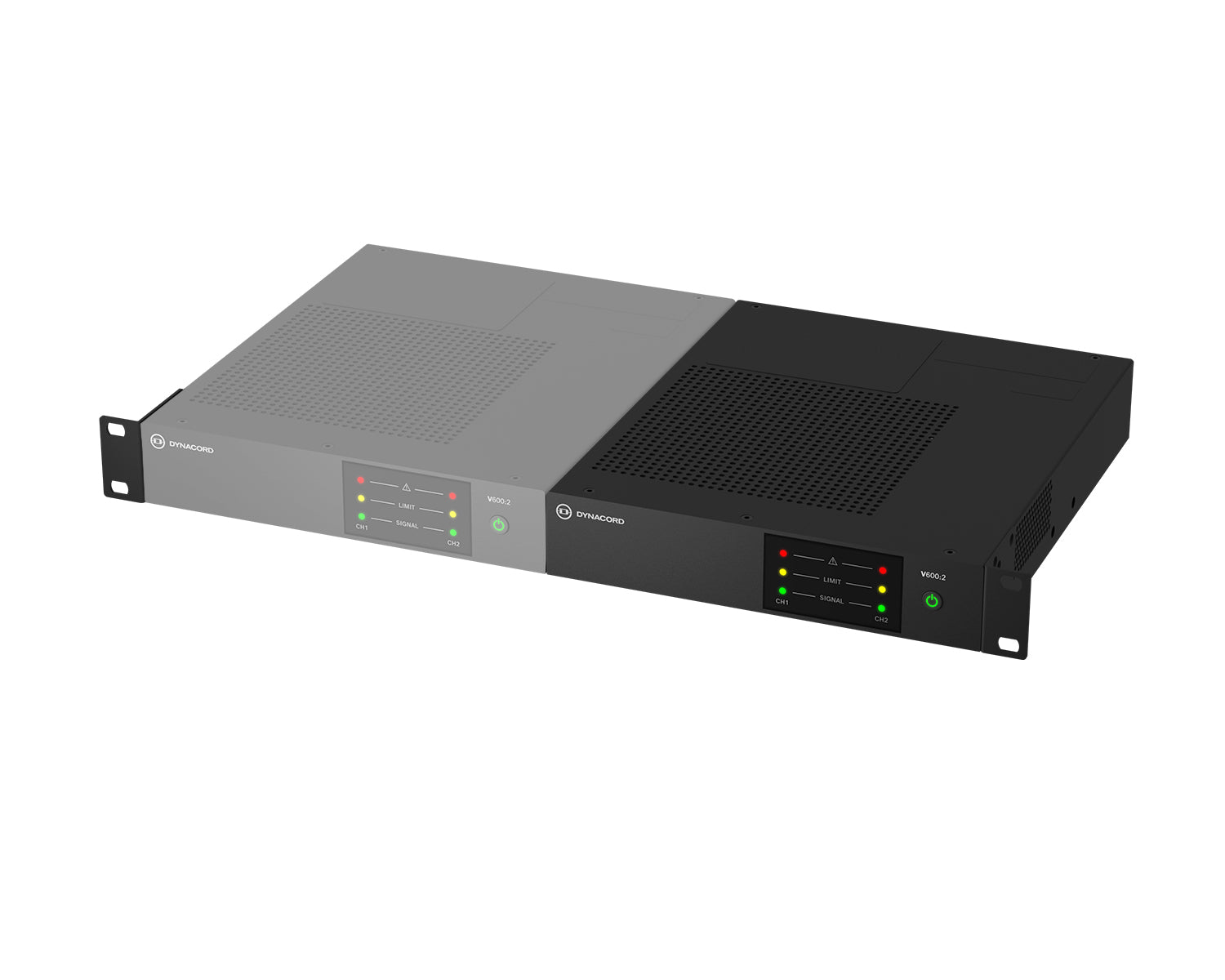

At just a single rack unit high and half a rack width wide, the V600:2 offers a multitude of installation options wherever space is limited. The included brackets facilitate single or dual rack-mount options as well as unobtrusive installation wherever needed, such as under counters. Two amplifiers fit in a single rack unit when rack-mounted side by side, efficiently using space and doubling the channel count and output power.

powerTANK

powerTANK is a reservoir of available amplification power that is deployed flexibly across the four channels of the amplifier. There is no need to set up the powerTANK as it adapts to the requirements of each zone or output without extra manual configuration of each individual channel.

Variable Load Drive

Variable Load Drive (VLD) ensures that the powerTANK capacity is utilized efficiently, providing consistent power to any channel at any impedance.

dualCOOL

The dualCOOL thermal design means that the amplifier typically operates as a convection-cooled amplifier, but for extreme thermal conditions the amplifier is also equipped with an intelligent multi‑speed fan to ensure maximum performance and reliability in any application.

ecoRAIL

Though ecoRAIL power consumption is similar to that at regular standby level, it still produces audio output suitable for background music levels, and the Auto Power Down (APD) mode can also be engaged to further reduce power consumption to less than a watt when there is no signal present for extended periods.

PFC power supply and protection package

Equipped with a PFC power supply and protection features usually reserved for the professional power amplifiers, ensuring that the amplifier resists complete shutdown situations and will always perform at its best under all conditions.

Product Features

• 2-channel amplifier, with a total powerTANK capacity of 600 W
• Variable Load Drive (VLD) providing the same power into 4 Ω, 8 Ω, 70 V or 100 V
• ecoRAIL and APD deliver significant reduction in power consumption
• dualCOOL convection cooling with additional intelligent fan in case of extreme thermal conditions
• Comprehensive protection package for reliable operation
• Half 1U
• Versatile, lightweight two-channel power amplifier at an attractive price point, ideal for background music and announcements in small to mid-sized commercial installations
• Unique Dynacord technologies for reduced cost of ownership, with low energy consumption and flexible power-load allocation
• Easy handling and trouble-free amplifier operation – even under demanding power conditions – all with a compact form factor of just one RU high and half a rack width wide

Product Specifications

Electrical

• Total rated output power: 600 W
• Number of channels: 2
• Rated output power1: 2 x 300 W
• Output power:: 4 Ω / 8 Ω / 70 V / 100 V
• Maximum output power per channel (power sharing): 500 W / 600 W / 500 W / 600 W

Amplifier

• 4 Ω / 8 Ω / 70 V / 100 V
• Nominal Gain (+6 dBu input sensitivity, LEVEL 0 dB): 27.0 dB / 30.0 dB / 33.2 dB / 36.2 dB
• Signal to Noise Ratio (A‑weighted, ref. to rated output power, LEVEL 0 dB): > -100 dB / > 102 dB / > 101 dB / > 103 dB
• THD+N (1/8 RATED OUTPUT POWER, 1 KHZ): < 0.1 %

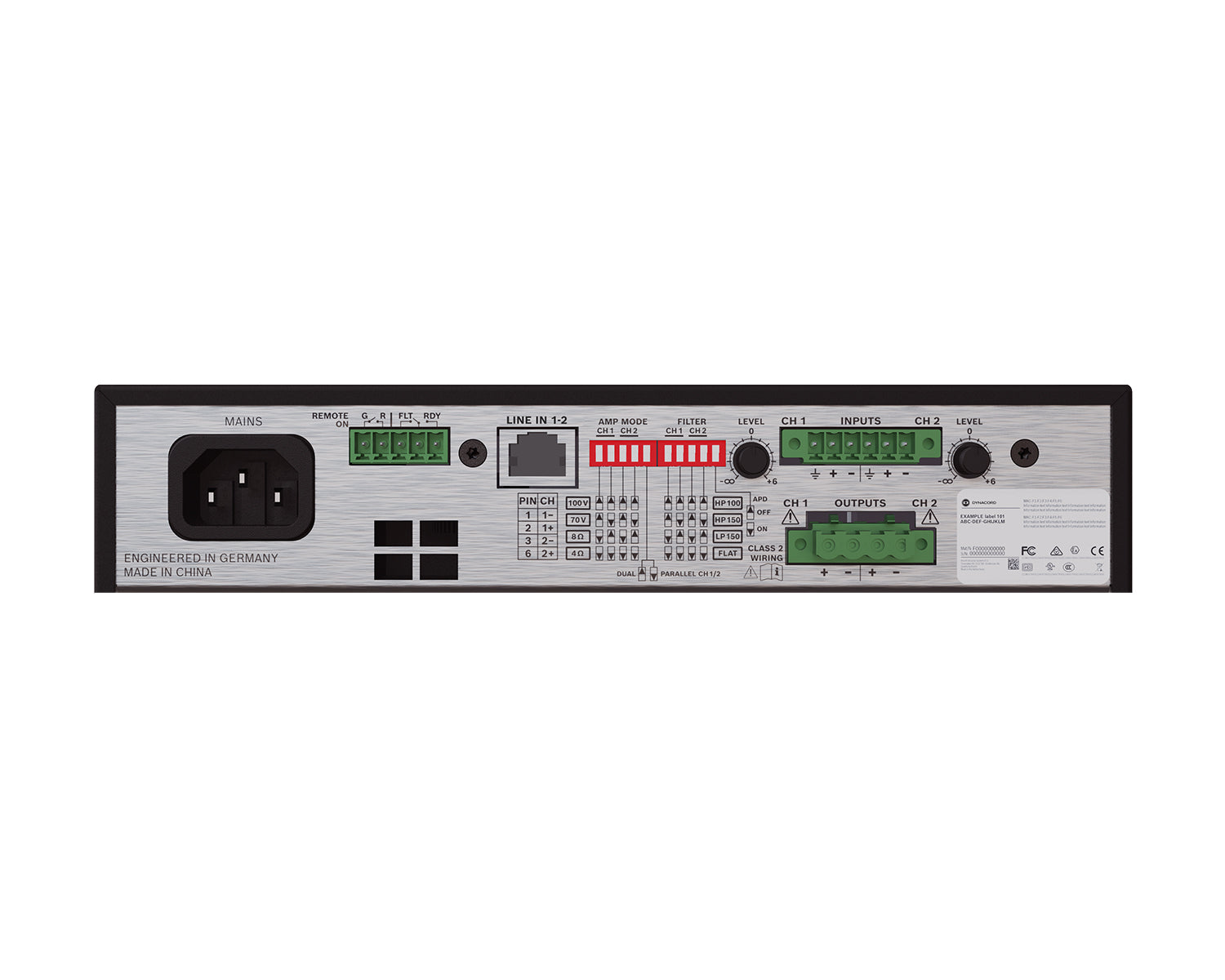

Connectivity

• Type: 1 x 6-pin Euroblock, 3.81 mm, male,
• parallel 1x RJ45 (AES72-1E)
• Loudspeaker output: 2 x 4-pin Euroblock, 5.08 mm, female
• Control port type: 1 x 5-pin Euroblock, 3.81 mm, male

General

• Signal processing: Input Routing, Filter (24 dB/Oct.), Hi-pass 30/50/100/150 Hz, Lo-pass 150 Hz, Peak Limiter
• Power requirements: 100 V to 240 V, 50 Hz to 60 Hz AC
• Power consumption:
• Idle mode (ecoRAIL with no input signal): < 12 W
• Consumption at 1/8 rated output power: 115 W
• Standby mode (APD active): < 1 W
• Protections: Audio limiters, high temperature, DC, HF, short circuit, back-EMF, peak current limiters, inrush current limiters, mains over/under voltage protection

See Datasheet in Downloads tab for full specifications

What's in the Box?

• Single and dual rack mount kits
• Rubber Feet
