STRIKE Array 1 is an IP65-rated audience blinder powered by intense warm white LEDs housed in an independently focusable pod. Its proprietary tool-free interlocking system enables STRIKE Array 1 to be easily interconnected with multiple units for scalable configurations. For additional rigging versatility, the STRIKE Array 1 pod can be removed from its frame and mounted using the included standard yoke. STRIKE Array 1 delivers superb low end dimming performance and Red Shift that warms the colour temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make it an ideal blinder for broadcast applications.

STRIKE Array 1 is a package that includes:

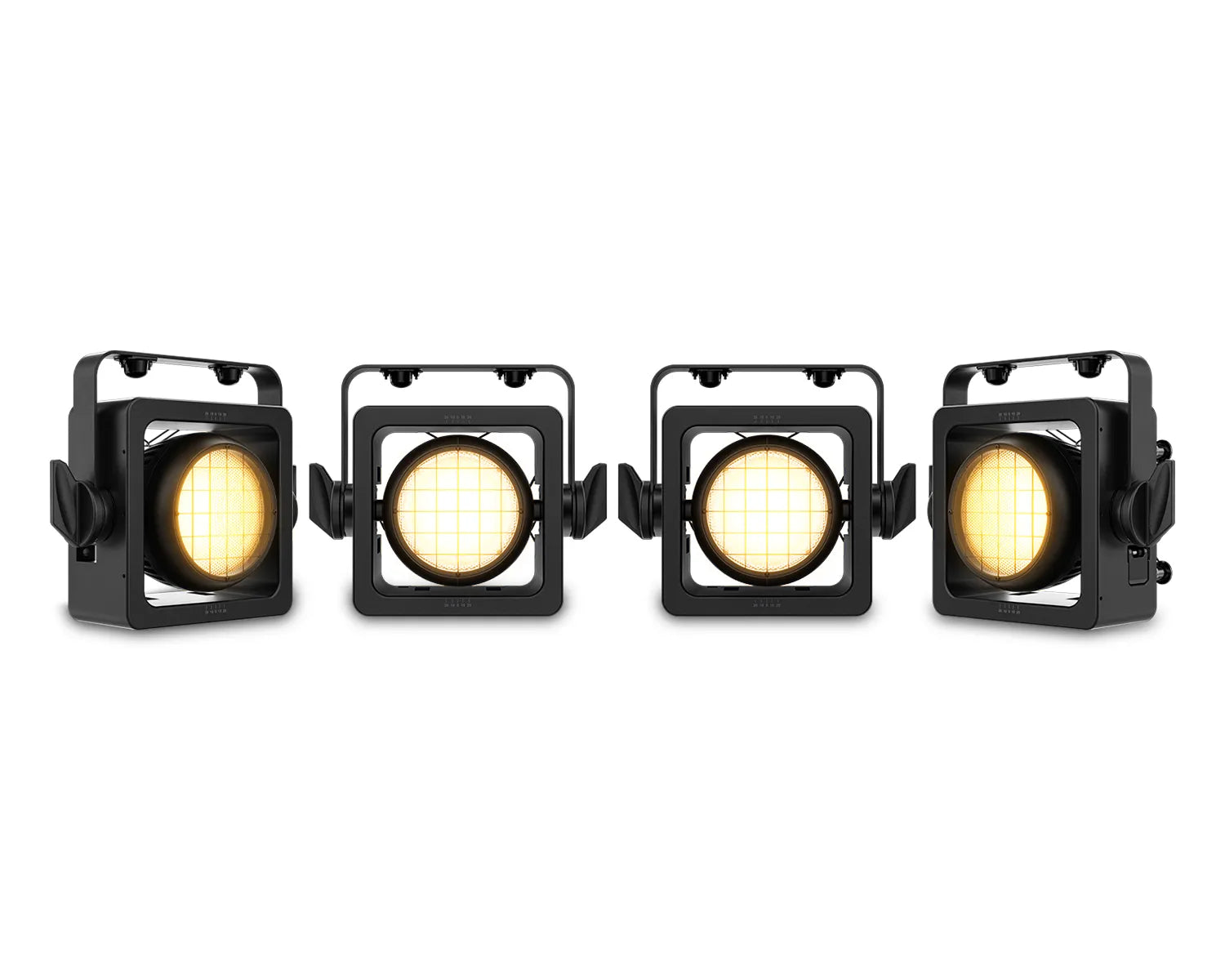

• (4) STRIKE Array 1 pods mounted in square frame
• (4) Linking cables (1m length)
• (4) Hanging brackets for individual truss mounting (“head only yokes”)


Product Features

• Does not include driver
• Intense, stacking blinder/strobe rated IP65 for all-weather use
• Remote driver unit with automatic addressing of up to 8 pods for clean installations
• Heads are removable from the frame and can be mounted in standard (included) yoke for a more traditional look
• Emulated “red shift” to mimic incandescent fixtures perfectly
• Manual pan (or tilt, depending on mount orientation) of each head to allow for directional adjustment of light output
• Innovative interlocking system to connect multiple fixtures together

Product Specifications

Optical

• Light Source (Single Pod): 48 LED (WW) 1.33 W, (1.1 A), 2700 K, 50,000 hours life expectancy
• Light Source (Single Pod): 5 LED (Amber) 1.92 W, (.770 A), 50,000 hours life expectancy
• Colour Temperature (at full): 2657 K
• CRI: 83.9
• Beam Angle: 62.8°
• Field Angle: 104.5°
• Lumens (Single Pod): 4,353 lm @ 5 m
• Illuminance (total) (Single Pod): 153 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Strobe Rate: 0 to 25 Hz
• Dim Modes: 4
• Built-in Automated Programs: Yes

Control

• Control Protocol: DMX, RDM, ArtNet, sACN
• DMX Channels: 1,2,5,4P-5CH,4P-14CH,4P-23CH,4P-26CH,8P-9CH,8P-26CH,8P-43,8P-46CH

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current (4 PODS): 253 W, 2.13 A @ 120 V, 60 Hz
• Power and Current (4 PODS): 248 W, 1.21 A @ 208 V, 60 Hz
• Power and Current (4 PODS): 248 W, 1.09 A @ 230 V, 50 Hz
• Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
• Power Linking: 5 units @ 120 V; 9 units @ 208 V; 11 units @ 230 V
• Power and Current (8 PODS): 509 W, 4.22 A @ 120 V, 60 Hz
• Power and Current (8 PODS): 494 W, 2.38 A @ 208 V, 60 Hz
• Power and Current (8 PODS): 490 W, 2.14 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M6 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Device Outputs (4): 4-pin XLR
• Data Connectors: 5-pin IP65 XLR, Seetronic Etherkon IP65
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

Construction / Physical

• Dimensions: 8.19 x 8.62 x 4.57 in (208 x 219 x 116 mm) (Single Unit with Bracket)
• Dimensions: 7.48 x 7.48 x 4.57 in (190 x 190 x 116 mm) (Single Unit with Frame)
• Dimensions: 10.87 x 9.06 x 4.57 in (276 x 230 x 116 mm) (Single Unit with Frame and Bracket)
• Dimensions: 7.375 x 4.00 x 7.375 in (186.87 x 101.6 x 186.87 mm) (Control Box)
• Weight: 3.2 lbs (1.5 kg) (Single Unit with Bracket)
• Weight: 6.6 lbs (3.0 kg) (Single Unit with Frame)
• Weight: 7.6 lbs (3.5 kg) (Single Unit with Frame and Bracket)
• Weight: 6.4 lbs (2.9 kg) (Control Box)
• Exterior Colour: Black
• Housing Material: Aluminium die-cast

What's in the Box?

• 4 x Strike Array 1, mounted in the Square Frame with Yokes
• 4 x linking cables (1m)
• 1 x Seetronic Powerkon IP65

• 4 x “head only yokes"
• 5 x Omega Bracket
