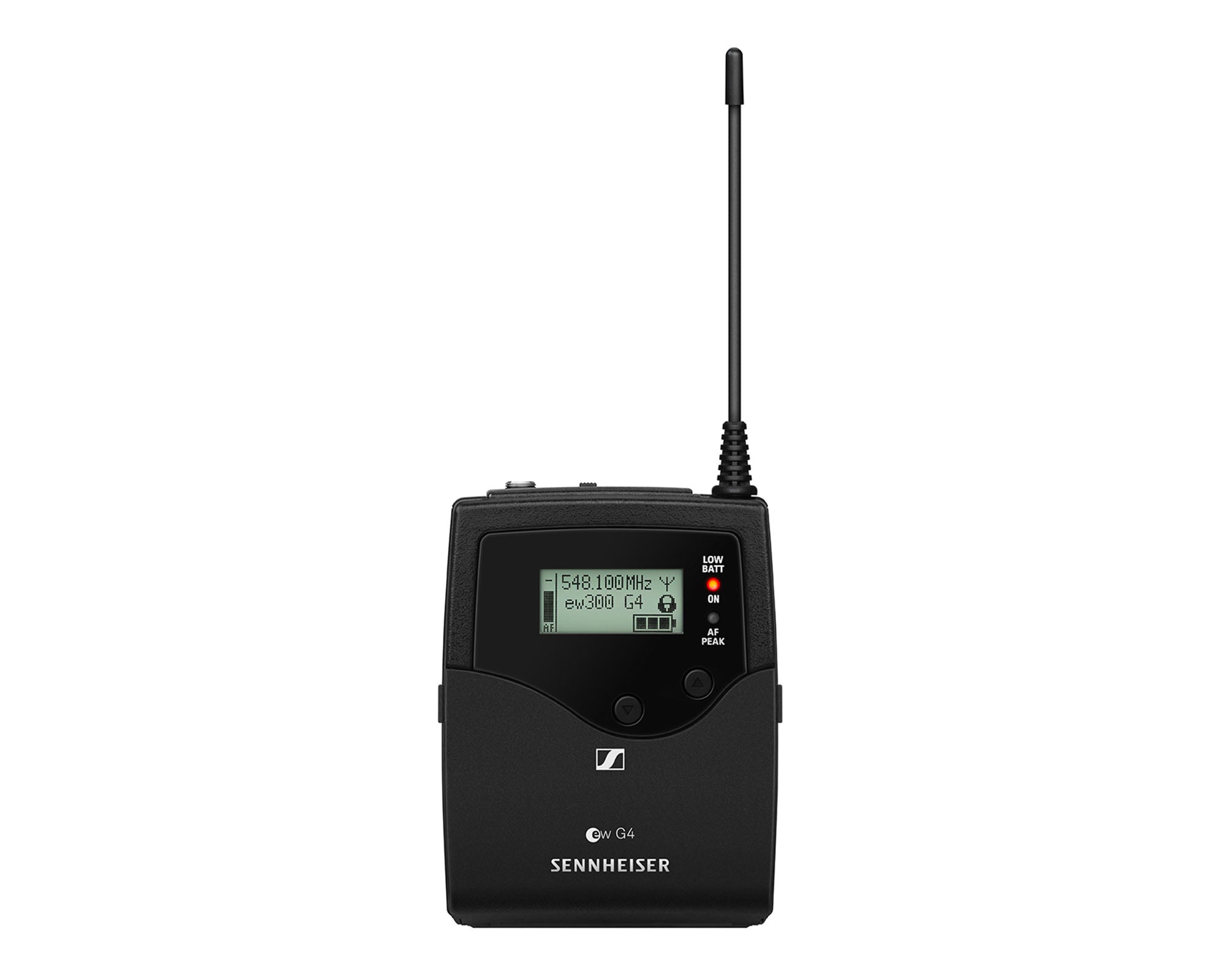

SENSK30038 - Sennheiser SK300 G4 GBW 300 Series Bodypack Transmitter 3.5mm CH38 Image 1

Robust bodypack transmitter with increased bandwidth and transmission power for evolution wireless G4 300 Series systems, delivering exceptional speech intelligibility in Business and Education.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

Robust bodypack transmitter for use with any Sennheiser headmic or lavalier microphone (HEADMIC 1, ME 2 recommended)
Easy to use, fast setup time
Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
Up to 88 MHz bandwidth, up to 32 channels
Increased RF output power (10/30/50 mW)
Transmission Range: up to 100 meters / 330 feet
Compatible with wireless speaker system LSP 500 PRO
RC (remote control) switch available for the bodypack transmitter

Product Specifications

General

Modulation: Wideband FM
Frequency ranges
- Aw+: 470 - 558 MHz
- AS: 520 - 558 MHz
- Gw1: 558 - 608 MHz
- Gw: 558 - 626 MHz
- GBw: 606 - 678 MHz
- Bw: 526 - 698 MHz
- Cw: 718 - 790 MHz
- Dw: 790 - 865 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937.5 MHz
Transmission frequencies
- Max. 2880 frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
- 6 frequency banks with up to 32 programmable channels
Switching bandwidth: up to 72 MHz
Nominal/peak deviation: ±24 kHz / ±48 kHz
Frequency stability: ≤ ±15 ppm
RF output power at 50 Ω switchable:
Low: typ. 10 mW
Standard: typ. 30 mW
High: typ. 50 mW
Pilot tone squelch: Can be switched off
Compander system: Sennheiser HDX
AF frequency response:
- Mic: 80 – 18,000 Hz
- Line: 25 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
Total harmonic distortion (THD): ≤ 0.9 %
Max. microphone/line input voltage: 3 Veff
Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
Input capacitance: Switchable
Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
Temperature range: -10 °C to +55 °C
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage: 3 V battery / 2.4 V rechargeable battery
Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
Operating time: Typically 8 h
