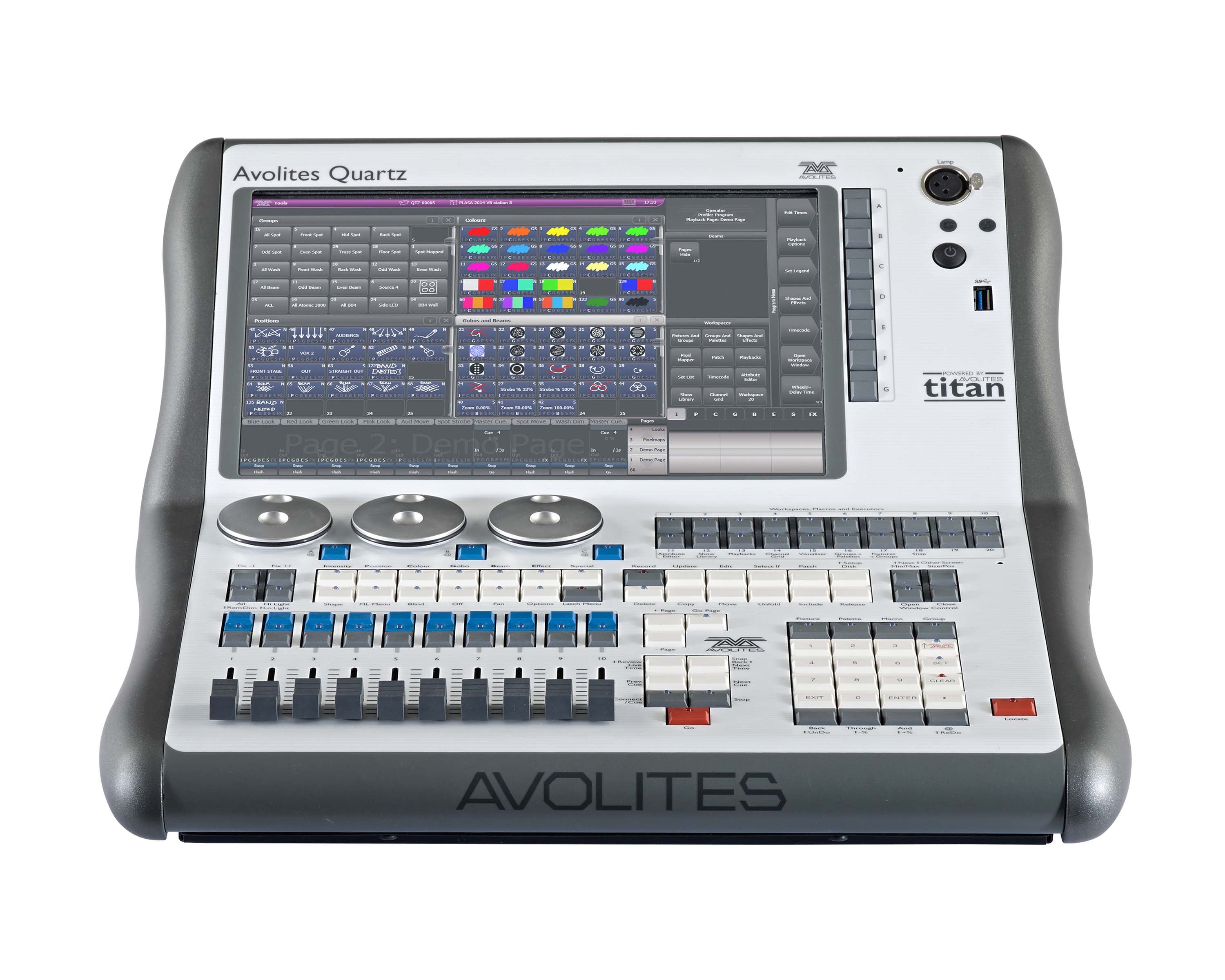

Complete with on-board processing and a bright, vibrant 12.1” screen, in Avolites\' smallest full-featured console. Super compact, measuring only 42.5cm wide, the Quartz is the ideal companion for all your lighting projects, from touring and festivals to clubs and one-offs.

Featuring the same high quality faders and hardware you’ve come to expect from Avolites, the Quartz can go anywhere you can, ideal for life on the road.

Offering full compatibility with Multi user, the Quartz is also perfect for use as a back-up or extra programming surface, cutting your programming time. The Quartz is ready to benefit from multi band Sound to Light Triggering functionality, offered in Titan version 9.

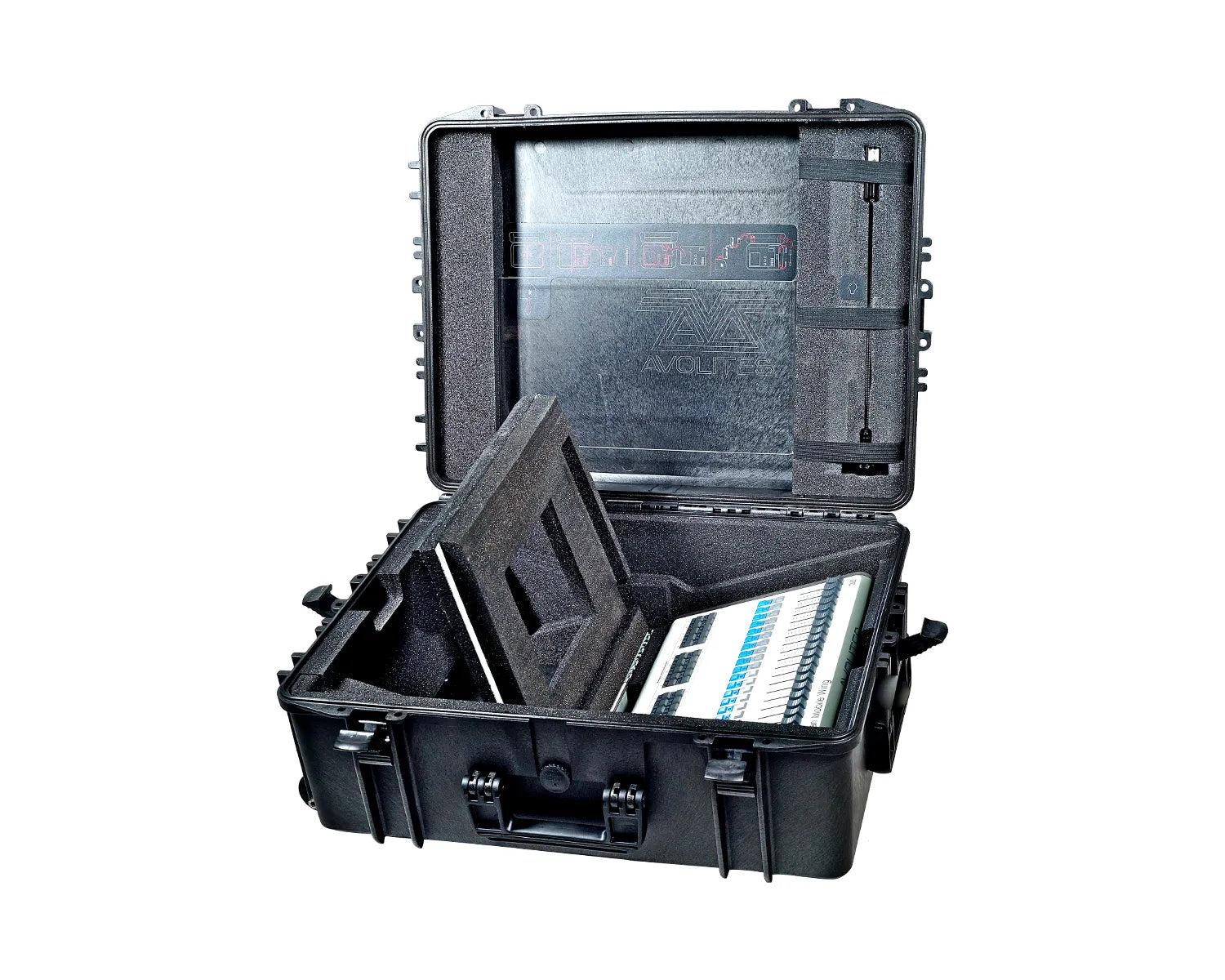

Combine your new Quartz with a Titan Mobile Wing for a massive 30 precision playback faders and 50 programmable executable buttons all packaged up in a travel case you can throw in your car or hold luggage.

Product Features

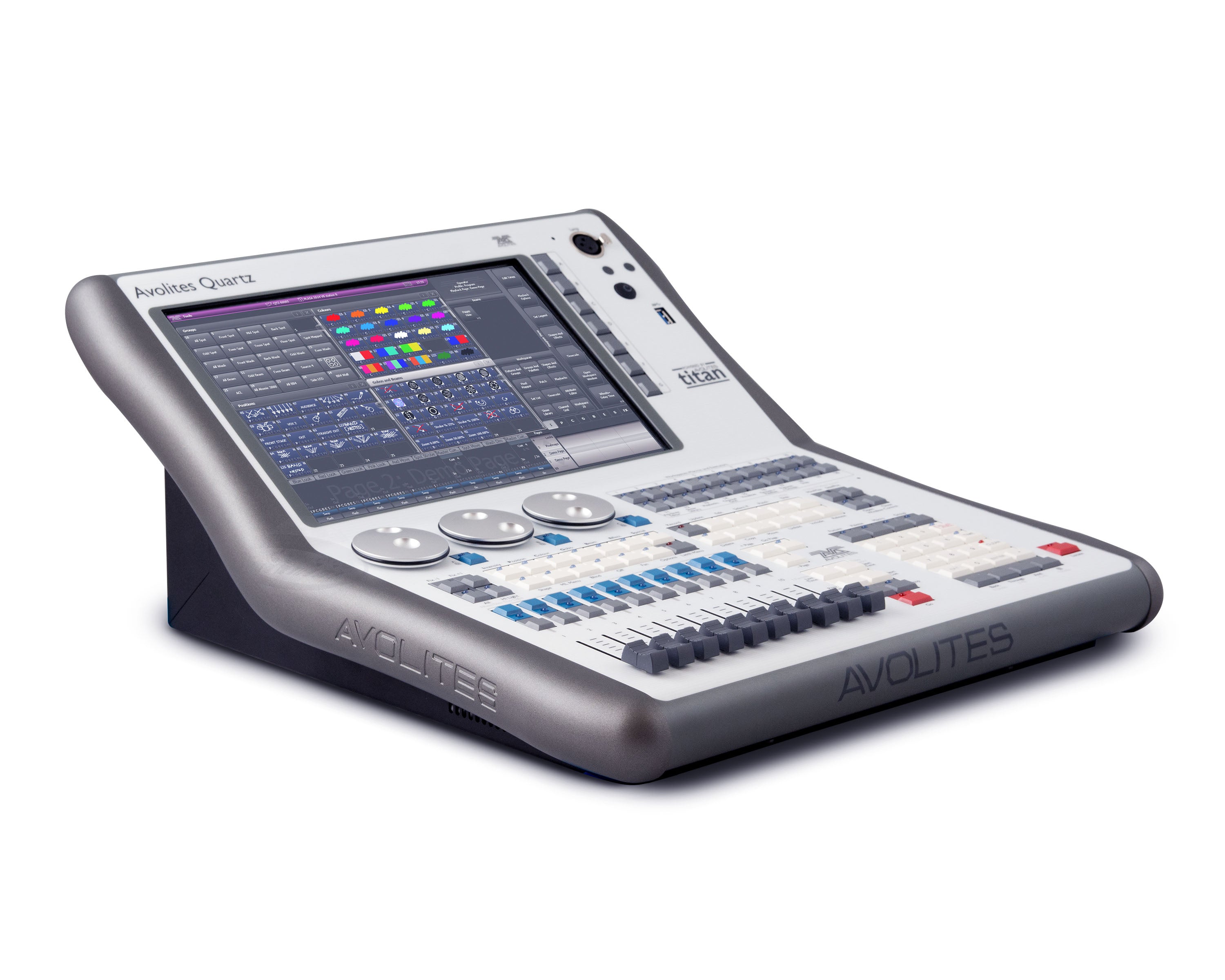

Quartz Console

• Offering all the power of Titan in a super-portable package
• Expand control surface with Titan Mobile Fader Wing
• Front and rear-mounted USB ports
• A bright built-in touchscreen, the latest on-board processing
• Compatible with Titan Net backup, multi-user and DMX expansion

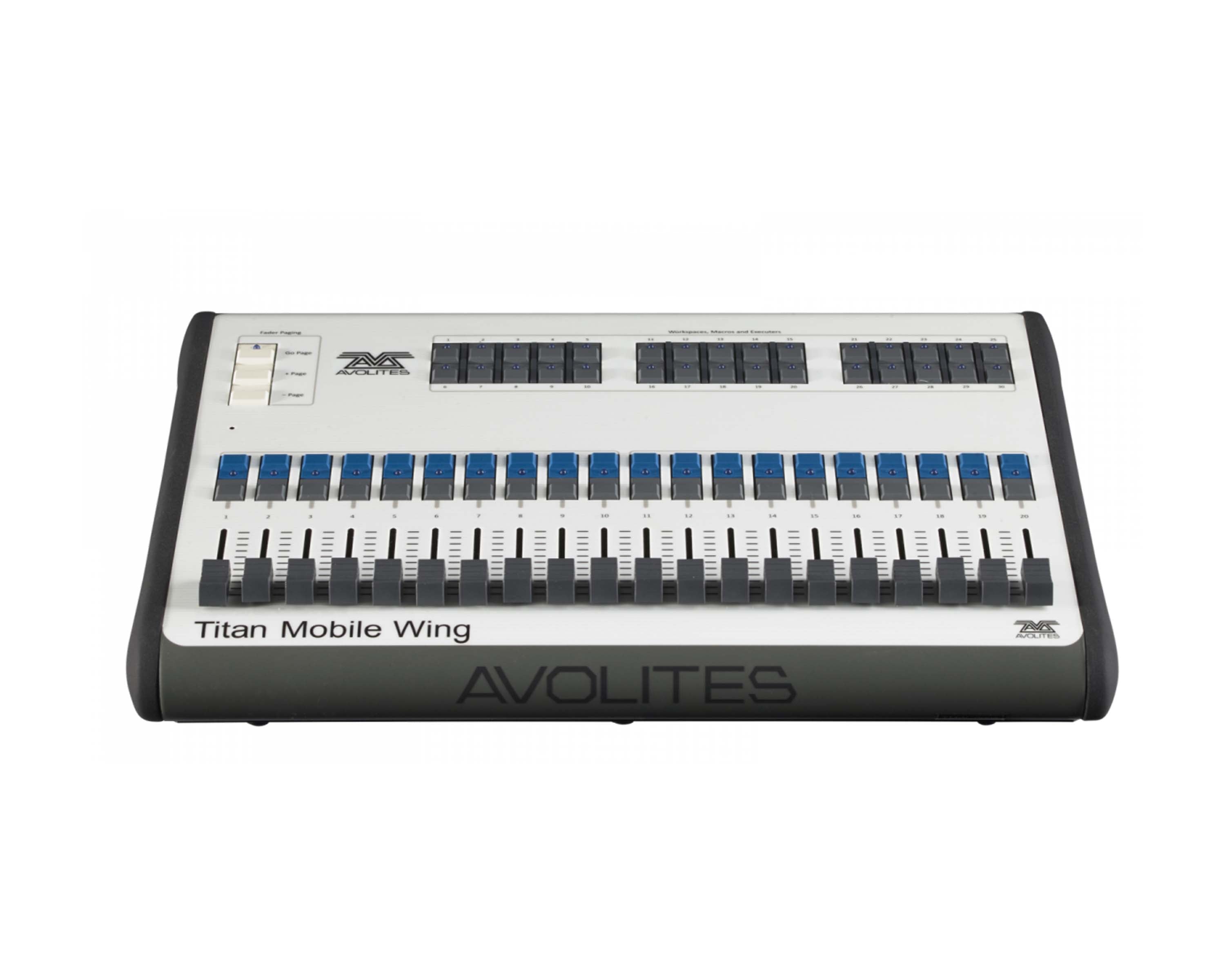

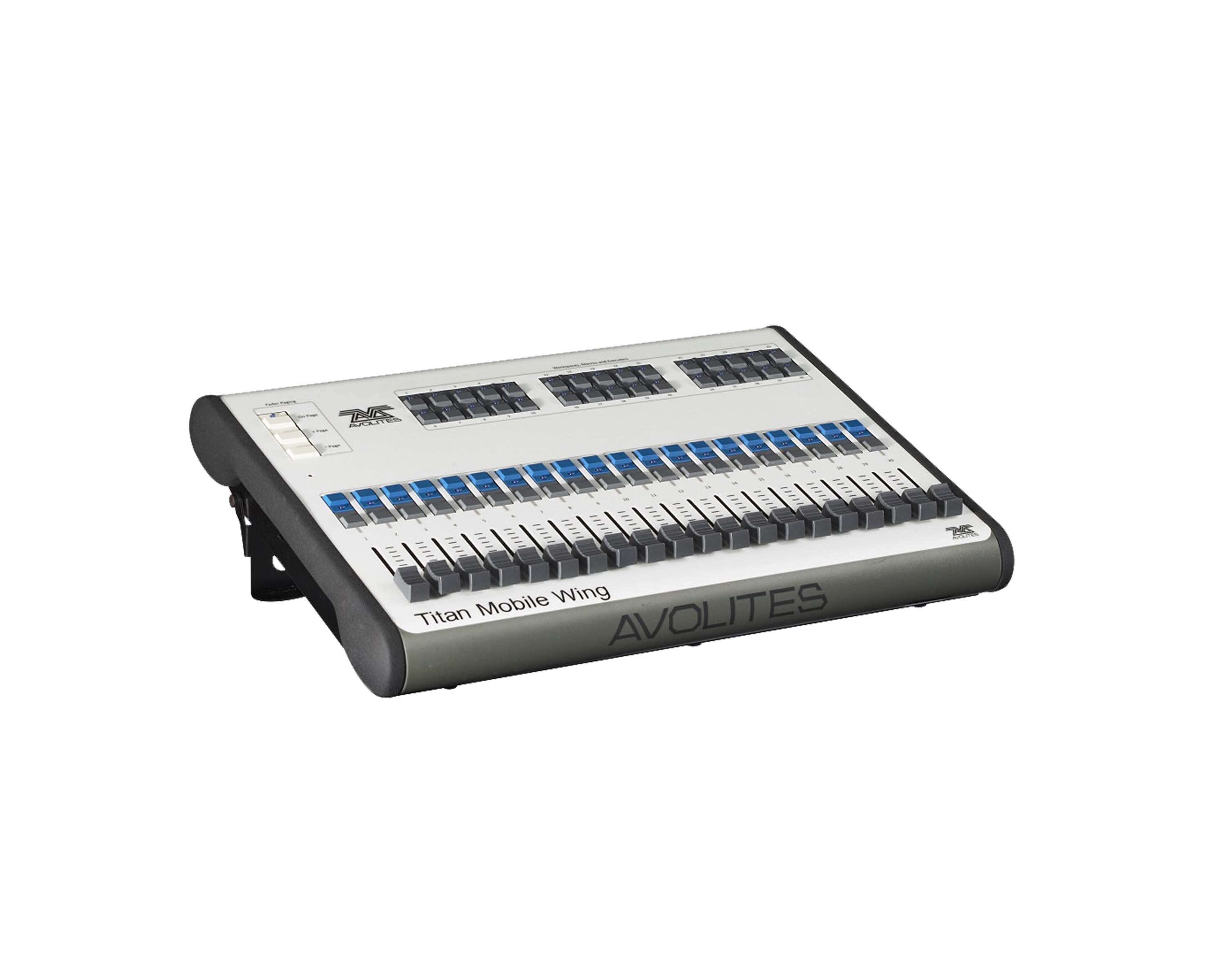

Titan Mobile Wing

• Gives direct hands-on quick access to more playback cues
• Local, Independent Paging Control
• Robust construction, built for the life on the road
• Dedicated workspace window in Titan software
• USB Powered - no need for a separate PSU
• 30 programmable Executors
• 20 smooth playback Faders

Product Specifications

Quartz Console

• Super compact form - just 42.5cm wide

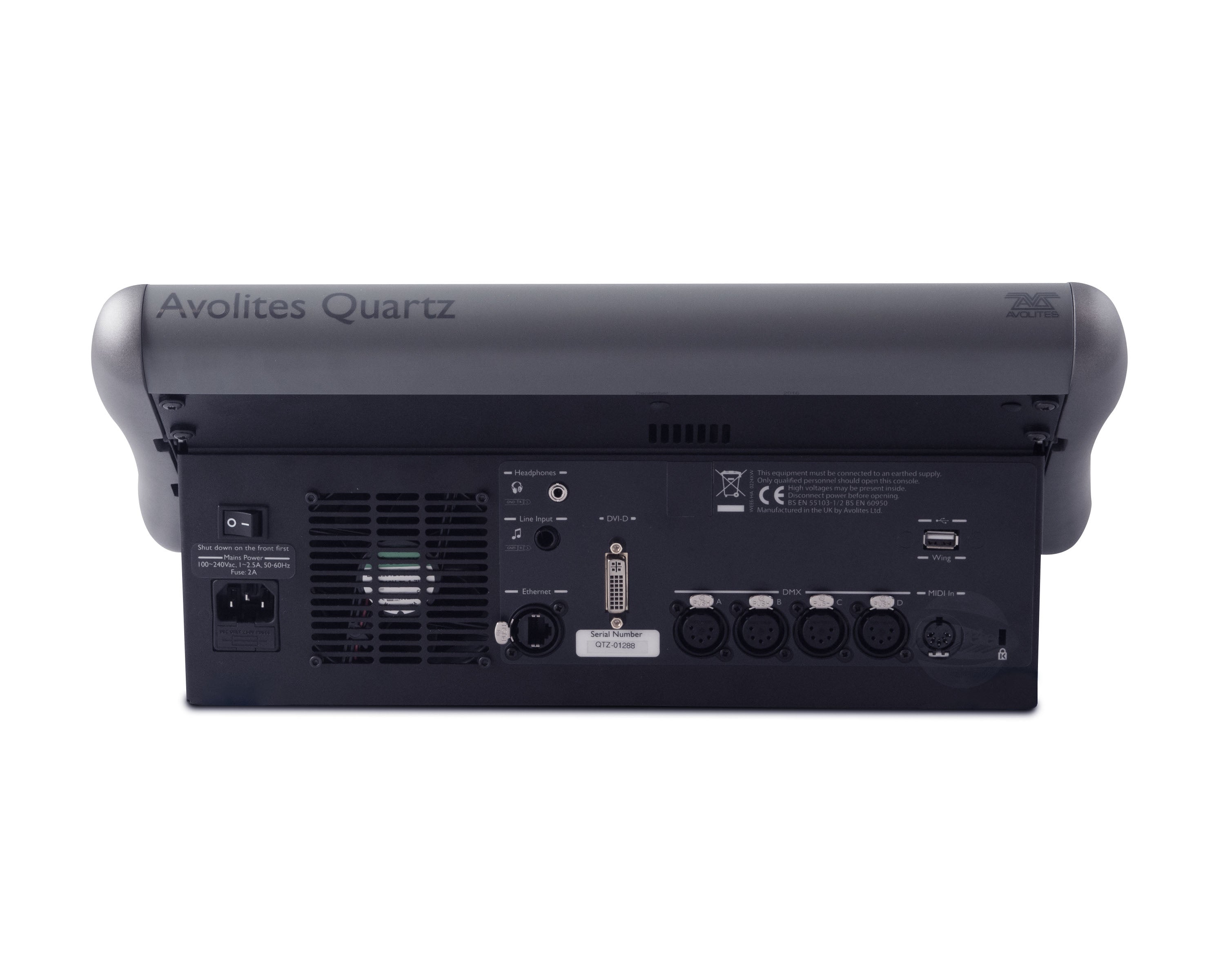

• 4 physical DMX XLR-5 connectors
• 16 DMX universes from the console - 8192 channels
• Compatible with Titan Net - up to 64 universes
• Gigabit network port for Titan Net, Artnet and streaming ACN
• Built in MIDI input, no extra boxes required
• 10 precision playback faders
• 3 high quality optical encoders
• Compatible with Titan Remote
• 20 programmable macro buttons
• Supports multi-band Sound-to-Light
• Bright and vibrant 12.1" angled touch sreen with brightness control
• DVI-D for external display
• Headphone output
• Button layout harmonised with the rest of the Titan range
• Robust construction - built for life on the road
• Conveniently located front panel mounted super speed USB3 port
• Expandable with Titan Mobile Wing through dedicated USB port
• Console Dimensions/Weight:
  • Dimensions (mm): 425 x 466 x 194
  • Weight: 8Kg

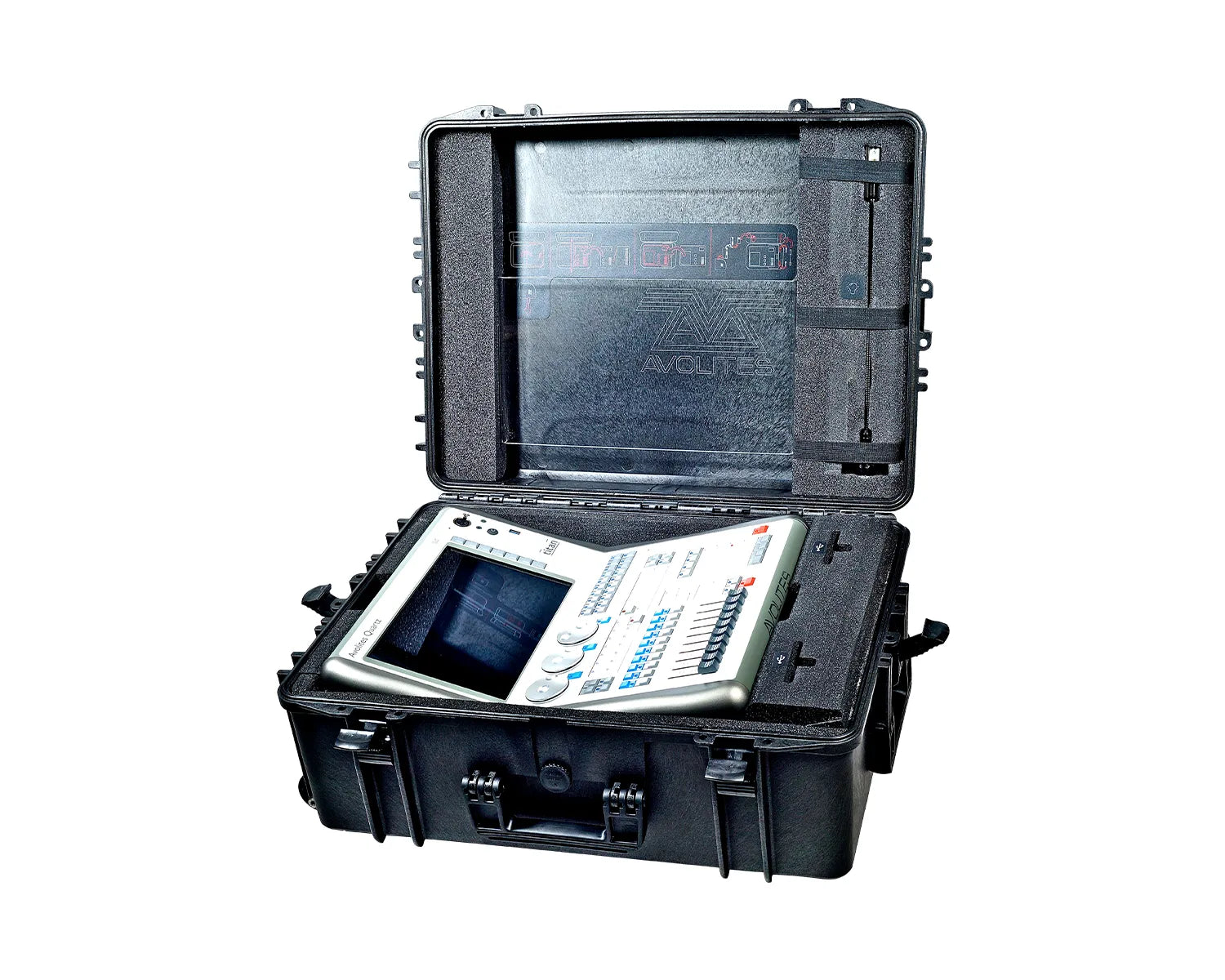

• Console in travel case Dimensions/Weight:
  • Dimensions:  700 x 540 x 310mm
  • Weight:   21.95Kg

What's in the Box?

• 1 x Avolites Quartz Lighting Console (31-01-2210)
• 1 x Avolites Titan Mobile Wing (30-01-9820)

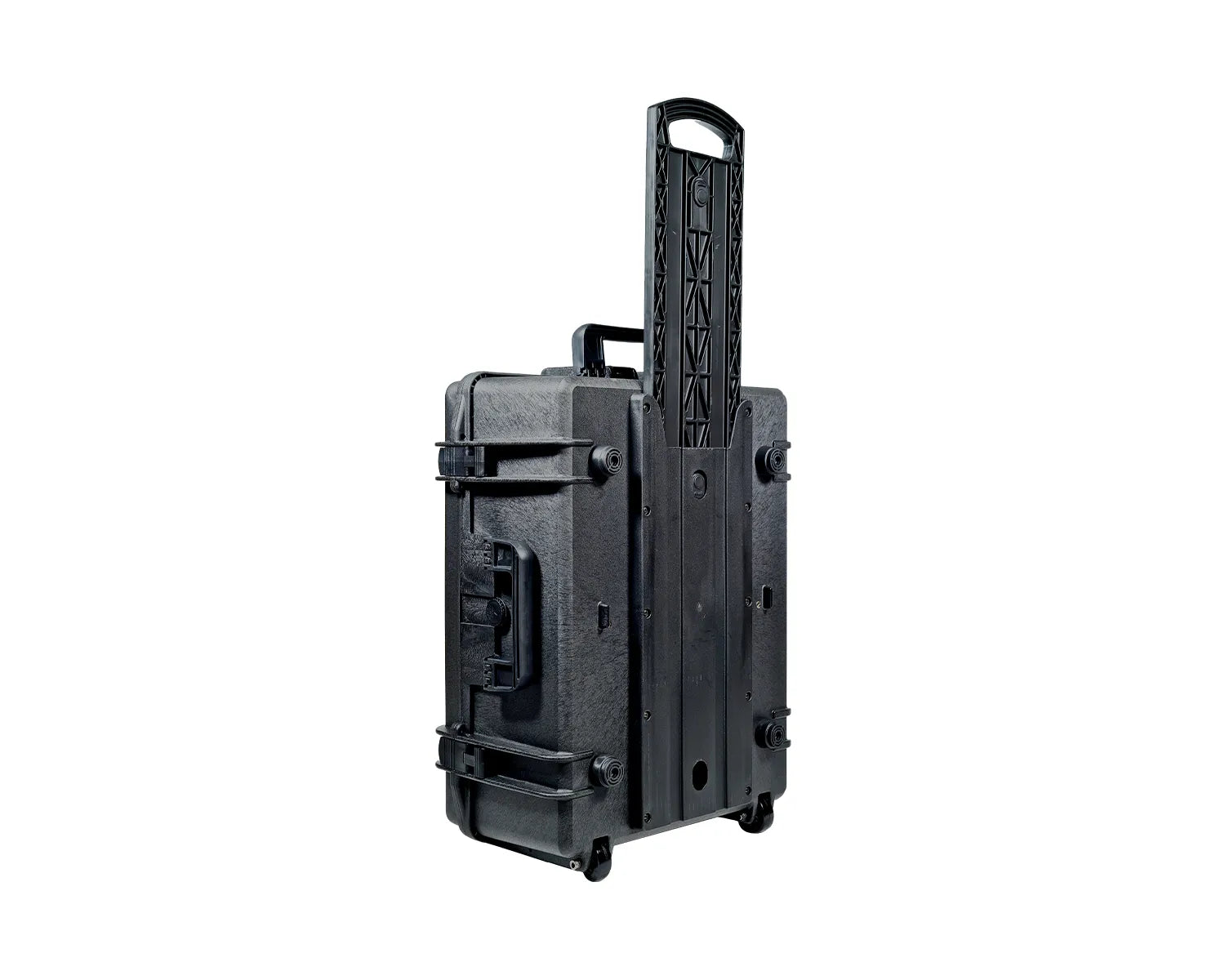

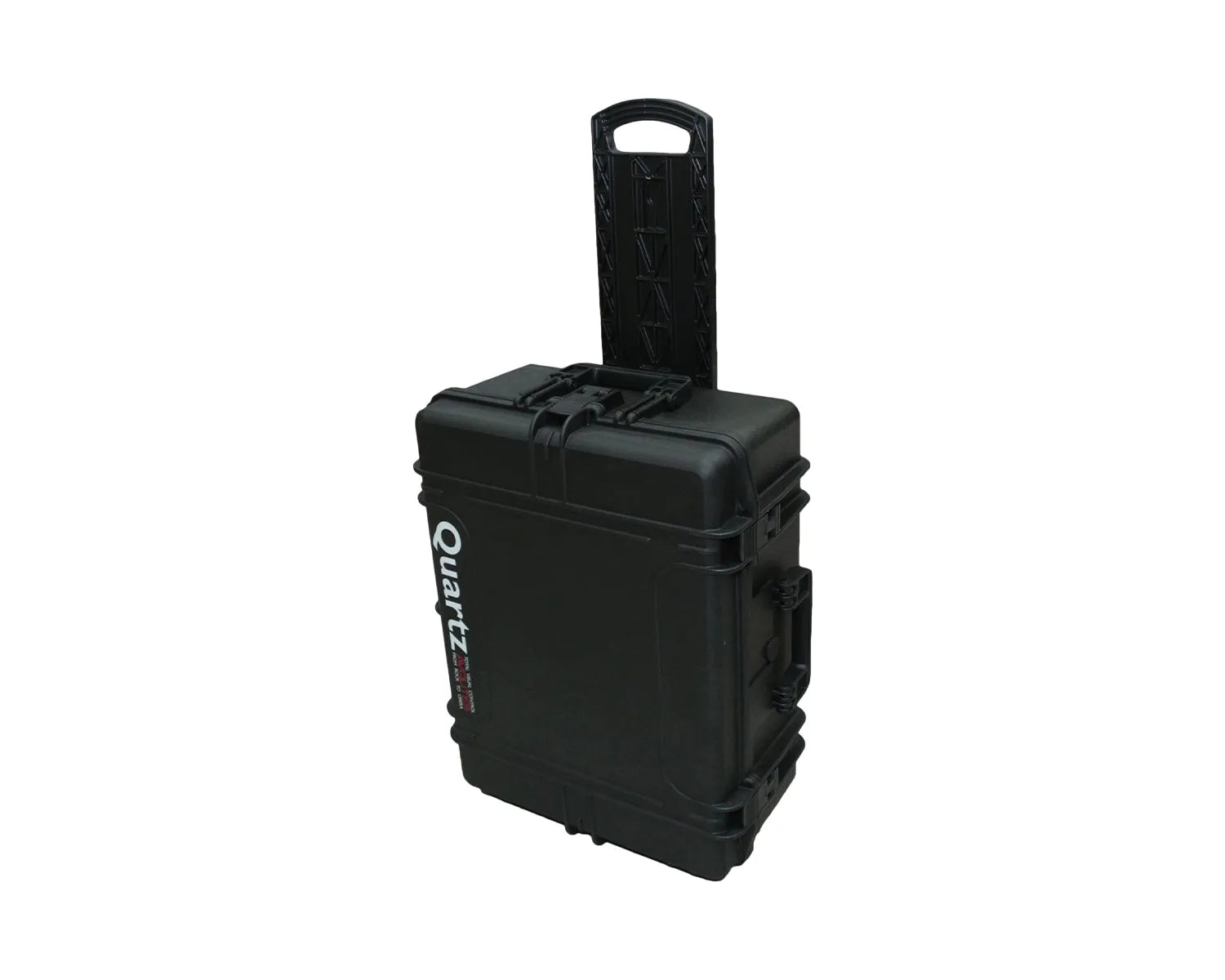

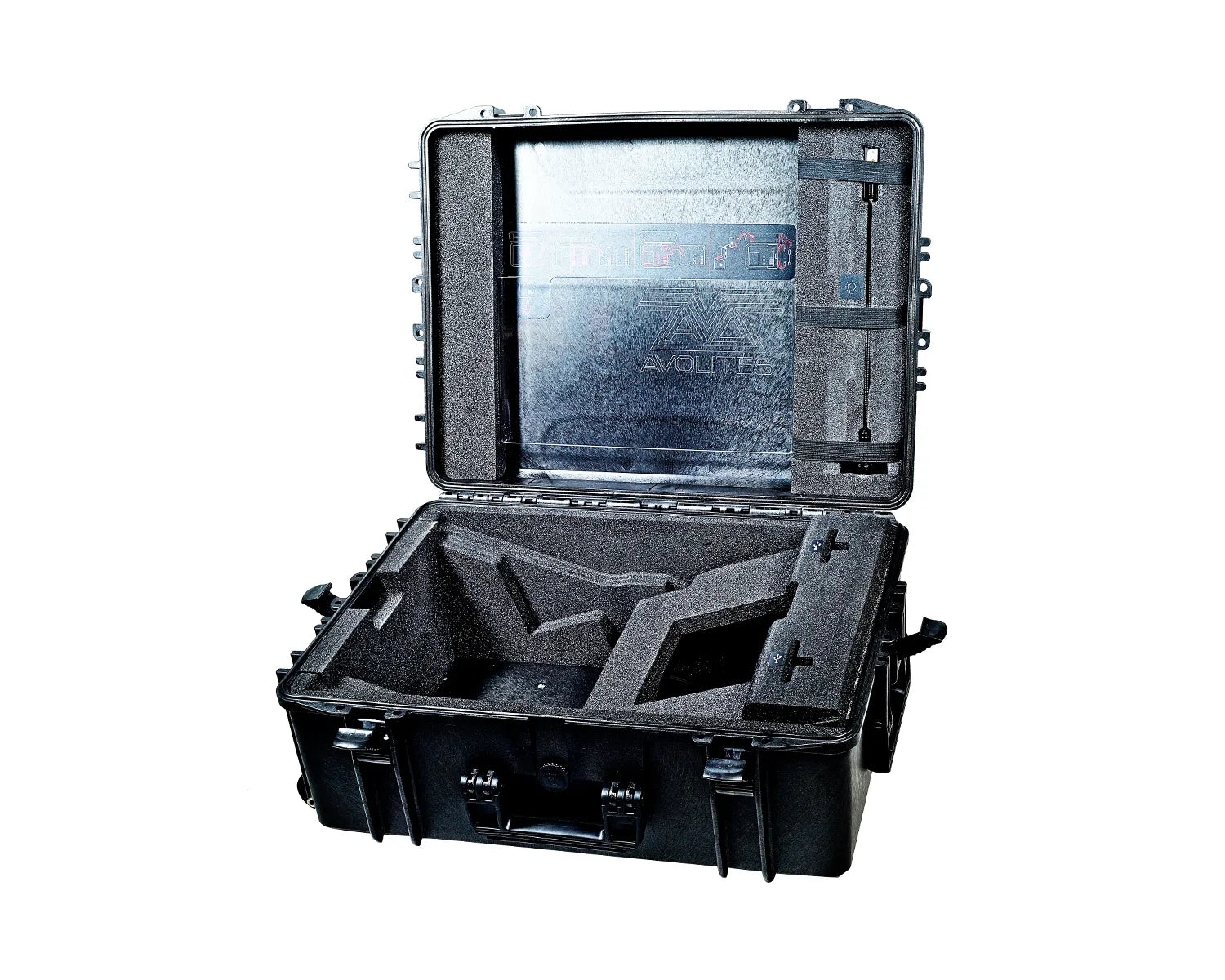

• 1 x Quartz Travel Case (09-01-0620)
• 1 x Quartz Dust Cover
• 1 x 12" Straight Lamp (11-02-0123)
