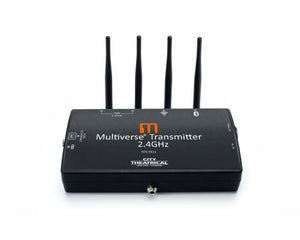

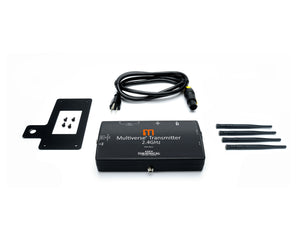

The Multiverse® Transmitter 2.4GHz (x2) opens a new world in wireless DMX/RDM. Its Ethernet input allows it to take in Streaming ACN (sACN) or Art-Net and to transmit up to ten user-selectable universes of DMX/RDM, with the ability to use less radio energy than a present-day single universe wireless DMX transmitter.

Each Multiverse Transmitter has a Bluetooth radio receiver built in that allows it to communicate with City Theatrical’s multi award winning DMXcat® app from the user’s smartphone. This gives the user smartphone control of any lighting fixture that is part of the Multiverse setup, whether it is a lighting fixture with a Multiverse Module inside, a lighting fixture receiving its data from a Multiverse Node, or any wired fixture downstream of those devices.

Multiverse Transmitter is Wi-Fi enabled, allowing for communication and control from tablet-based Wi-Fi lighting controllers like Luminair.

Product Features

• Revolutionary wireless DMX/RDM functionality
• Input Streaming ACN (sACN) or Art-Net via Ethernet
• Control Via Bluetooth with DMXcat
• Transmit up to 10 user selectable universes
• Energy efficient transmission design
• Works with Multiverse Node and Gateway products

Product Specifications

General

• Use Environment: Indoor
• Ambient Temperature Range: 0° C to 40° C
• IP Rating: IP50
• Compliance: FCC, IC, CE, ACMA, MIC, ETL
• Warranty: One year

Electrical

• Power: 100-240VAC 50/60Hz, 5-30VDC, PoE Class 0, 0.5W (maximum)
• Broadcast Power: 3.2mW, 10mW, 32mW, 100mW
• Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
• DMX Burst Mode: Auto Dynamic
• Ethernet Protocols: 802.11 bgn, 100 BASE-T sACN, Art-Net
• SHoW IDs: 147
• Latency: 4 ms average
• RF Sensitivity: -95dBm
• RDM Features: RDM Proxy, RDM Responder
• User Interface: DMXcat app (for iPhone, Android, or Amazon Fire), free download
• Construction: Die Cast Aluminium
• Antenna: RP-SMA Female
• AC: powerCON TRUE1 in/thru
• DC: Locking DC Jack, 5.5mm x 2.1mm, center positive, 12.1mm mating depth; EtherCON

Physical & Dimensions

• Length 196.9mm (7.75 in)
• Width 101.5mm (4.0 in)
• Height 47mm (1.85 in)
