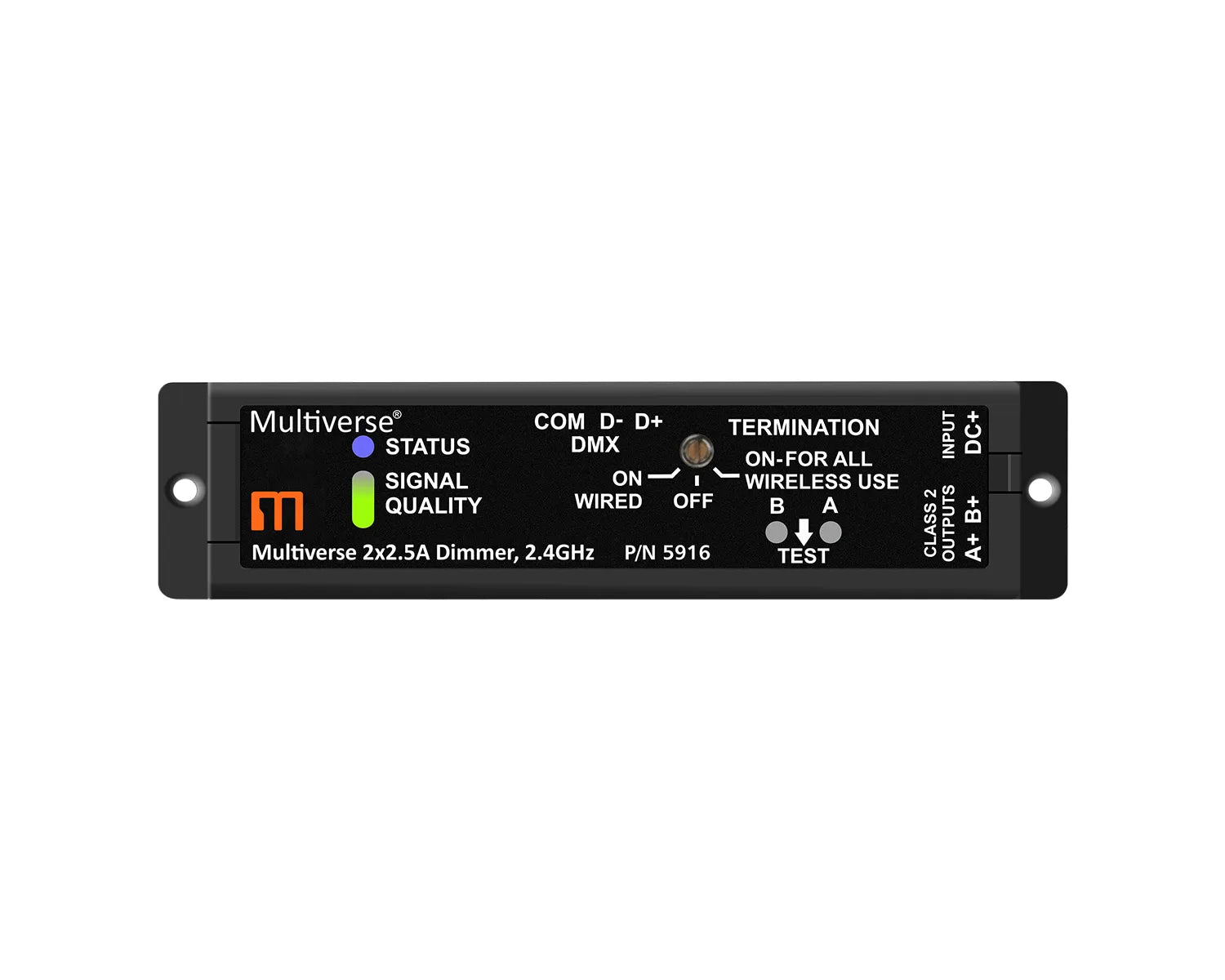

City Theatrical Multiverse® 2x2.5A Dimmers (P/Ns 5916) are small, constant voltage, two-output dimmer designed to be mounted in small spaces such as props, costumes, wands, and candles. They can be controlled wirelessly using City Theatrical's Multiverse or SHoW DMX Neo wireless DMX/RDM technology, or with wired DMX.

Similar to City Theatrical's Multiverse 5x2.5A Dimmers, these dimmers provide 20-bit PWM resolution and four DMX personality options (two variations of 8-bit and 16-bit control) for extremely smooth dimming at the low end of the dimming curve. Configuration is performed using RDM, such as with a City Theatrical DMXcat®, or with City Theatrical’s USB Configuration program for PC/MAC (available on the "Downloads" tab below).

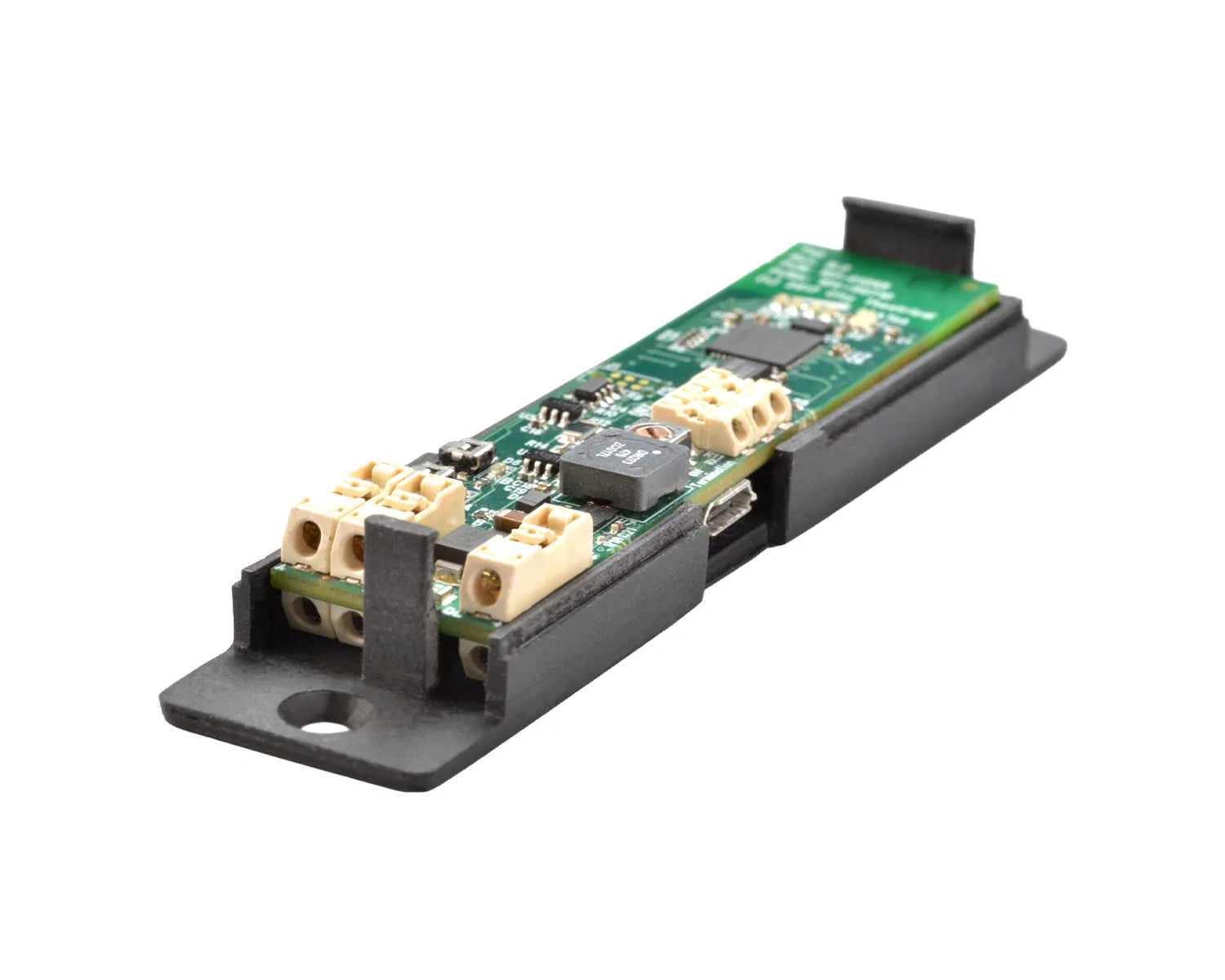

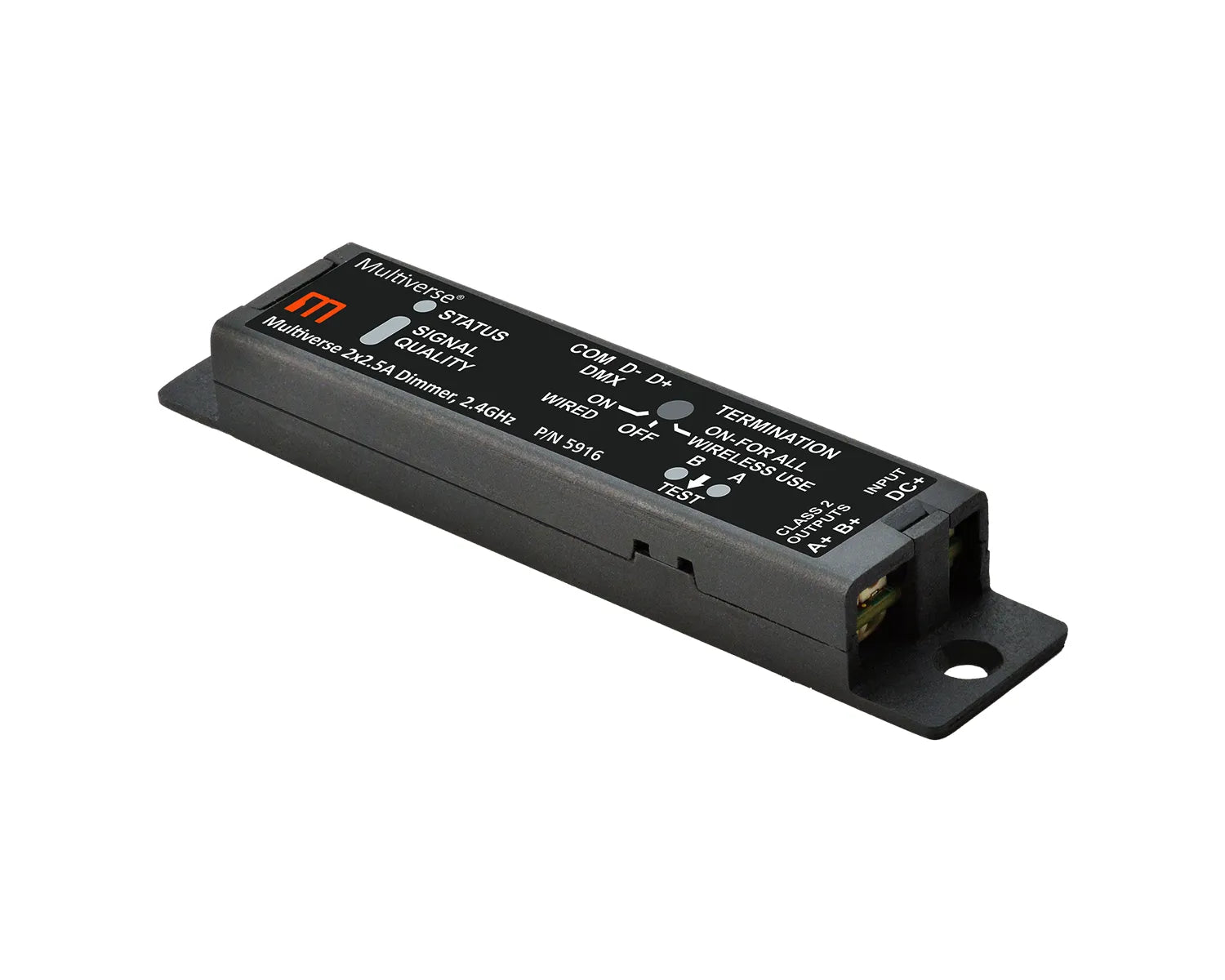

A plastic case is included with the Multiverse 2x2.5A Dimmer to allow easy mounting to scenery while enabling removal of the dimmer from the case for wiring and configuration. These dimmers are designed and built in the USA by City Theatrical, and are available in the 2.4GHz (P/N 5916) band.

The 5916 Dimmer draws 0.36W in wireless mode and 0.27W in wired mode.

Product Features

• Ideal for props and costumes with a low profile
• Supports ANSI E1.11 DMX512-A
• Compatible with all Multiverse and SHoW DMX transmitters
• Low profile latch connections for power, dimmer outputs, and DMX out
• Output port test buttons
• Configuration set via RDM
• Built-in short circuit, reverse polarity, and over temperature protection

Product Specifications

Physical

• Length (with plastic case):  10.8 cm (4.25 in)
• Width (with plastic case):  2.5 cm (1.0 in)
• Height (with plastic case):  1.6 cm (0.63 in)
• Size of Bare Circuit Board:  81mm (3.2”) x 19mm (0.74”) x 10mm (0.38”) H
• Weight:  0.02 kg (0.05 lbs.)

General

• Operating Temperature:  0ºC to 40ºC
• Construction:  NEMA 4 IP20 ABS Plastic
• Connectors:  Low profile latch connectors
• Mounting:  Screw holes in tabs on ends of plastic case

Dimming Information

• Voltage Range:  5 - 30 VDC
• PWM Frequencies (Hz):  60, 1.2K, 2.4K, 5K, 12K, 24K, 50K
• Power:  4A/channel maximum; 5A total
• Control Resolution:  8-bit; 16-bit
• PWM Resolution:  20-bit

Radio Information

• Broadcast Power:  Antenna dependent; 100mW EIRP
• Broadcast Modes:  Adaptive, Full, Low, Mid, High, Max
• Ethernet Protocols:  N/A
• SHoW IDs: Multiverse:  147; Neo: 70
• Latency:  4ms
• RF Sensitivity:  -95dBm
• Antenna:  Internal, plus connector for external antenna
• RDM Features:  RDM Proxy, RDM Responder

Product Information

• Firmware:  User updatable via USB
• Configuration:  RDM only
• Use Environment:  Indoor
• Warranty:  One year
• Manufacturing Origin:  USA
• Compliance:  CE, RoHS, FCC, AU, Japan, IC
