Dynacord L Series power amplifiers are engineered to provide sound reinforcement for demanding live music applications. They are ideal for performing musicians and production companies providing sound reinforcement for live performances in venues like music clubs, community hall events, performance centers, and sports venues.

L Series power amplifiers provide a best-in-class, tour-grade feature set that brings real professional performance to a new, more accessible price point. Like all Dynacord amplifiers, the L Series offers high-quality components and truly professional processing power and performance characteristics. Its engineering and applied technologies enable exceptional sound quality with plenty of headroom. Equipped with an extremely robust power supply and a powerful linear amp design, flawless operation is guaranteed – even in the most demanding environments. A sophisticated protection circuit ensures safe, reliable operation under all conditions.

An onboard DSP includes multi-band PEQs, crossovers, limiters, and delay per channel. It also has true channel grouping control with extra DSP capabilities like PEQ, GEQ and delay for each group. L Series amplifiers are also equipped with advanced FIR-Drive, a proprietary premium feature normally reserved for the highest quality tour-grade DSPs.

Product Features

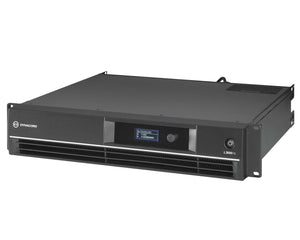

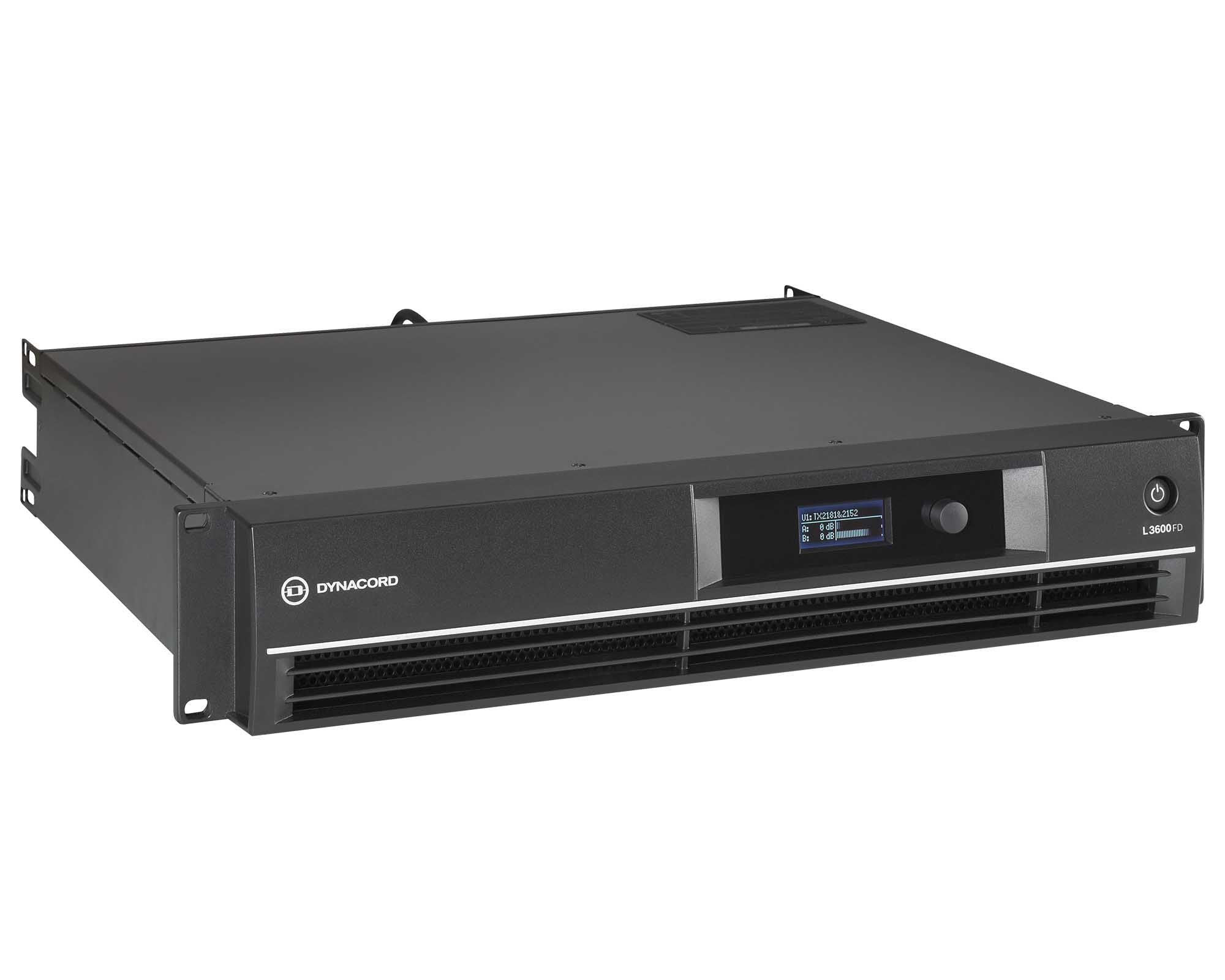

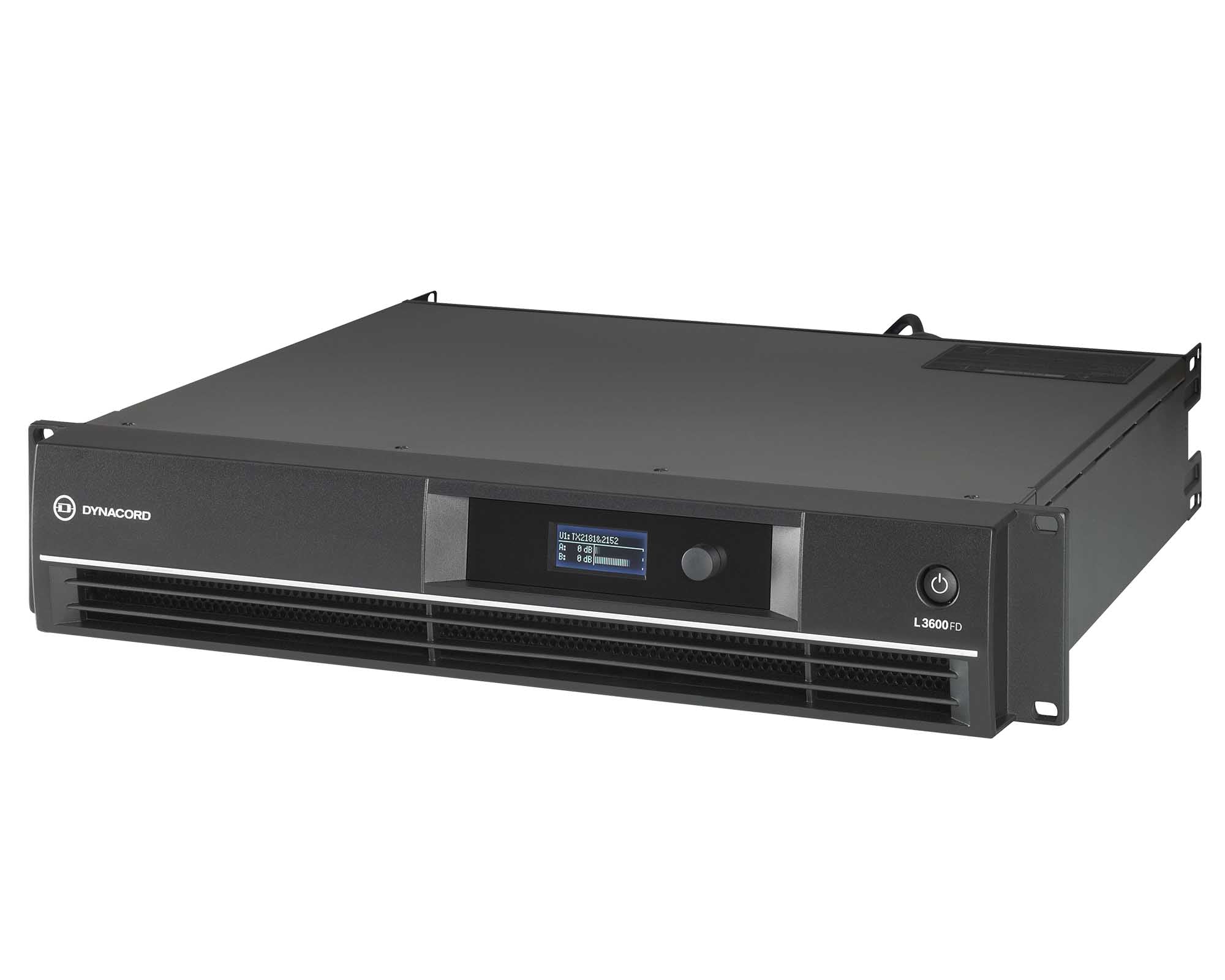

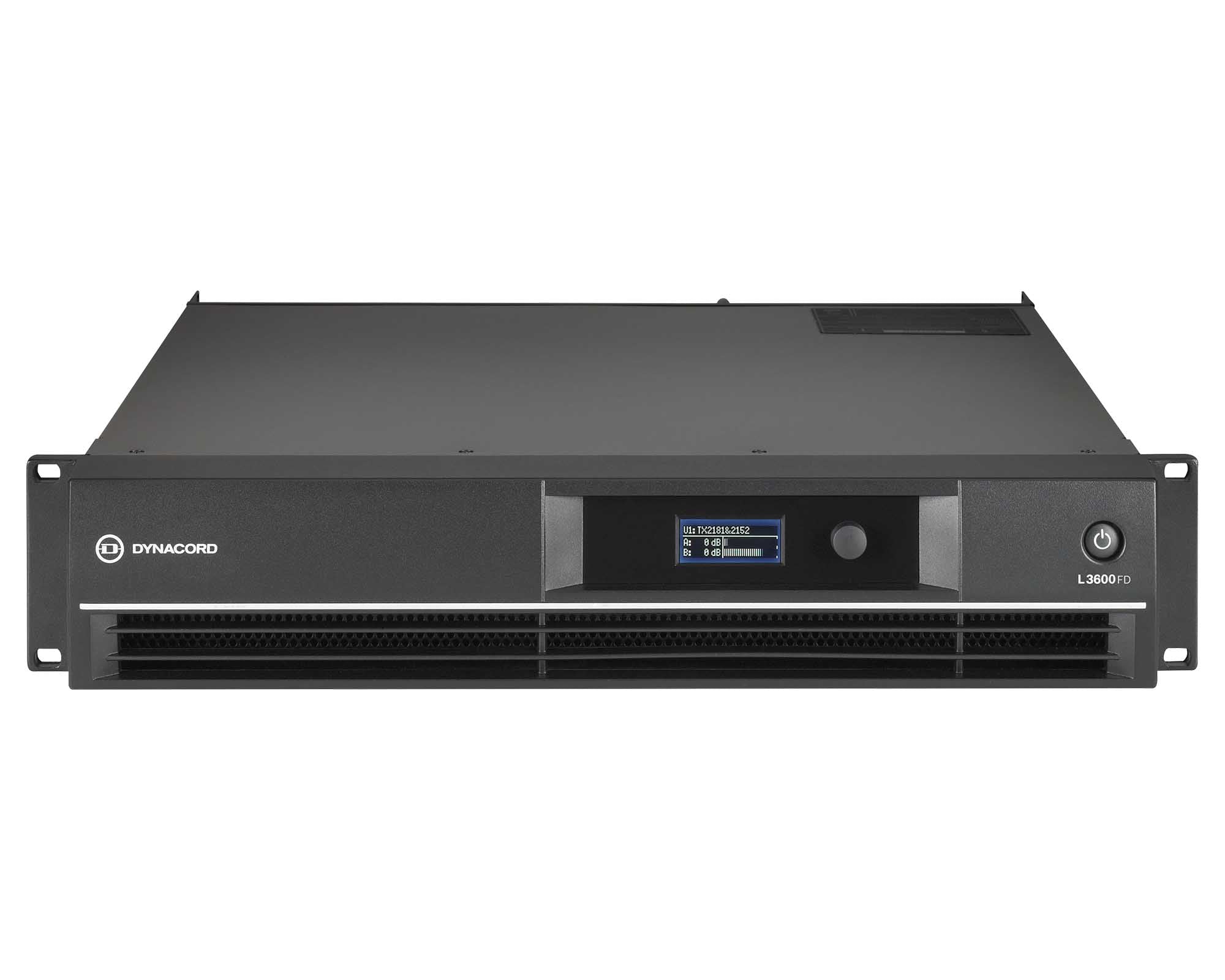

• L3600FD DSP Power Amplifier
• Live performance DSP amplifier
• Fully integrated professional speaker processing with FIR Drive technology
• Market leading acoustic performance and rock solid reliability
• True 2 ohm stability
• Intuitive system control software, makes setup and control easy

Product Specifications

General

• Load Impedance: 2Ω 2.7Ω 4Ω 8Ω
• Maximum Output Power, SIngle Channel: 2Ω= 3200W; 2.7Ω= 2700W; 4Ω= 1800W; 8Ω= 950W
• Maximum Output Power, Dual Channel: 2Ω= 3000W; 2.7Ω= 2500W; 4Ω= 1700W; 8Ω= 900W
• Maximum Output Power, Bridged: 4Ω= 6000W; 8Ω= 3400W
• Maximum RMS Voltage Swing, THD = 1%, 1kHz: 90.6V
• Voltage Gain ref.1kHz: 32.0dB
• IMD-SMPTE, 60 Hz, 7 kHz: <0.1%
• DIM 30: <0.05% (3.15 kHz, 15 kHz)
• Maximum Input Level: +21dBu
• Crosstalk: < -80dB (ref 1 kHz, at 100 W/4 Ω)
• Frequency Response: 10 Hz to 21 kHz (±1 dB)
• Maximum Output Power, Bridged4Ω= 6000W; 8Ω= 3400W
• Maximum RMS Voltage Swing, THD = 1%, 1kHz: 90.6V
• Voltage Gain ref.1kHz: 32.0dB
• IMD-SMPTE, 60 Hz, 7 kHz: <0.1%
• DIM 30: <0.05% (3.15 kHz, 15 kHz)
• Maximum Input Level: +21dBu
• Crosstalk: < -80dB (ref 1 kHz, at 100 W/4 Ω)
• Frequency Response: 10 Hz to 21 kHz (±1 dB)
• Input Impedance, active balanced: 20kΩ
• Signal-to-Noise Ratio (A-weighted): >109dB
• Output Noise , A-weighted: <-68dBu
• Output Stage Topology: Class H
• Power Requirement: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
• Power Consumption: 850 W (⅛ Maximum Output Power @4Ω)
• Protection: Audio limiters, high temperature, DC, HF; Back-EMF, Peak current limiters, Inrush current; limiters, Turn on delay
• Cooling: Front-to-rear, 3-stage-fans
• Safety Class: I
• Available Colour: Black

Physical & Dimensions

• Height: 88mm
• Width: 483mm
• Depth: 462.4mm
• Weight: 18.2kg
