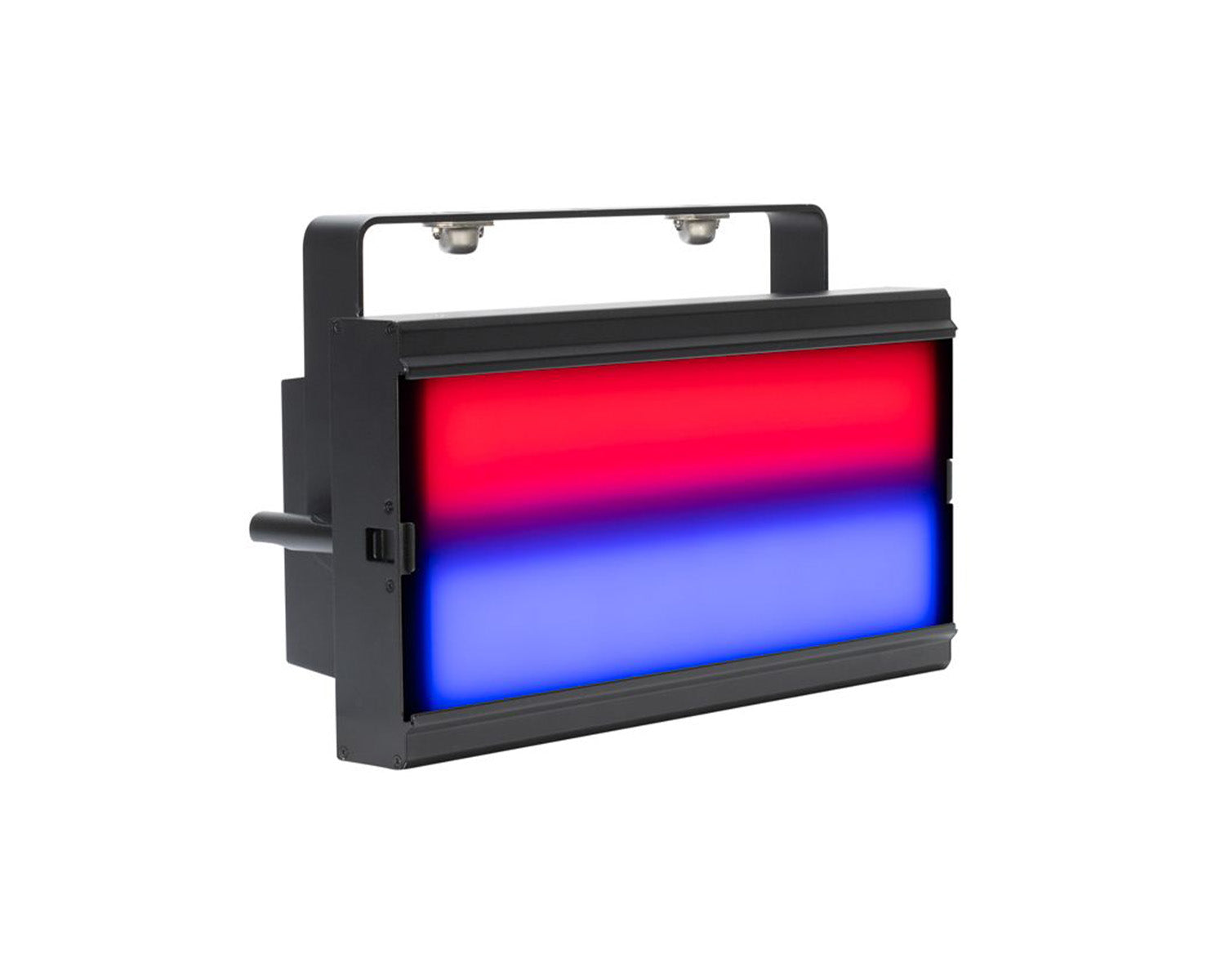

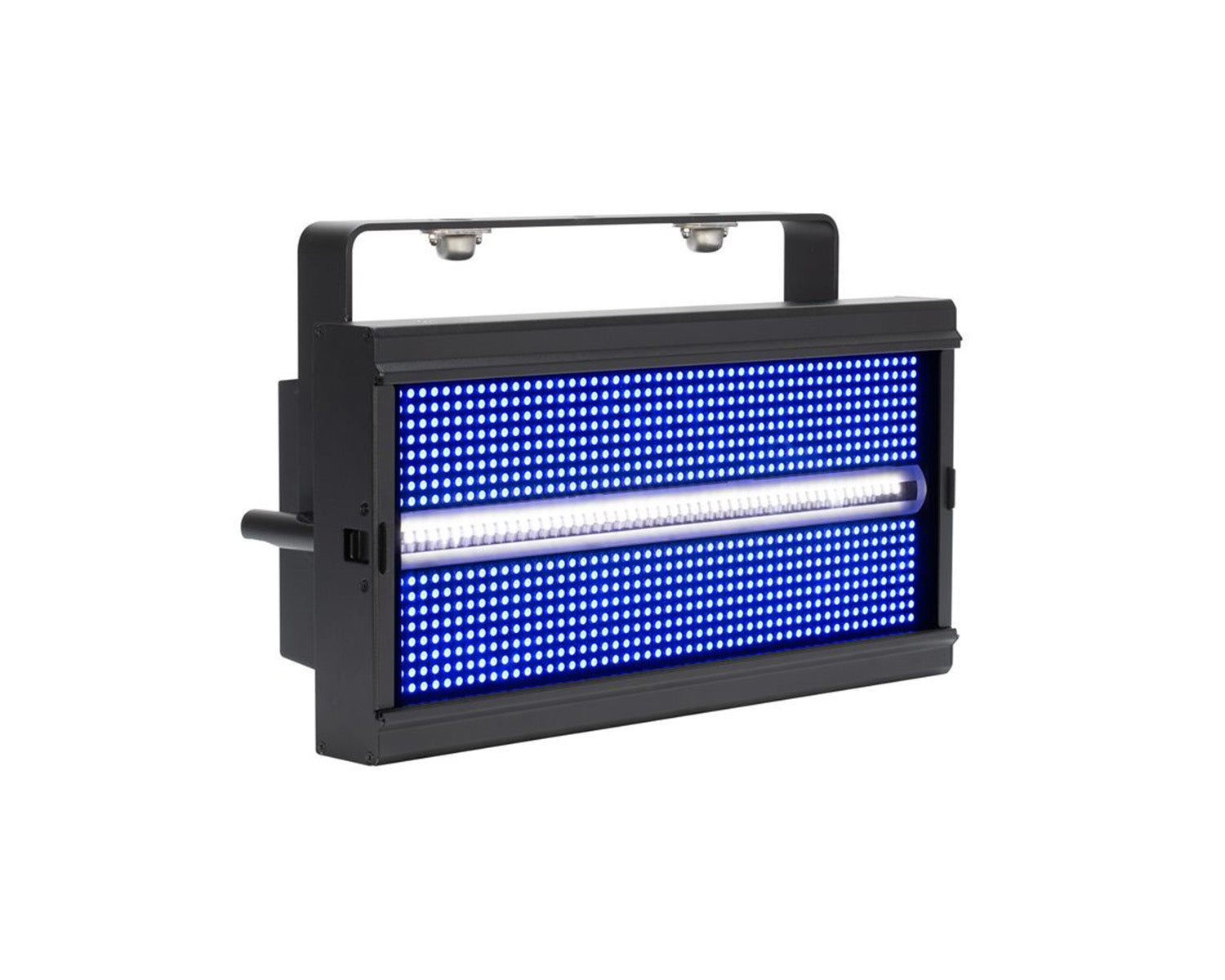

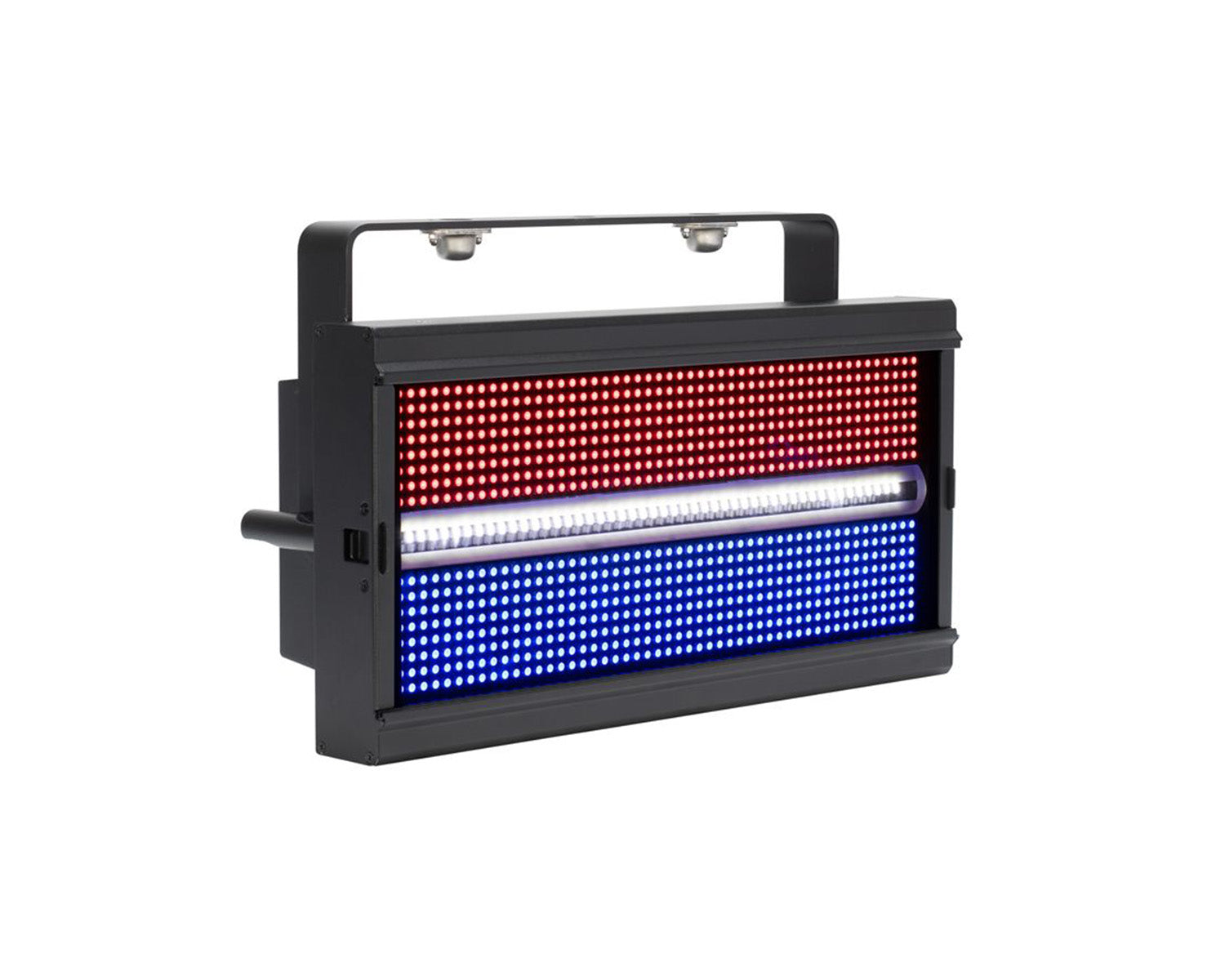

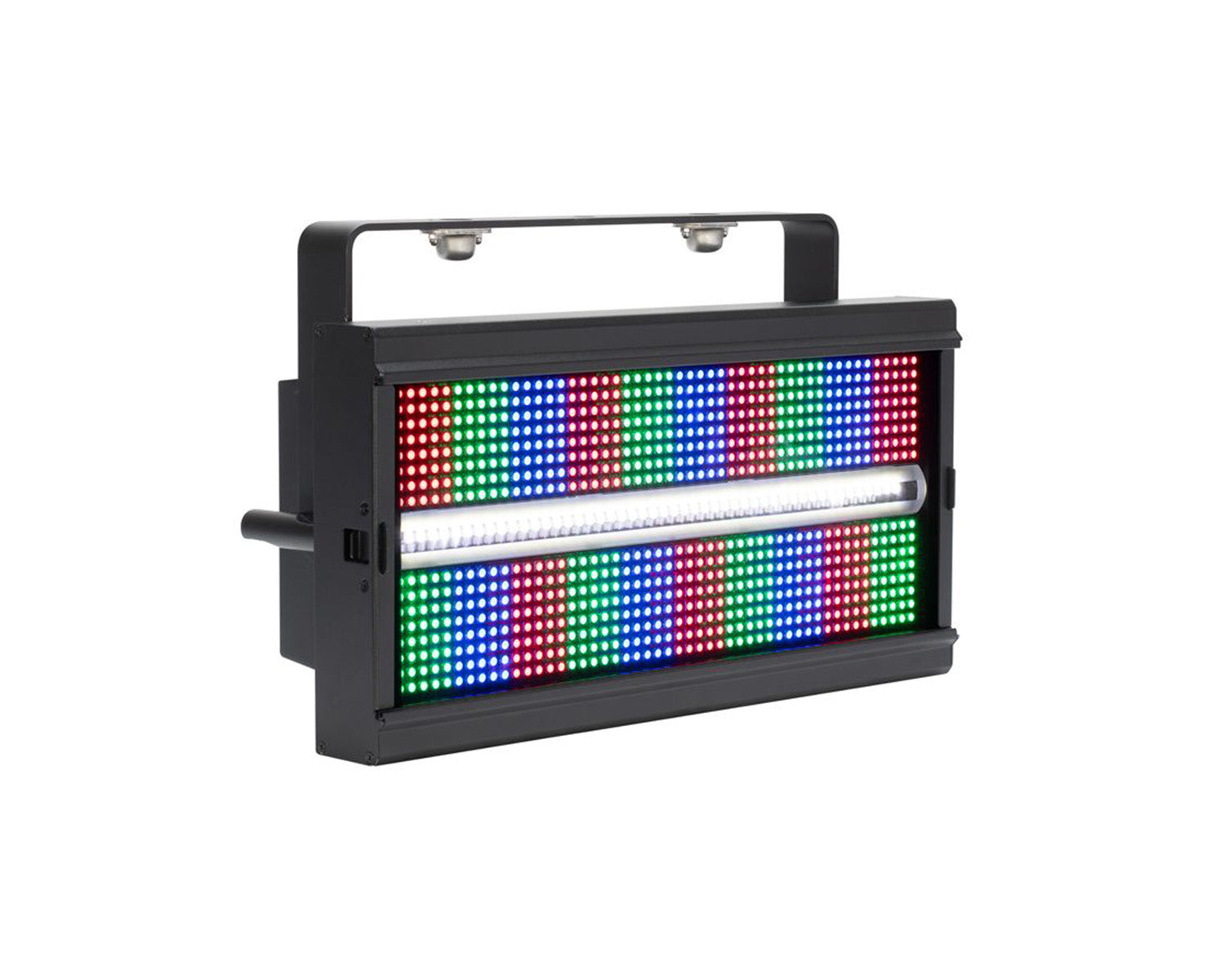

The Jolt Panel FX2 provides lighting designers with the creative potential of generating strikingly bright white strobe flashes, vibrant color washes, and animated ‘eye candy’ chase effects ideal for concert productions, festival stages and rental houses, as well as for permanent installation in large nightclubs.

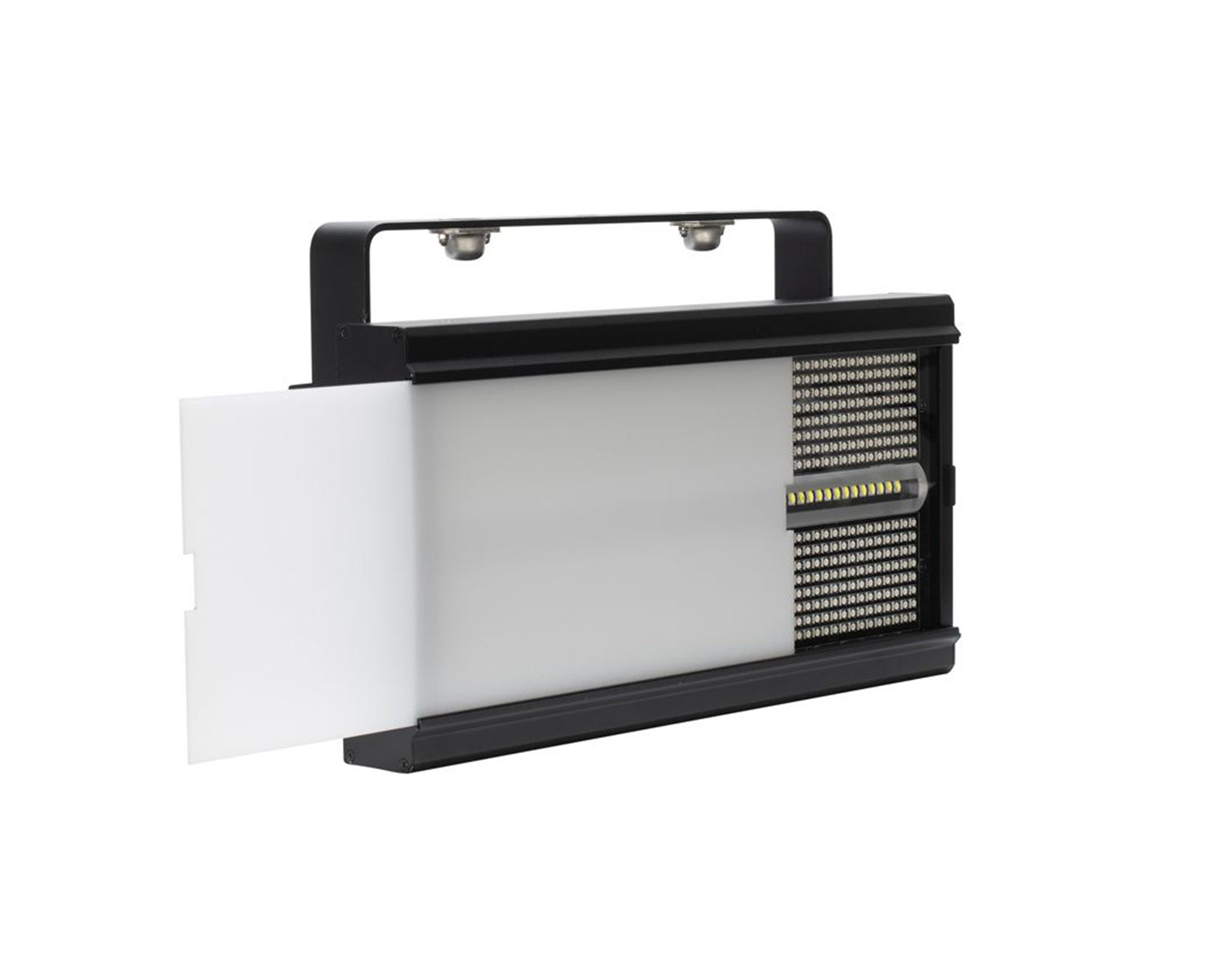

Building off the success of the original Jolt Panel FX, the new Jolt Panel FX2 features upgrades that will help Lighting Designers add a new level of creativity to their lightshows. ADJ’s proprietary Aria X2 wireless DMX is built-in to each fixture (it is also compatible with ADJ’s WiFLY EXR wireless DMX), which allows data distribution to occur wirelessly. There is a channel system on the front of the unit that allows for light shaping filters to be easily and conveniently added to the fixture. These filters blur the pixel dots and provide designers with another creative way to change the effect from project to project.

The Jolt Panel FX2 offers users an easy way to navigate the built-in features from an LCD display with a 4-button menu system. The display allows users to change dimming modes, dimming speed, programs, color macros, LED refresh rate and gamma settings, as well as setting the DMX address and channel modes.

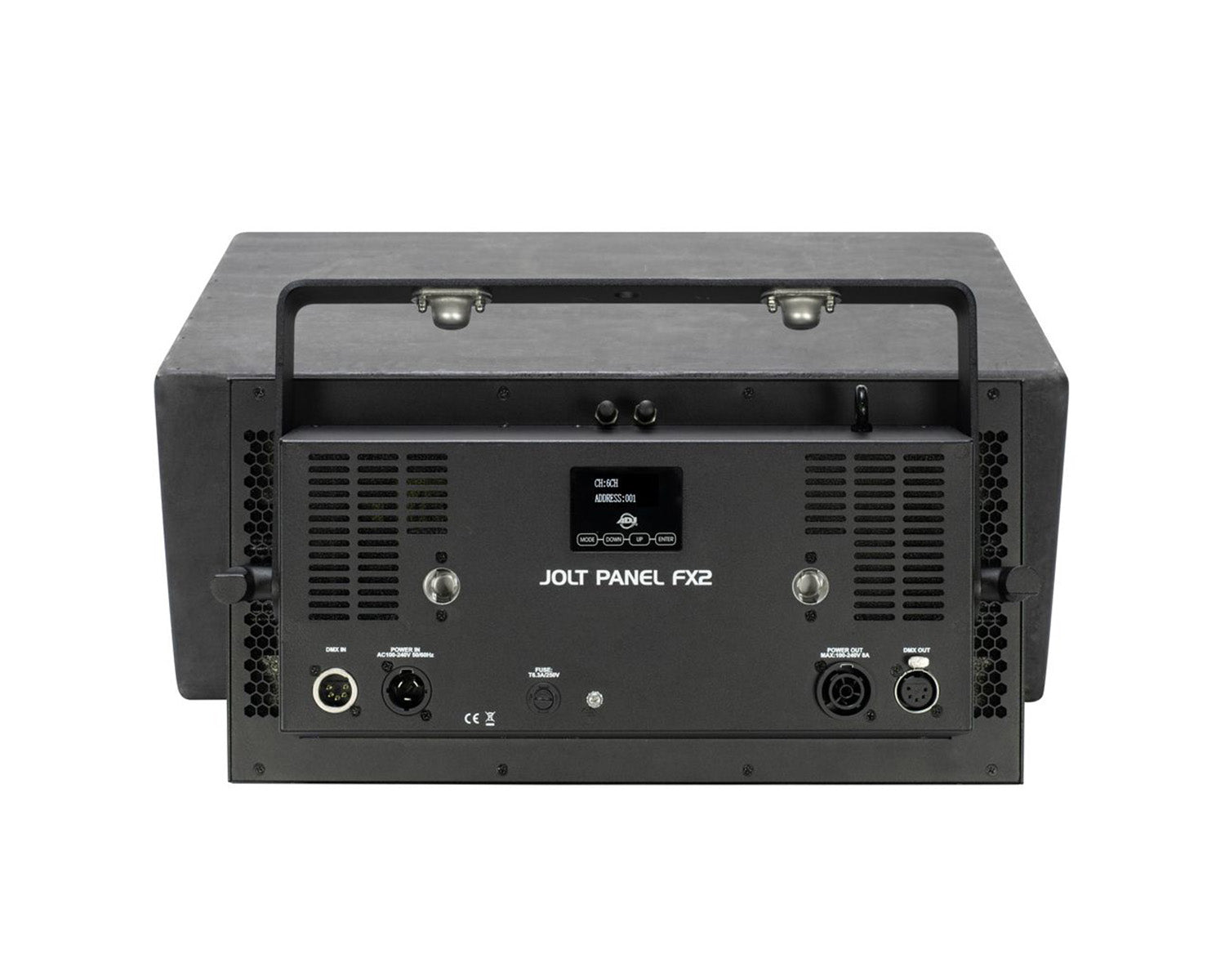

The rear panel has conveniently located 5-pin DMX in/out connections, IP65 locking power in/out sockets to daisy chain power, plus an OLED display with 4-button menu. There are also holes to connect an omega bracket to the Jolt Panel FX2 as an alternative to its variable angle bracket.

Product Features

• 40 x RGB LED zones (126, 141 and 143CH Modes)
• 6 x Cool White LED zones (51, 81, 83, 126, 141 and 143CH Modes)
• 67 Built-In Color Temperature Presets (2300K-8900K)
• 25 built-in RGB LED Program Macros
• 9 built-in Cool White LED Program Macros
• Integrated Aria X2 Management Suite
• Channel for Light Shaping Filters (to Blur Pixel Dots)
• Includes Frost Lens Filter
• Built-in Receivers to Connect an Omega Bracket (sold separately)

Product Specifications

Light Source

• 800 x 0.5W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs
• 73° Beam Angle
• 111° Field Angle
• RGB LED Specs: Red: 620-630nm; Green: 515-530nm; Blue: 460-470nm
• White LEDs CCT: Typical 7400K (Min 6900 - Max 8000), 472nm
• CRI: 69.4
• 50,000 Hour Average LED Life

Control

• Control Protocol: DMX, Aria X2 and RDM
• 14 DMX Modes: 6, 9, 13, 18, 20, 36, 41, 43, 51, 81, 83, 126, 141 and 143 channel modes
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
• 0-100% Smooth Dimming
• Strobe: Ramp Up / Down, Lighting and Random
• Max Strobe Rate 20Hz. Min Strobe Rate: 1Hz.
• Selectable LED Refresh Rate: 900Hz - 25kHz
• With Wired Digital Communication Network
• Display: OLED display with 4-button touch menu

Connections

• Data: IP65 Locking 5-pin DMX In/Out
• Power: IP65 Locking Power In/Out

Electrical

• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 214W @120V., 208W @230V.
• Max Power Link: 6pcs @120V., 12pcs @230V.
• Fuse Protected: T5A/250V Glass Fuse (5*20MM)

Dimensions / Weight

• Length: 5.28" (134.2mm)
• Width: 16.42” (417mm)
• Height: 10.26” (260.5mm)
• Weight: 13.67 lbs. (6.2 kg)

What's in the Box?

• 1x IP65 locking power cable
• Diffusion filter
