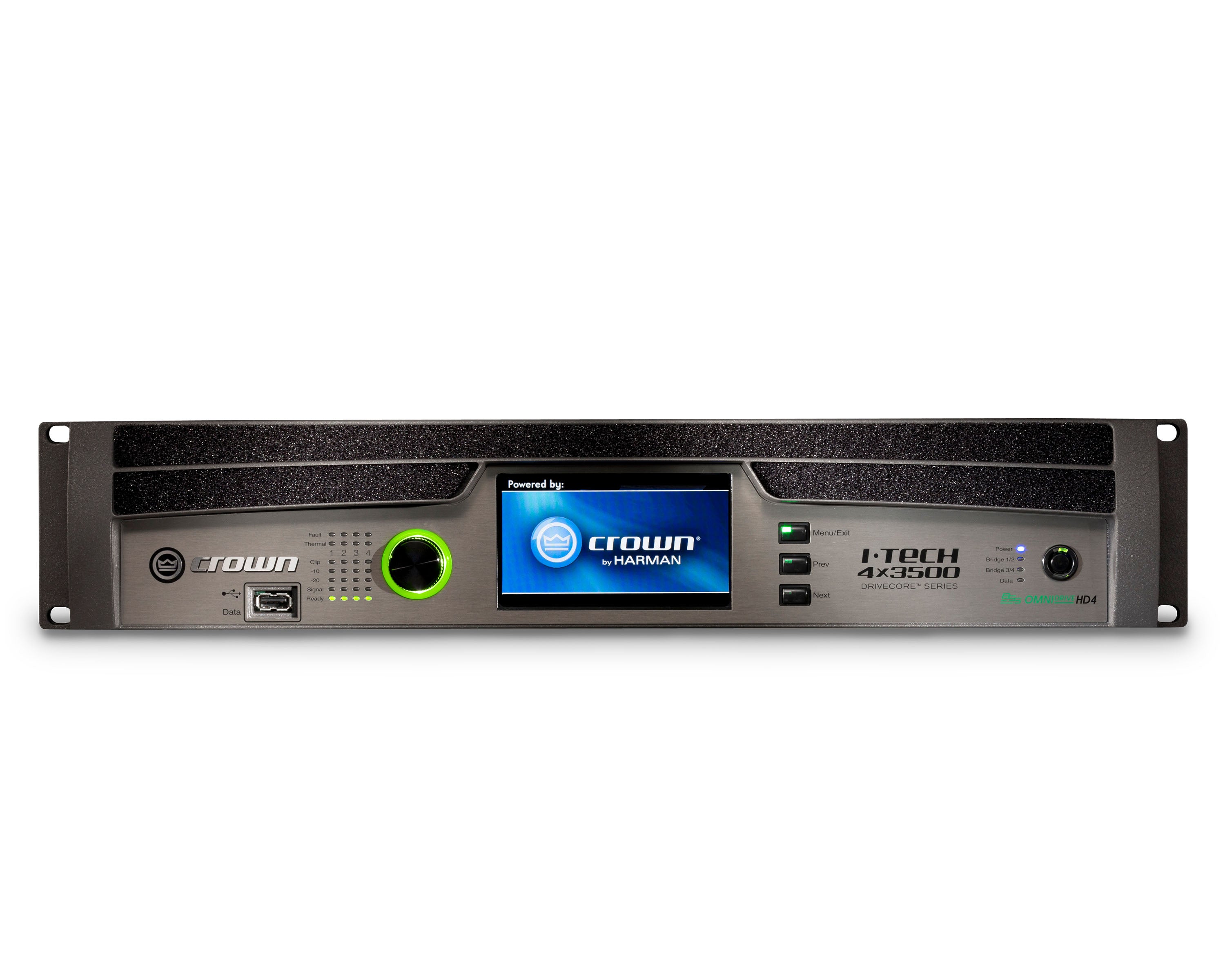

The I-Tech 4x3500HD amplifier is the industry first high-powered tour sound amplifier featuring four inputs, Analog, AES3, and CobraNet™, fully routable to any one of 4 outputs. Each channel features a complete compliment of OMNIDRIVEHD™ Processing, including the acclaimed LevelMAX™ Limiter Suite, and support for linear phase FIR filters as used in the latest JBL V5 loudspeaker tunings. Combine that with Crown patented Class-I technology delivering uncompromising power output across all four channels, and it easy to see why the I-Tech 4x3500HD is the flagship tour sound amplifier from Crown.

Product Features

• True Ethernet backbone – fast, reliable and scalable
• Color LCD provides users with diagnostics and presets for easy setup
• Includes SLM (Sweep Load Monitoring) with system-level diagnostics
• Front panel USB connector transfers presets to/from a USB drive to the amp’s DSP
• New software interface based on customer feedback manages presets, provides easier system-level changes, and includes a configuration wizard
• The only product available with analog, AES, CobraNet®, HiQnet™ and Ethernet connectivity
• BSS OMNIDRIVEHD™ DSP processing with industry leading IIR filters and linear phase FIR filters
• High common-mode rejection eliminates hum and RFI on input cables
• Professional-grade connectors for all inputs and outputs
• Full power-supply voltage is always available, allowing instantaneous power on demand
• Quality-graded components let you safely drive the amplifier harder
• More total capacitance provides tremendous energy reserves for power bursts
• The only tour sound amplifier that provides four routable inputs to any output (analog, AES, VDrive, or CobraNet)
• LevelMAX™ peak voltage and RMS power limiters communicate with each other, resulting in smooth and accurate response, better sound
• Sixth generation patented Class-I (BCA®) circuitry couples power efficiently to the load and provides low AC current draw
• Global Power Supply; universal AC input accepts 100-240VAC, 50/60 Hz (±15%)

Product Specifications

General

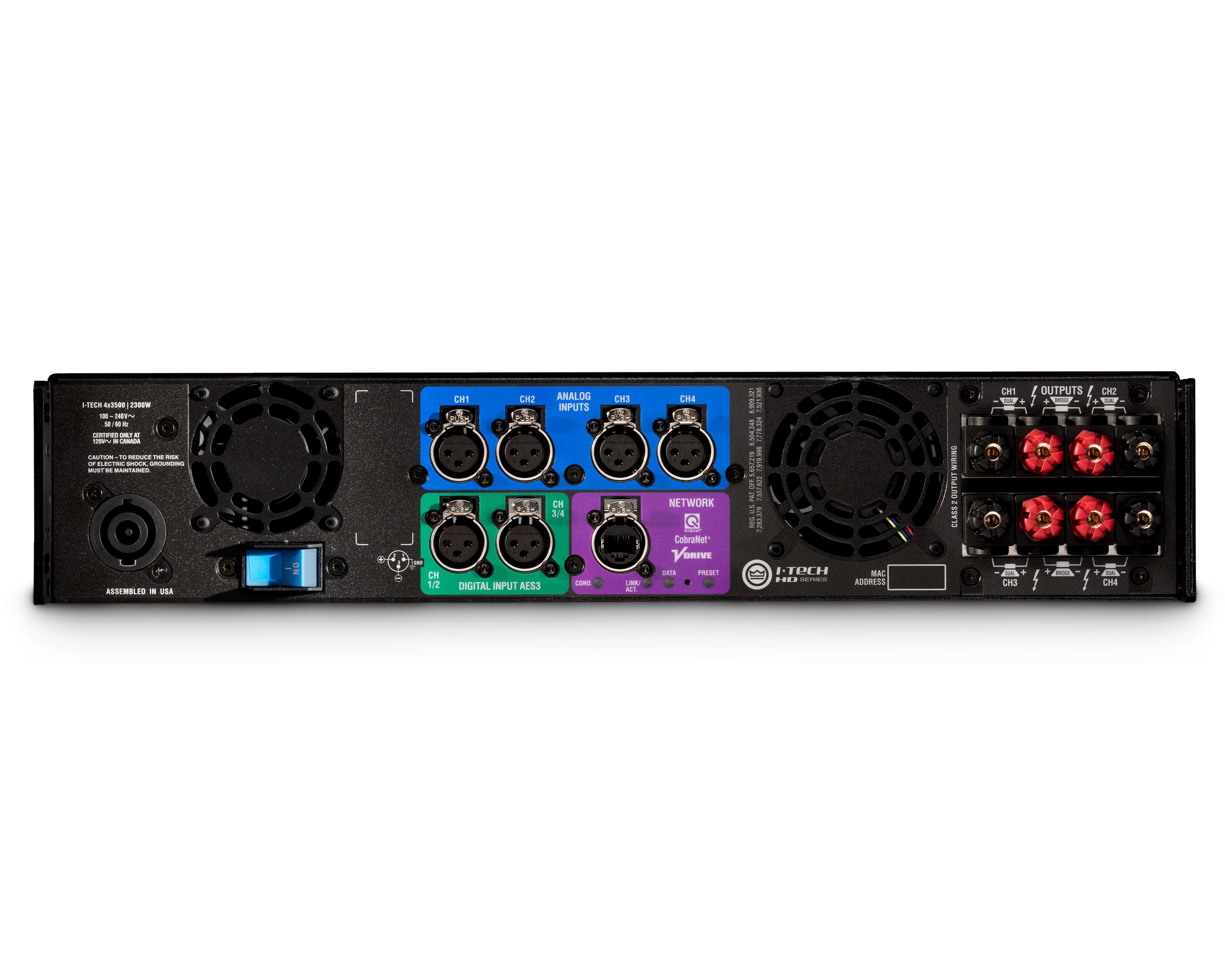

• Channels: 4 inputs, 4 outputs (Analog, AES 3, VDrive, CobraNet)
• Sensitivity: Adjustable in 0.1dB increments from 1.28Vrms to 8Vrms
• Damping Factor: > 5000
• Signal to Noise Ratio: ≥ 108dB
• THD (full rated power, 20 Hz - 20 kHz): 0.35%
• Frequency Response: ± 0.25dB
• Intermodulation Distortion (from 0 dB down to -40 dB): 0.06%
• Crosstalk: > 80dB
• Common Mode Rejection: > 80dB typical

Physical & Dimensions

• Height: 3.3"
• Width: 19"
• Depth: 16.95"
• Weight: 29lbs
