I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today performance venues. Designed to support the goals of systems integrators and consultants in need of very compact loudspeakers with exceptional near field fidelity for foreground or background music applications and articulate voice projection with very high output capabilities for fill and distributed applications. I SERIES Compact loudspeakers are engineered to be used alone or integrated into arrays along with I SERIES Point Source (IP) or Subwoofer (IS) models using the comprehensive selection of available BalancePoint™ Flyware modular array brackets.

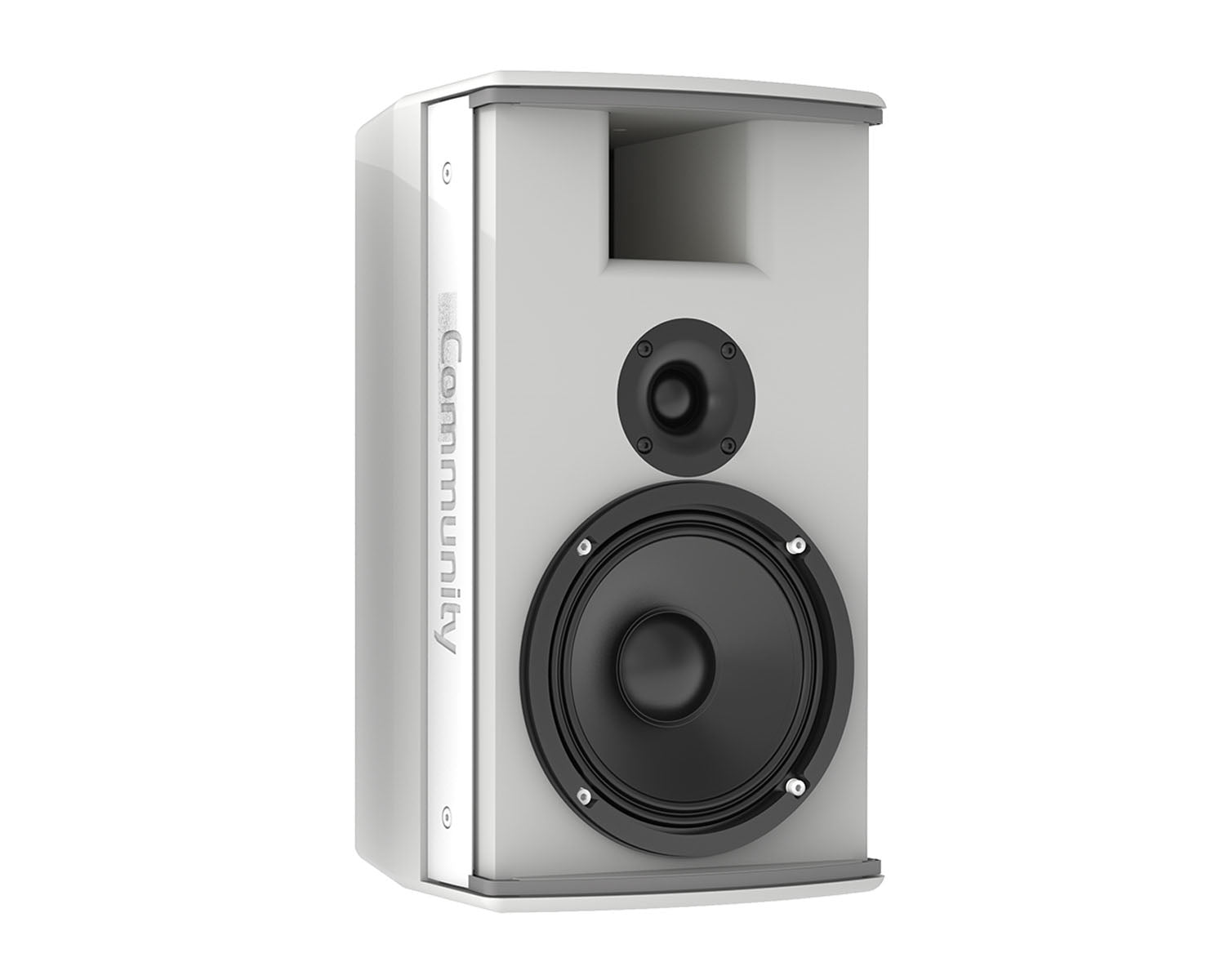

The IC6-1062/00 occupies a very small footprint, yet provides LF extension and output that greatly exceeds its stature thanks to a high sensitivity, long excursion 6.5" woofer and precisely engineered extended bass reflex port. Smooth, extended high frequency is provided by a direct radiating 1" damped fabric dome diaphragm on a shallow horn with a Ferrofluid and heatsink-cooled dual neodymium motor. To ensure a long life and maintenance-free performance in nearly all conditions, the HF is also protected by Community DYNA-TECH™ dual-stage protection circuit. Additionally, 8 ohm or 70V/100V models expand application flexibility both indoors and out.

Product Features

• Excellent LF extension and output in a very small enclosure
• Small footprint
• Exceptional fidelity with elegant I SERIES aesthetics
• 1" damped fabric dome diaphragm
• Very wide coverage pattern
• Includes DYNA-TECH™ dual-stage protection circuit
• Low impedance (8 ohm) or 70V/100V models available
• Finish: White

Product Specifications

• Transducers: LF 1 x 6.5" (165mm) ferrite driver, 1.5" (37mm) voice coil; HF 1 x 1" (25mm) direct radiating damped fabric dome diaphragm, ferrofluid and heatsink-cooled dual-neodymium motor
• Operating Range: 49 Hz – 19.5 kHz
• Sensitivity (1W/1m): 92 dB
• Continuous Max Output: 114 dB (120 dB Peak)
• Autoformer Taps (T models) 70V: 100W, 50W, 25W, 12.5W; 100V: 100W, 50W, 25W
• Nominal Beamwidth (H x V): 100° x 100°
• Finish: Black or White low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille; Outdoor (WR): 15mm PolyGlas™, Grey heavily textured exterior-rated coating with powder-coated marine-grade aluminum grille
• Dimensions (H x W x D): 14.29" x 8.00" x 8.94" (363 x 203 x 227 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
