The pro‘s choice. Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi-channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

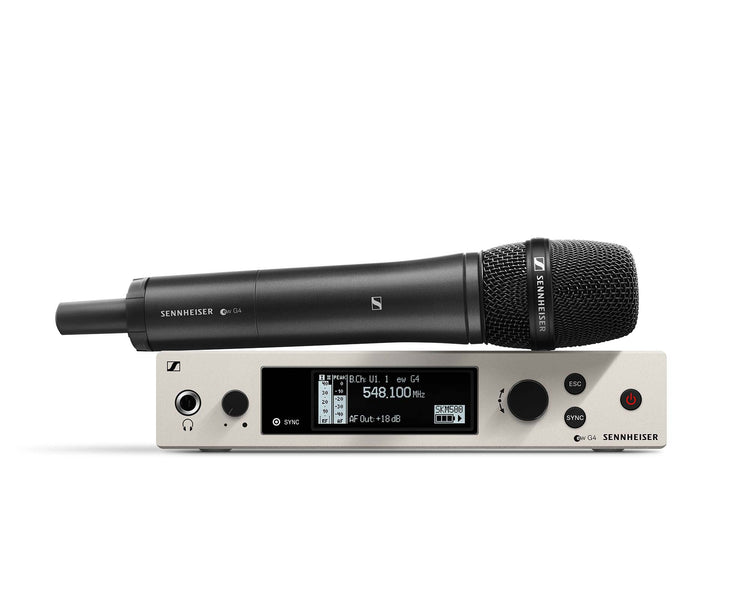

The pinnacle of the evolution series, powered by Sennheiser’s renowned e 965 on a lightweight black aluminum handheld transmitter, ready to take the world’s biggest live stages.

THIS ITEM (NO.507767) OPERATES ON CH38 (GBw: 606 - 678 MHz)

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

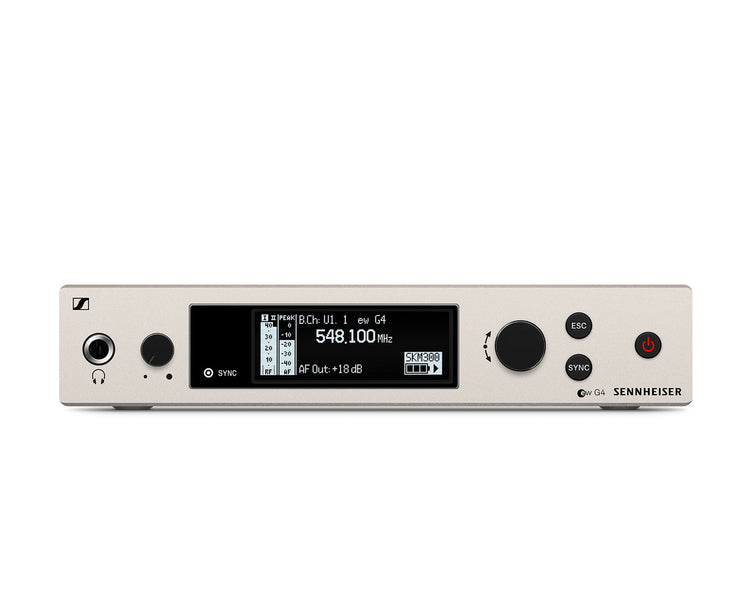

True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Up to 32 compatible channels
Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Product Specifications

THIS ITEM (NO.507767) OPERATES ON CH38 (GBw: 606 - 678 MHz)

EM 300-500 G4 - General

Modulation: Wideband FM
Frequency ranges:
- Aw+: 470 - 558 MHz
- AS: 520 - 558 MHz
- Gw1: 558 - 608 MHz
- Gw: 558 - 626 MHz
- GBw: 606 - 678 MHz
- Bw: 626 - 698 MHz
- Cw: 718 - 790 MHz
- Dw: 790 - 865 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937.5 MHz
Receiving frequencies
- Max. 2880 receiving frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
- 6 frequency banks with up to 32 programmable channels
Switching: bandwidth up to 72 MHz
Nominal/peak deviation: ±24 kHz / ±48 kHz
Receiver principle: True diversity
Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
Adjacent channel selection: Typically ≥ 75 dB
Intermodulation attenuation: Typically ≥ 70 dB
Blocking: ≥ 75 dB
Squelch: 5 to 25 dBμV in steps of 2 dB
Pilot tone squelch: Can be switched off
Antenna inputs: 2 BNC sockets
Compander system: Sennheiser HDX
EQ presets (switchable, act on line and monitor outputs):
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
Total harmonic distortion (THD): ≤ 0.9 %
AF output voltage (at peak deviation, 1 kHz AF): 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
Setting range “AF Out”: 48 dB (3 dB steps)
Temperature range: -10 °C to +55 °C
Power supply: 12 V DC
Current consumption: 350 mA

EM 300-500 G4 - Physical & Dimensions

Height: 43mm
Width: 212mm
Depth: 202mm
Weight: 980g

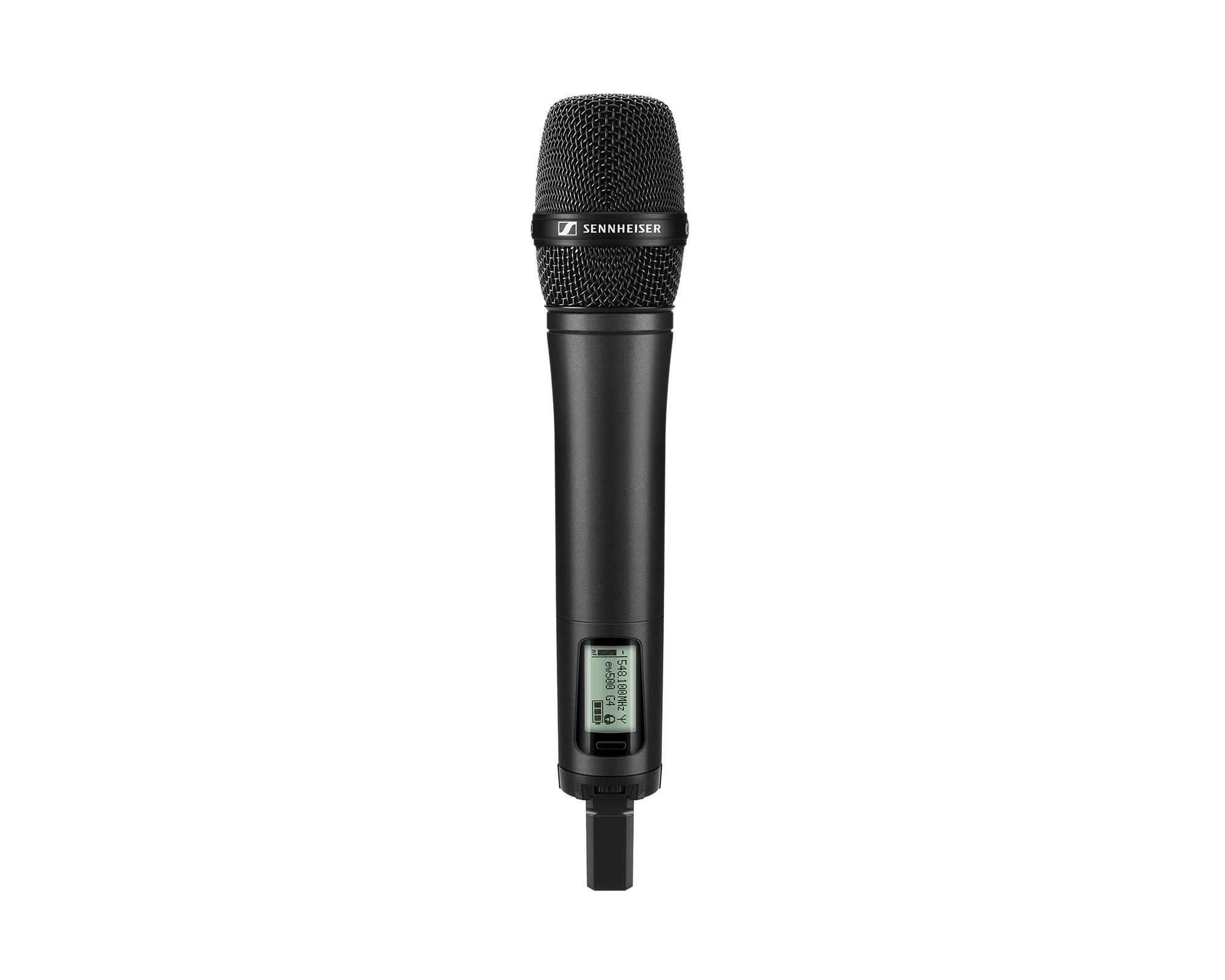

SK 500 G4 - General

Modulation: Wideband FM
Frequency ranges
- Aw+: 470 - 558 MHz
- AS: 520 - 558 MHz
- Gw1: 558 - 608 MHz
- Gw: 558 - 626 MHz
- GBw: 606 - 678 MHz
- Bw: 526 - 698 MHz
- Cw: 718 - 790 MHz
- Dw: 790 - 865 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937.5 MHz
Transmission frequencies
- Max. 2880 frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
- 6 frequency banks with up to 32 programmable channels
Switching bandwidth: up to 72 MHz
Nominal/peak deviation: ±24 kHz / ±48 kHz
Frequency stability: ≤ ±15 ppm
RF output power at 50 Ω switchable:
- Low: typ. 10 mW
- Standard: typ. 30 mW
- High: typ. 50 mW
Pilot tone squelch: Can be switched off
Compander system: Sennheiser HDX
AF frequency response
Mic: 80 – 18,000 Hz
Line: 25 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
Total harmonic distortion (THD): ≤ 0.9 %
Max. microphone/line input voltage: 3 Veff
Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
Input capacitance: Switchable
Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
Temperature range: -10 °C to +55 °C
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage: 3 V battery / 2.4 V rechargeable battery
Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
Operating time: Typically 8 h

SK 500 G4 - Physical & Dimensions

Height: 82mm
Width: 64mm
Depth: 24mm
Weight: 160g

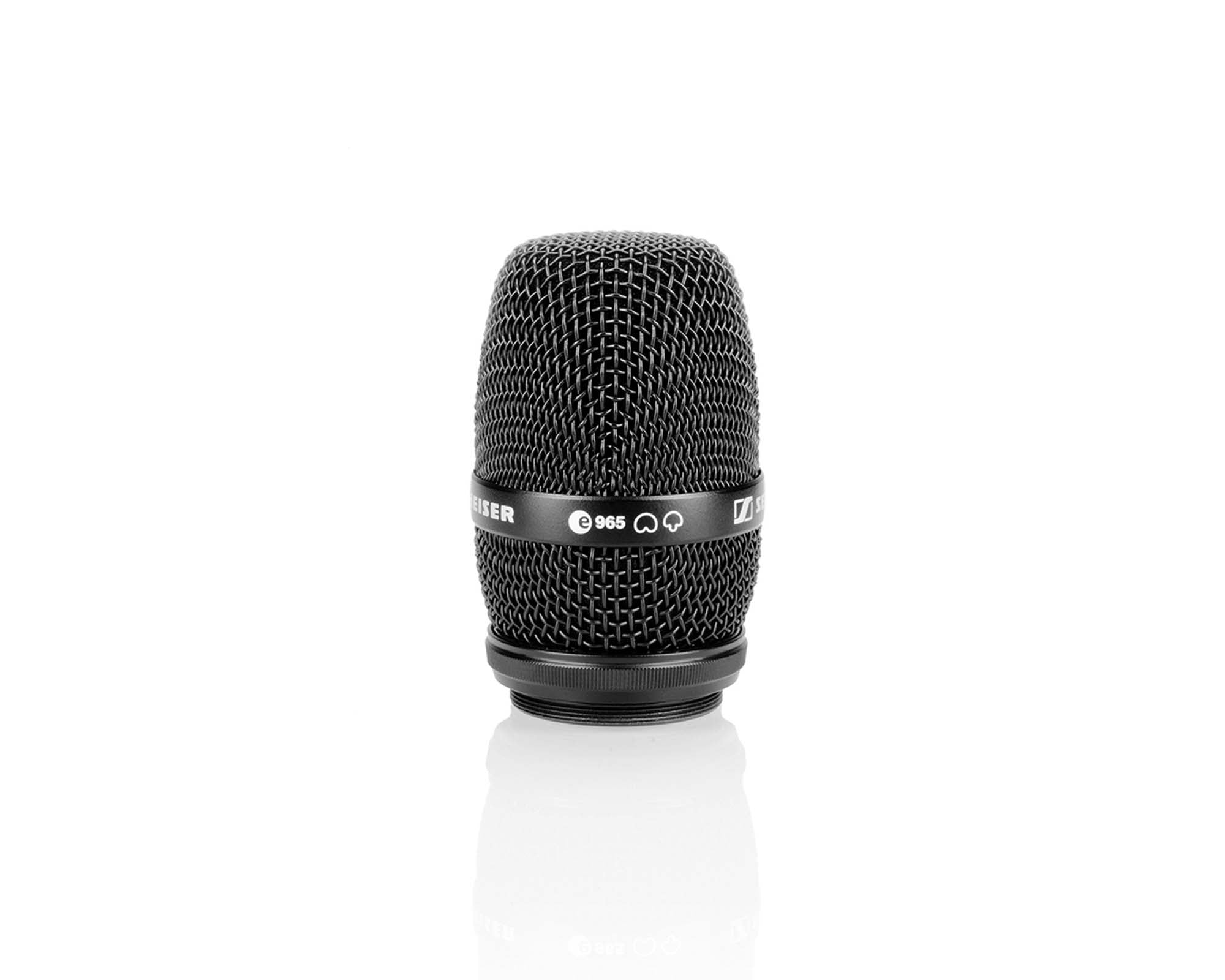

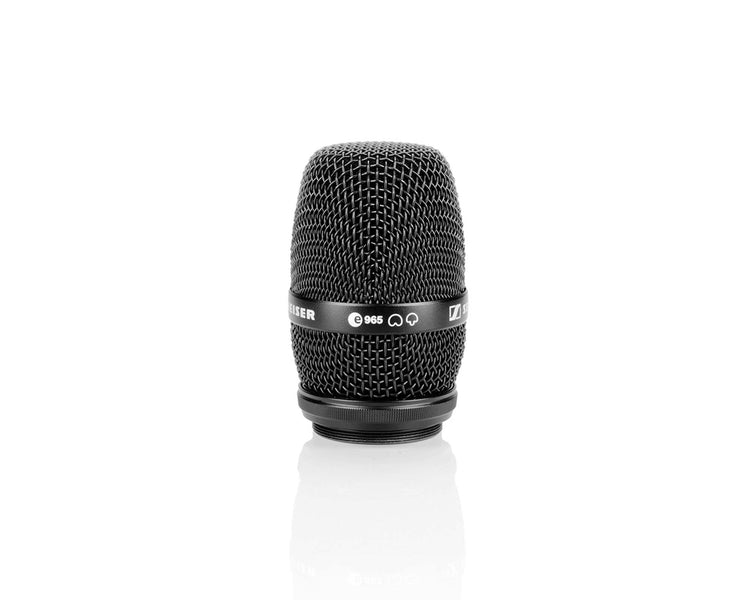

MMK 965-1

Transducer: principle extern polarisiertes Doppelmembran-Kondensatormikrofon
Pick-up pattern: cardioid/supercardioid, switchable
Sensitivity (free field, no load) (1 kHz) 7.0 mV/Pa
- with preattenuation 2.2 mV/Pa (factory setting)
Max. SPL at 1 kHz 144 dB
- with preattenuation 154 dB (factory setting)
Dynamic range: 126 dB(A)
Diameter of diaphragm: 2.54 cm (1")
Frequency response: 40 to 20,000 Hz
"Equivalent noise level A-weighted (DIN IEC 651)" 18 dB
Weight: 162g
