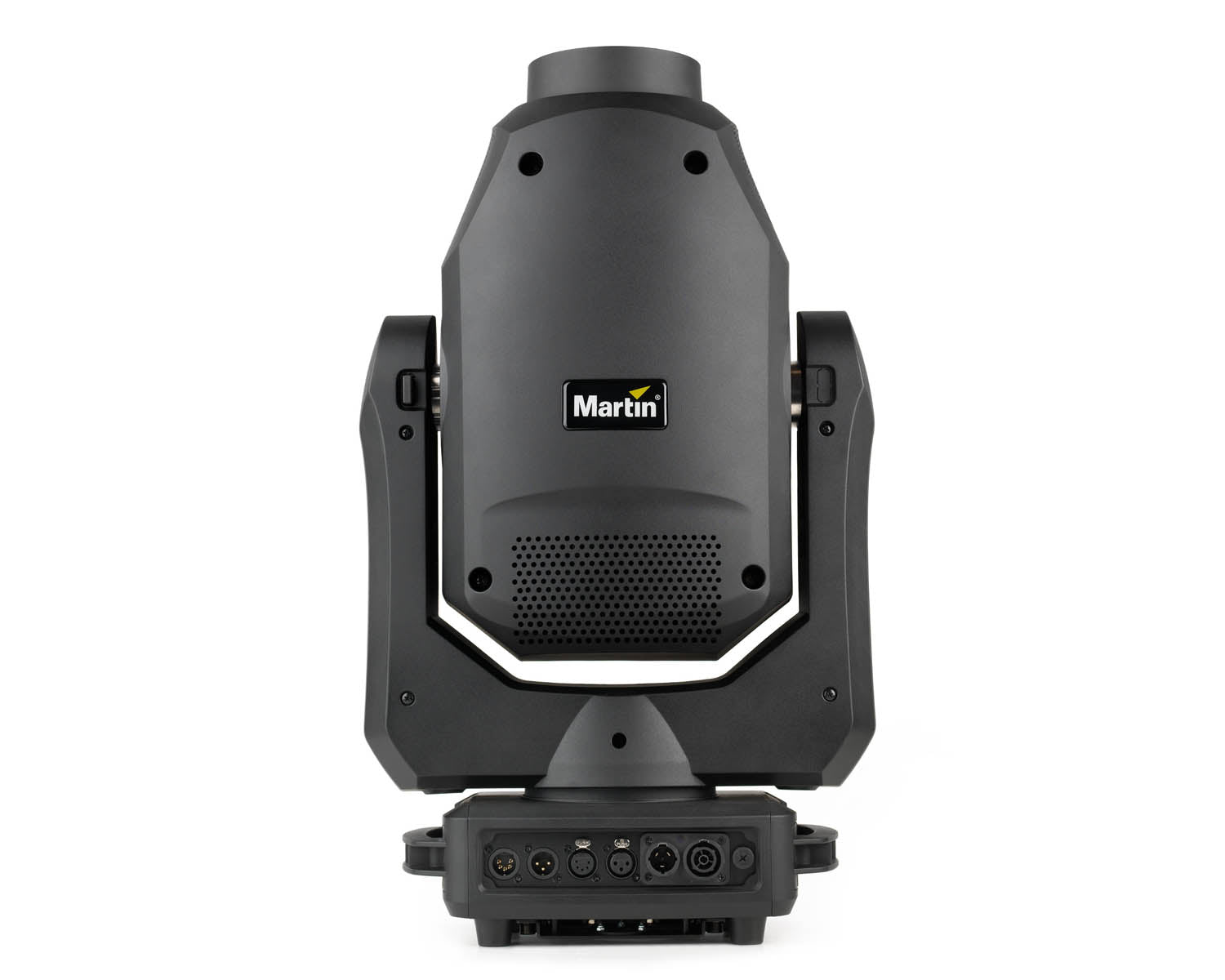

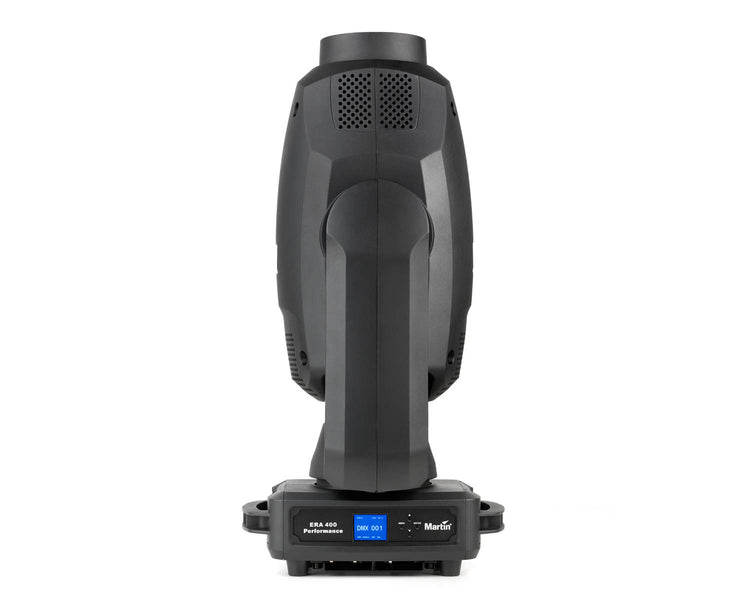

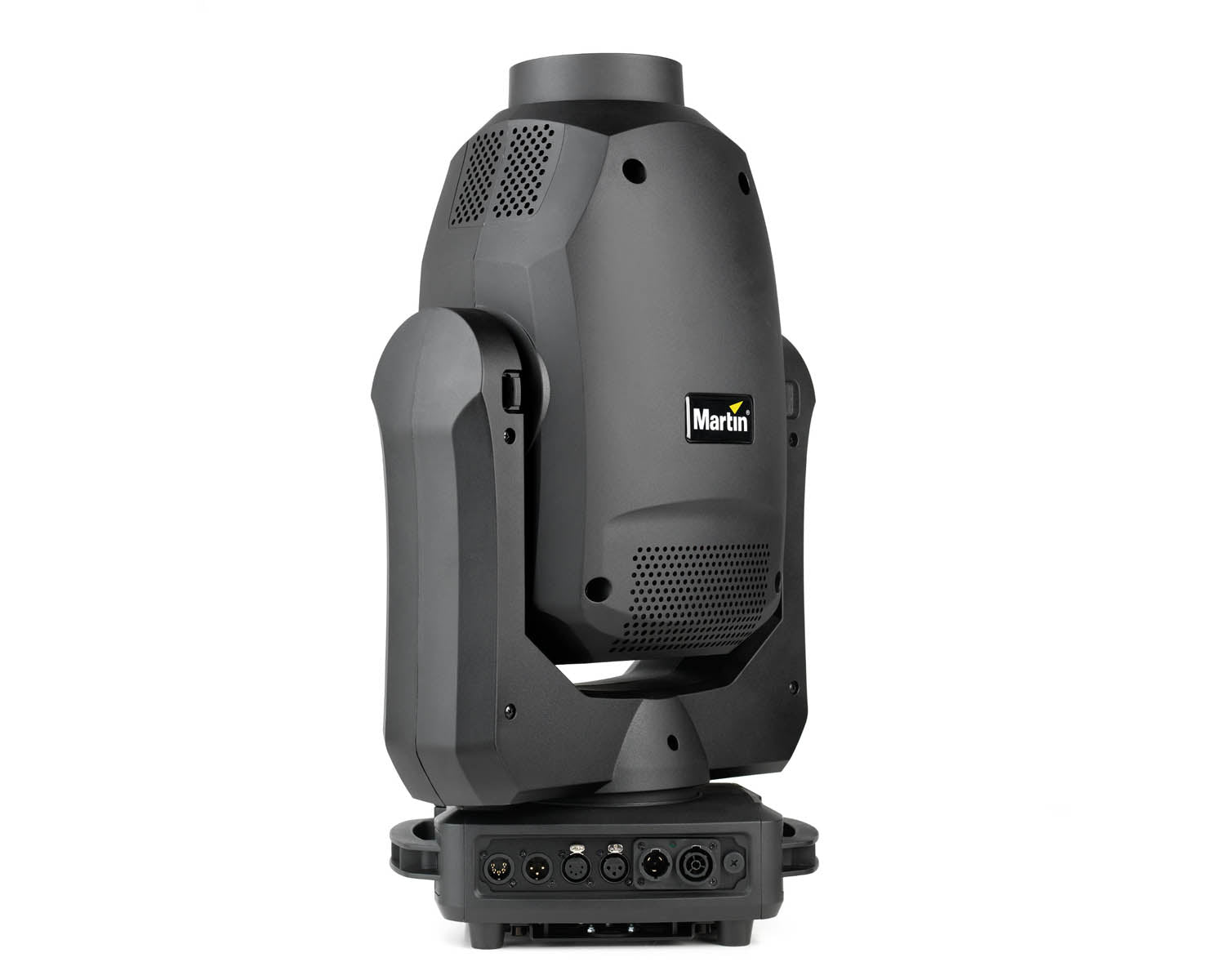

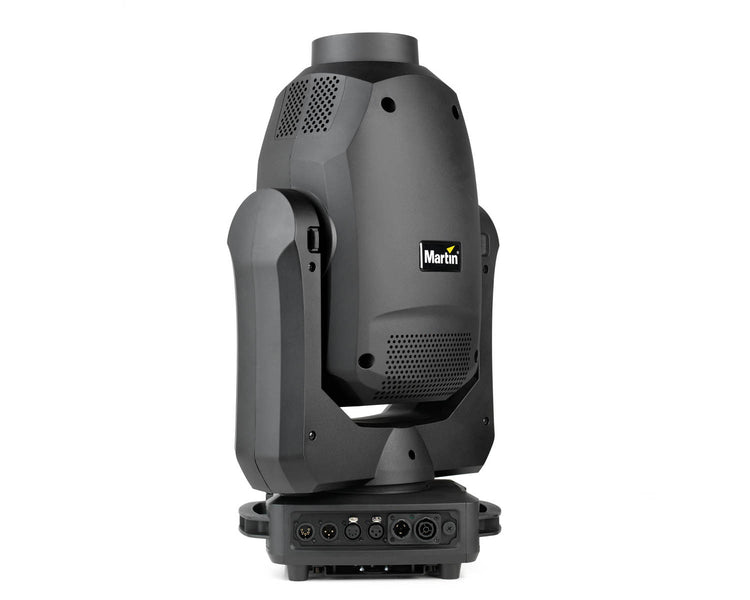

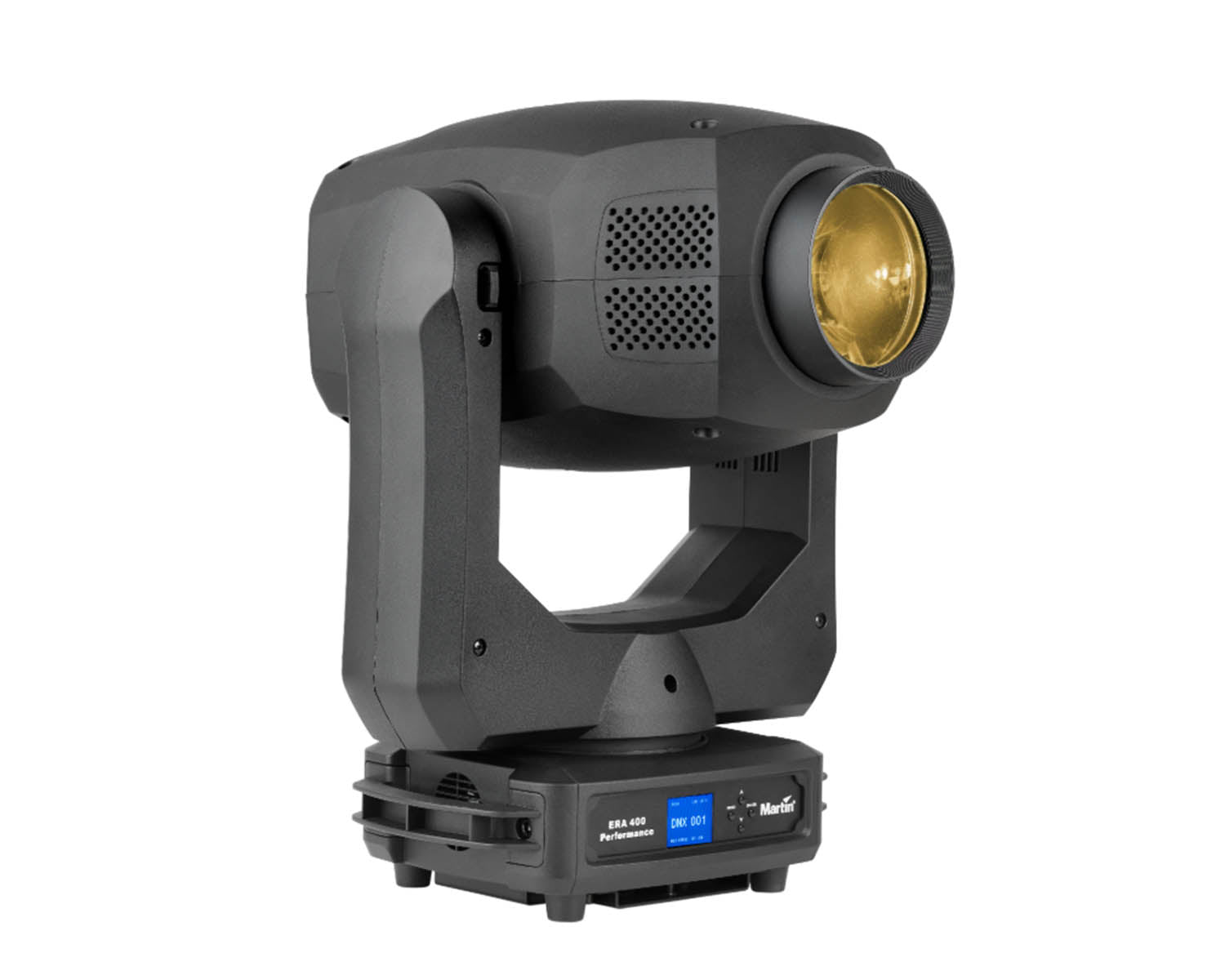

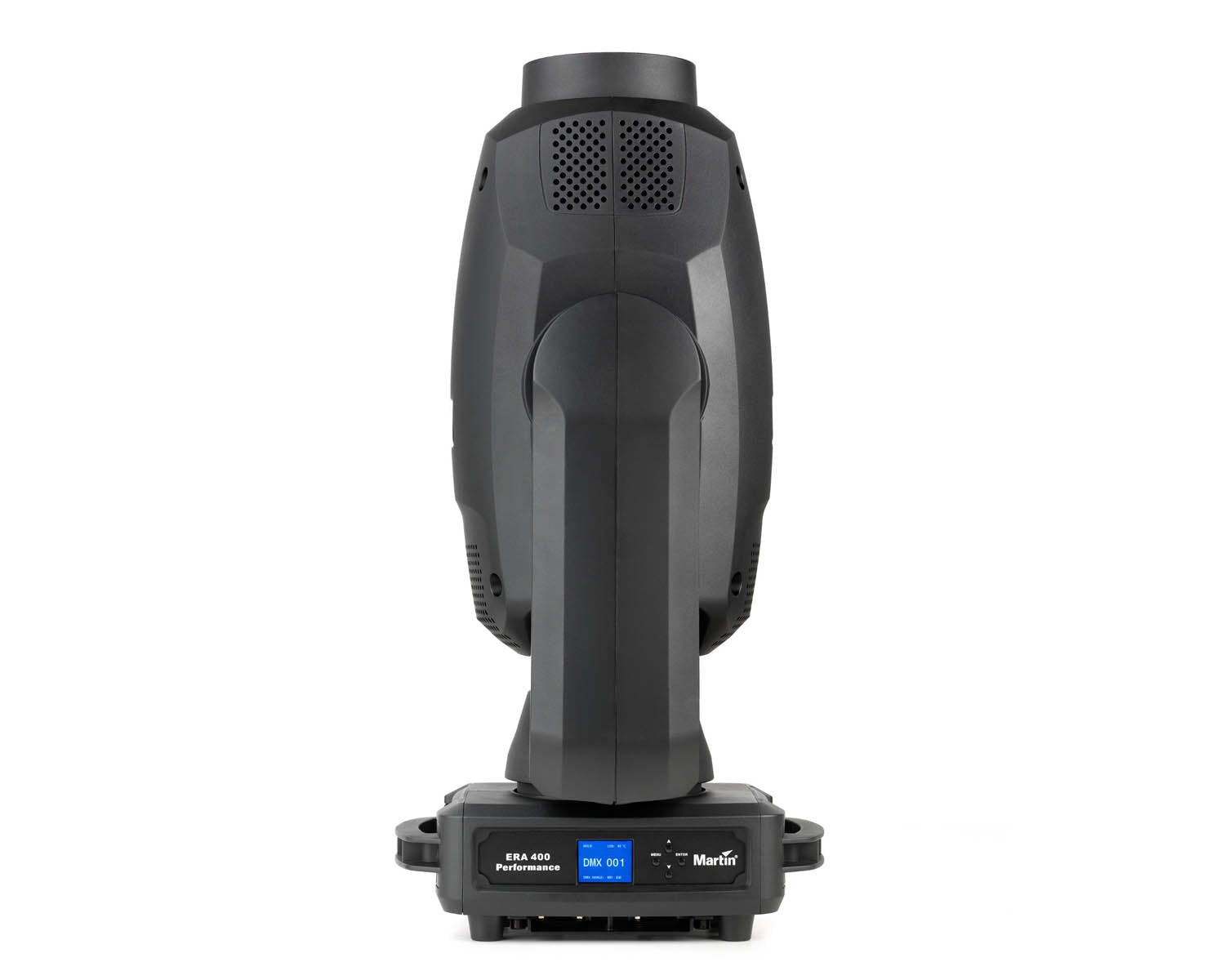

Designed to fulfil the demand for a bright, compact, tour-worthy moving head, the Martin ERA 400 Performance WRM combines a feature-loaded and rugged, yet cost-efficient profile for entertainment and rental applications. It features a highly efficient 300W warm white LED engine that offers unparalleled 3,200K warm tungsten emulation with a high CRI ideally suited towards small to mid-size theatres and compliments perfectly the Martin ELP range. It produces a sharp image projection with a flat field, includes 1:3 zoom, electronic dimming and strobe, full CMY colour mixing and separate colour wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favourite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the included rotating prism.

The ERA 400 Performance WRM includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage. When fully focused, gobos can be nicely framed with a soft edge, and each of the four framing blades can cross the entire beam independently for a full blackout. The entire system can rotate 90 degrees, allowing designers to direct light exactly where they want it to go and achieve unique movement effects not otherwise possible.

Whether being used for small and mid-sized theatres, concert and touring, live TV productions, corporate shows, cruise lines, or houses of worship, the Martin ERA 400 Performance WRM is ideal for a long list of scenarios, requiring a truly versatile LED profile that offers near limitless design and usage potential.

Product Features

• Bright 300 watt / 3,200K LED light source
• 6,000 lumen output
• Smooth electronic dimming and fast strobe effects
• Crisp optics with flat field
• 1:3 Fast zoom
• CMY colour mixing - Vibrant colour mixing with a superior palette of colours matching the MAC range
• 9-slot colour wheel –for added colour choice and split colour effects
• Full Curtain Framing blades with +/- 45° rotation of entire system for flexible shape generation
• 7 rotating/indexing gobos – All renowned Martin glass gobos
• 9 static gobos for great morphing effects
• Iris – Fast and tight iris
• 3-facet prism – Real beam separation with rotation and index control for dynamic effects
• Compact and low weight design

Product Specifications

PHYSICAL

• Length: 379 mm (14.9 in.)
• Width: 237 mm (9.3 in.)
• Height: 632 mm (24.9 in)
• Weight: 22.5 kg (49.6lbs)

DYNAMIC EFFECTS

• Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
• Electronic dimming: 0 - 100%, four dimming curve options
• Colour mixing: CMY, independently variable 0-100%
• Colour wheel: 9 colour filters plus open
• Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
• Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake
• Iris: 0-100%
• Zoom: Motorised
• Focus: Motorised
• Framing: Rotatable framing module, +/- 45°, with 4 individually controllable full framing blades with variable angle and position.
• Prism: Rotating/indexing three-facet prism
• Pan: 540°, coarse & fine control and speed
• Tilt: 260°, coarse & fine control and speed

CONTROL AND PROGRAMMING

• Control options: DMX
• 16-bit control: Dimming, pan and tilt
• Setting and addressing: Control panel with backlit LCD display
• DMX channels: 31
• DMX compliance: USITT DMX512/1990
• RDM compliance: ANSI/ESTA E1.20
• Transceiver: Opto-isolated RS-485

OPTICS

• Front lens diameter: 110 mm
• Zoom range: 10° - 30°
• Light source: 300W LED engine
• Minimum LED lifetime: 20000 hours (to >70% luminous output)*
  • *Manufacturer´s figure obtained under manufacturer´s test conditions

PHOTOMETRIC DATA

• Light engine luminous output: 15500 lumens
• Fixture luminous output: 6000 lumens
• CRI (Colour Rendering Index): >91
• CCT: 3200 Kelvin
• LED refresh rate: 1200 Hz

CONSTRUCTION

• Housing: High-impact flame-retardant thermoplastic
• Colour: Black
• Protection rating: IP 20

GOBOS

• Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
• Maximum image diameter: 19.0 mm (0.75 in.)
• Gobo thickness, maximum: 1.1mm borosilicate glass

INSTALLATION

• Mounting points: Two quarter-turn brackets for rigging
• Orientation: Any

CONNECTIONS

• AC power input: Neutrik powerCON TRUE1
• DMX data in/out: 3-pin & 5-pin locking XLR

ELECTRICAL

• AC power: 100-240V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode

TYPICAL POWER AND CURRENT

• 120 V, 60 Hz: 3.8A, 455W, PF 0.992
• 230 V, 50 Hz: 1.96A, 442W, PF 0.968
• Steady Power Consumption: 44 W, all effects static, zero light output
• Half-cycle RMS inrush current: 6 A (at 230 V, 50 Hz)
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.

THERMAL

• Cooling: Forced air (temperature regulated, low noise)
• Maximum ambient temperature (Ta max.): 40° C
• Minimum ambient temperature (Ta min.): 0° C
• Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F)
• Total heat dissipation (calculated, +/- 10%): 1550 BTU/hr.

APPROVALS

• EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
• EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
• US safety: UL 1573
• US EMC: FCC Part 15 Class B
• Canadian safety: CSA C22.2 No. 166
• Canadian EMC: ICES-003 Class B, ICES-005 Class B
• Australia/NZ: RCM
• Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
