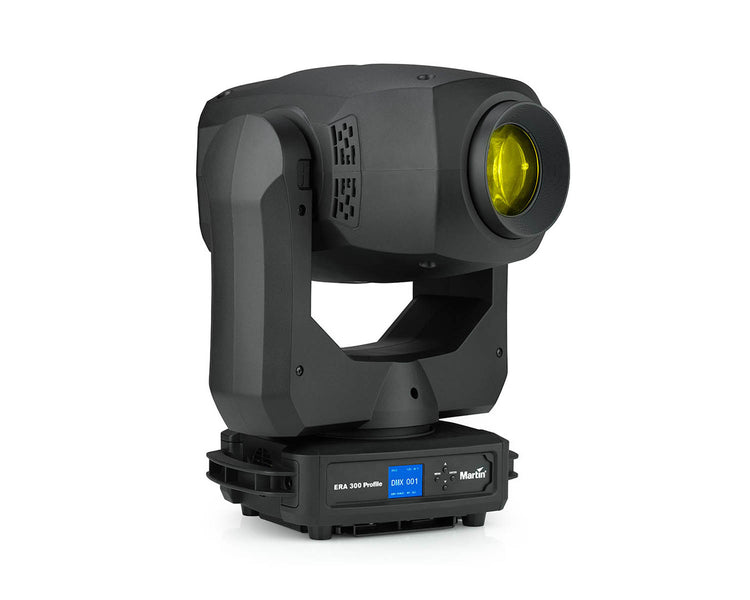

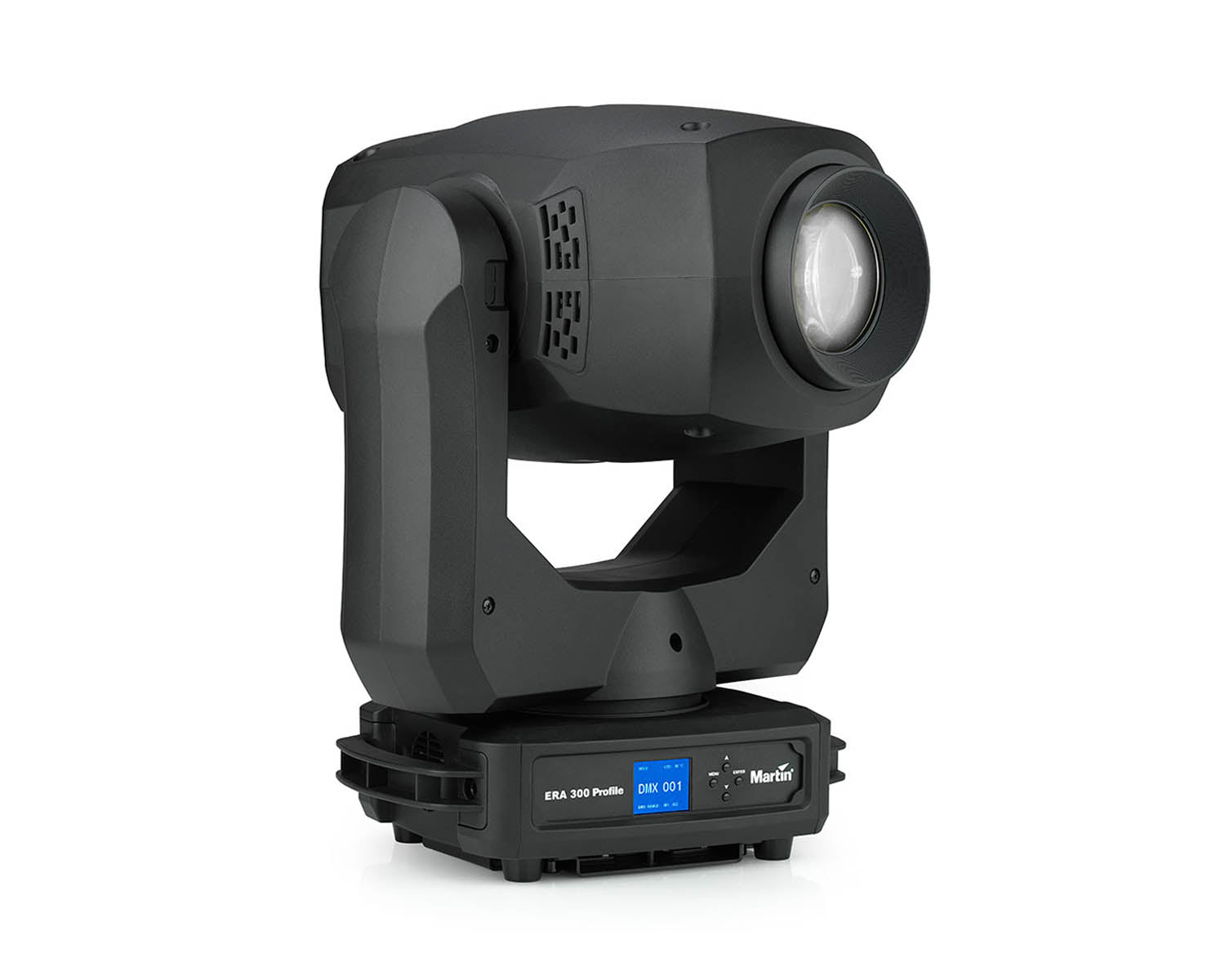

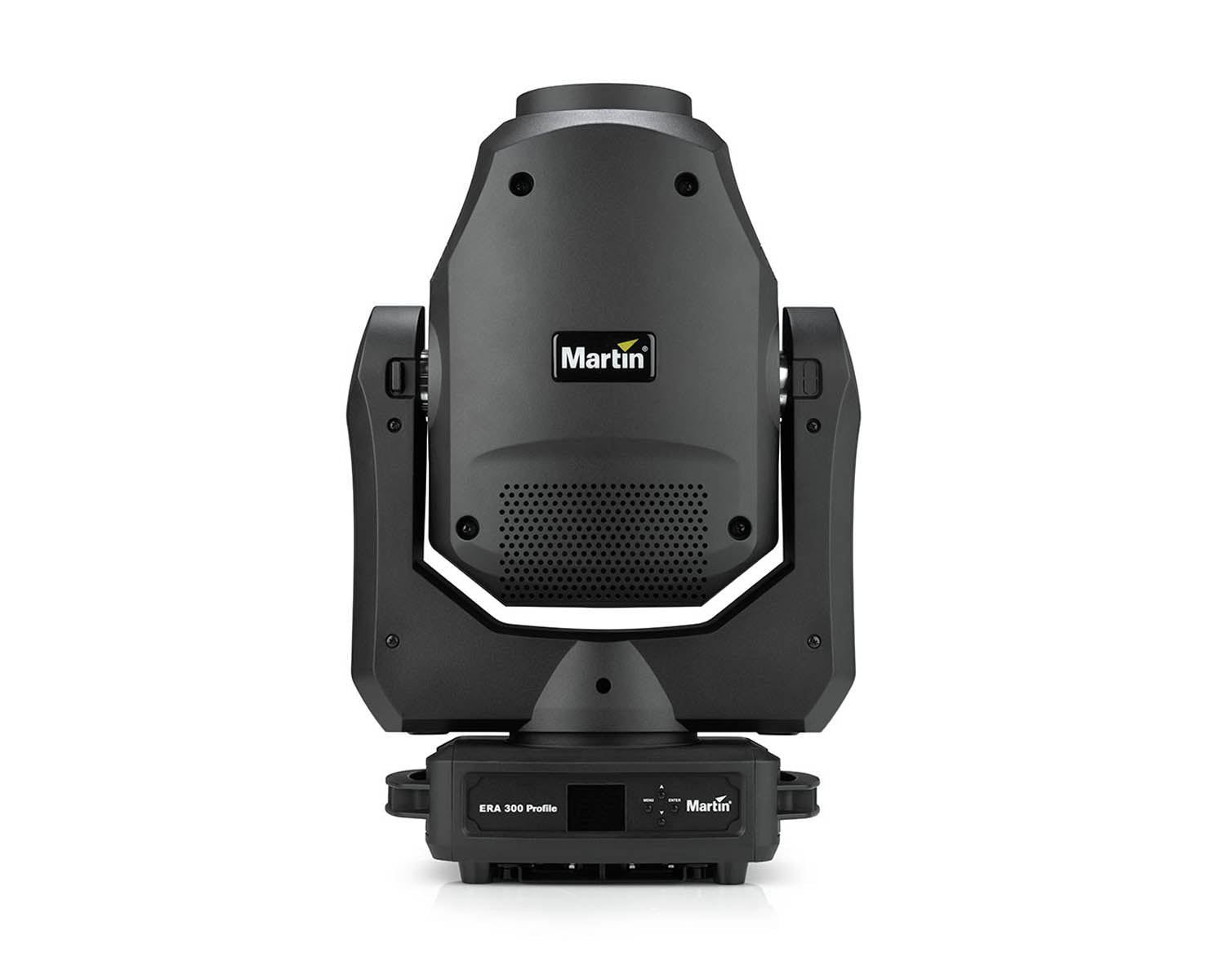

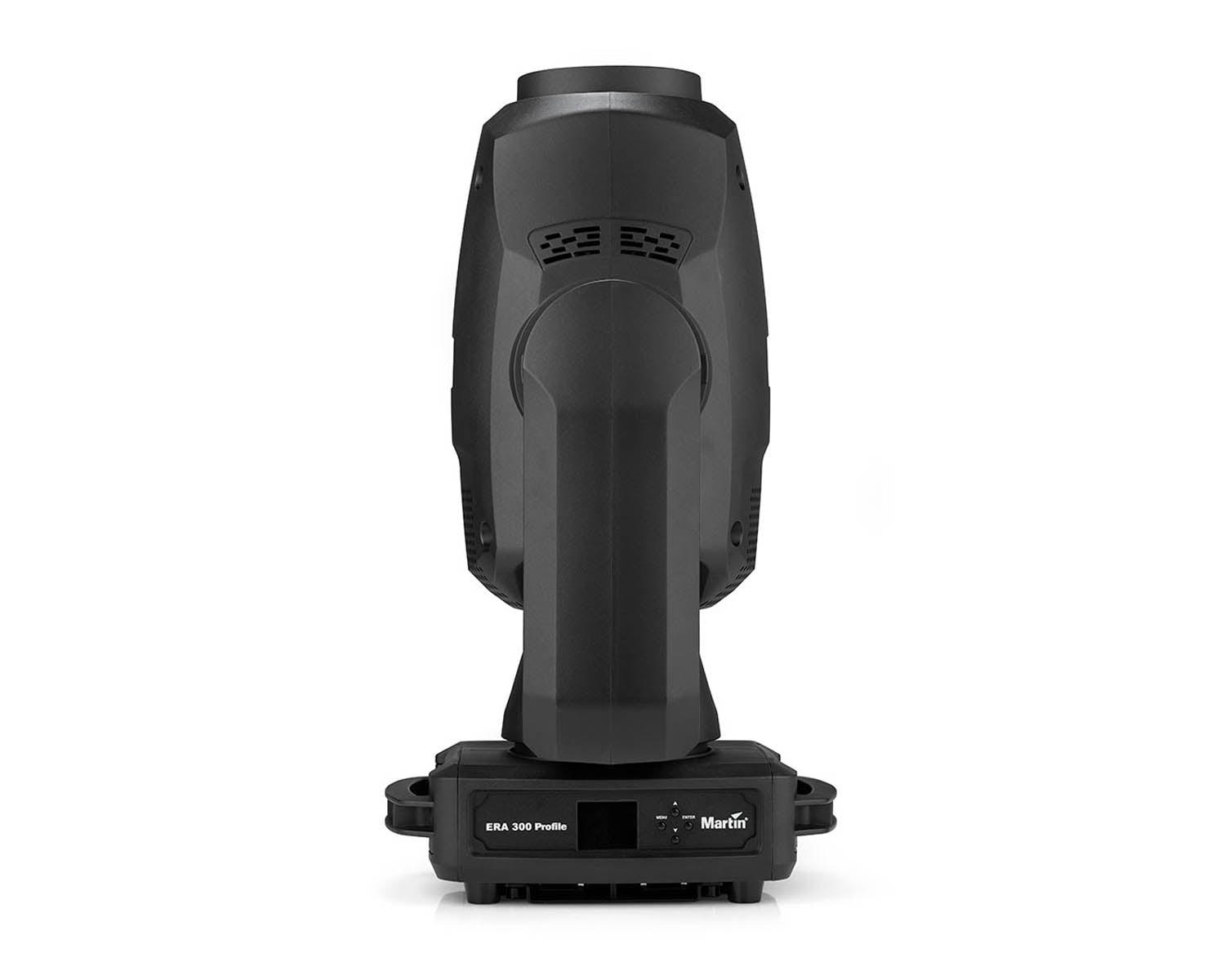

The Martin ERA 300 Profile is a very compact profile fixture with an extremely efficient 260W white LED engine that produces a sharp gobo projection with a flat field and more output than typically associated with similar-sized and featured fixtures. This modern, everyday workhorse is designed to fit anywhere, is easy to handle and rig, takes up less truck space, and boasts professional features, including CMY colour mixing and 1:2 zoom and 9,500 lumens of output. Additional features include electronic dimming and strobe; colour wheel; two layers of gobos, including rotating gobos; iris; rotating prism and pan/tilt.
The electronic dimming feature ensures extremely fast strobing, instant intensity control and the ability to maintain a consistent flat field down to zero percent. Onboard CMY colour mixing offers wide-ranging versatility from subtle pastels to deep, vibrant colour s, as well as fast transitions and smooth fades. And, with 13 to 28 degrees of zoom, the ERA 300 Profile is perfect for various trim heights and is wide enough to ensure great coverage on smaller stages.

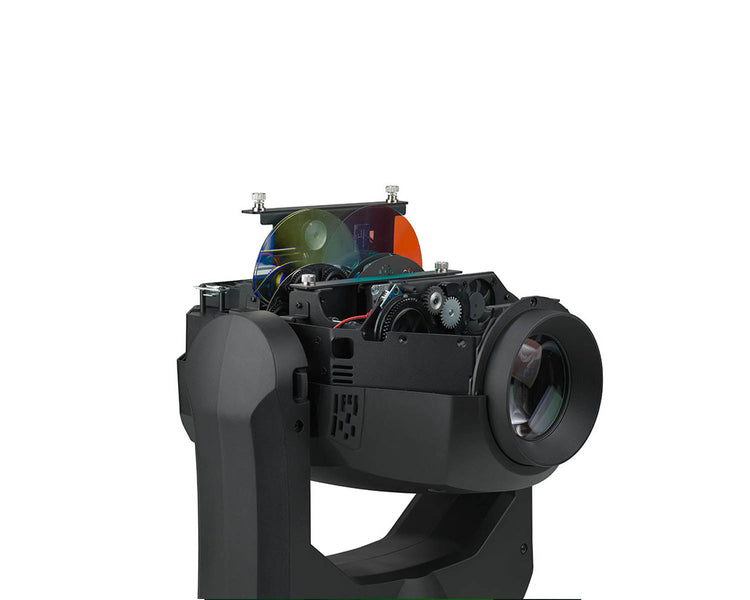

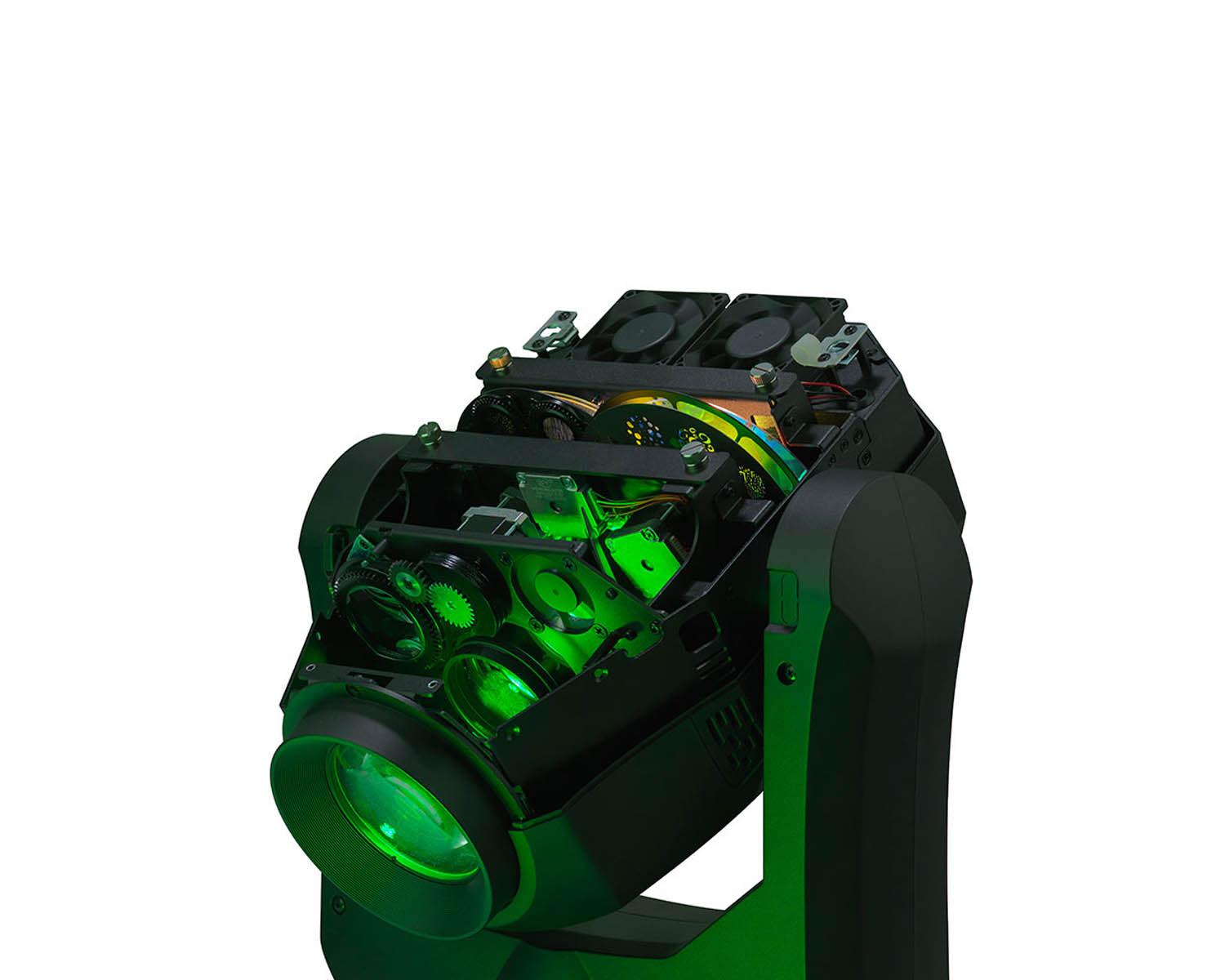

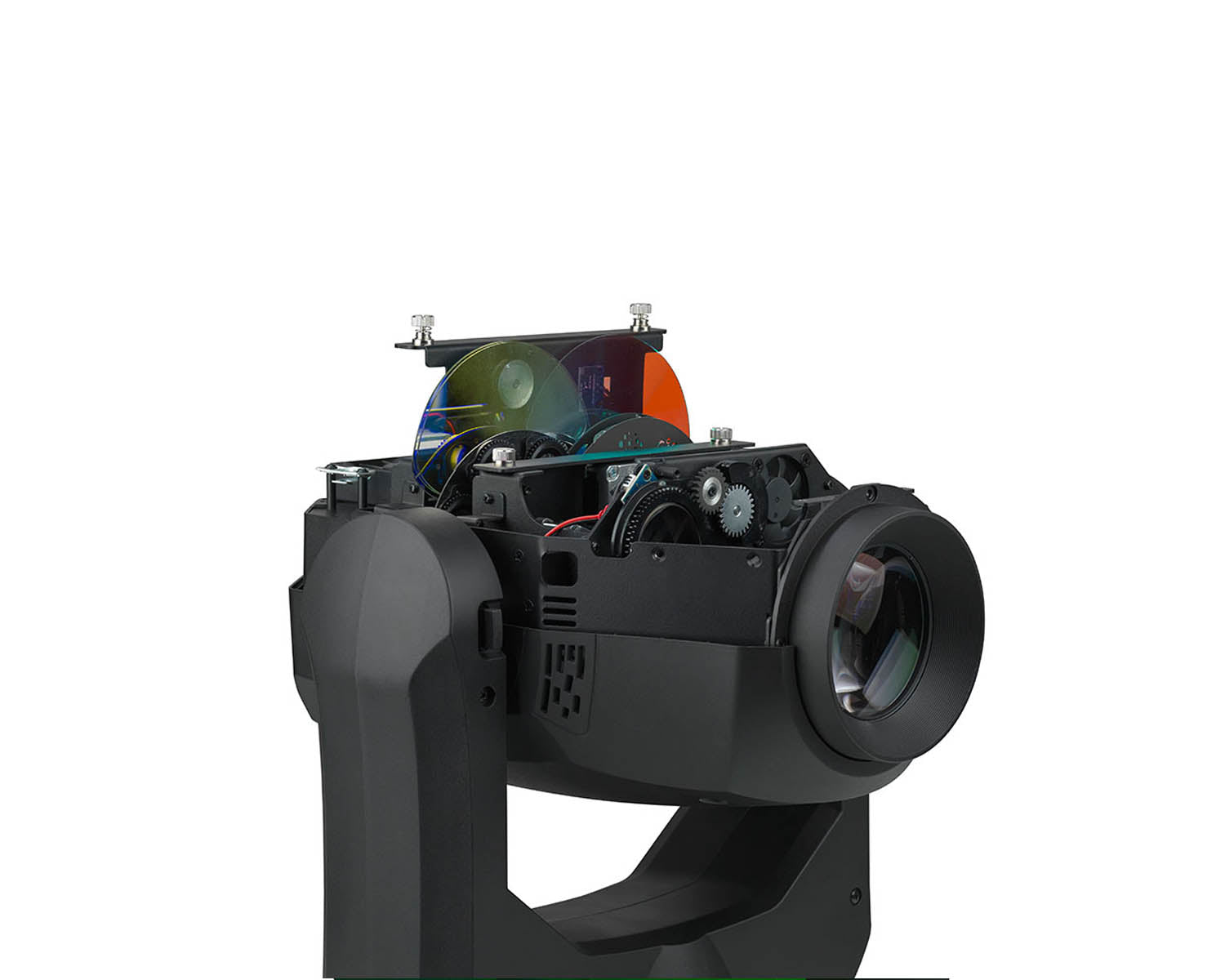

The Martin ERA 300 Profile also delivers increased ROI with minimal maintenance. The steady, stable LED source eliminates worries of lamp aging, loss of output, shifts in colour temperature, and fans sucking dirt through the optical path. And, the modular design makes maintenance extremely safe, quick, and easy. The ERA 300 Profile is built for the road and is ideal for small and mid-sized concerts and touring, live TV productions, corporate shows, cruise lines and houses of worship.
Product Features
- 260 watt / 6,500K LED light source
- 9,500 lumen output
- Full feature set including CMY colour mixing and 1:2 zoom
- Crisp optics with flat field
- Very compact and low weight design
Product Specifications
Physical
Dynamic Effects
- Electronic dimming: 0 - 100%, four dimming curve options
- Colour mixing: CMY, independently variable 0-100%
- Colour wheel: 9 colour filters plus open
- Beam effects: Rotating three-facet prism
- Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
- Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake
- Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
- Iris: 0-100%
- Zoom: Motorized
- Focus: Motorized
- Pan: 540°, coarse & fine control and speed
- Tilt: 260°, coarse & fine control and speed
Control and Programming
- Control options: DMX
- RDM: Implemented

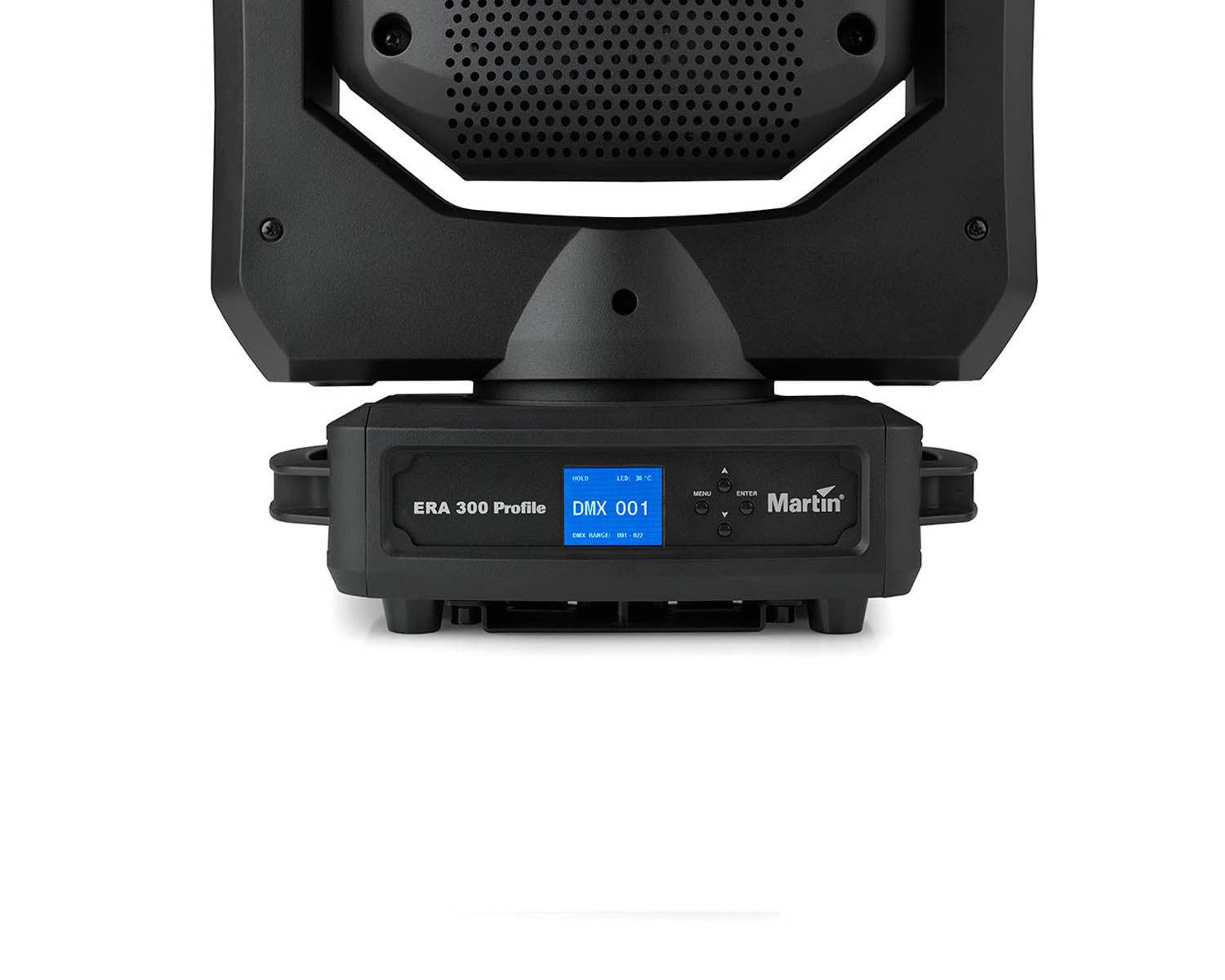

- Setting and addressing: Control panel with backlit LCD display
- DMX channels: 21ch
- DMX compliance: USITT DMX512/1990
Optics
- Zoom range: 13° - 28°
- Light source: 260W LED engine
- Minimum LED lifetime: 20,000 hours (to >70% luminous output)*
*Manufacturer´s figure obtained under manufacturer´s test conditions.
Photometric Data
- Light engine luminous output: 20,000 lumens
- Fixture luminous output: 9,500 lumens
- CRI (Colour Rendering Index) : >70
- CCT: 6500 Kelvin
Construction
- Housing: High-impact flame-retardant thermoplastic
- Colour : Black/White
- Protection rating: IP20
Gobos
- Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
- Maximum image diameter: 19.0 mm (0.75 in.)
- Gobo thickness, maximum: 1.1mm borosilicate glass
Installation
- Mounting points: Two quarter-turn brackets for rigging clamps
- Orientation: Any

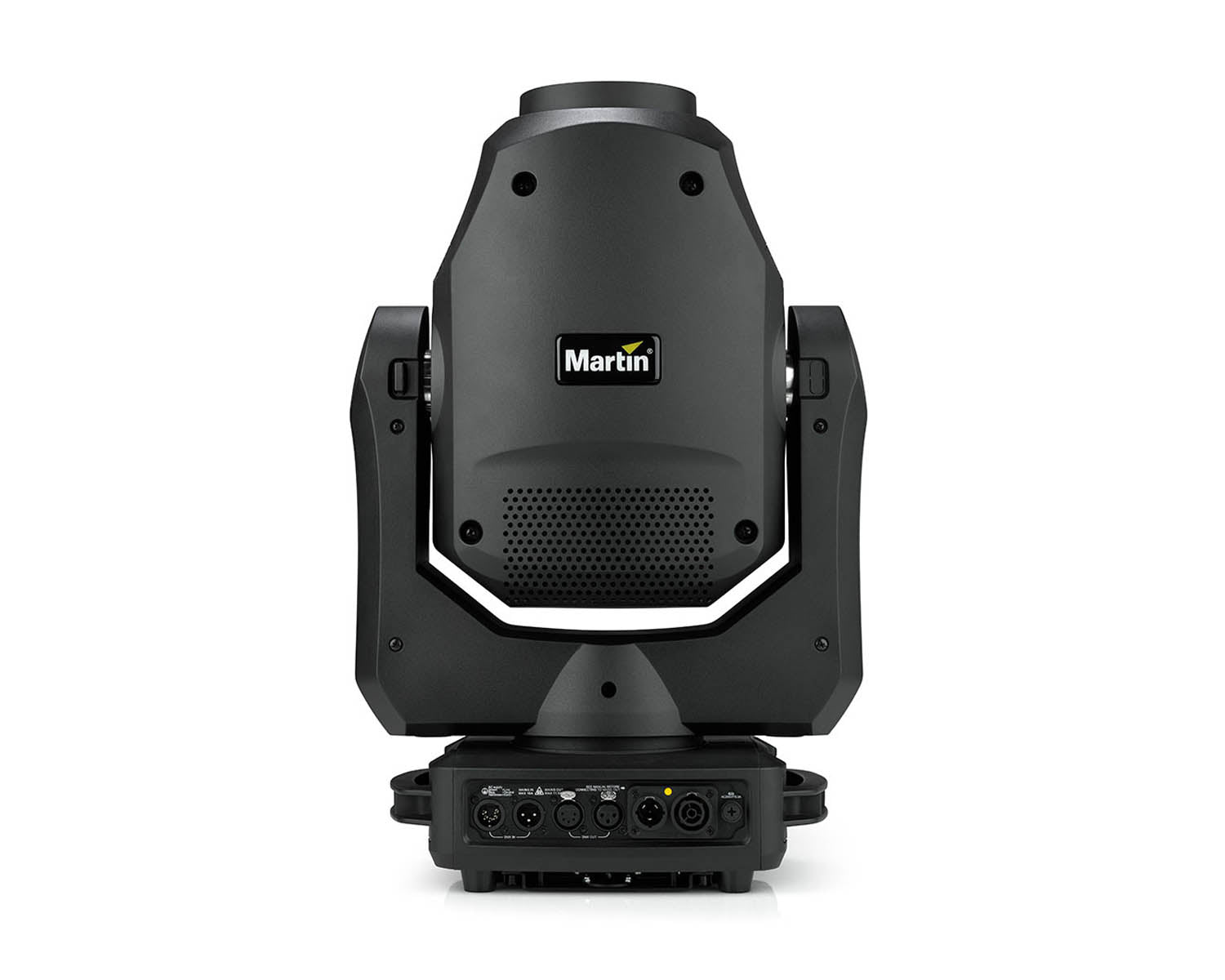

- Connections
- AC power in, thru: Neutrik powerCON TRUE1
- DMX data in/out: 3-pin & 5-pin locking XLR
Electrical
- AC power: 100-240V nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Fuse: T 6.3A
- Typical Power and Current
- 120 V, 60 Hz: 3.13A, 374W, PF 0.999
- 230 V, 50 Hz: 1.62A, 362W, PF 0.993
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Thermal
- Cooling: Forced air (temperature regulated, low noise)
- Maximum ambient temperature (Ta max.): 40° C
- Minimum ambient temperature (Ta min.): 0° C
Approvals
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
- US safety: UL 1573
- US EMC: FCC Part 15 Class B
- Canadian safety: CSA C22.2 No. 166
- Canadian EMC: ICES-003 Class B, ICES-005 Class B
- Australia/NZ: RCM
Included Items
- Power cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug
- Omega brackets for rigging clamp attachment
Accessories
- Cables, 16 A, for connection to power in chains:
- Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
- Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
- Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
- Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
- Cables, 16 A, for relaying power in chains:
- Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
- Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
- Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611786
- Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
- Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
- Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
- Connectors:
- Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
- Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788
- Installation hardware:
- G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
- Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
- Half-coupler Clamp: P/N 91602005
- Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
- Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
What's in the Box?
- ERA 300 Profile
- Power cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug
- Omega brackets for rigging clamp attachment
