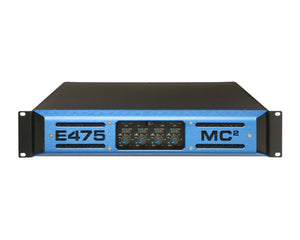

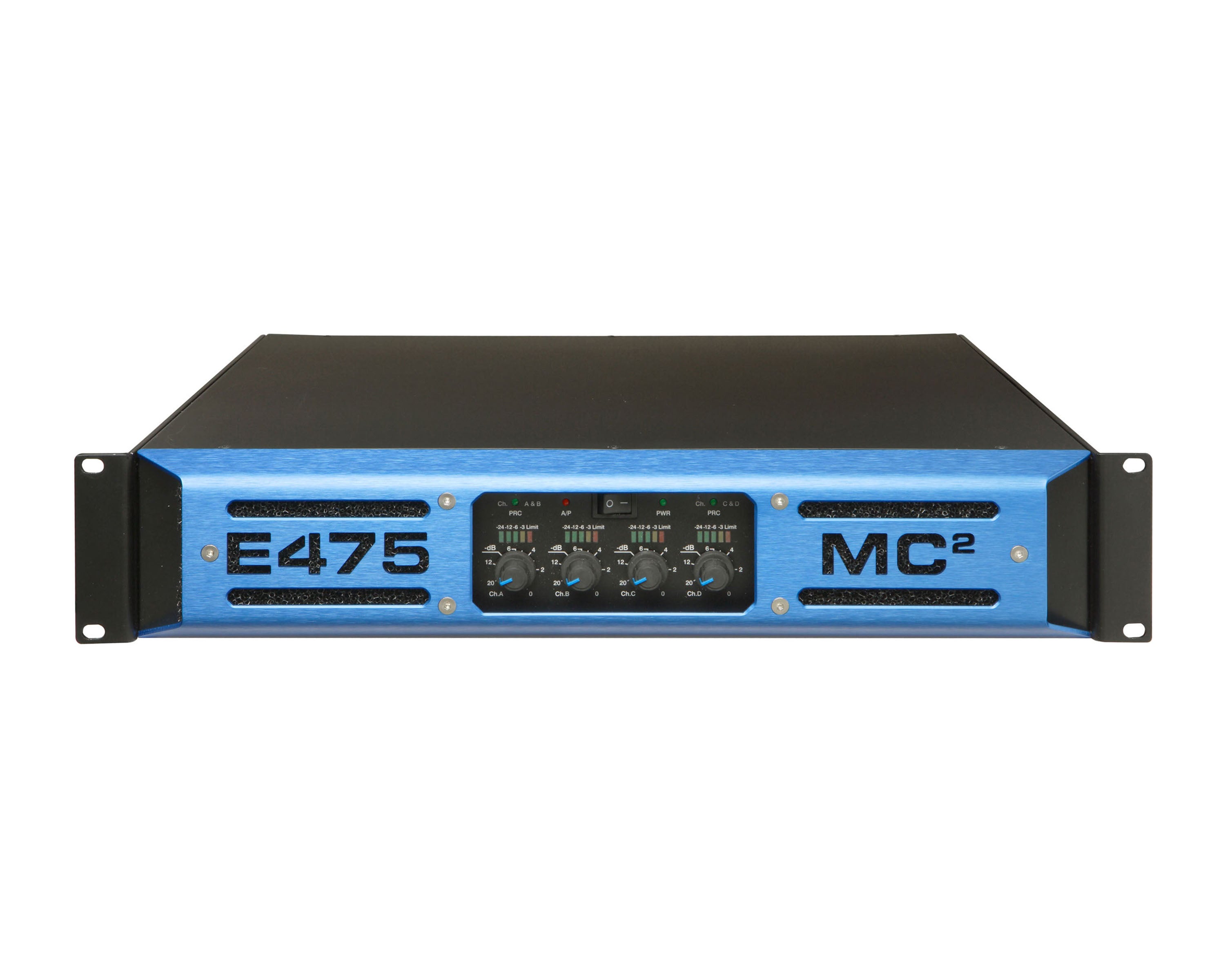

MC2E475 - MC2 Audio E4 75 4 Channel Amplifier 4x825W @ 8 or 4x750W @ 4ohm 2U Image 1

The E Series is a range of lightweight, high-power switch mode amplifiers designed to the highest standards of reliability and sound quality. Developed for the touring market, E Series retain the sonic integrity of the benchmark MC and T Series amplifiers, without the physical weight.

The switch mode power supply is capable of delivering high peaks without any perceptible bass ‘sag’ at very low distortion and is kept within its safe operating area by the new, sophisticated MC² Audio ‘intelligent’ limiter. The E15, E25, E45 and E4-75 feature MC² Audio’s proprietary current driven output stages for ultra-high definition sound, delivered over the entire audio bandwidth.

The E90 and the E100 are Class D amplifiers designed to meet the demands for higher power with increased efficiency whilst still maintaining the renowned MC² Audio sonic qualities and unsurpassed reliability.

All MC² Audio products are covered by a 5 year warranty.

Product Features

Lightweight, high-power switch mode amplifier
Developed for the touring market
Capable of delivering high peaks without any perceptible bass ‘sag’ at very low distortion
Kept within its safe operating area by the new, sophisticated MC² Audio ‘intelligent’ limiter
Retain the sonic integrity of the benchmark MC and T Series amplifiers, without the physical weight
Features MC² Audio’s proprietary current driven output stages for ultra-high definition sound, delivered over the entire audio bandwidth
Covered by a 5 year warranty

Product Specifications

General

Number of channels: 2
Output Power: (per channel)
- 8 ohms: 450W
- 4 ohms: 850W
- 2 ohms: 1550W
Output Power: (bridged)
- 8 ohms: 1700W
- 4 ohms: 3100W
THD%: (@1dB below max output)
- @ 1kHz: < 0.008%
- 20Hz to 20kHz: < 0.03%
Gain / Sensitivity:
- Gain26/31/32dB
  - Sensitivity (for max power)+11/6/5dBu (2.7/1.5/1.4V)
Frequency Response:20Hz to 20kHz (+/- 0.3dB)
Power Consumption:
- Nominal @ 240v into 4 ohms: 2.1A
- Nominal @ 120v into 4 ohms: 4.2A
