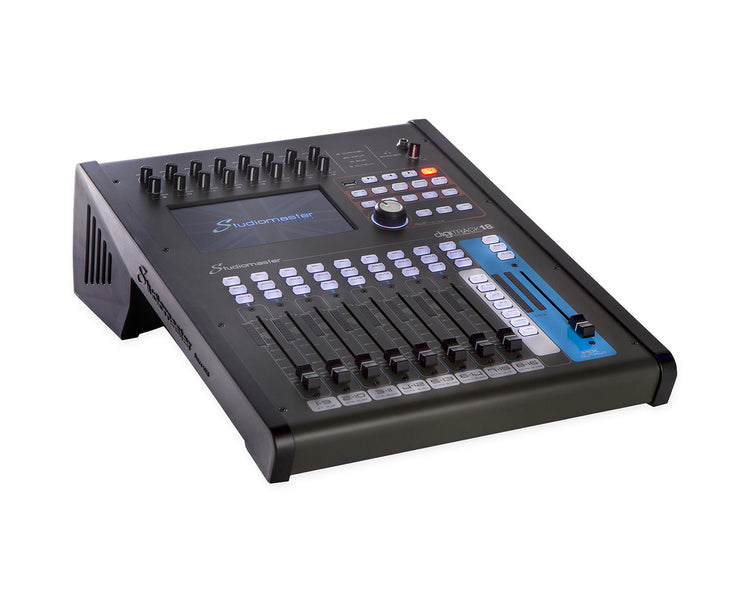

The 16 input channel digiTRACK18 brings all the simple operation brought to you with the digiLiVe16, but adding extra features and options, that are normally reserved for higher end digital mixers. The digiTRACK18 is no exception to this, with multitrack recording or LAN network connectiivity, DCA sub groups, custom layers and hot keys for instant access to the features you want.

Product Features

• 16 Mic/Line Inputs (4 with combo XLR/JACK input)
• 16 Internal buses available
• 9 Motorised Faders for recall and precise control
• Multitrack high speed USB i/o option port with 16 track in/out
• DCA Groups, MUTE GROUPS and CUSTOM layers
• 8 Stereo FX reverb, delay, modulation, 31band graphics
• 8 Smart Outputs each output can be set to any bus
• Ditial IO USB playback/record, s/pdif in/out and AES-EBU output
• 7” Screen high resolution to clearly see the information you need
• iPad Control full remote operation from the IOS APP
• External PSU for reliable noise free operation

Product Specifications

• MIC / LINE Input: 16 channels 12 x XLR / 4 x COMBO XLR / JACK
• Master output: 2 Left/Right balanced XLR
• Smart Outputs: 6 assignable balanced XLR
• Internal busses: 16
• DCA groups: 6 DCA groups
• Stereo Monitor: 2 XLR output
• Headphone: 1 TRS Jack output
• Screen: 7” high definition touch screen
• Faders: 8 x motorized 100 mm faders + 1 x motorized 100mm fader for L/R mix
• Layers: multiple channel/bus layers + 2 custom user layers
• Operating System: Android system
• Sample Frequency: 48 KHz
• AD/DA: 192KHz, 24-bit
• DSP: 40-bit float point, SHARC processor
• iPad Remote control: Yes
• Effects: up to 8 assignable effect modules (reverb,modulation,delay, 31band GEQ with RTA)
• AES/EBU: Output (XLR)
• S/PDIF: Input / Output (RCA phono)
• USB Interface: 2 usb type A for playback/recording, scene storage and system updates option - 1 usb type B for 16 x 16 USB audio connection to PC/computer DAW
• Network: yes via WIFI external module
• Power: 90-240V ~ 50/60Hz power supply 24VDC output
