The Cloud CX261 is a 1U rack-mounting audio mixer ideal for use in bars, restaurants and other leisure sector premises, also offices, hotels and other multi-use areas where simple control of high quality background music needs to be combined with a flexible range of paging options.

Need help understanding which Cloud wall panel accessories are compatible with their range of amplifiers or mixers? Download our free guide now.

Product Features

• Six (unbalanced) stereo line inputs with individual gain control
• Two electronically-balanced mic inputs

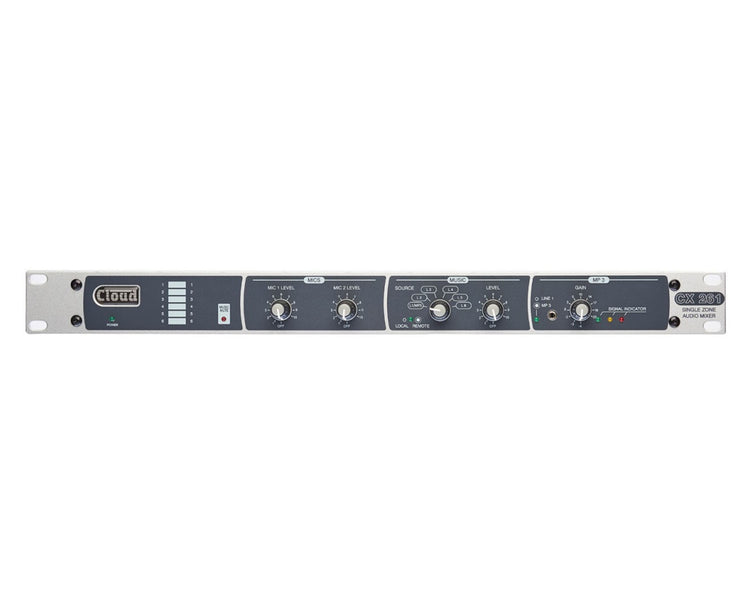

• Front panel control of music source/level and mic level
• Front panel input (3.5mm jack) for MP3 player
• HF & LF EQ adjustment for music and mic inputs
• MIC 1 input configurable as transformer-isolated line input
• MIC 1 priority over MIC 2 (selectable)
• Short-to-ground access connector
• Selectable LINE 6 priority with choice of release times
• Music mute control input (NO or NC)
• Compatible with standard Cloud remote control panels
• Electronically-balanced stereo main output
• Transformer-isolated mono auxiliary output
• Aux output source selection (internal jumper)
• Optional Bose EQ cards available
• 1U 19\'\' rack mounting unit

Product Specifications

Line inputs

• Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
• Distortion: <0.05% typical, 1 kHz
• Sensitivity: 0.775 V (0 dBu), +/-12 dB
• Input Gain Control Range: 24 dB
• Input Impedance: 48 kohms
• Headroom: >20 dB
• Noise: <-88 dB rel 0 dBu (typical); A-weighted, rms
• Equalisation: LF: +/-10 dB @ 50 Hz, HF: +/-10 dB @ 10kHz

MP3 input

• Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
• Distortion: <0.05% @ 1 kHz
• Sensitivity: -20 dBu to +4 dBu
• Gain Adjustment: 24 dB range

Microphone inputs

• Frequency Response: -3 dB @ 100 Hz (filter), +/-0.5 dB @ 20 kHz
• Distortion: <0.05%, 20 Hz to 22 kHz
• Gain: 40 dB range
• Sensitivity: -10 dBu to -50 dBu
• Input Impedance: >2 kohms (balanced)
• Common Mode Rejection: 1 kHz, >70 dB
• Headroom: >20 dB
• Noise: <-125 dB EIN, A-weighted, 150 ohms
• Equalisation: LF: +/-10 dB @ 100 Hz, HF: +/-10 dB @ 5 kHz

Tel input

• Frequency Response: -3 dB @ 100 Hz (filter); <-0.5 dB @ 20 kHz
• Distortion: <0.05%, 200 Hz to 20 kHz
• Sensitivity: -20 dBu to + 4 dBu
• Headroom: >20 dB

Outputs

• Output level (nominal)
  • Main: 0 dBu
  • Aux/MOH: -6 dBu
• Minimum load impedance
  • Main: 1.2 kohms
  • Aux/MOH: 600 ohms
• Maximum output level
  • Main: +20 dBu
  • Aux/MOH: 0 dBu

Physical & Dimensions

• Dimensions (w x h x d): 482.6 mm x 44 mm (1U) x 152.5 mm
• Shipping Dimensions (w x h x d): 560 mm x 140 mm x 290 mm
• Weight: 2.13 kg
• Shipping Weight: 3.15 kg
• Power input: 85 V to 253 V AC, 50/60 Hz
• Current consumption: 46.5 mA at 240 V
• Fuse Rating: 1A
• Fuse Type: T1A, 20 x 5 mm

Accessories

• RL-1 Remote Music Level Control
• RSL-6 Remote Music Source Select
• BOSE Loudspeaker EQ Card
• EQ Cards for Amina AIWX & LFiT Loudspeakers
• PM1 Paging Microphones
