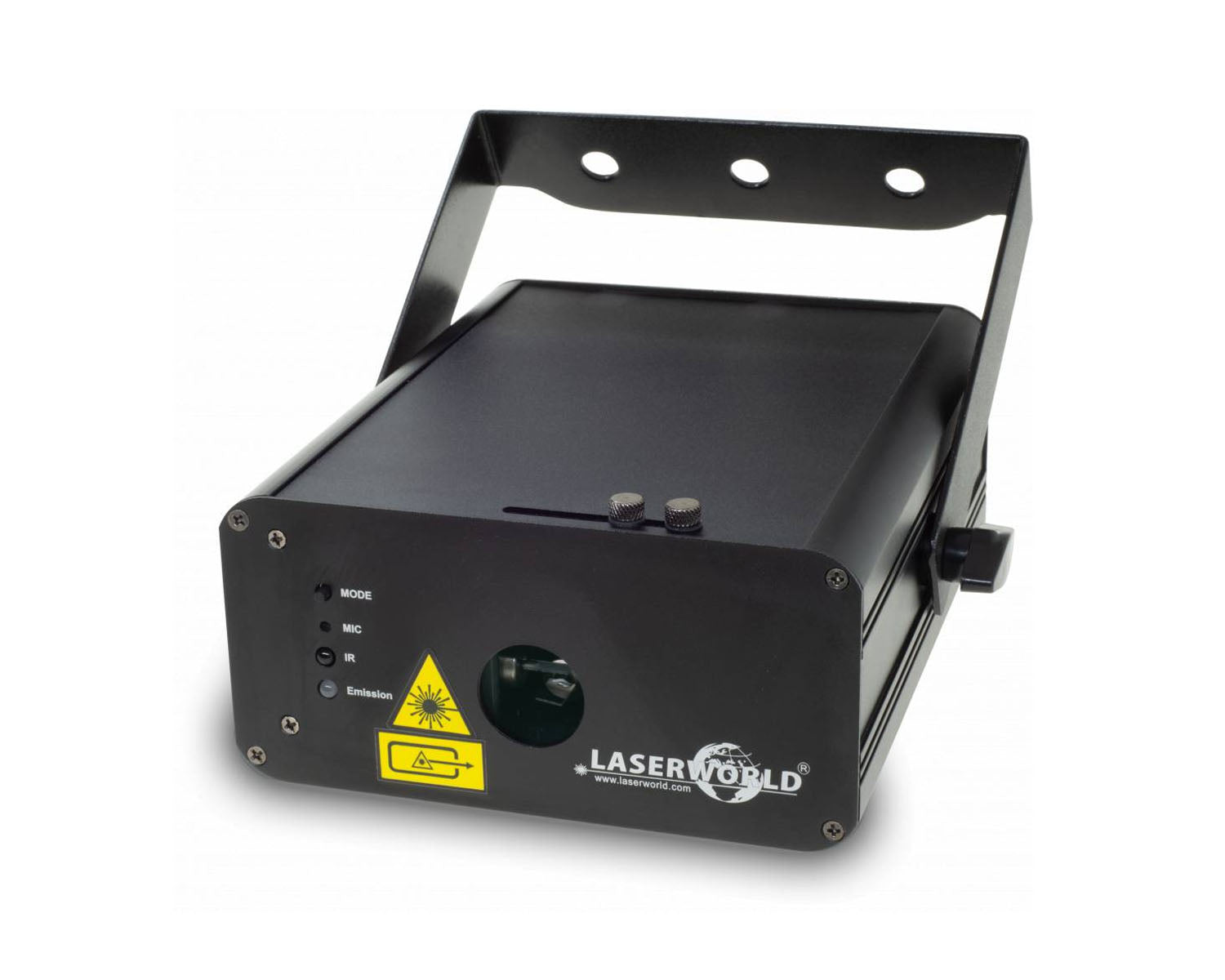

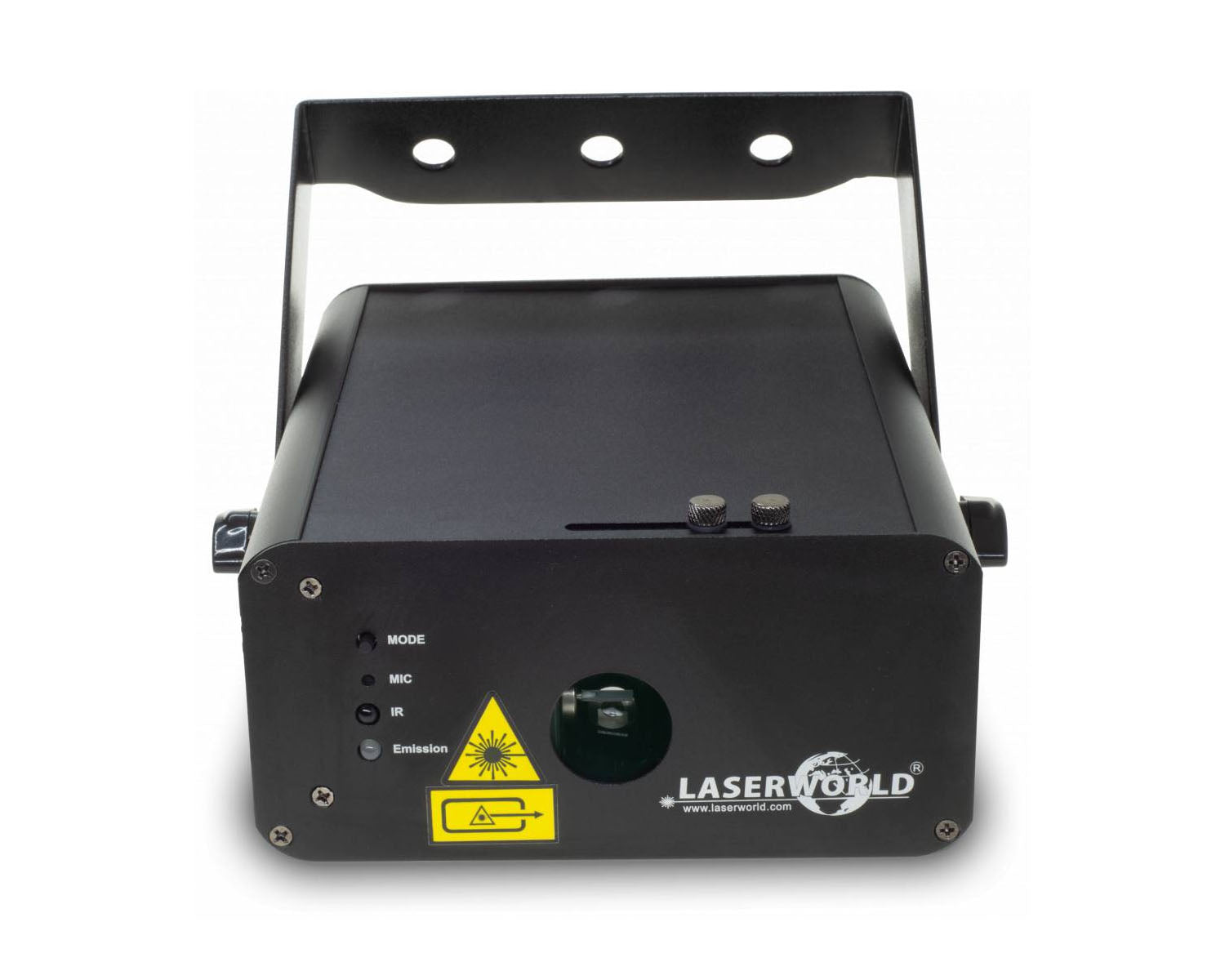

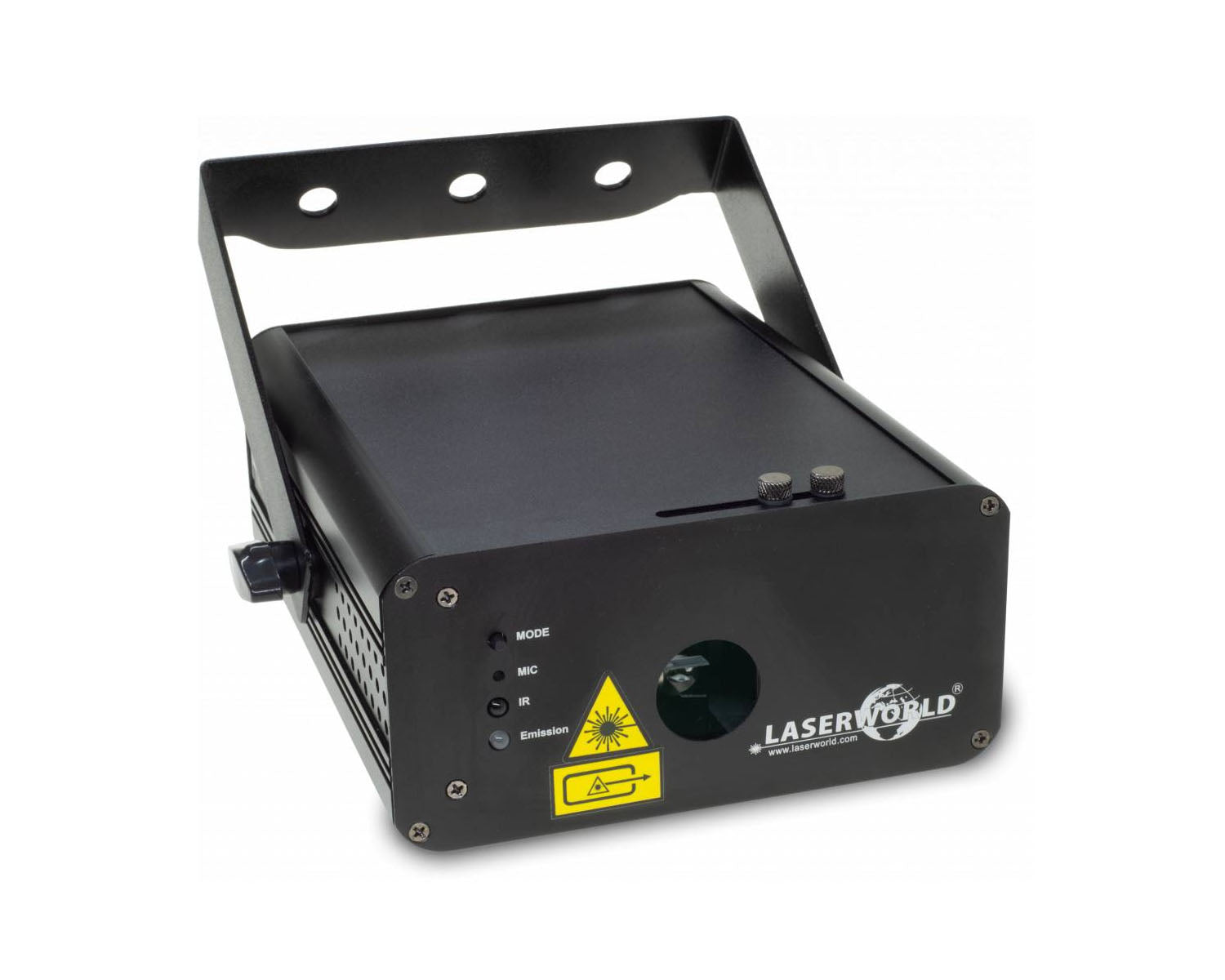

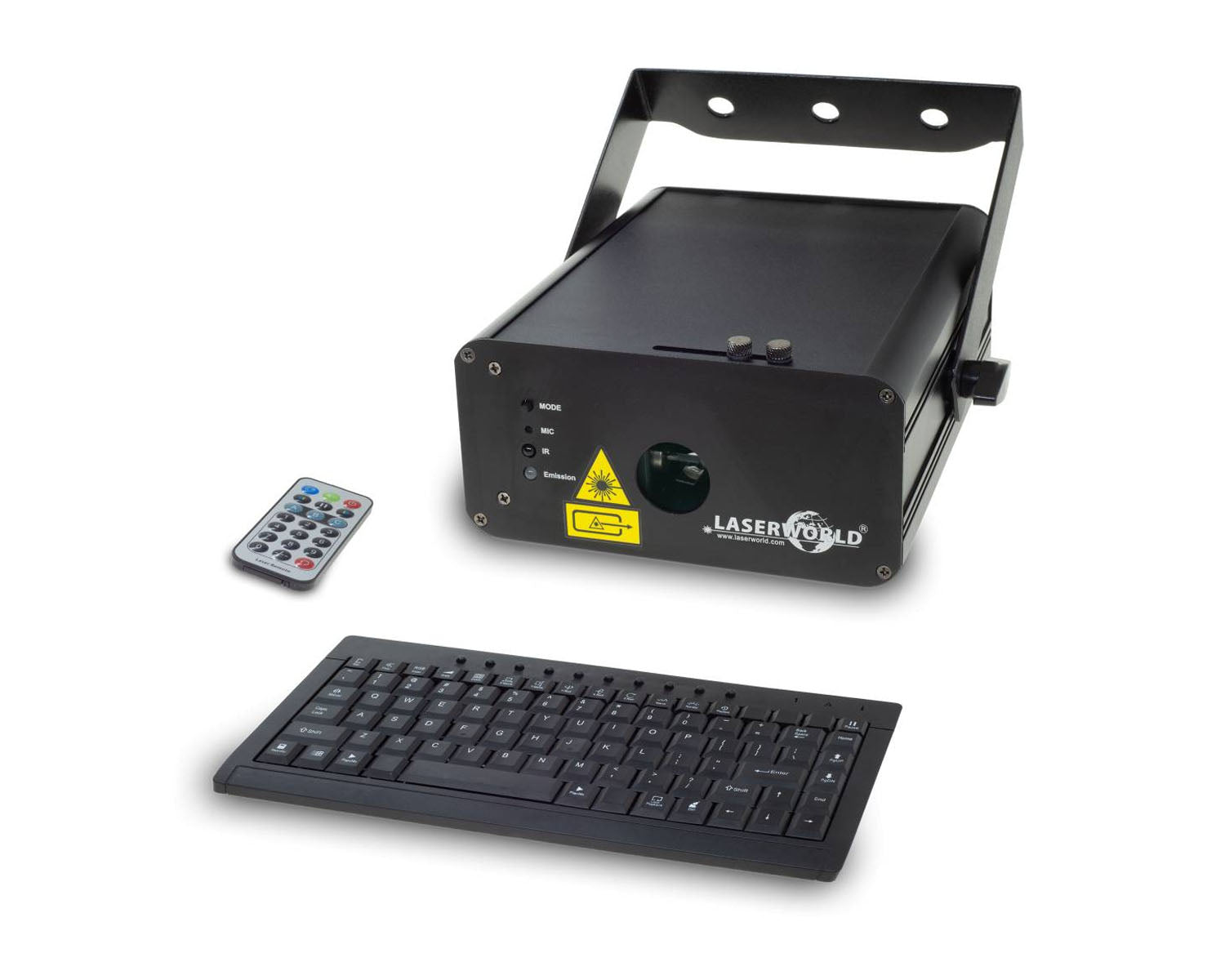

The Laserworld CS-500RGB KeyTEX is a RGB text and pattern projection laser that does not need any software or additional controller for operation. It comes with a special keyboard and an infrared remote control.

With the keyboard it is possible to control the whole show laser light system. This device is also controllable via ILDA!

This text laser is equipped with a strong red (180 mW / 650 nm), green (80 mW / 532 nm) and blue (160 mW / 445 nm) laser source, so the projections are well visible. The scanning systems allows for simple text projections and runs at ca. 15 kpps@4°, graphics capable.

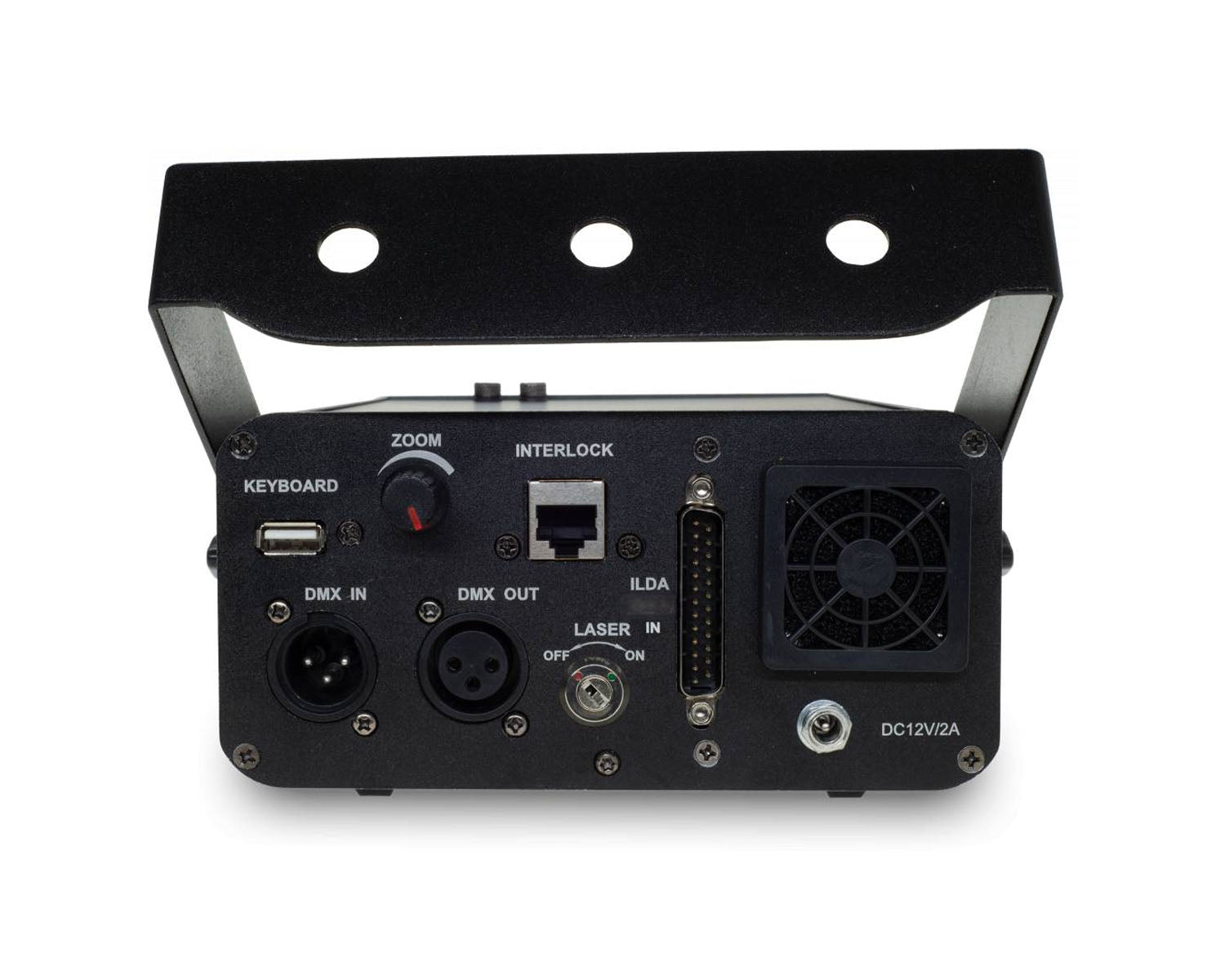

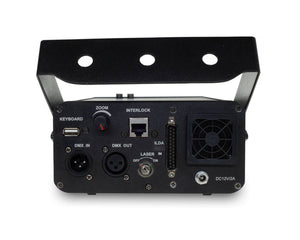

The mounting bracket of the Laserworld CS-500RGB KeyTEX laser can be used to mount the projector at walls, ceilings or at other appropriate objects. There is also an interlock connector for safety switch as well as a key switch at the rear side of this very compact device.

Product Features

• Total Power: 500mW
• 7 colours including white
• Beams, waves & tunnel laser effects
• Keyboard included to enter texts & create timed shows
• Multiple graphic animations
• Seasonal festive animations
• ca. 15 kpps@4°, graphics capable scanners
• Stand-alone mode
• Sound-to-light mode
• Programmable via keyboard & remote control
• ILDA (Computer) controllable
• DMX programmable

Product Specifications

• Total Power: 500 mW
• Power Red: 180 mW / 650 nm
• Power Green: 80 mW / 532 nm
• Power Blue: 240 mW / 450 nm
• Beam Specifications; ca. 3 mm / 2 mrad
• Scanner: ca. 15 kpps@4°, graphics capable
• Laser Source: DPSS, Diode
• Laser Class: 3B
• Operation Modes: ILDA, Stand-alone mode, sound-to-light mode, text mode, clock mode, DMX
• Basic Patterns: ca. 50
• Accessories: Keyboard, USB extension cable, infrared remote control, interlock, key, external power supply 12 V
• IP Rating: IP4X
• Power Supply: 100 - 250 V AC
• Power Consumption: 36 W
• Dimensions: 210 x 165 x 85 mm
• Weight: 1.64 kg

What's in the Box?

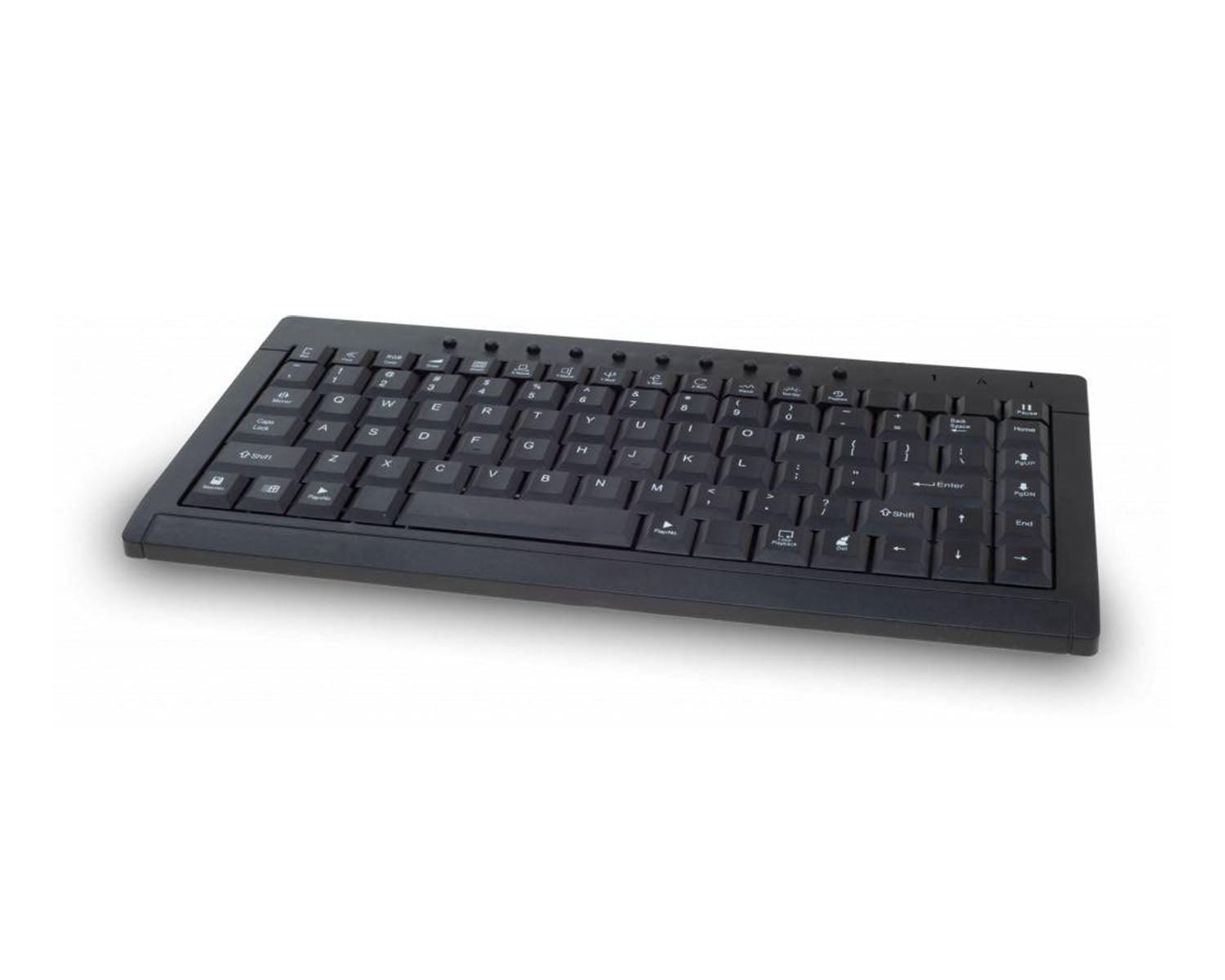

• Keyboard
• USB extension cable

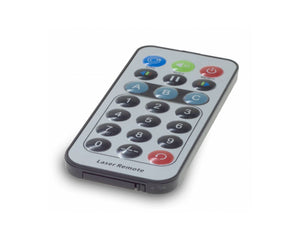

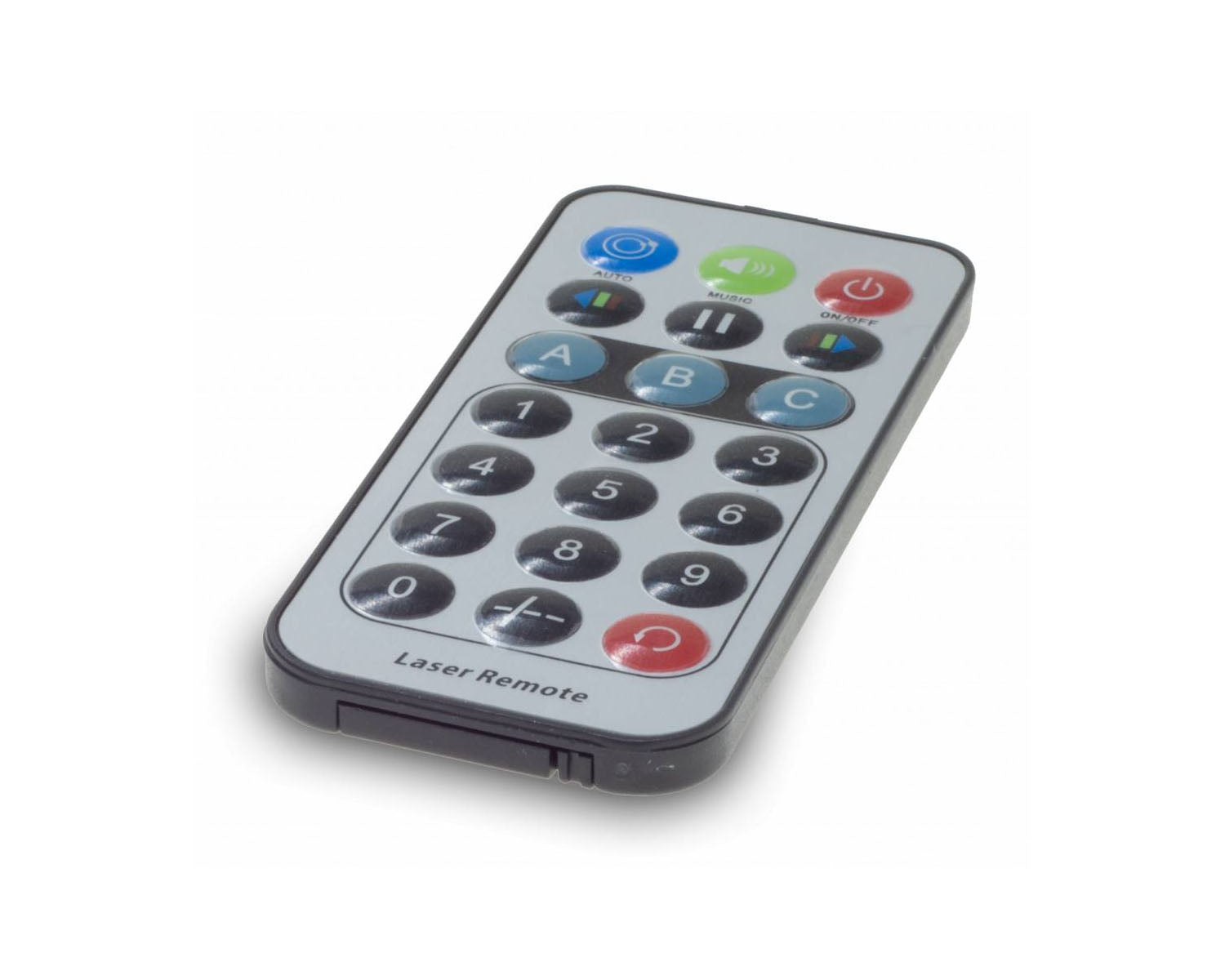

• Infrared remote control
• Interlock
• Key
• External power supply 12 V
