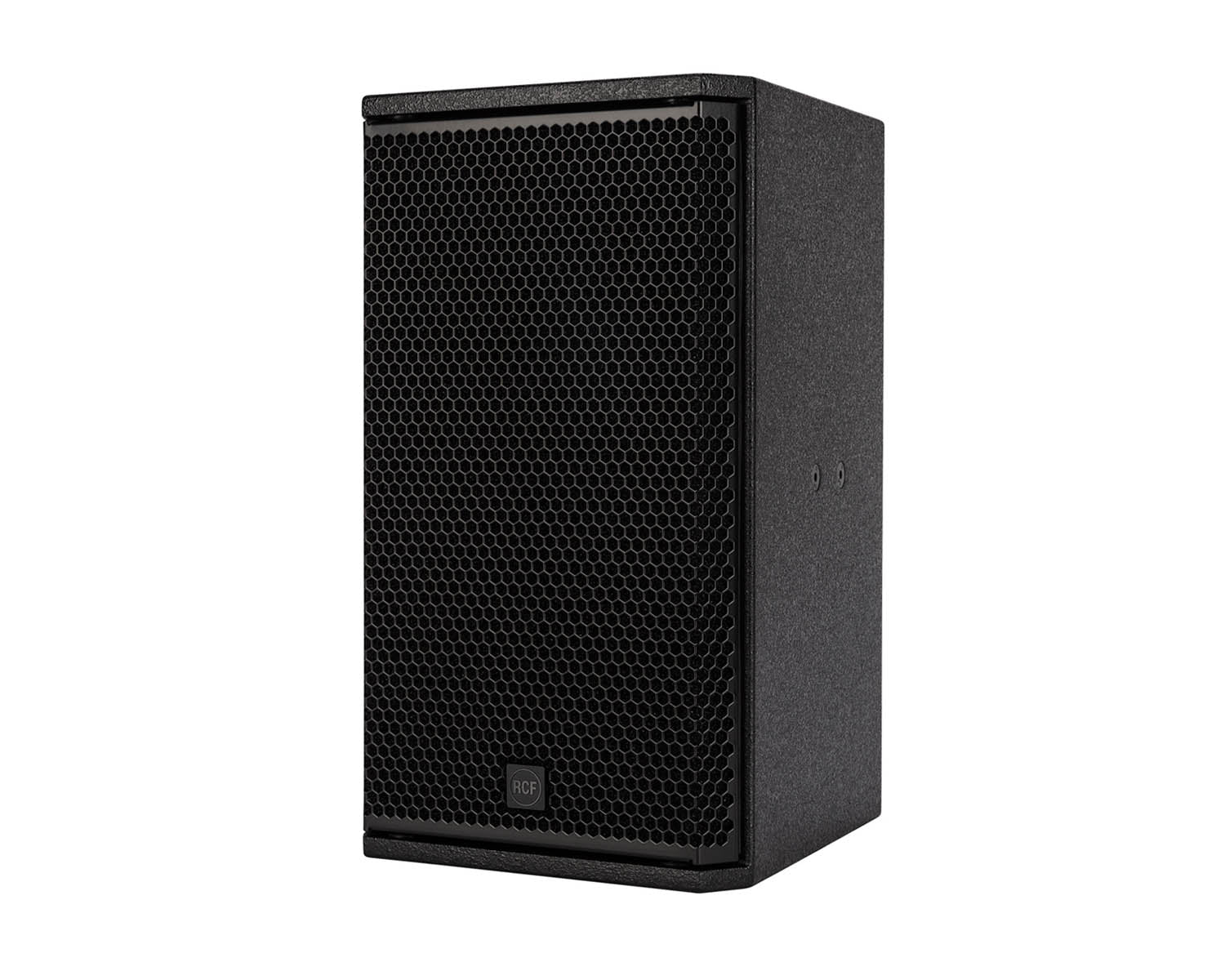

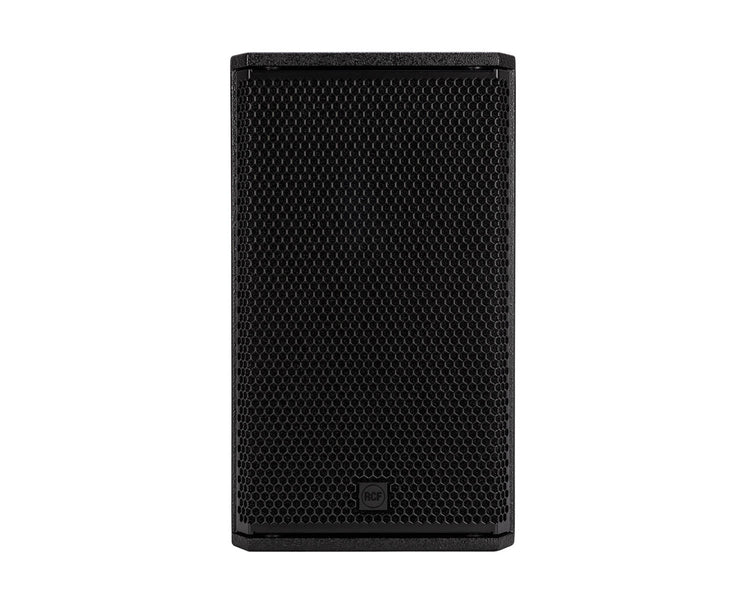

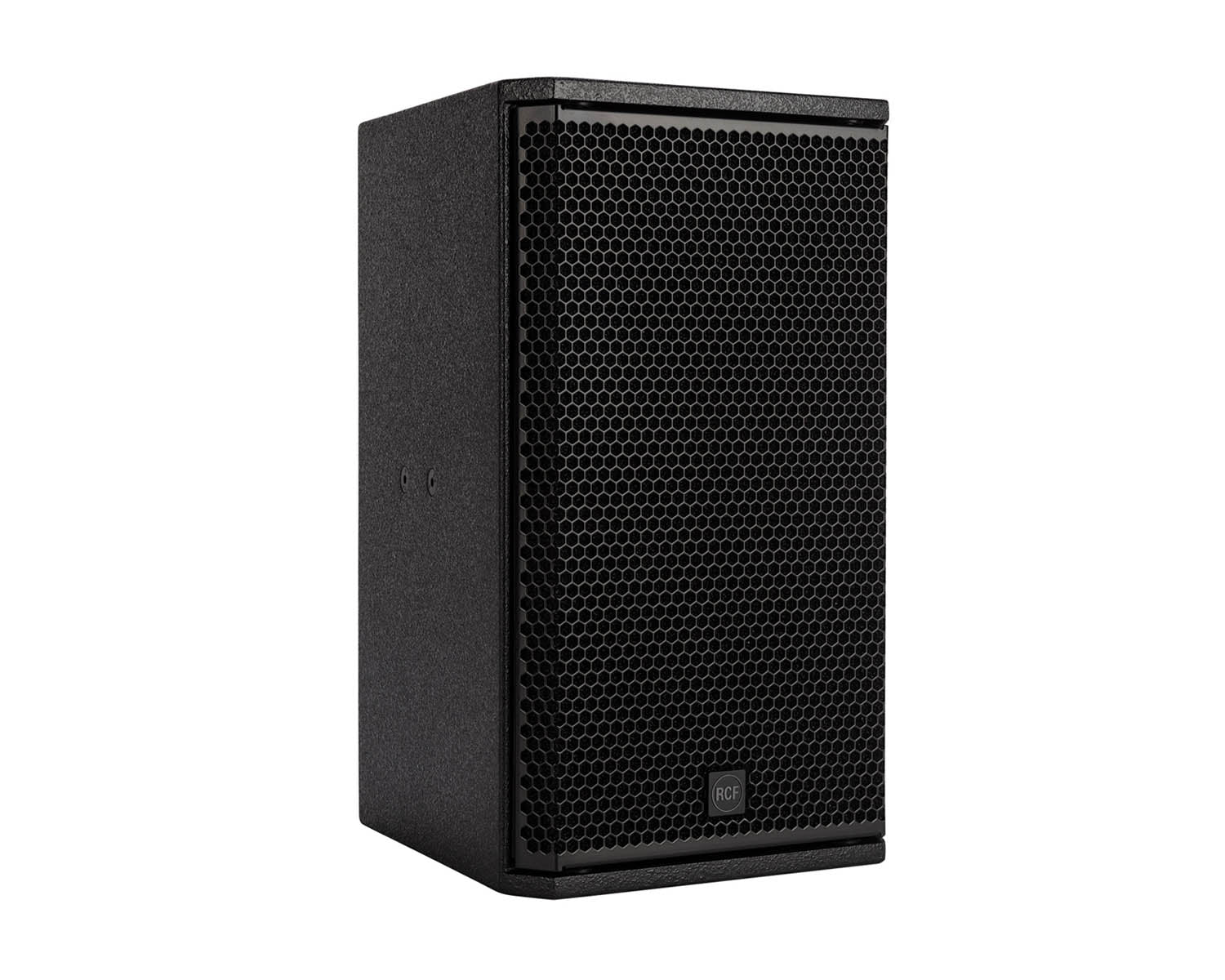

COMPACT M 08 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 08 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided compression driver. The SPL level of low-distortion audio the M 08 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 08 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 08 on wall or ceiling installations.

Product Features

• 180W RMS power handling
• 124 dB max SPL
• 60 ÷ 20000 Hz frequency range
• 90° x 70° constant directivity coverage angle

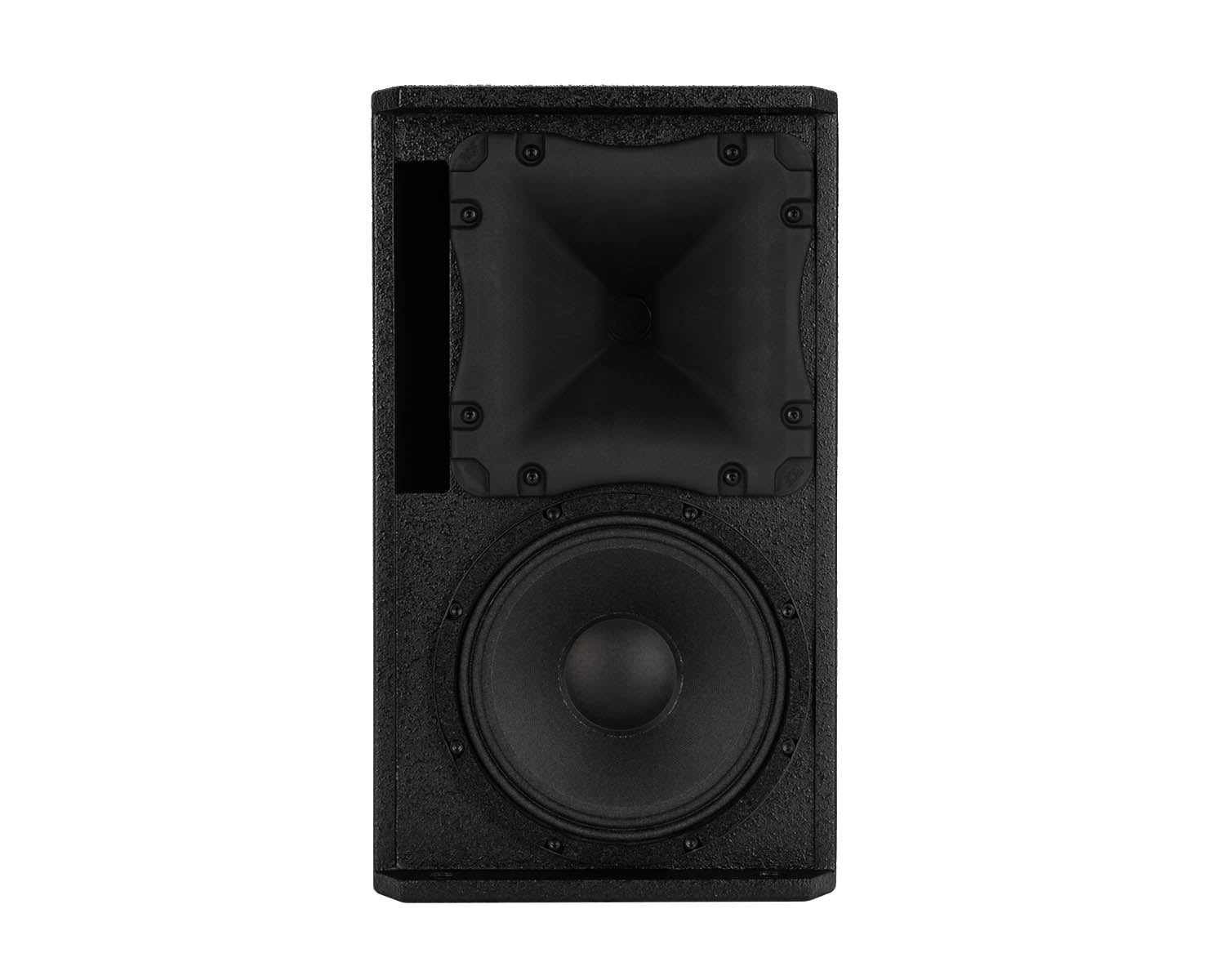

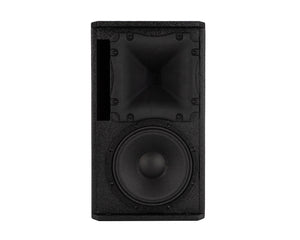

• 1 x 8" high power woofer
• 1 x 1.4" voice coil compression driver
• High quality plywood cabinet
• Steel front grille with clothing
• Installation points available on rear, top and bottom panels

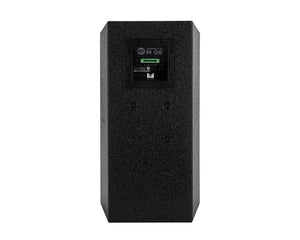

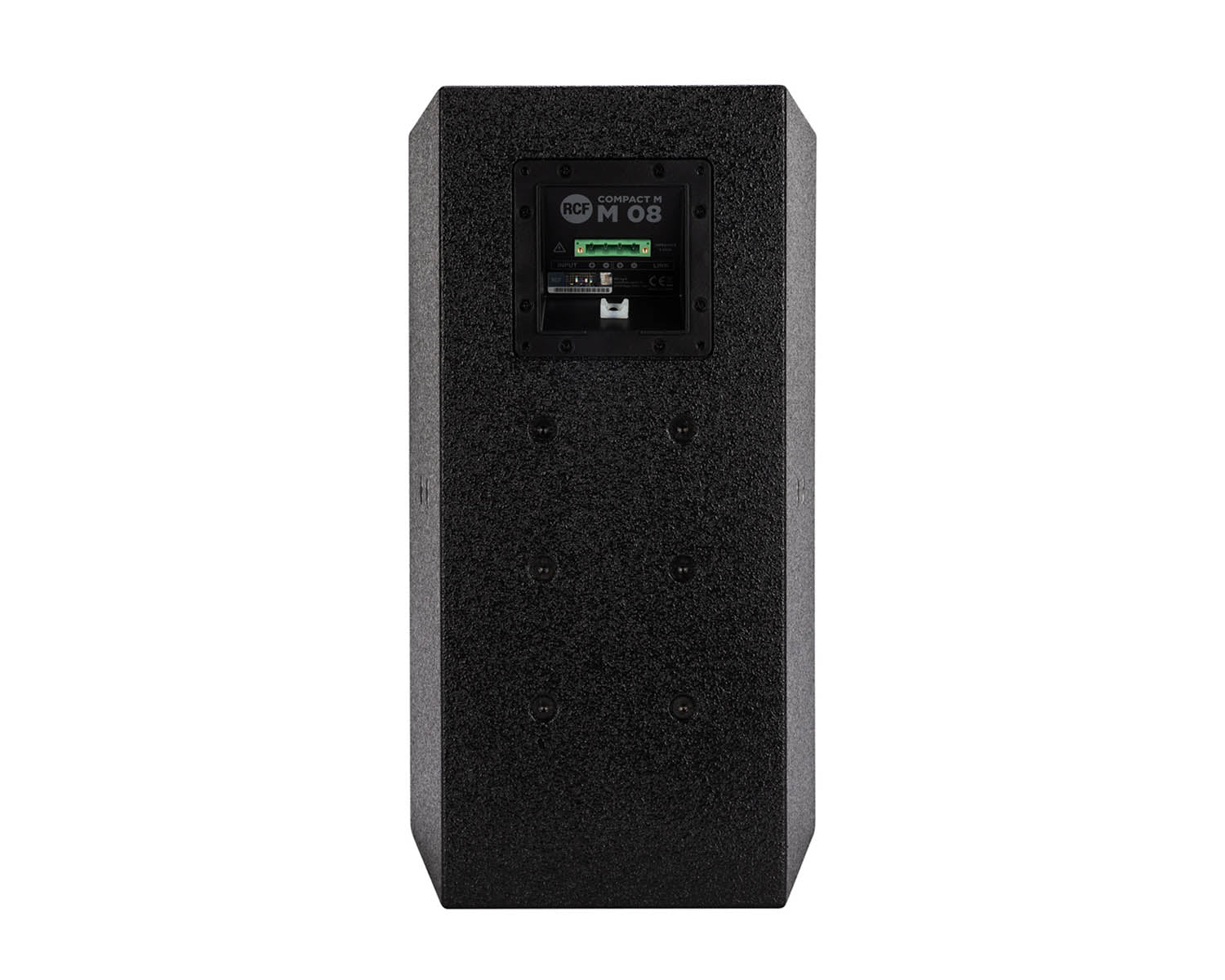

• 4 pole EUROBLOCK connector (audio input and parallel link output)

Product Specifications

Acoustical specifications

• Frequency Response (-10dB): 60 Hz ÷ 20000 Hz
• Max SPL @ 1m: 124 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 70°
• Directivity index Q: 9
• System Sensitivity: 95 dB

Power section

• Nominal Impedance (ohm): 8 ohm
• Power Handling: 200 W RMS
• Peak Power Handling: 800 W PEAK
• Recommended Amplifier: 400 W
• Protections: Dynamic active mosfet
• Crossover Frequencies: 1800 Hz

Transducers

• Compression Driver: 1 x 1.0\'\', 1.4\'\' v.c
• Nominal Impedance (ohm): 8 ohm
• Input Power Rating: 25 W AES, 50 W PROGRAM POWER
• Sensitivity: 107 dB, 1W @ 1m
• Woofer: 8\'\', 1.7\'\' v.c
• Nominal Impedance (ohm): 8 ohm
• Input Power Rating: 200 W AES, 400 W PROGRAM POWER
• Sensitivity: 94 dB, 1W @ 1m

Input/Output section

• Input connectors: Euroblock
• Output connectors: Euroblock

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: Plywood
• Hardware: 6 x M6, 4 x M8, 2 x M10
• Grille: Steel with clothing
• Color: Black - RAL 9005

Size

• Height: 442 mm / 17.4 inches
• Width: 257 mm / 10.12 inches
• Depth: 284 mm / 11.18 inches
• Weight: 13.5 kg / 29.76 lbs

Shipping information

• Package Height: 477 mm / 18.78 inches
• Package Width: 322 mm / 12.68 inches
• Package Depth: 295 mm / 11.61 inches
• Package Weight: 16 kg / 35.27 lbs
