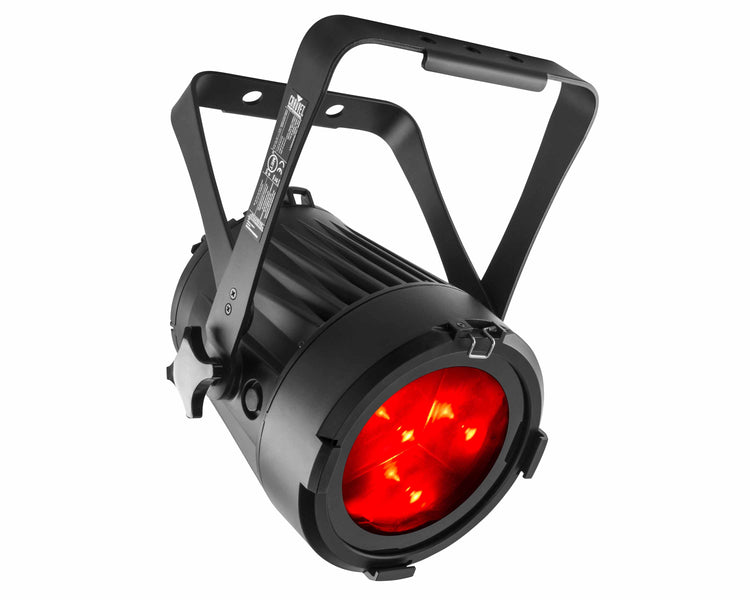

CHAC2SOLO - CHAUVET Professional COLORado 2 SOLO RGBW LED Wash IP65 with Zoom Image 1

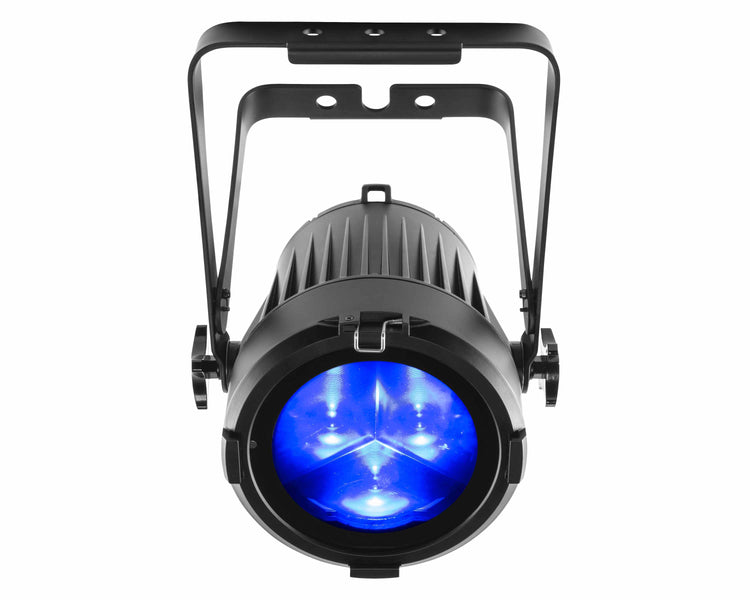

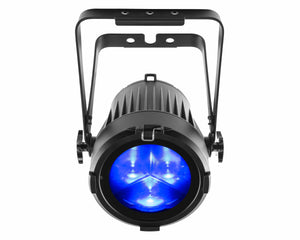

CHAC2SOLO - CHAUVET Professional COLORado 2 SOLO RGBW LED Wash IP65 with Zoom Image 2

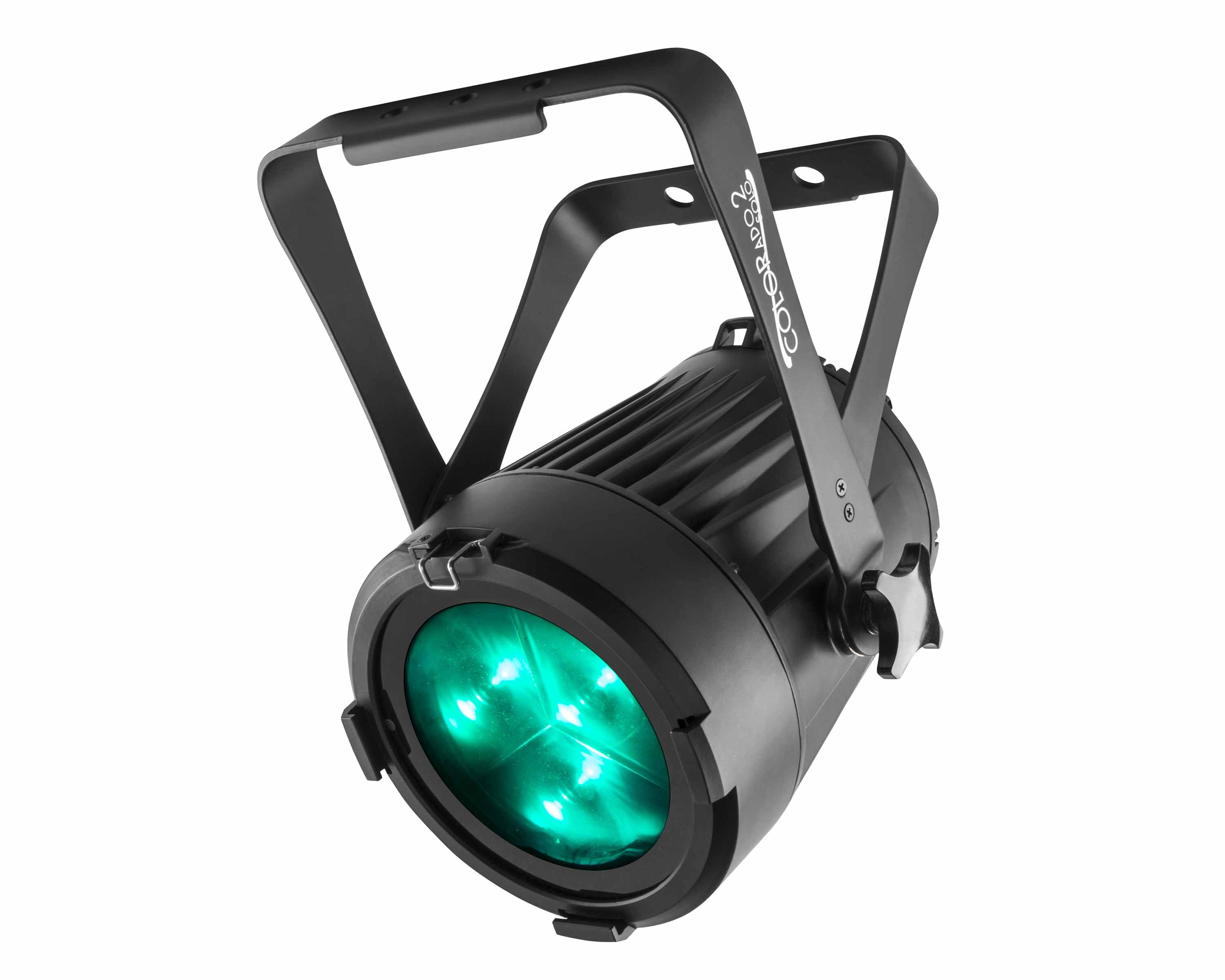

CHAC2SOLO - CHAUVET Professional COLORado 2 SOLO RGBW LED Wash IP65 with Zoom Image 3

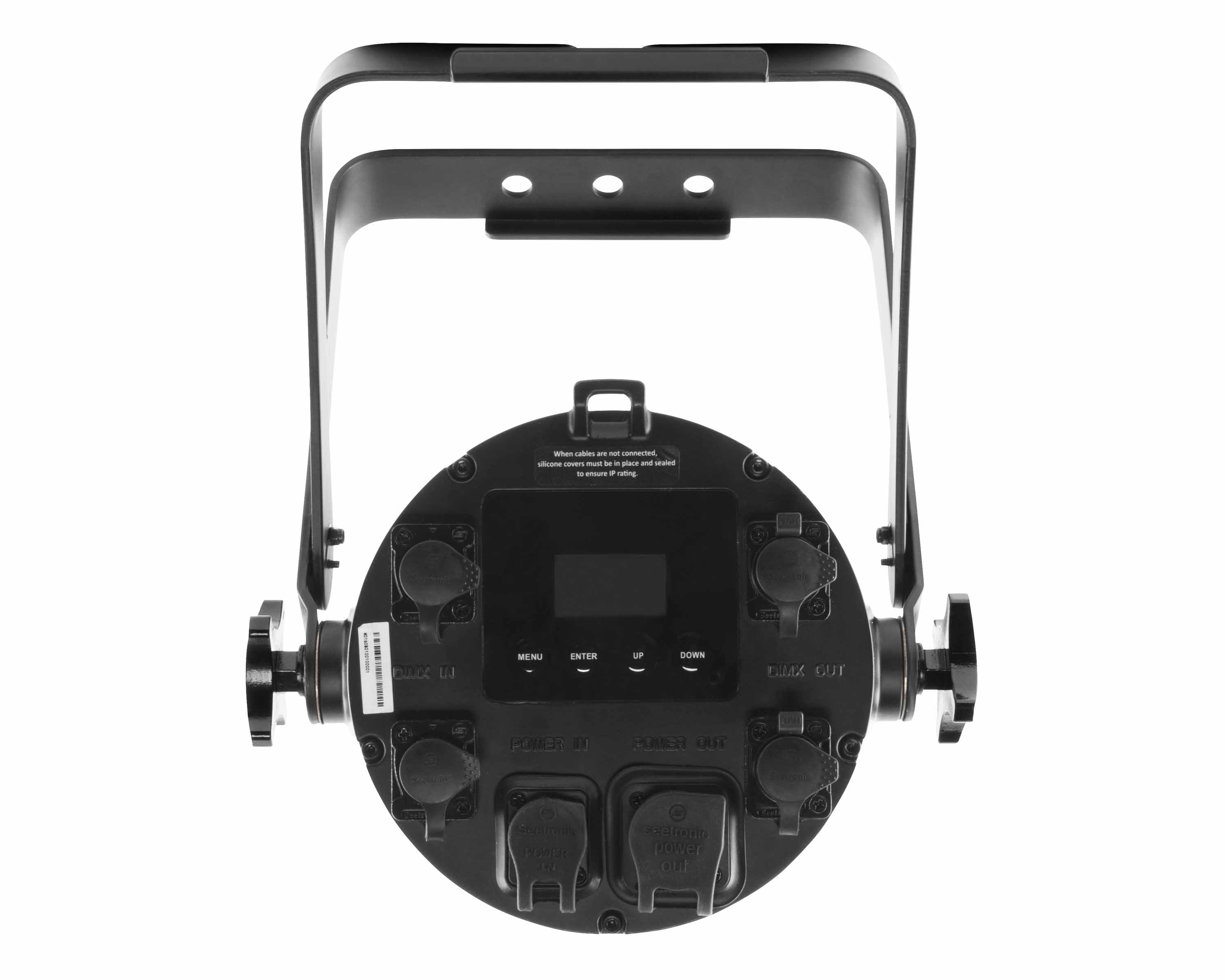

CHAC2SOLO - CHAUVET Professional COLORado 2 SOLO RGBW LED Wash IP65 with Zoom Image 4

Colorado 2 Solo from Chauvet Professional is fitted with three 40 W RGBW LEDs to project a beautiful and fully homogenized beam through fast and smooth zoom and precision optics. This indoor/outdoor wash light has IP rated power and data connectors, and full convection cooling to ensure a reliable and silent performance in a wide range of applications, from theatrical stages to outdoor festival productions.

Product Features

Zooming RGBW LED wash for touring, rental, and production, indoors or out
Completely homogenized wash with superior colour mixing and zoom
7° to 42° smooth and fast zoom
All environment operation with IP rated power and DMX connections
Colour temperature presets, from 3200 K to 10000 K
Selectable, smooth dimming curves for programming versatility
OLED display with password protection

Product Specifications

General

OPTICAL
- Light Source: 3 LEDs (quad-color RGBW) 40 W, (2.5 A), 50,000 hours life expectancy
- Beam Angle: 5° to 27°
- Field Angle: 7° to 42°
- Zoom Angle: 7° to 42°
- Illuminance (5°): 9,720 lux @ 5 mIlluminance (27°): 318 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz
DYNAMIC EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 25 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 5Built-in Automated Programs: Yes
- Customizable Programs: Yes
- Recall Custom Programs: Yes
CONNECTIONS
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX
- DMX Channels: 9, 12 or 17
- Modes/Personalities: 5 personalities (HSIC, SSP, TOUR, TR16, STD.Y)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 12 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
- Power and Current: 130 W, 1.11 A @ 120 V, 60 Hz
- Power and Current: 124 W, 0.63 A @ 208 V, 60 Hz
- Power and Current: 123 W, 0.57 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET
- IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
