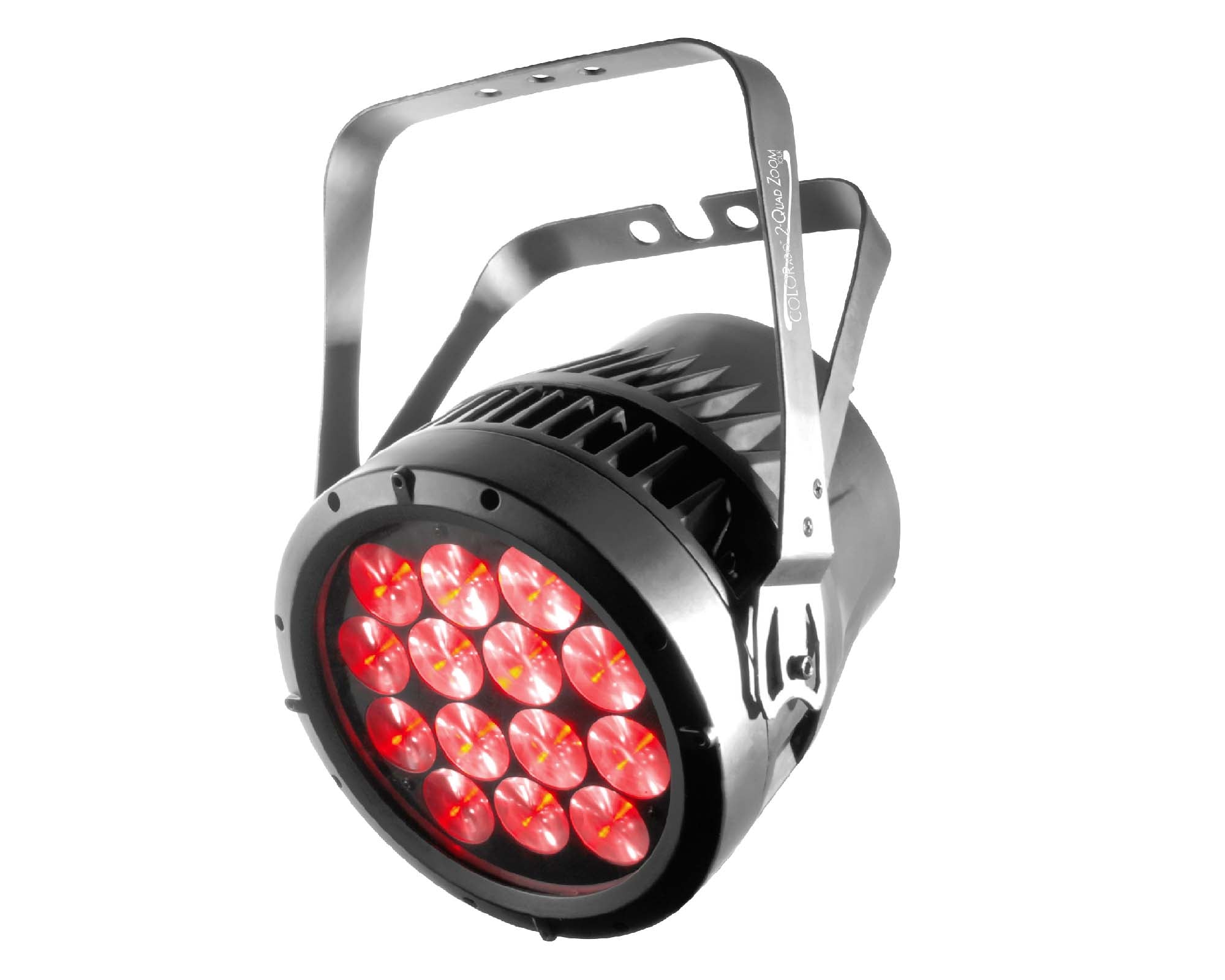

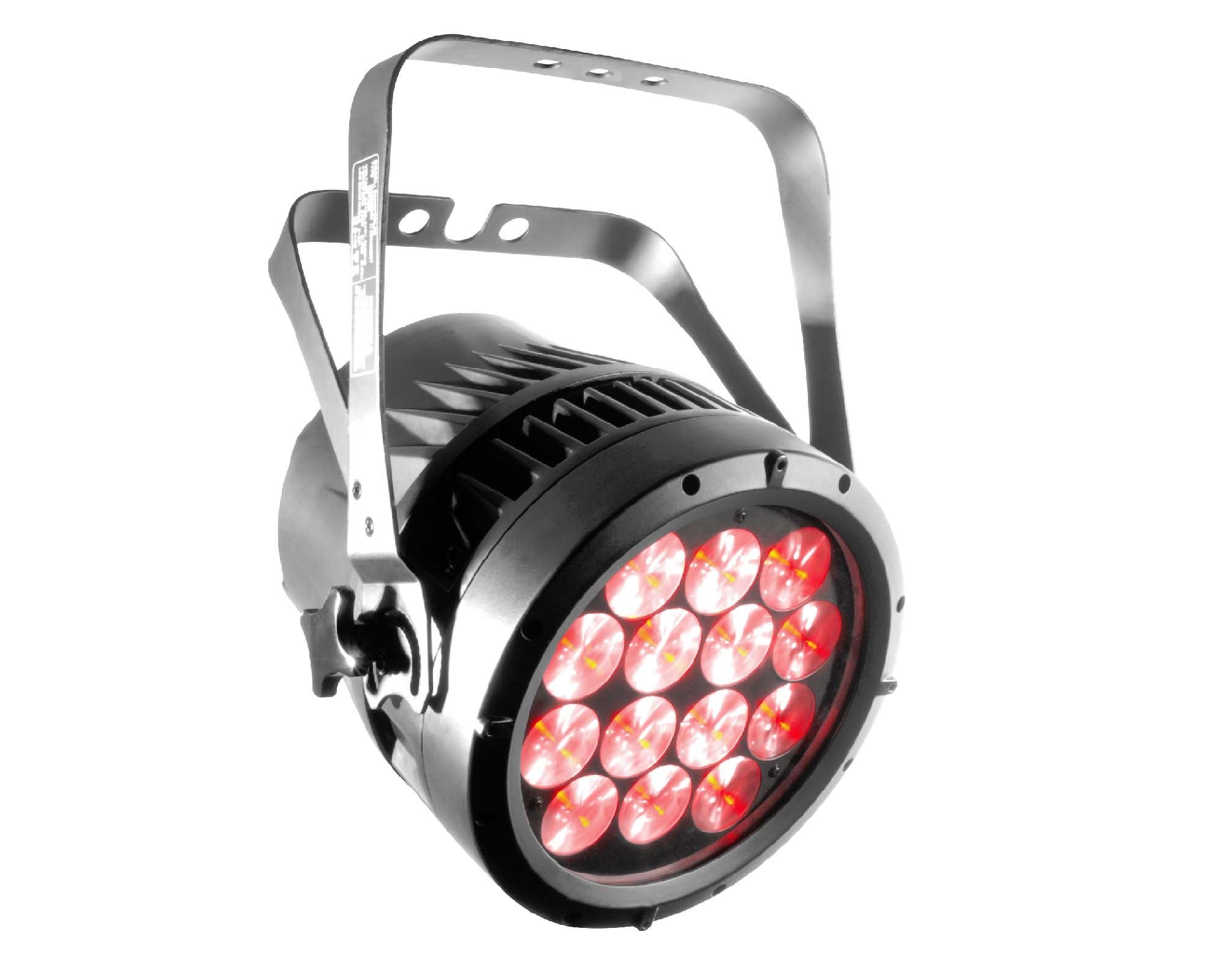

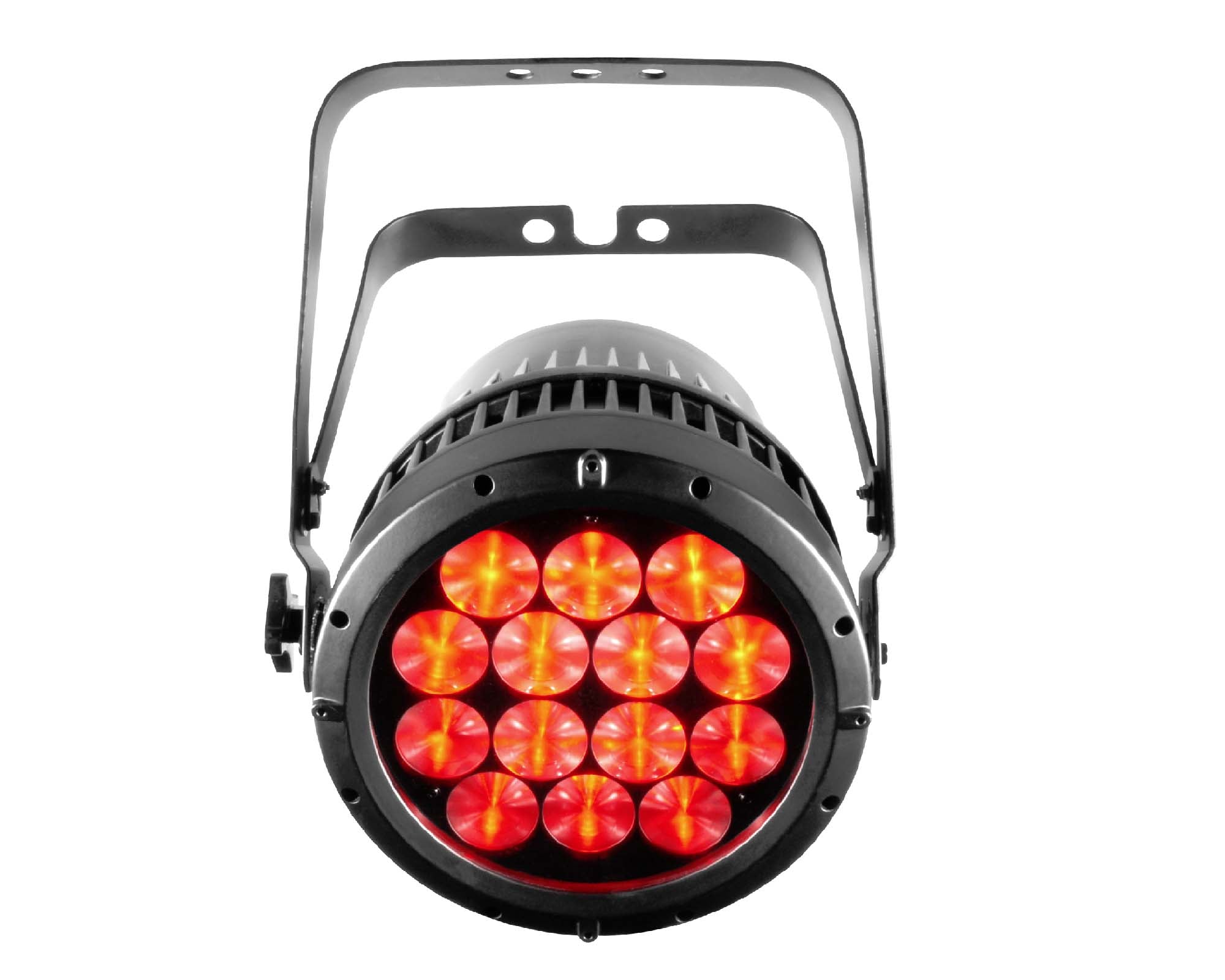

COLORado 2-Quad Zoom Tour is a reliable PAR-style powerhouse featuring fourteen 15-watt quad-colour RGBW LEDs, a zoom range of 11° to 43° and nine dimming curves offering the creative freedom of use as a beam, a wide flood, or both in the same rig. Secure Neutrik powerCON in addition to 3-pin and 5-pin DMX input/output connections and its tough construction make it a reliable, tour-ready addition to any rig.

Product Features

• RGBW colour mixing via DMX or manually
• Zoom control via DMX or manually
• Color temperature presets 3200 to 10000 K
• Built-in auto and custom programs recalled via DMX and Master/Slave
• 16-bit dimming of individual colors as well as master dimmer
• Selectable, smooth dimming curves for programming versatility
• Color macros with included speed adjustment
• Double-bracketed yoke doubles as a floor stand

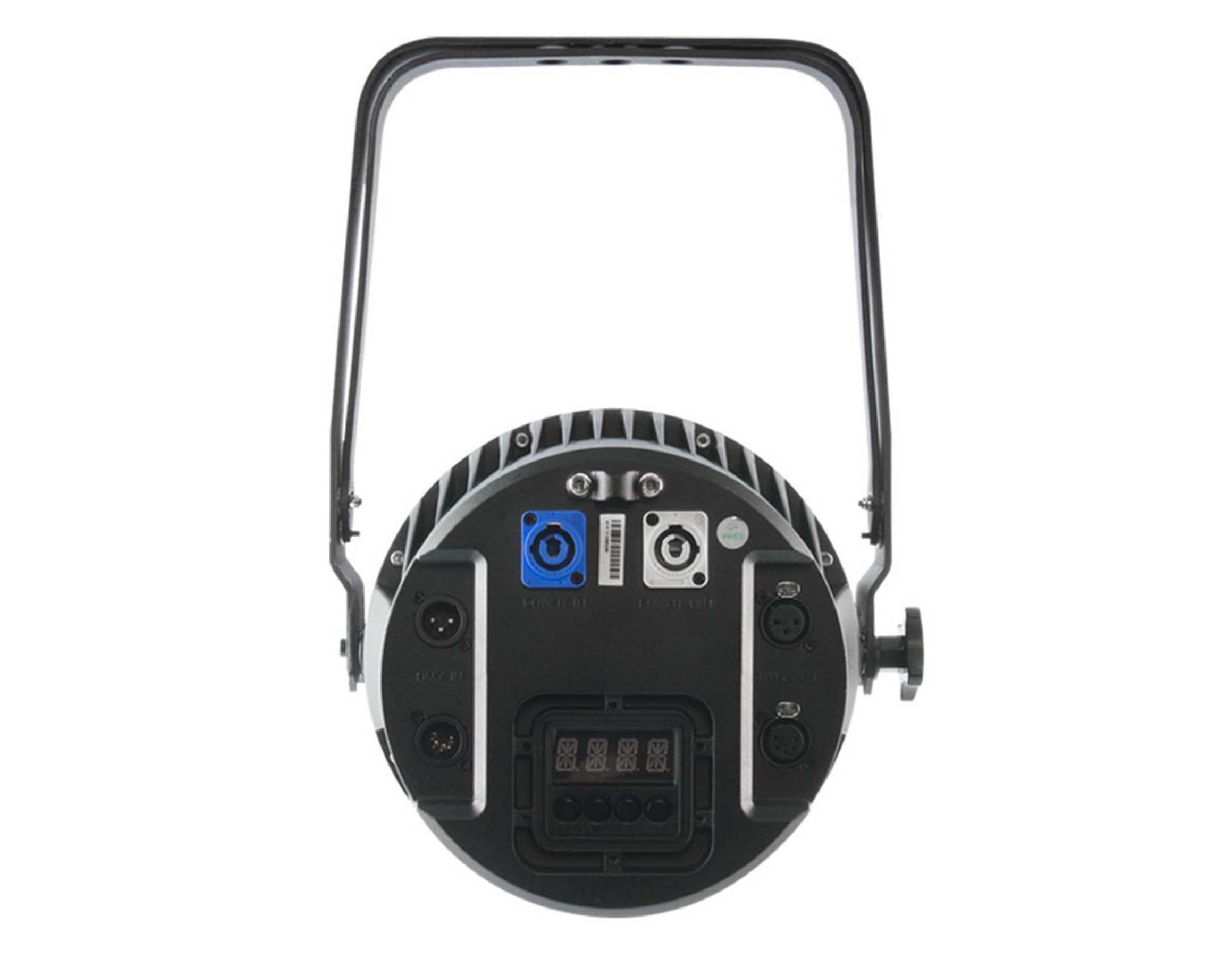

• Neutrik powerCON power input/output connections
• 3- and 5-pin DMX input/output connections
• LED display with passcode protection

Product Specifications

Optical

• Light Source: 14 LEDs (quad-colour RGBW) 15 W, (985 mA), 50,000 hours life expectancy
• Colour Temperature (range): 2800 to 10000 K
• Beam Angle: 6° to 30°
• Field Angle: 11° to 43°
• Zoom Angle: 11° to 43°
• Illuminance (11°): 8,000 lux @ 5 m
• Illuminance (43°): 695 lux @ 5 m
• PWM Frequency: 1,200 Hz

Dynamic Effects

• Colour Macros: 20 macros
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Colour Mixing: Yes
• Colour Temperature pre-sets: Yes
• Dim Modes: 5Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

Physical & Dimensions

• Dimensions: 283 x 236 x 348 mm
• Weight: 8.1 kg
• Exterior Colour: Black
• Housing Material: aluminium die-cast
• Accessory Holder/Gel Frame Size: 229 mm

Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 1.5 m

Control

• Control Protocol: DMX
• DMX Channels: 3, 4, 5, 6, 7, 12 or 17
• Modes/Personalities: 10 personalities (HSV, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, TOUR, TR16, STD.Y)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
• Power and Current: 205 W, 1.71 A @ 120 V, 60 Hz
• Power and Current: 208 W, 0.99 A @ 208 V, 60 Hz
• Power and Current: 212 W, 0.93 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, METIP Rating: IP20, dry location

What’s in the Box?

• COLORado 2-Quad Zoom Tour
• Neutrik powerCON power cord
• Gel frame holder (9 in/229 mm accessories)
• Gel frame
