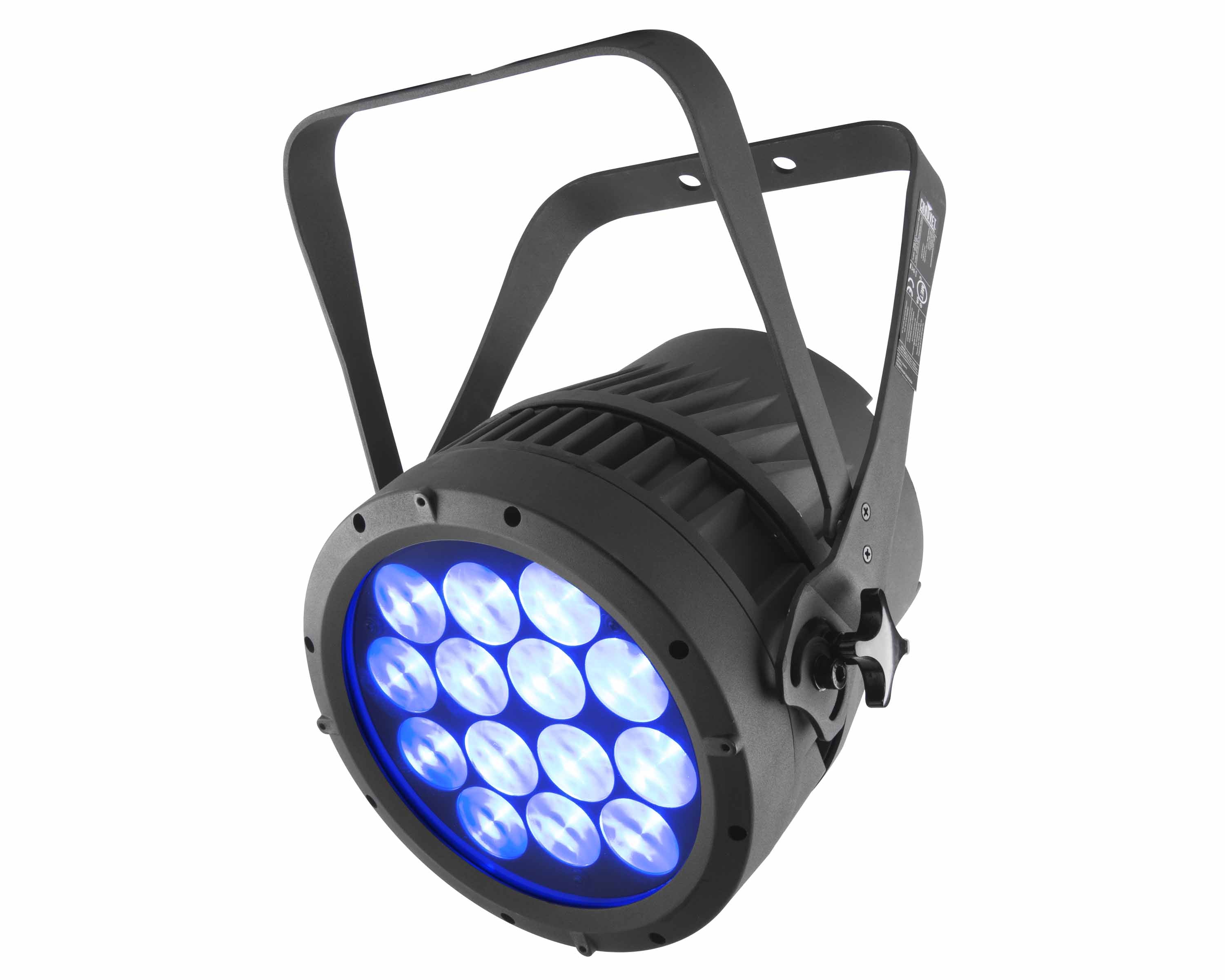

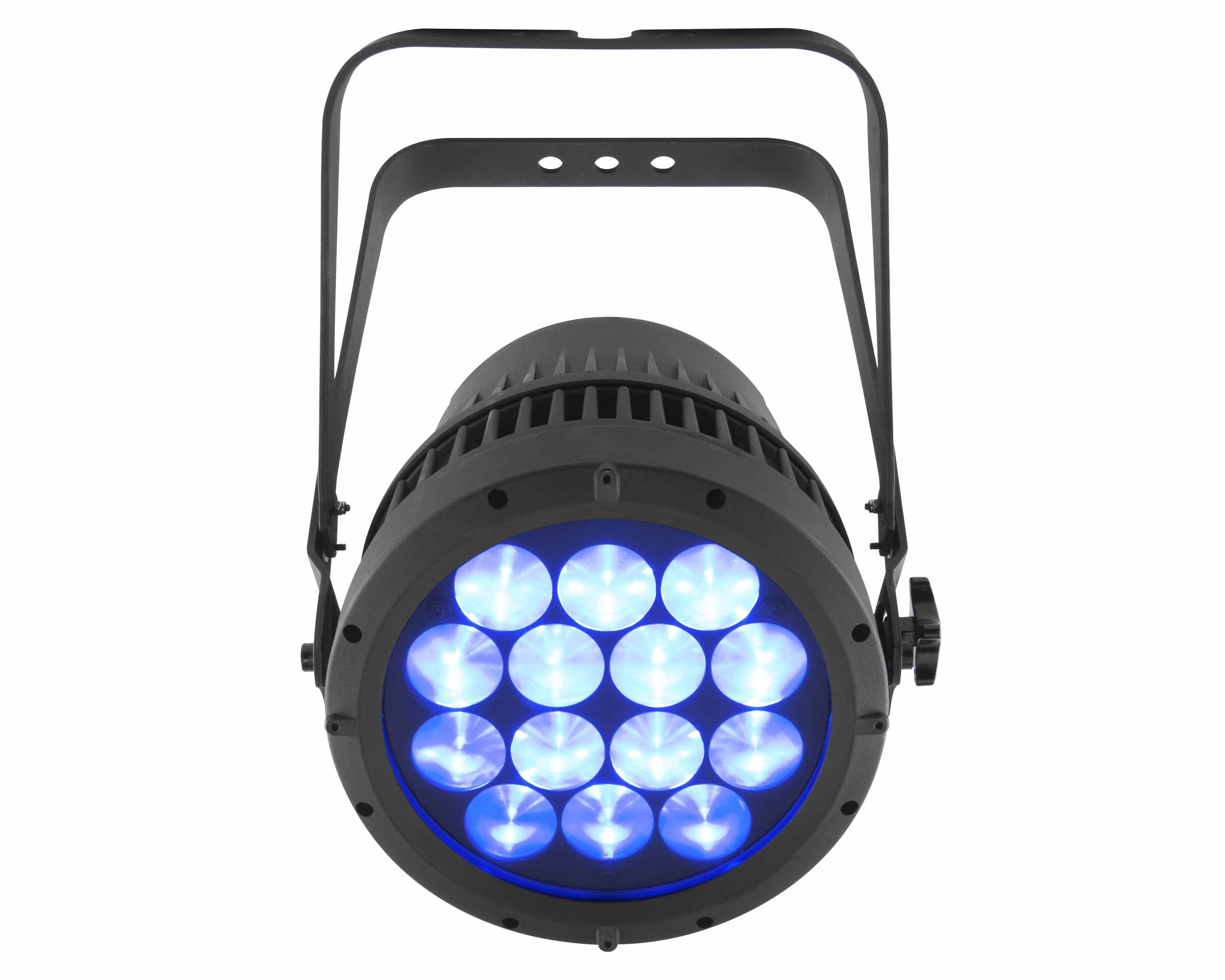

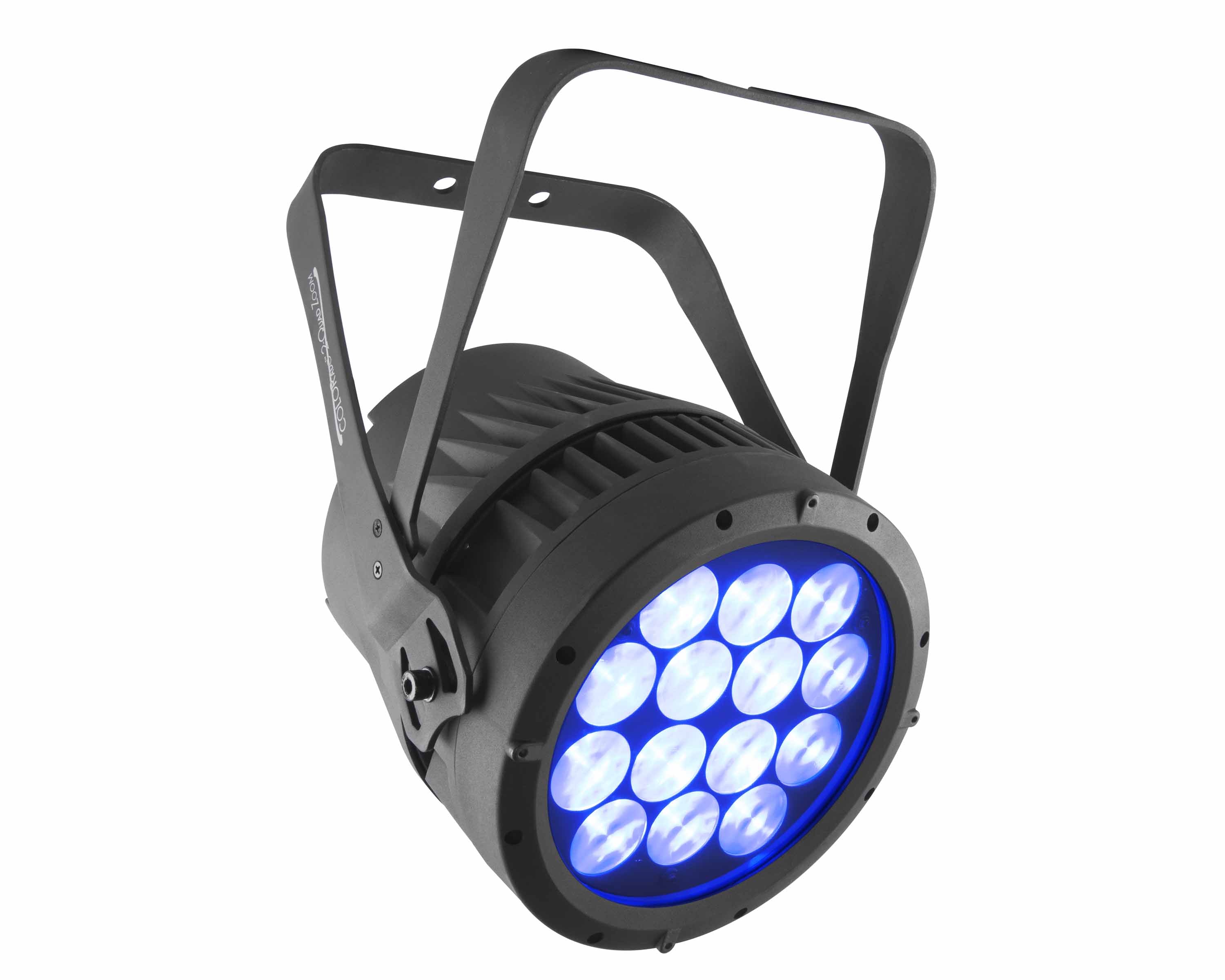

Colorado 2-Quad Zoom from Chauvet Professional is a solid indoor/outdoor wash light featuring 14 bright quad-colored Osram (RGBW) LEDs and a 14° to 44° zoom. Selectable dimming curves facilitate its integration into an existing rig. This excellent LED wash light maintains its IP65 rating with IP rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use. IP rated power and data connectors allows for easy connections without the need for proprietary cabling.

Product Features

• RGBW colour mixing via DMX or manually
• Zoom control via DMX or manually
• Colour temperature presets 3,200 to 10,000 K
• Built-in auto and custom programs recalled via DMX and Master/Slave
• 16-bit dimming of individual colors as well as master dimmer
• Selectable, smooth dimming curves for programming versatility
• Colour macros with included speed adjustment
• Double-bracketed yoke doubles as a floor stand
• All environment operation with IP rated power and DMX connections
• 3- and 5-pin DMX input/output connections
• LED display with password protection

Product Specifications

General

• OPTICAL
  • Light Source: 14 LEDs (quad-color RGBW) 15 W, (985 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Beam Angle: 7° to 29°
  • Field Angle: 14° to 44°Zoom Angle: 14° to 44°
  • Illuminance (14°): 7,180 lux @ 5 m
  • Illuminance (44°): 737 lux @ 5 m
  • PWM Frequency: 1,200 Hz
• DYNAMIC EFFECTS
  • Color Macros: 20 macros
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes
• CONNECTIONS
  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
• CONTROL
  • Control Protocol: DMX
  • DMX Channels: 3, 4, 5, 6, 7, 12 or 17
  • Modes/Personalities: 10 personalities (HSV, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, TOUR, TR16, STD.Y)
• ELECTRICAL
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: 220 W, 1.82 A @ 120 V, 60 Hz
  • Power and Current: 225 W, 1.08 A @ 208 V, 60 Hz
  • Power and Current: 228 W, 0.98 A @ 230 V, 50 Hz
• CERTIFICATIONS / QUALIFICATIONS
  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use

Physical & Dimensions

• Diameter: 236mm
• With: 284mm inc. bracket
• Depth: 330mm
• Weight: 8.6kg
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 229mm

What's in the Box?

• COLORado 2-Quad Zoom
• Seetronic Powerkon IP65 power cord
• Gel frame holder (9 in/229 mm accessories)
• Gel frame
