Audio-Technica’s high-SPL BP892x MicroSet® offers the ultimate in low-profile, high-performance audio. Delivering clear and accurate sound in an inconspicuous package, the ultra-lightweight BP892x hooks securely behind either ear and can be worn for hours without fatigue. For maximum stability and comfort, the included AT8464x dual-ear adapter kit converts the MicroSet to a dual-ear-worn unit.

The BP892x MicroSet’s subminiature omnidirectional condenser capsule delivers extremely intelligible, natural audio with a flat, extended frequency response that is ideal for stage and television talent, lecturers, and worship leaders. Engineered to stand up to the rigors of day-to-day use, the BP892x includes a detachable, field-replaceable cable with a robust connector at the earset and a variety of available output terminations.

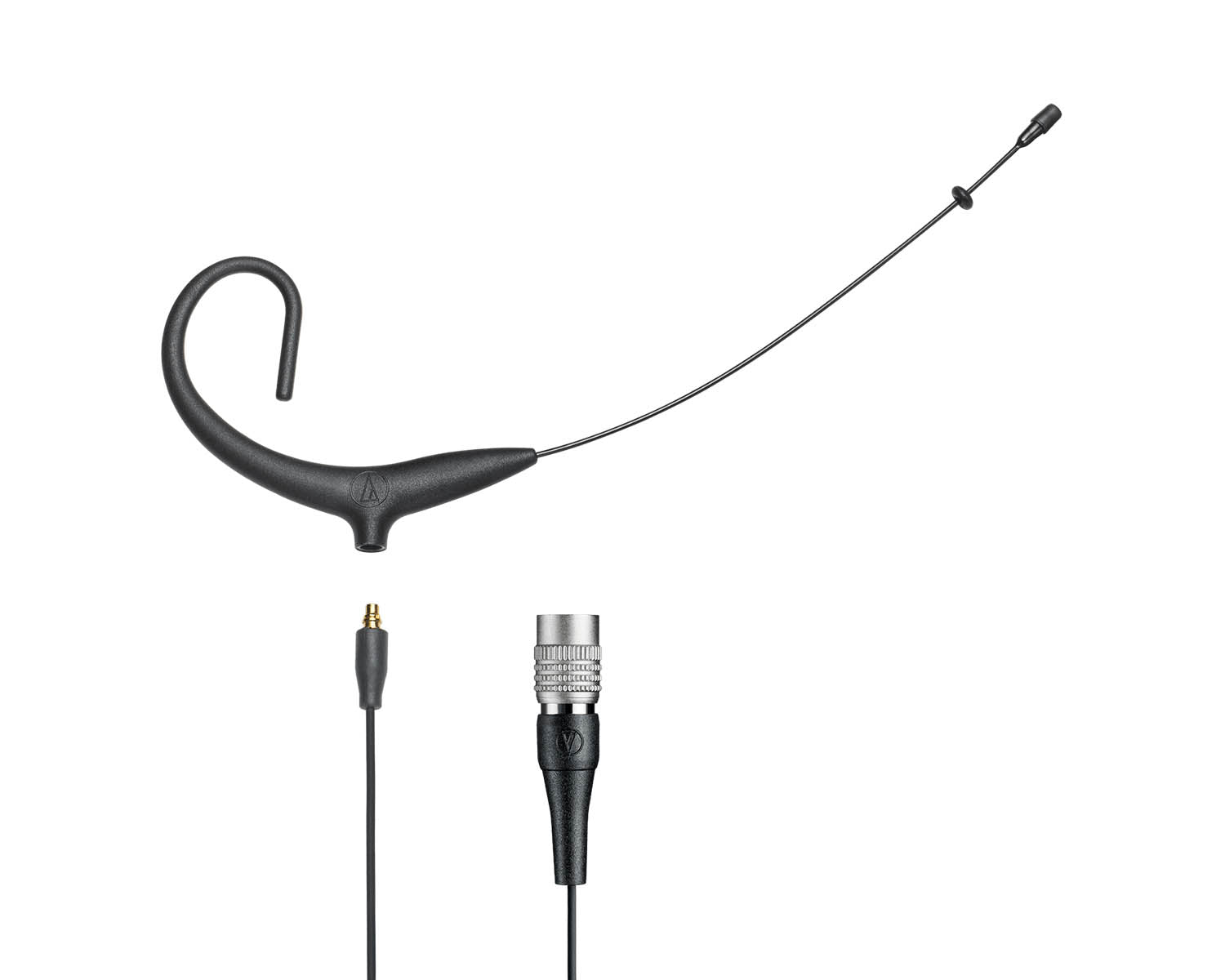

BP892xcW: 55" (1.4 m) detachable cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters; no power module. Black

Product Features

• Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
• Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
• Ergonomic under-ear design – the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
• Detachable, field-replaceable cable with robust connector at the earset and a variety of available output terminations
• Handles high sound pressure levels with ease
• Wired version’s power module (AT8545) includes a high-pass filter that provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
• Comes with the AT8464x Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit that’s worn on both ears for maximum stability and comfort
• Constructed of hypoallergenic materials
• BP892xcW: 55" (1.4 m) detachable cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters; no power module. Black

Product Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20-20,000 Hz
• Low Frequency Roll Off: 80 Hz, 18 dB/octave (wired only)
• Open Circuit Sensitivity: –43 dB (7.2 mV) re 1V at 1 Pa
• Output Impedance: 250 ohms (wired only)
• Maximum Input Sound Level: 136 dB SPL, 1 kHz at 3% T.H.D.
• Dynamic Range: 104 dB, 1 kHz at 3% T.H.D. Max SPL (wired only)
• Signal-to-Noise Ratio: 63 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical (wired only)
• Switches: Flat, roll-off (wired only)
• Current Consumption: 0.2 mA typical at 5V (wireless only)
• Voltage Range: 2.5-10V (wireless only)
• Weight (microphone): Microphone, boom & earpiece: 2.6 g (0.09 oz)
• Weight: Microphone, boom & earpiece: 2.6 g
• Power module (wired only): 85 g
• Cable: Detachable 1.4 m long, 1.6 mm diameter, 2- or 3-conductor shielded cable (termination dependent)
• Dimensions: Microphone: 9.5 mm long, 2.6 mm diameter
• Boom: 98.5 mm long, 1.07 mm diameter
• Output Connector: Integral 3-pin XLRM-type
• Audio-Technica Case Style: M31

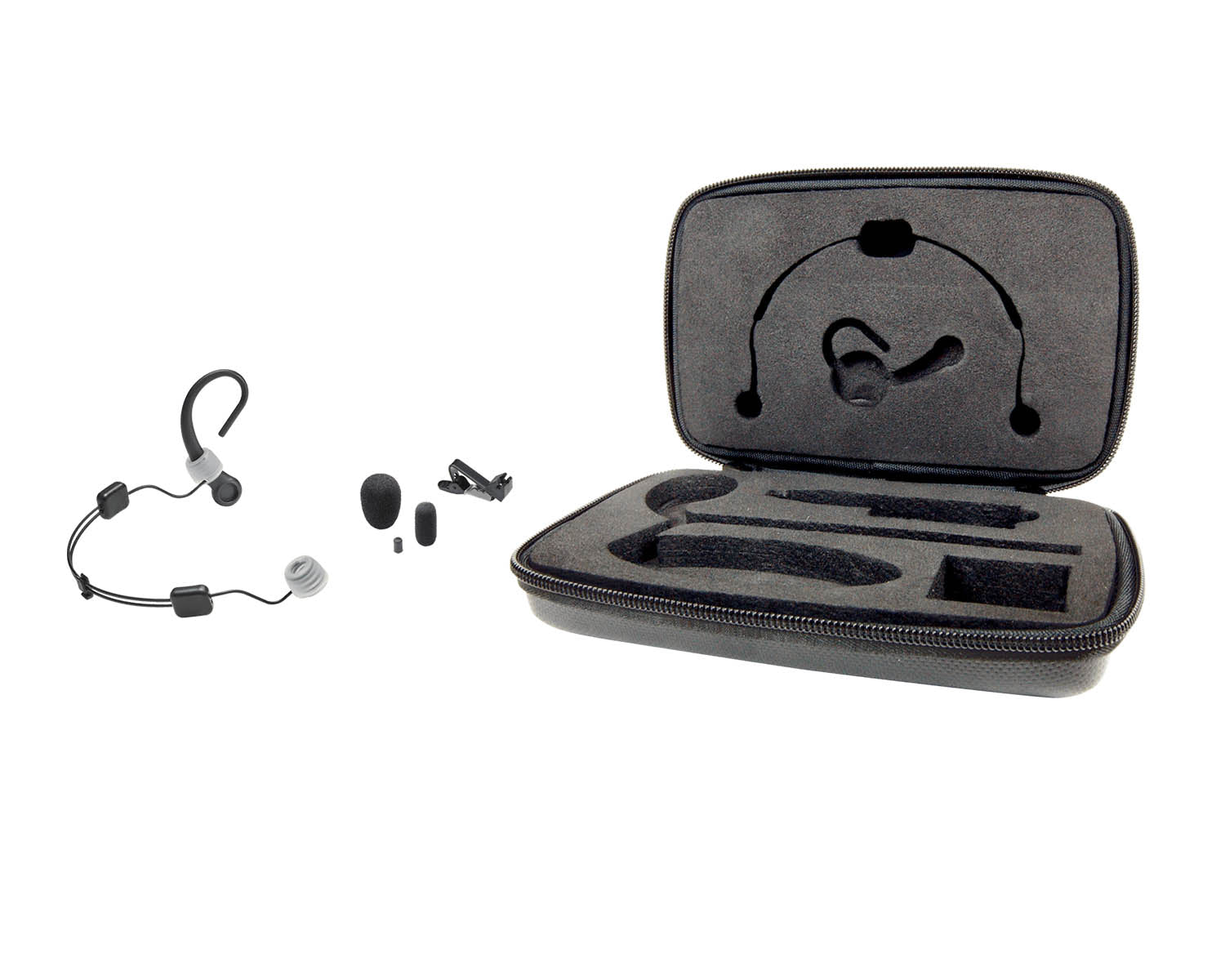

What's in the Box?

• AT8464x dual-ear adapter kit
• AT8440 cable clip
• AT8157 windscreen
• AT8171 windscreen
• 2x AT8156 element covers
• Moisture guard
• Carrying case
