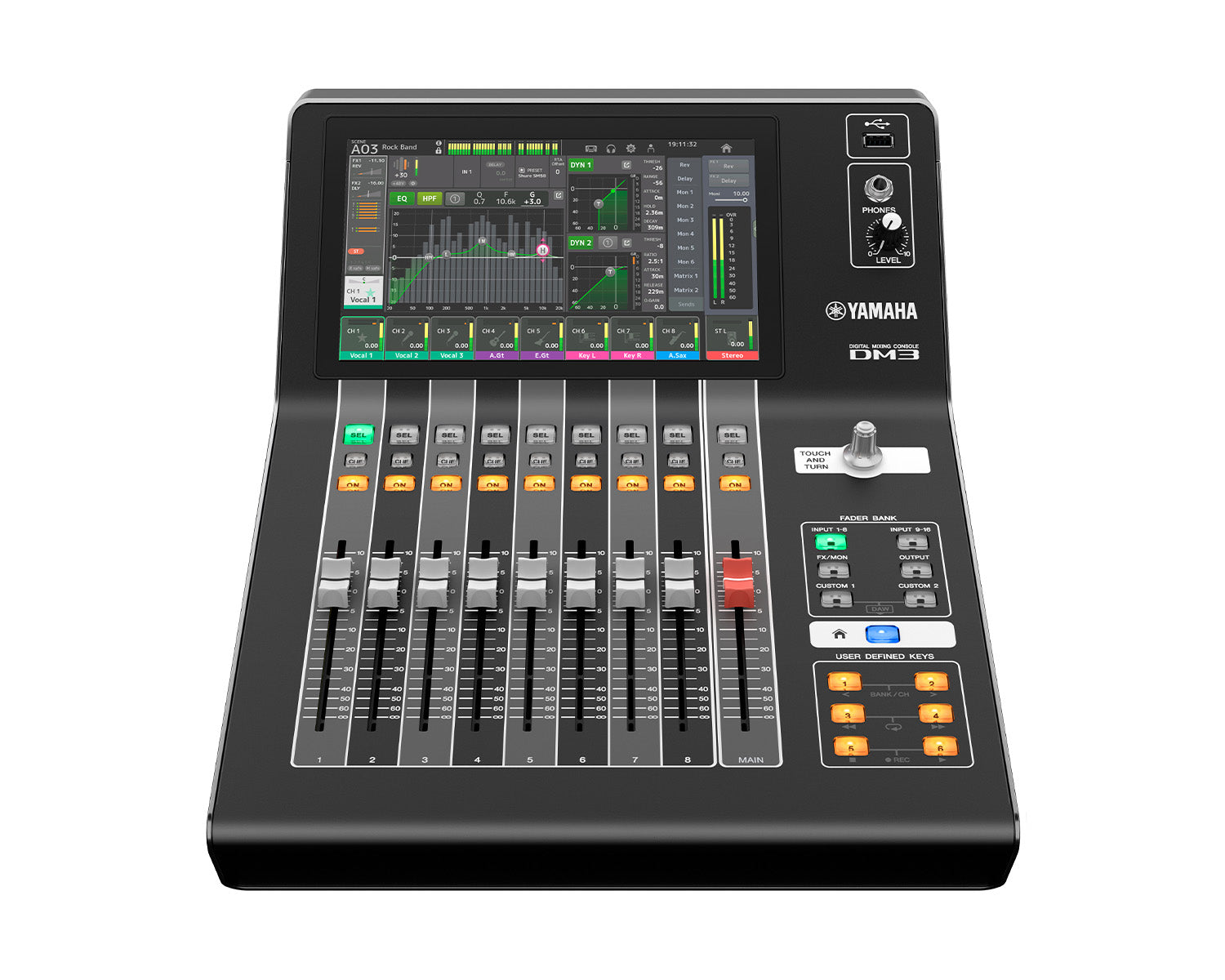

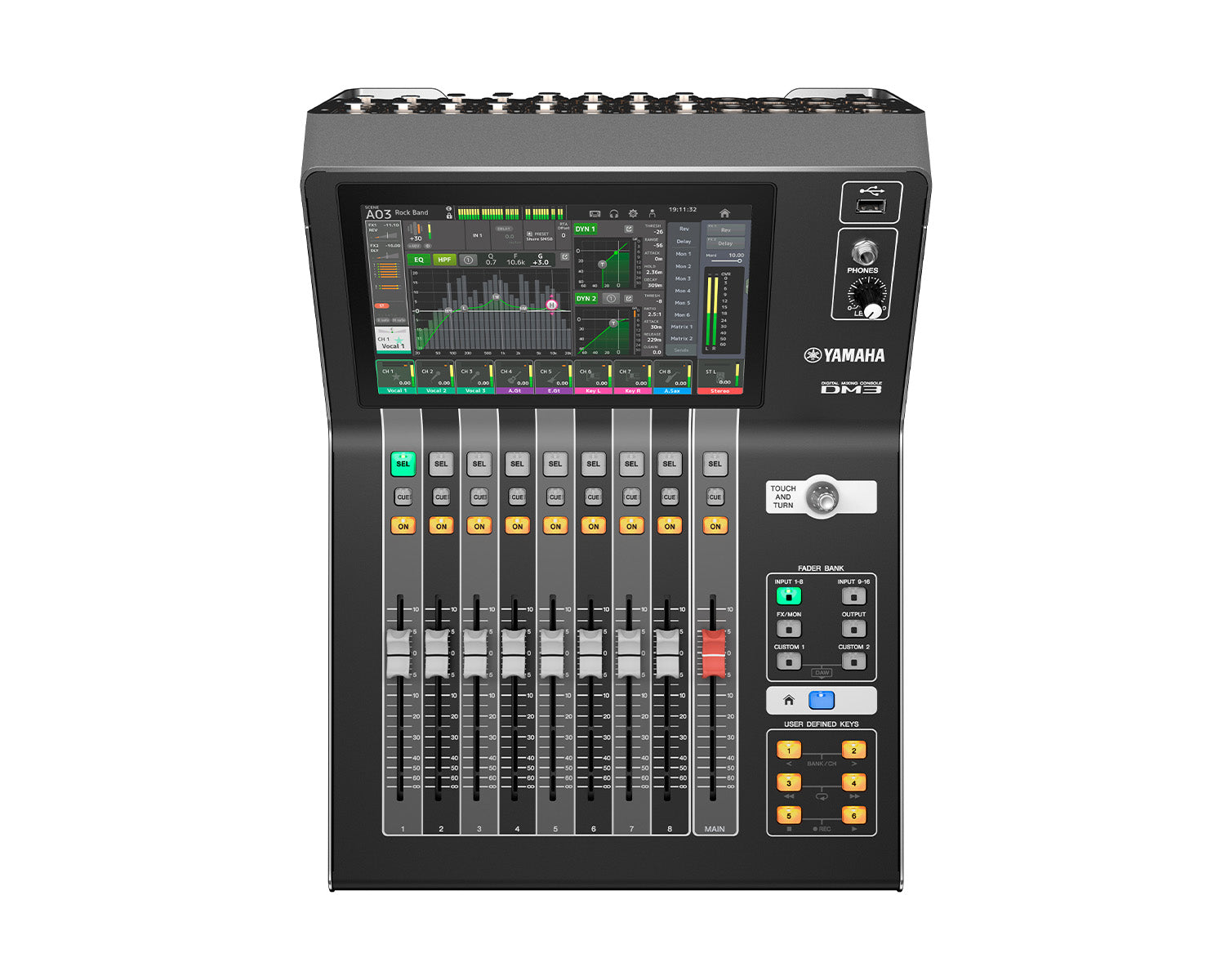

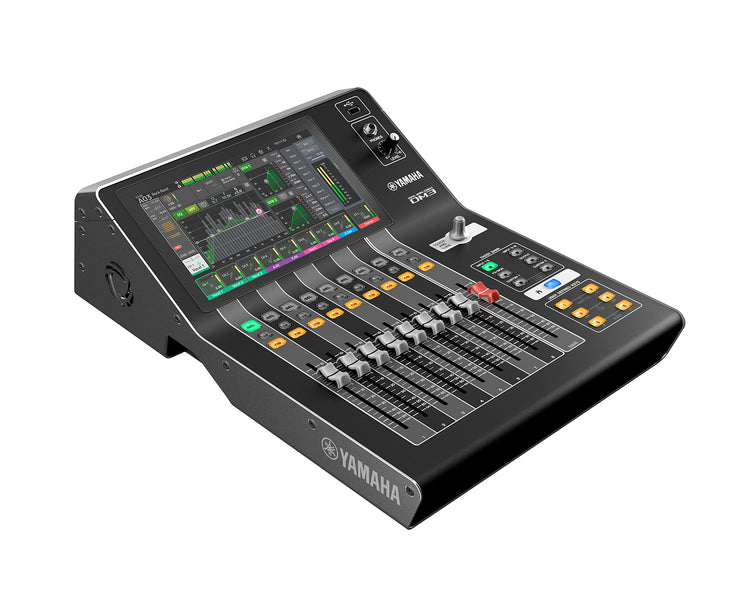

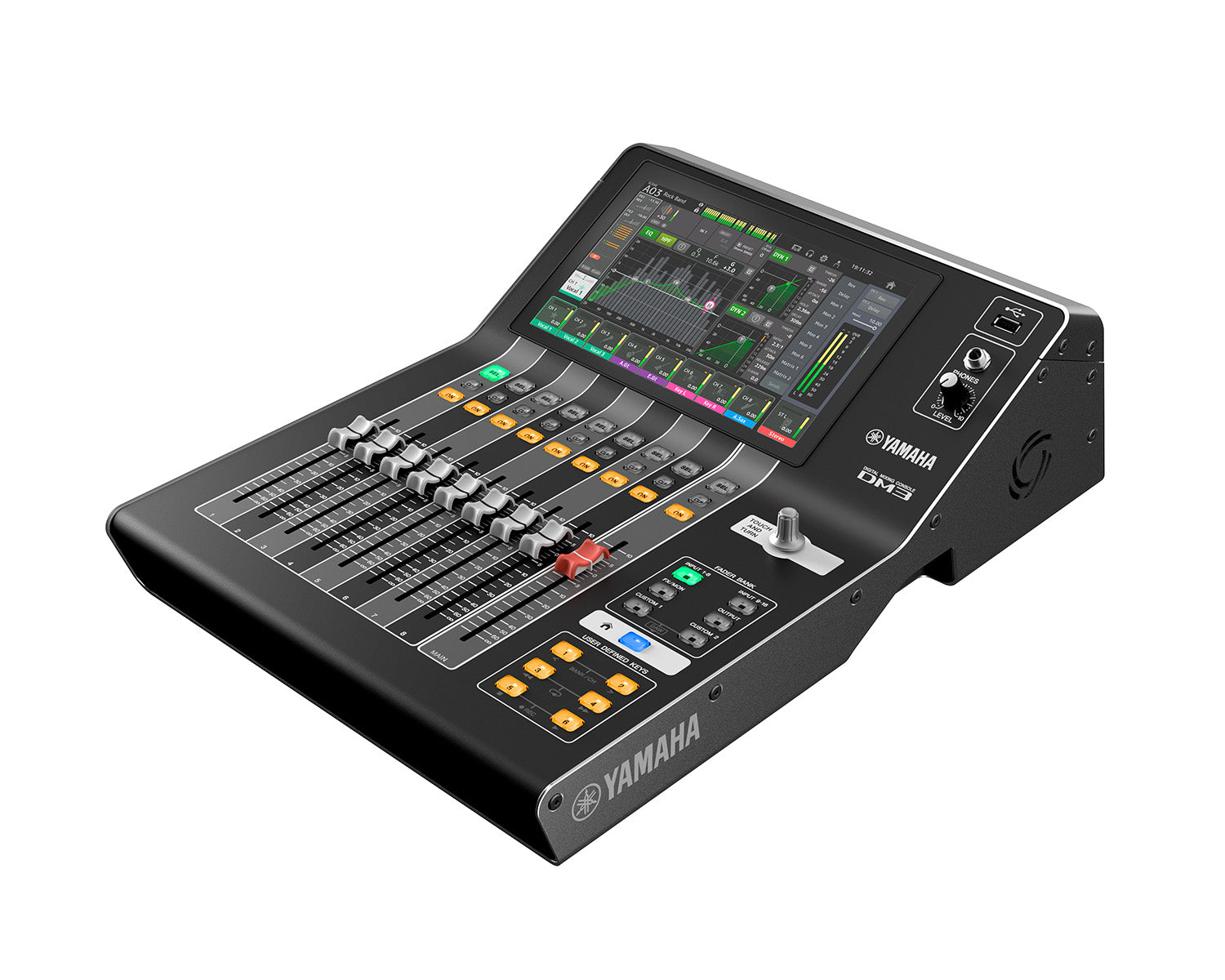

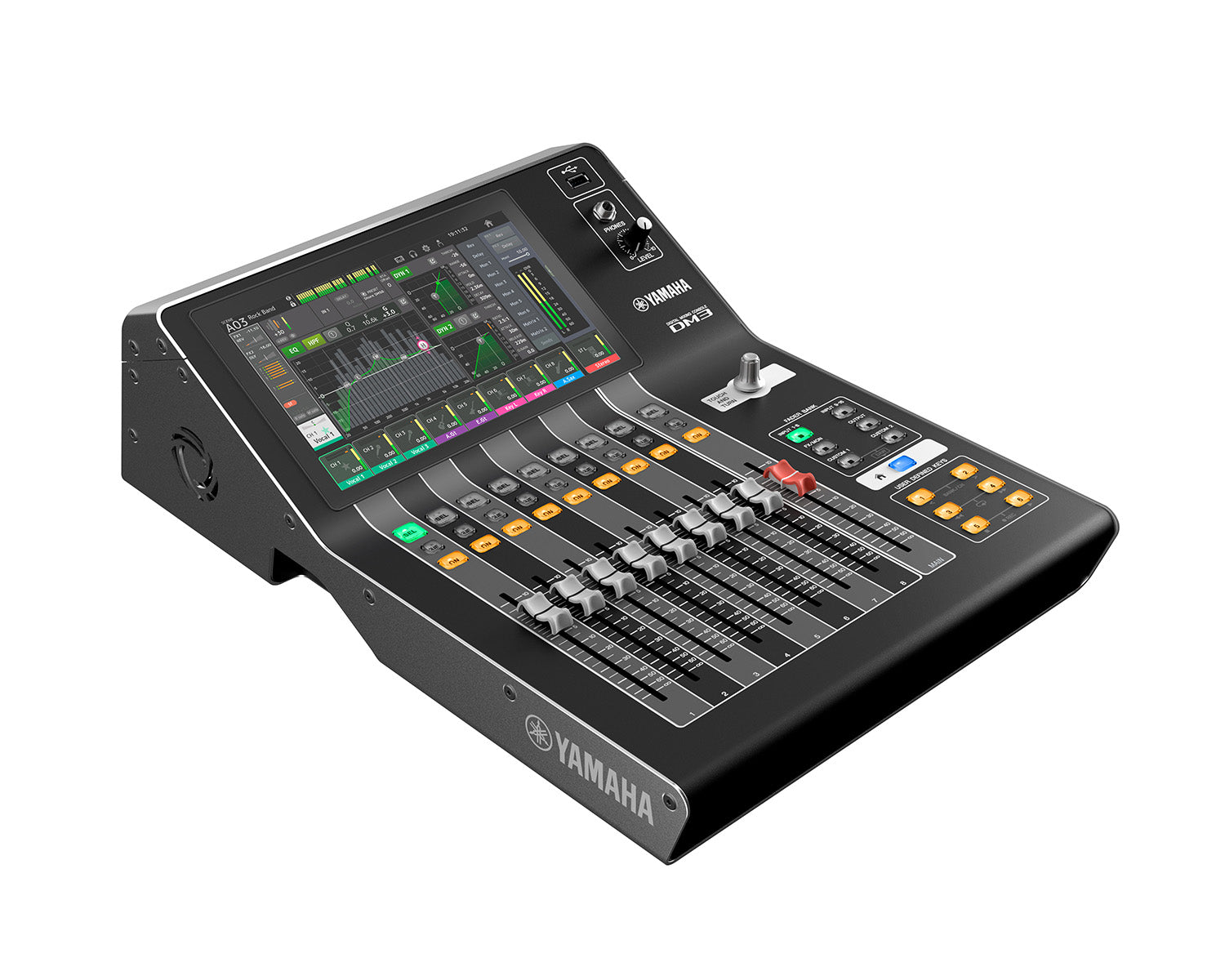

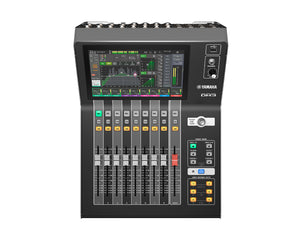

The DM3-D is a compact Dante-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The DM3 offers superb sound quality, fast and easy setup and operation, and professional-level features.

Product Features

• *B-GRADE*
• 8 + 1 fader configuration
• 9-inch multi-touch screen
• Input mixing channels: 16 mono + 1 stereo + 2 FX return
• Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
• Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
• Dante: 16 inputs, and 16 outputs
• USB: 18 inputs, and 18 outputs
• 8 DCA groups with Roll-out
• 18 Effects, and GEQ on Mix 1-6 and Stereo channels
• Sampling rate: 48kHz/96kHz

Product Specifications

Outline

• Mixing Capacity
  • Input Channels: 16 mono + 1 stereo + 2 FX return
  • Mix Buses: 6
  • Matrices: 2 (Supports input to matrix)
  • Stereo Buses: 1
  • FX Buses: 2
  • Cue Buses: 1

General specifications

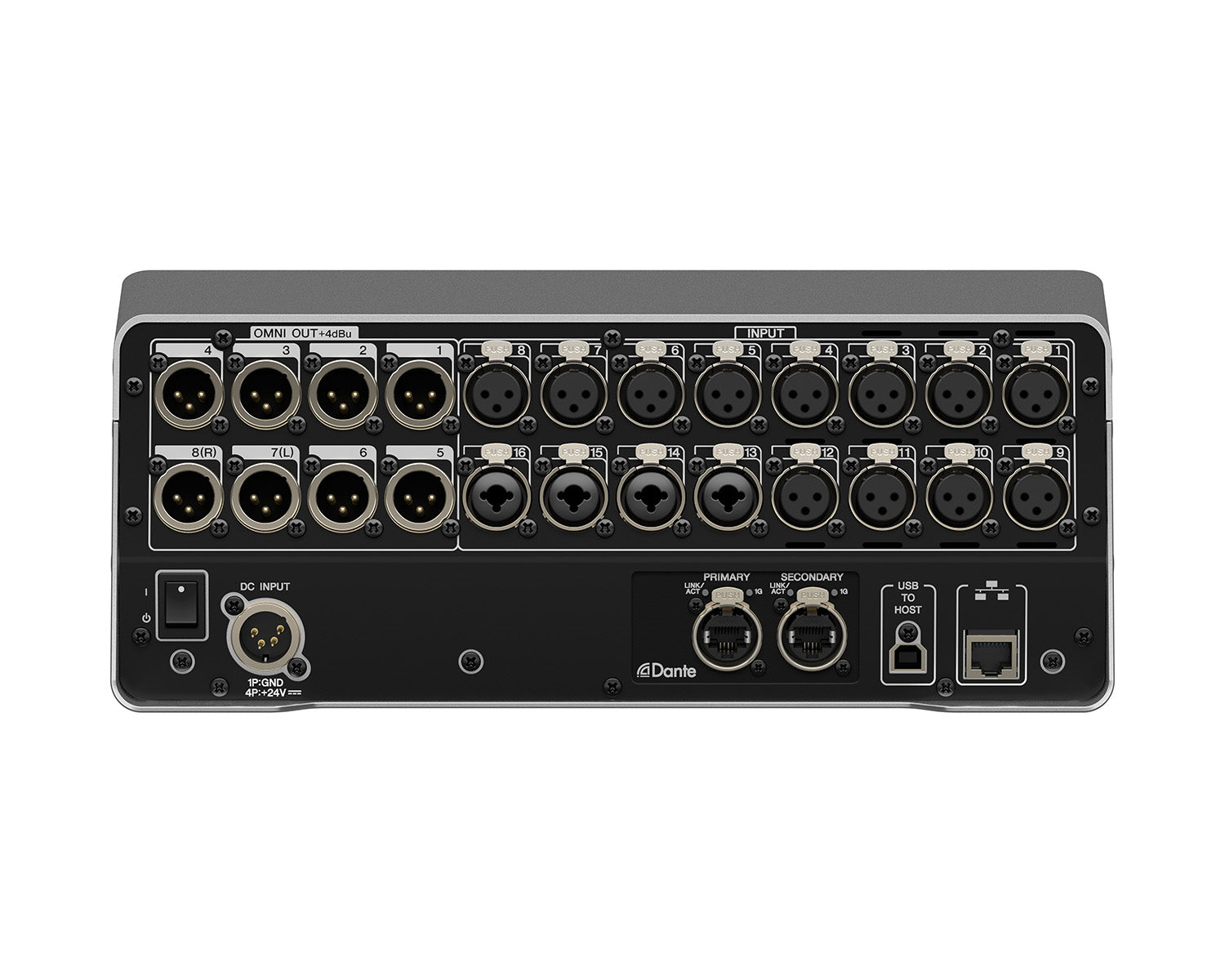

• I/O Connectors
  • Analog Input: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
  • Analog Output: 8 (XLR)
  • Dante: 2 (etherCON: Primary/Secondary)
  • Network: 1 (RJ-45)
  • USB TO HOST: 1 (USB Type-B, USB2.0)
  • USB TO DEVICE: 1 (USB Type-A)
  • Phones: 1 (TRS Phones)
  • DC: 1 (XLR 4pin, DC power IN)
• User Interface: 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder
• Recording & Playback:
  • PC/Mac: Recording 18 track, Playback 18 track
  • USB storage device: Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
• Sampling frequency rate: 96 kHz / 48 kHz
• Signal delay: Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz)
• Frequency response: +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT
• Total harmonic distortion: Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min
• Hum & noise level:
  • Equivalent input noise: -126 dBu typ., Input Gain= Max.
  • Residual output noise: -84 dBu, ST main off
• Dynamic range: 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.
• Crosstalk: -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz
• Power requirements: DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
• Power consumption: 43 W
• Dimensions:
  • W: 320 mm (12.6")
  • H: 140 mm (5.6")
  • D: 455 mm (18.0")
• Net weight: 6.5 kg (14.3 lb)
• Operating temperature: 0 - 40 °C
• Storage temperature: -20 - 60 °C
