Audio-Technica’s System 10 Portable Camera-Mount is a digital wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality. Featuring a compact design, System 10 Portable Camera-Mount is available in handheld, lavalier and body-pack configurations. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 Portable Camera-Mount offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues.

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

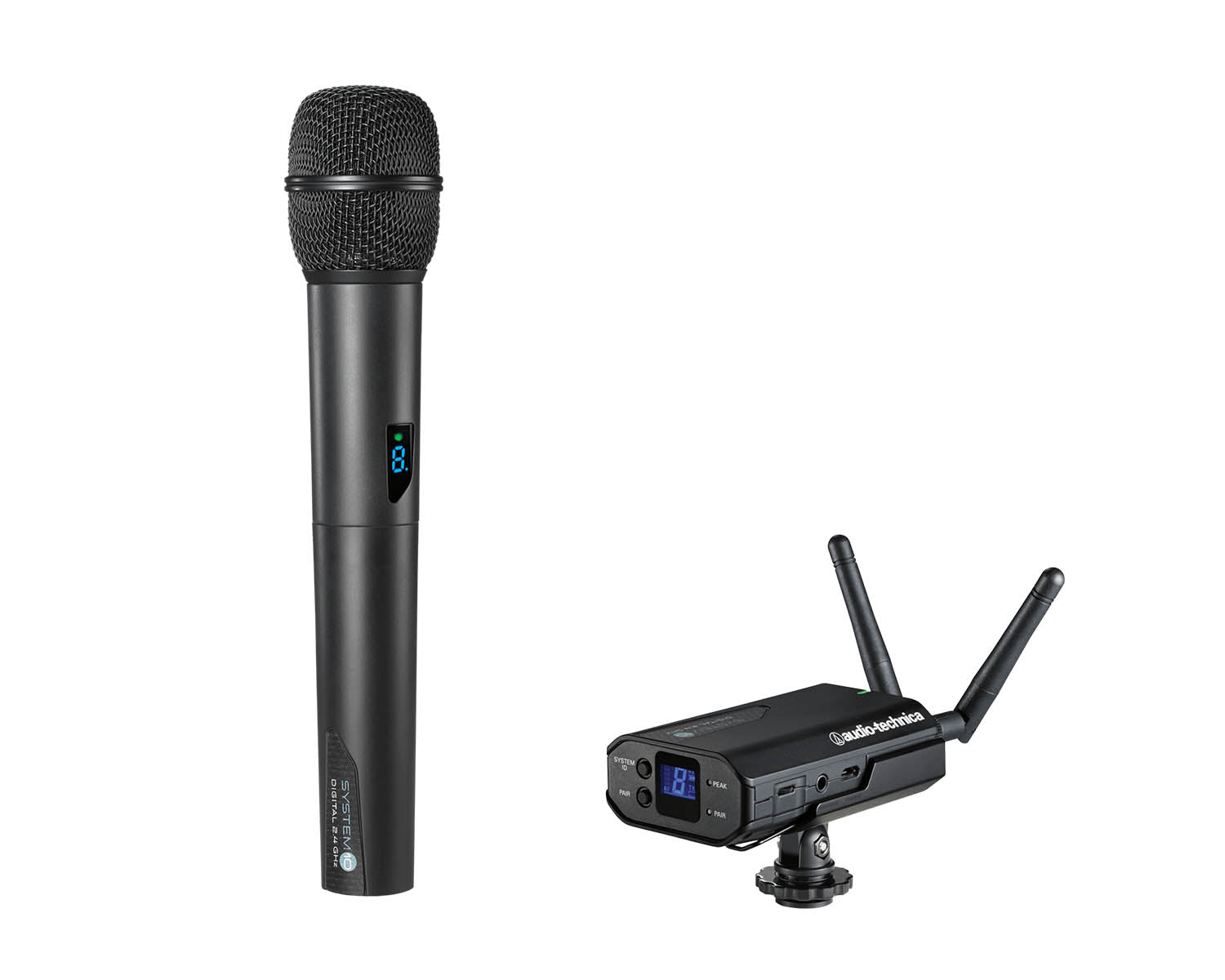

Each System 10 professional digital wireless system includes a receiver and camera shoe mount, and either a body-pack transmitter or a handheld microphone/transmitter.

Because System 10 packaging is designed to hold all versions of the system, some compartments in the carton may be intentionally left empty.

The ATW-R1700 receiver includes a switching power supply that automatically adapts to changes in mains voltage.

The versatile ATW-T1001 UniPak® body-pack transmitter has both a highimpedance input for instruments, and a low-impedance input with bias connection for use with dynamic and electret condenser microphones. The ATW-T1002 handheld transmitter features a unidirectional dynamic microphone element.

Both the body-pack and handheld transmitters use internal AA batteries and have Power/Mute switches and input Trim (level) adjustments.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance.
• Operates in the 2.4 GHz range – completely free from TV interference.
• Ultra compact receiver size with multiple mounting options.
• Selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices.
• Internal rechargeable 12-hr battery.
• Separate headphone port and volume control for local audio monitoring.
• Multi-pairing function to link a single receiver with up to eight body-pack or handheld transmitters.
• Three levels of diversity assurance: frequency, time & space.
• Automatic frequency selection for seamless, interference-free operation.
• Extremely easy operation with instantaneous channel selection, sync and setup.
• Receiver and transmitter battery level displays.
• Removable antennas.
• Camera shoe mount.

Product Specifications

OVERALL SYSTEM

• Operating Frequencies: 2.4 GHz ISM band
• Dynamic Range: > 109 dB (A-weighted), typical
• Total Harmonic Distortion: < 0.05% typical
• Operating Range: 30 m typical
• Operating Temp. Range: 0° Cto +40° C
• Battery Performance: maybe reduced at very low temperatures
• Frequency Response: 20 Hz to 20 kHz Depending on microphone type

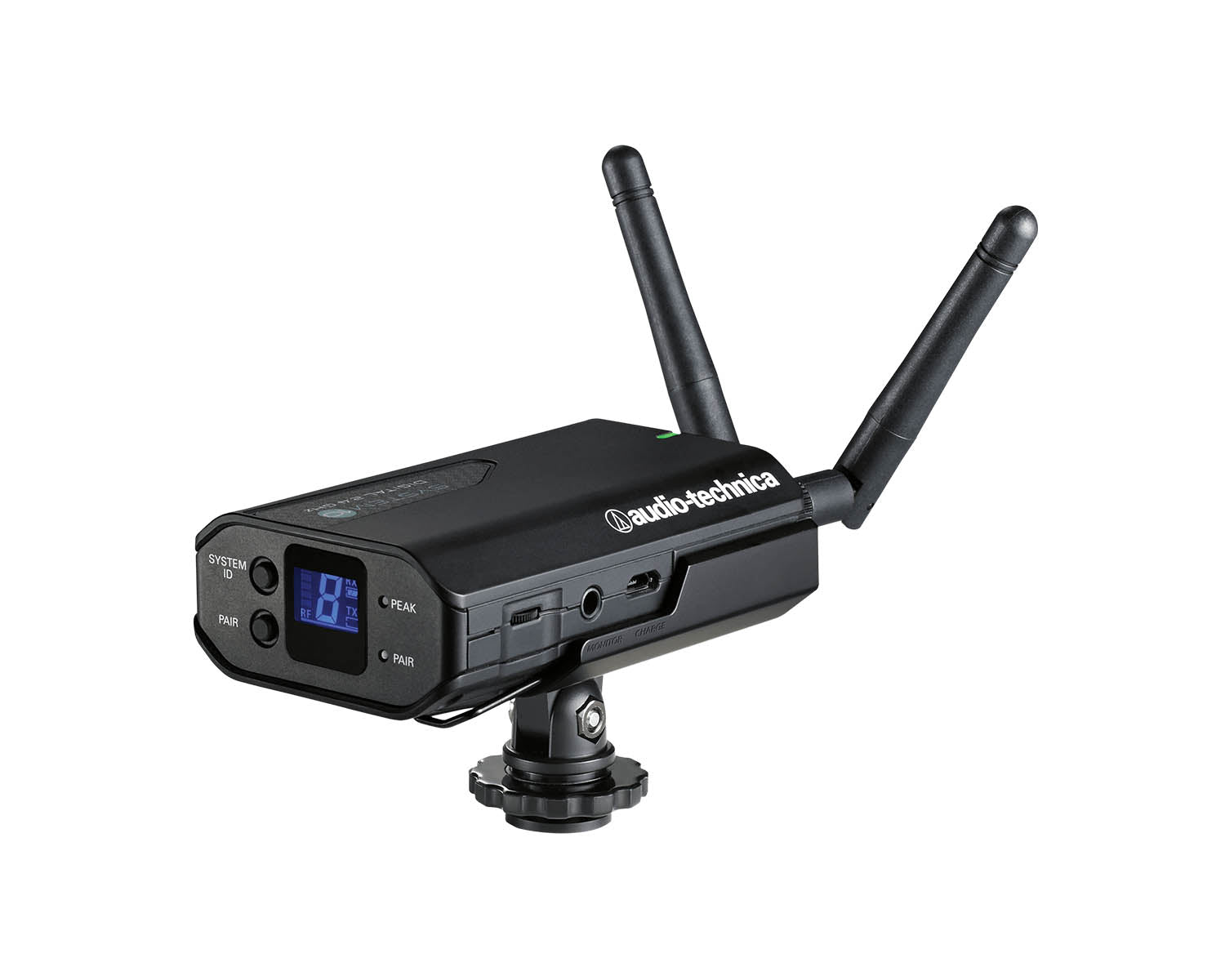

RECEIVER SPECIFICATIONS

• Receiving System: Diversity (frequency/time/space)
• Maximum Output Level: 3.5 mm (1/8”), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
• Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
• Battery: Internal Battery: 3.7V rechargeable Li-ion battery
• Battery Life: 12 hours
• Battery Charging Time: 4 hours 30 minutes (Depending on environmental conditions)
• Charging Temp. Range: 5° C to +35° C
• Dimensions: 56,0 mm W x 91,4 mm H x 27,8 mm D
• Net Weight: 105 grams
• Accessories Included: Two antennas, camera shoe mount, USB cable, AC adapter (USB-type); 3.5 mm (1/8”) stereo cable

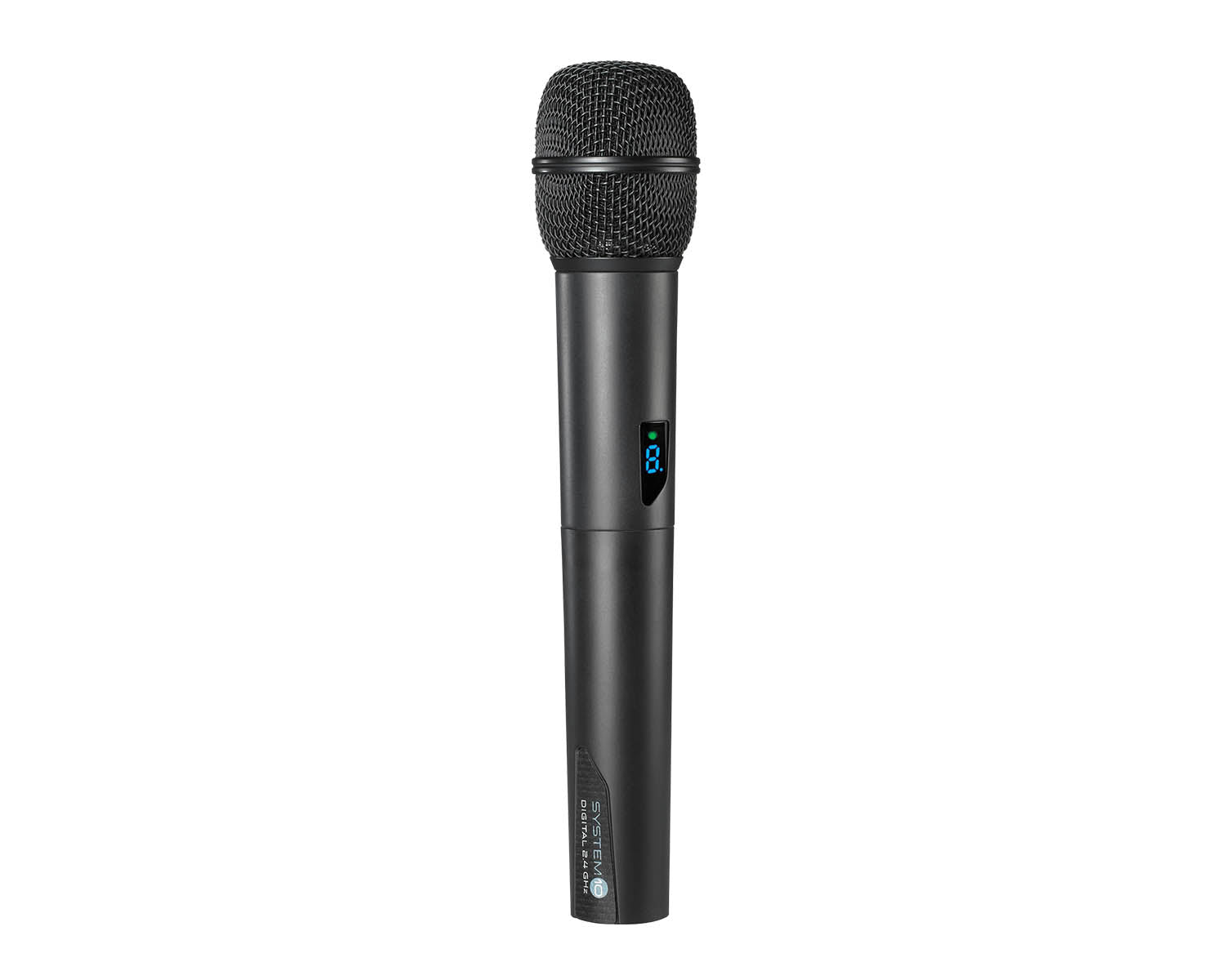

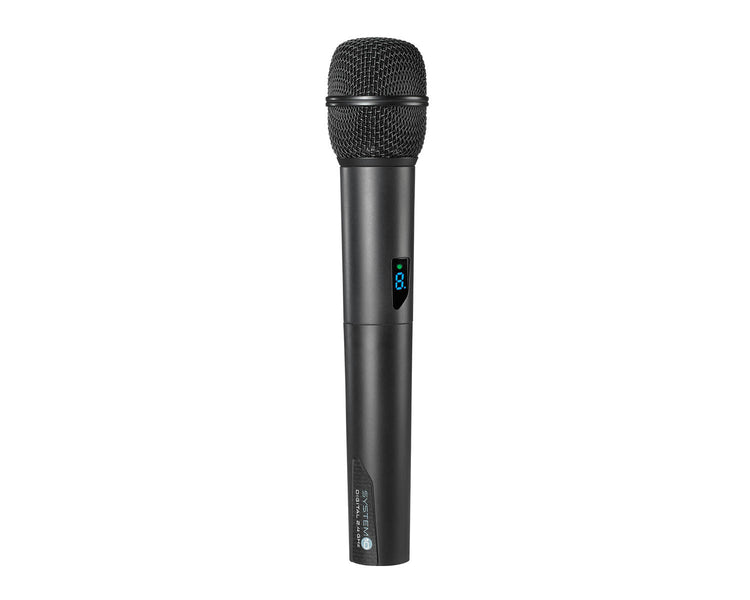

HANDHELD TRANSMITTER

• RF Power Output: 10 mW
• Spurious Emissions: Following federal and national regulations
• Batteries: Two 1.5V AA not included
• Battery Life: >7 hours (alkaline) (Depending on battery type and use pattern)
• Dimensions: 254.8 mm long, 50.0 mm diameter
• Net Weight: 280 grams (without batteries)
• Accessory Included: AT8456a Quiet-Flex™ stand clamp

What's in the Box?

• ATW-R1700 receiver
• 2x antennas
• camera shoe mount
• USB cable
• AC adapter (USB-type)

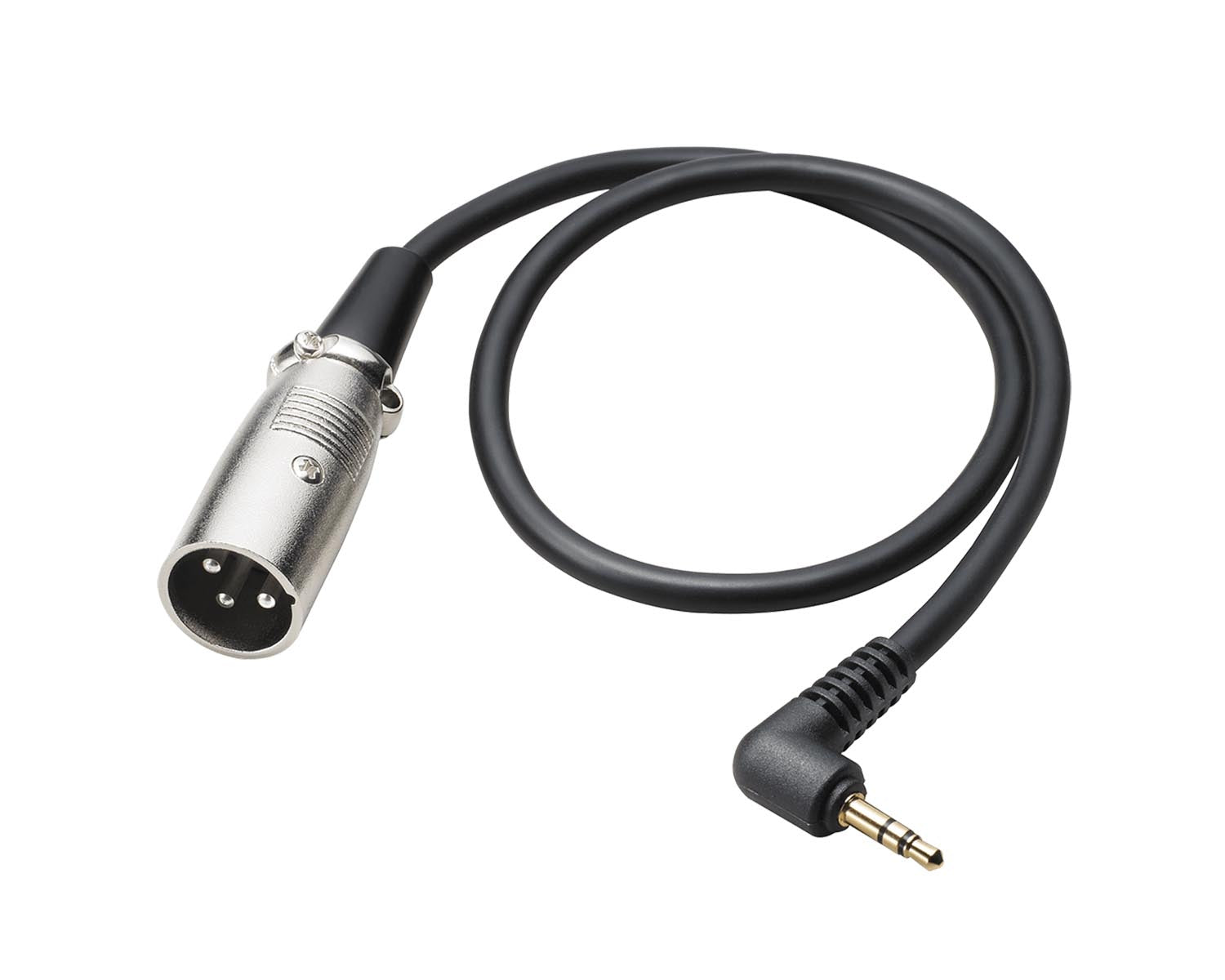

• AT8350 3.5mm connector to XLR connector cable
• AT8456a Quiet-Flex™ stand clamp
