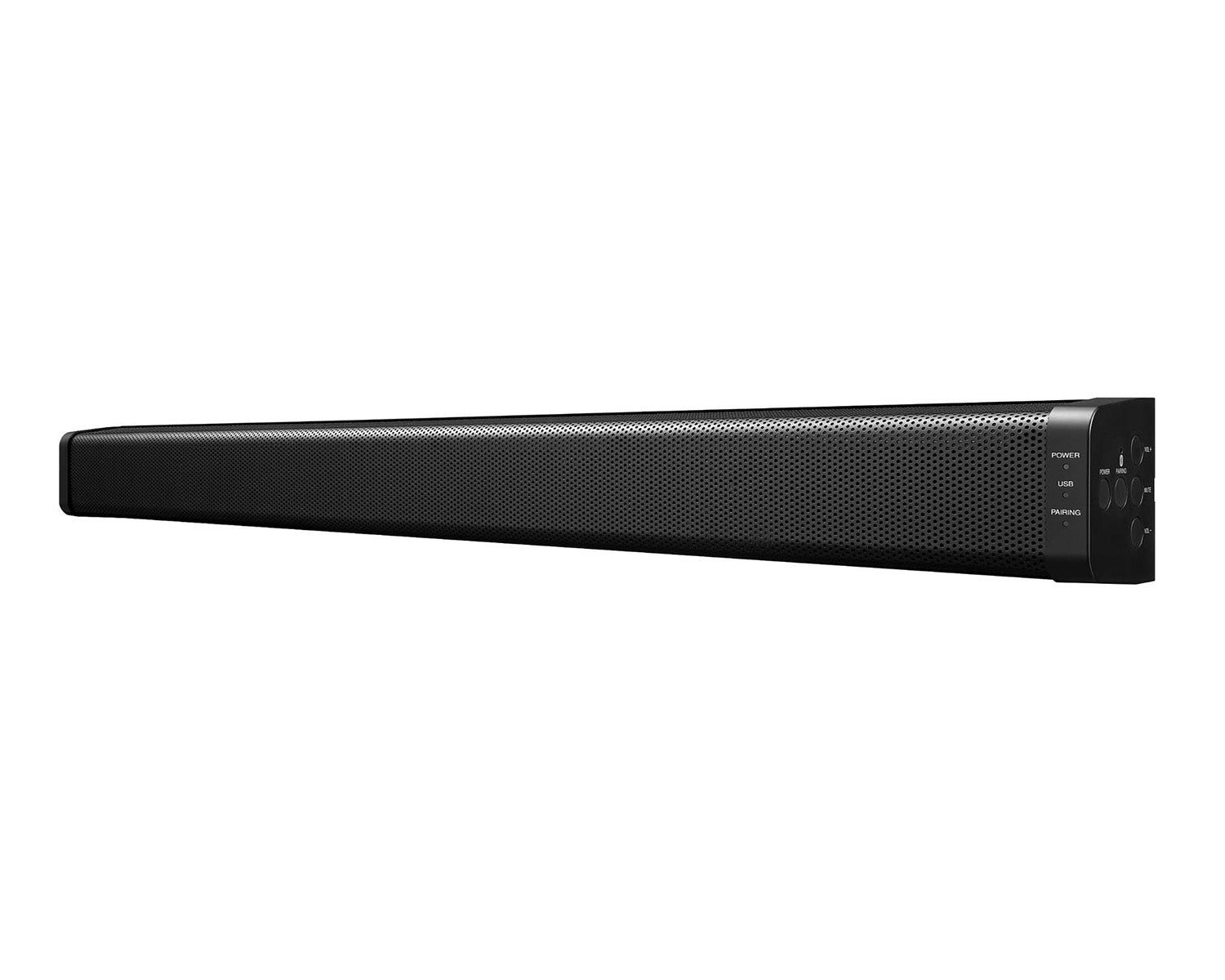

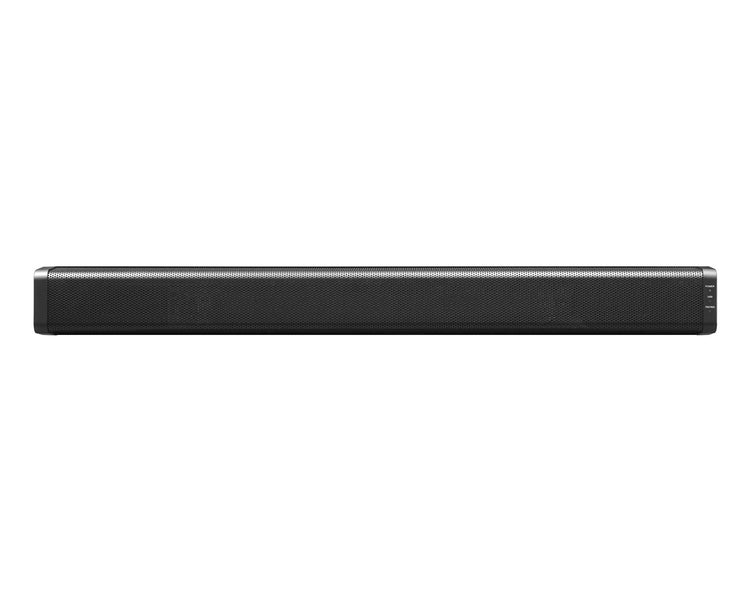

The AM-CF1 is an Audio Collaboration System that will change your perception of web conferences. Imagine you are in a team conference and everyone gets clearly heard across different locations - no matter how passionately you discuss your ideas. The AM-CF1 with its integrated microphone array and soundbar turns any web conference in a natural conversation - clear as face-to-face. The integrated array of 8 steerable microphones automatically focuses on whoever is talking in real-time, allowing a natural conversation in web conferences.

Product Features

• TOA’s original beam forming array microphone technology offers ideal sound recording
• High quality audio supports natural conversation in huddle rooms
• Easily connectable via USB for a PC-based web conference and for USB web-camera
• Bluetooth® interface allows attendees on the public phone line

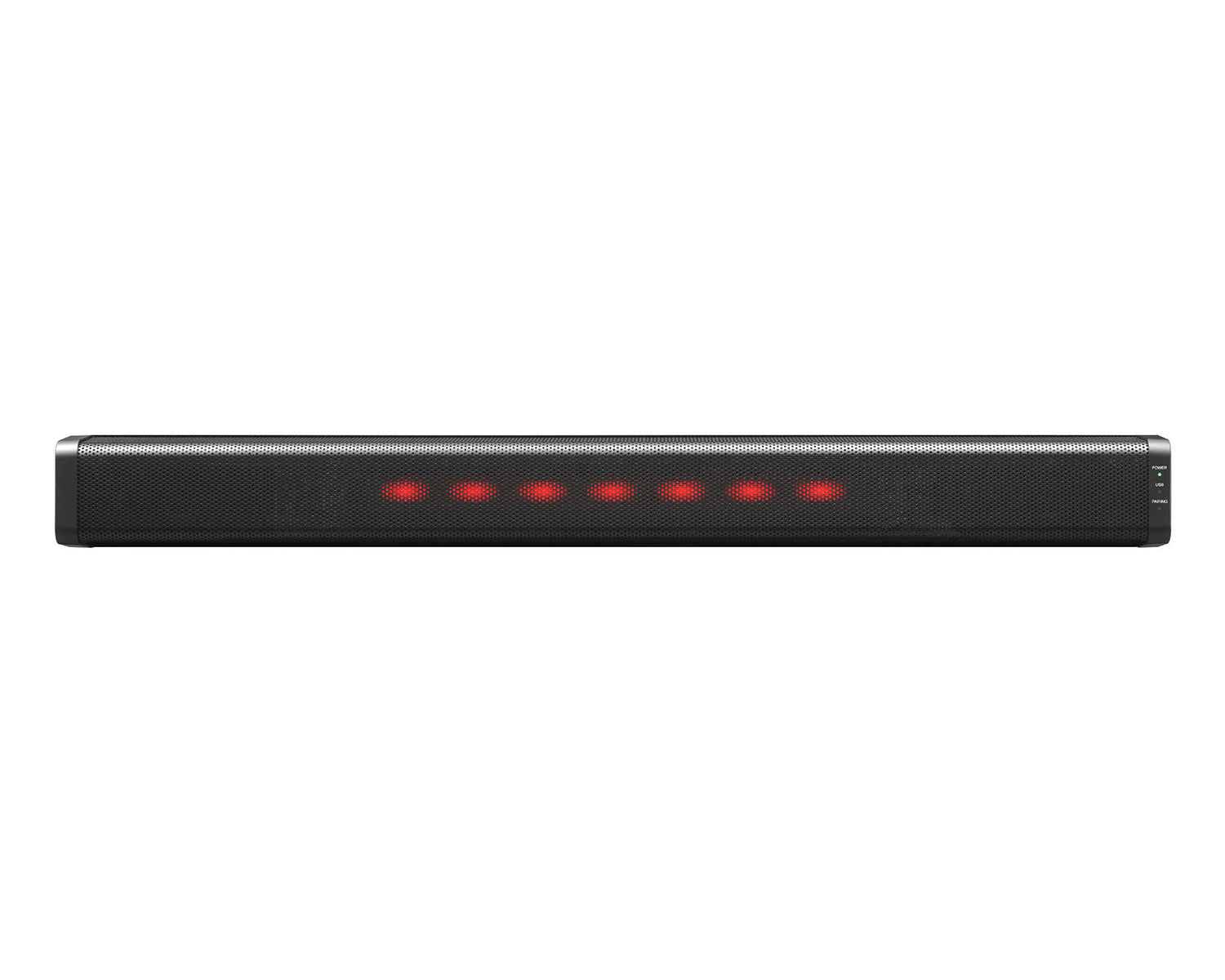

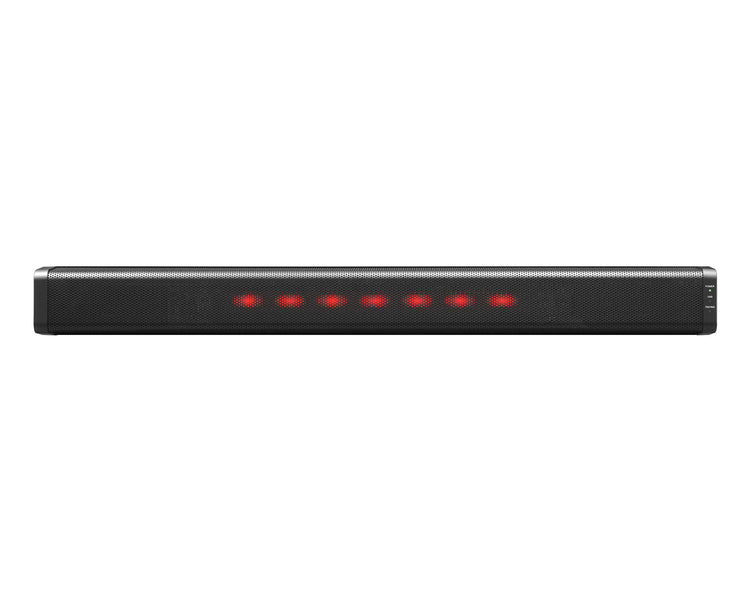

• LED light tells your voice is now being surely collected and delivered to remote partner
• Built-in DSP function such as Automatic Echo Cancellation and Automatic Noise Reduction
• Wall-mount installation gives more free space
• Compatible for PoE plus and power supply
• Finish: Black

Product Specifications

• Power Source: 12 V DC (supplied from the specified AC adapter) or 52 V DC (supplied from the specified PoE extender)
• Current Consumption: 3.5 A or less
• Input:
  • USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1, 3.0 type-B port
  • Bluetooth: 2 channels (A2DP1.3 (stereo), HPF1.6)
  • Codec: 1 channel, −10 dB*1, 10 kΩ, unbalanced, RCA pin jack
  • AUX: Stereo 1 channel, −10 dB*1, 10 kΩ, unbalanced, RCA pin jack
• Output:
  • USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1, 3.0 type-B port
  • Bluetooth: 1 channel (HPF1.6)
  • Codec: 1 channel, −10 dB*1, 600 Ω, unbalanced, RCA pin jack
  • AUX: Stereo 1 channel, 4 dB*2, 600 Ω, electronically-balanced, removable terminal block (6 pins)
  • Internal speaker: 2-way (woofer × 2, tweeter × 1) x 2, 10 W x 2
• USB Hub Port: USB 3.0/USB 2.0/USB 1.1, type-A port
• Control Input: 2 channels, no-voltage make contact input, open voltage: 12 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins)
• Control Output: 2 channels, relay contact output, withstand voltage: 30 V DC, control current: max. 300 mA, removable terminal block (6 pins)
• Network I/F: 10BASE-T/100BASE-TX, RJ-45
• Microphone: Unidirectional electret condenser microphone
• Frequency Response: 20 Hz – 20 kHz (AUX IN – AUX OUT)
• User Controls: Power switch, Bluetooth pairing switch, Mute switch, Volume Up/Down switch
• Indicators:
  • Power indicator (blue/green/yellow/red), USB connection indicator (green/blue), Bluetooth indicator (blue),
  • Multifunction indicator (green/red)
• Operating Temperature: 0 – 40˚C (32 – 104˚F)
• Operating Humidity: 90% RH or less (no condensation)
• Finish:
• Body: Aluminium, black (RAL 9005 equivalent), 30% glossy
• Punched net: Surface-treated steel plate, black (RAL 9005 equivalent), 30% glossy
• Side cover: ABS resin, black (RAL 9005 equivalent)
• Dimensions: 800 (w) x 83.2 (h) x 85.8 (d) mm (31.5" x 3.28" x 3.38")
• Weight: 4.6 kg (10.14 lb)

What's in the Box?

• 1 x AC adapter (DC cord length: 1 m or 3.28 ft)
• 1 x AC Power cord (2 m or 6.56 ft)
• 1 x USB cable (3 m or 9.84 ft)
• 2 x Removable terminal plug (6 pins)
• 1 x Wall mounting bracket (preinstalled on the unit)
• 1 x Hex wrench (M3)
